Summary
- Rated Speed: 9.8r/min
- Max Digging Radius:6750mm
- Machine Weight:25870Kg
- Maximum Digging Depth:6960mm
- Maximum Digging Height:9595mm
- Bucket capacity:1.2m³
- Operating Weight:25870Kg
- Model Number:XE250E
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:25870.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

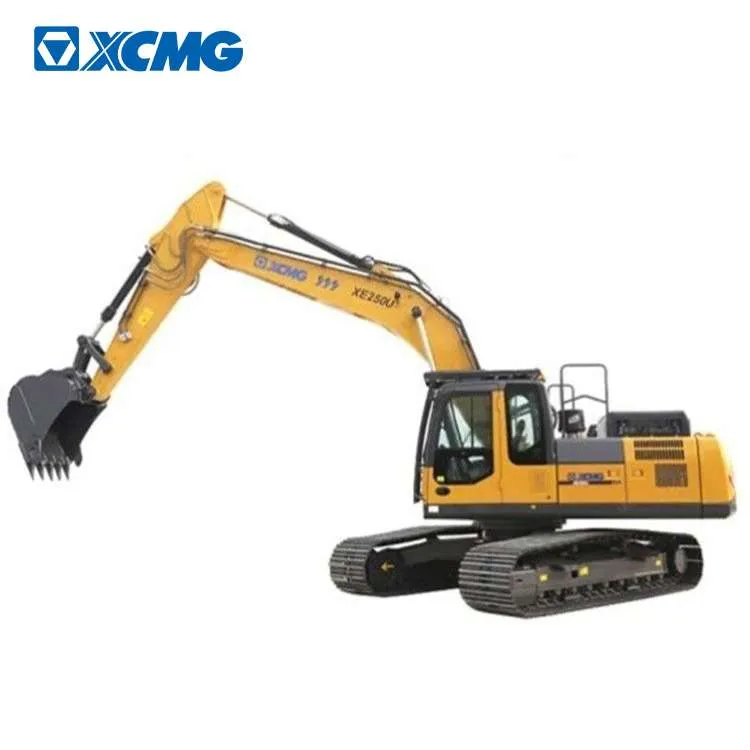

XCMG Official 25 Ton Crawler Excavator XE250E.
XCMG Crawler Excavator XE250E adopts an efficient hydraulic system, supplemented by a new large-diameter multi-way control valve. The spool is further optimized to reduce the internal pressure loss of the channel, improve handling and improve the efficiency of the composite operation.
High-performance silicone oil damper for improved comfort; panoramic sunroof design with a wider field of view and centralized operation buttons for a full upgrade of the driving experience. The full-size heavy-duty reinforced chassis structure, combined with the reinforced structural working device design, ensures the stability of the whole machine while satisfying the powerful digging force.
XCMG Crawler Excavator XE250E is widely used in small and medium-sized earth and stone works, municipal construction, highway and bridge construction, excavation of ditches, and farmland water conservancy construction.
|
Sales model |
Unit |
XE250E |
|
|
Operating weight |
Kg |
25870 |
|
|
Bucket capacity |
m³ |
1.2 |
|
|
Engine |
Model |
/ |
QSB6.7 |
|
No. of cylinders |
/ |
6 |
|
|
Rated power |
kw/rpm |
142/2000 |
|
|
Maximum torque/speed |
N.m/rpm |
803/1500 |
|
|
Displacement |
L |
6.7 |
|
|
Main performance |
Travel speed |
km/h |
6.0/4.1 |
|
Swing speed |
r/min |
11.6 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
56.7 |
|
|
Bucket digging force |
kN |
176 |
|
|
Arm digging force |
kN |
125 |
|
|
Maximum tractive force |
kN |
188.6 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
2×260 |
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Swing system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
400 |
|
Hydraulic tank capacity |
L |
256 |
|
|
Engine oil capacity |
L |
24 |
|
|
Appearance size |
A Overall length |
mm |
10220 |
|
B Overall width |
mm |
2990 |
|
|
C Overall height |
mm |
3180 |
|
|
D Width of platform |
mm |
2830 |
|
|
E Track length |
mm |
4640 |
|
|
F Overall width of chassis |
mm |
2990 |
|
|
G Track width |
mm |
600 |
|
|
H Wheel base of crawler |
mm |
3842 |
|
|
I Track gauge |
mm |
2390 |
|
|
J Counterweight clearance |
mm |
1050 |
|
|
K Min. ground clearance |
mm |
485 |
|
|
L Min. tail swing radius |
mm |
2985 |
|
|
M Track height |
mm |
935 |
|
|
Working scope |
A Max. digging height |
mm |
9595 |
|
B Max. dumping height |
mm |
6745 |
|
|
C Max. digging depth |
mm |
6960 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6750 |
|
|
E Max. vertical wall digging depth |
mm |
5545 |
|
|
F Max. digging radius |
mm |
6750 |
|
|
G Min. swing radius |
mm |
3850 |
|
|
Standard |
Length of boom |
mm |
6000 |
|
Length of arm |
mm |
2960 |
|
|
Bucket capacity |
m³ |
1.2
|
|
