Summary
- Dimension(L*W*H):9900×2525×3850MM
- Weight:23000KG
- Power(W):225000
- Model Number:HB37V
- Brand Name:XCMG
- Place of Origin: Jiangsu, China
- Power Type: Diesel
- Certification: ISO9001
Specifications
- Weight:23000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Theoretical:120/80m³/h
- Reach height:36.5m
- Reach depth:24.9m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

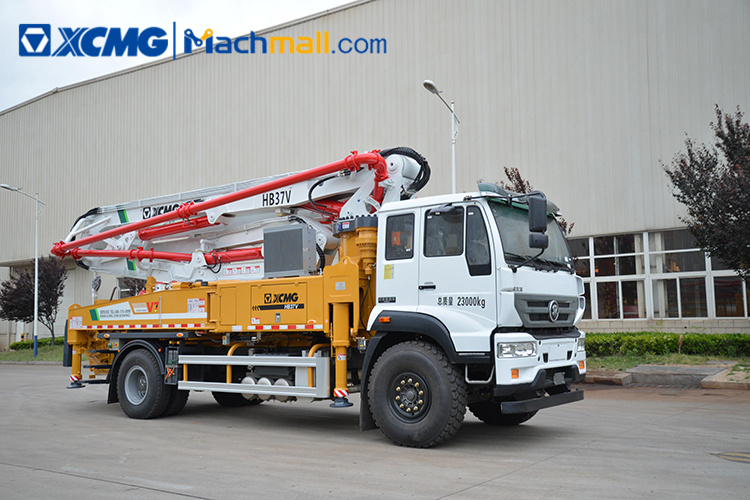

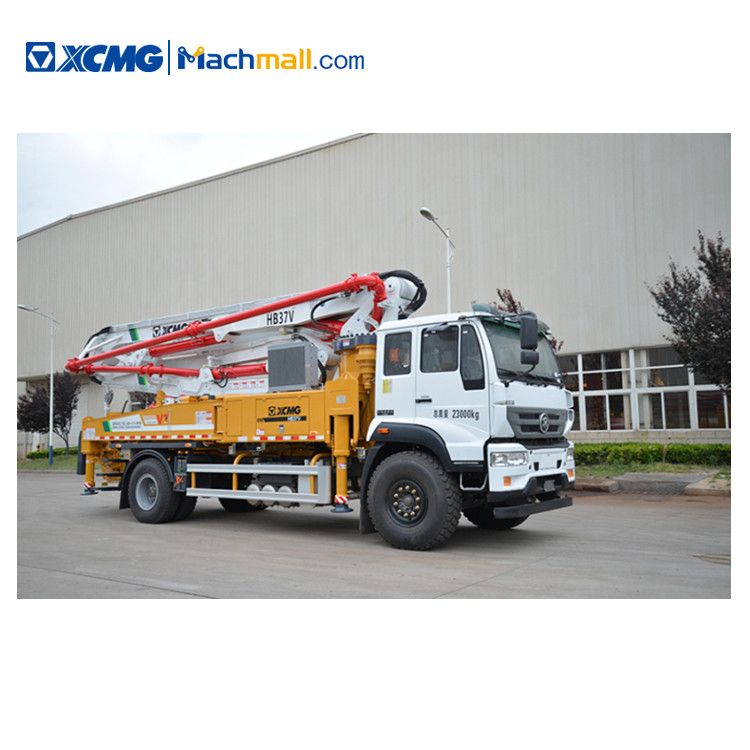

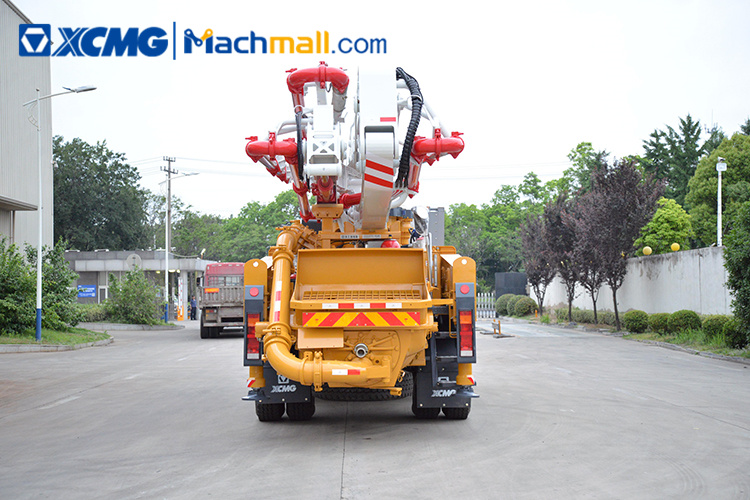

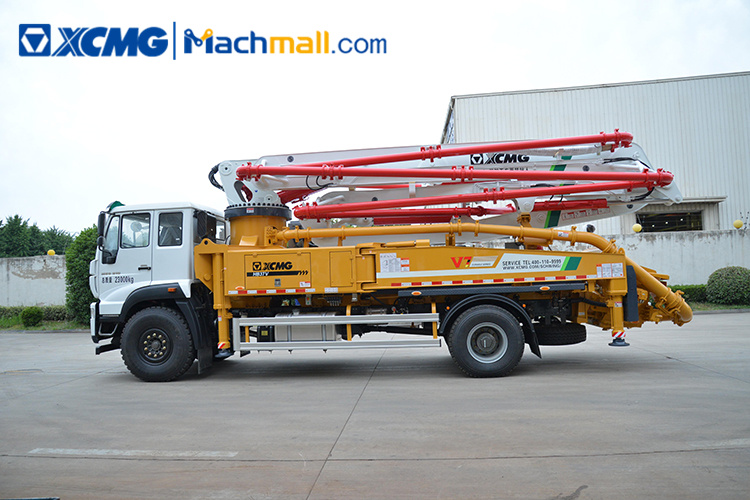

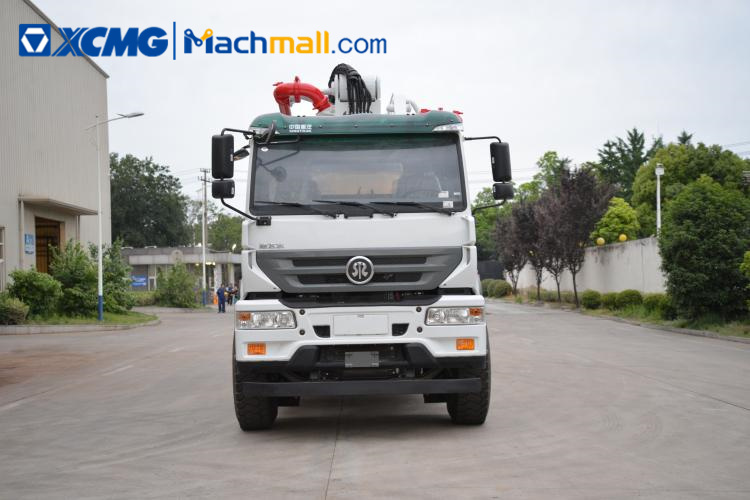

HB37V XCMG Concrete Pump with Sinotruk STR chassis.
HB37V XCMG Concrete Pump with Sinotruk STR chassis is equipped with more efficient skirt valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.
HB37V XCMG Concrete Pump with Sinotruk STR chassis adopts Sinotruk STR chassis, which complies with China 6 emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.
Advantages:
1.Operation prompt detail.
2.Hydraulic system's air suction protecton.
3.Engine overload protection.
4.Engine low-speed protection.
|
CATEGORY |
ITEM |
UNIT |
HB37V |
|
Overall |
Outline dimension |
mm |
9900×2525×3850 |
|
|
Oerall weight |
kg |
23000 |
|
|
Brand |
-- |
Sinotruk |
|
Chassis |
Model |
-- |
ZZ5231N521GE1 |
|
|
Wheelbase |
mm |
5200 |
|
|
Max.power |
kW |
225 |
|
Engine |
Emission |
-- |
ChinaV |
|
|
Theoretical |
m³/h |
120/80 |
|
Pumping system |
Concrete pumping pressure |
MPa |
8.7/13 |
|
|
Theoretical pumping times |
freq/min |
28~30/18~20 |
|
|
Delivery cylinder diameter ×stroke |
mm |
φ230×1600 |
|
Placing boom |
Reach height |
m |
36.5 |
|
|
Reach depth |
m |
24.9 |
|
|
Slewing radius |
m |
32.5 |
|
|
Slewing angle |
° |
360 |
|
Others |
ransfer tuble |
-- |
S valve |
