Summary
- Overall Dimensions:4995*2250*2470mm
- Fork Length: 1200mm
- Max Lifting Height:7m
- Rated Loading Capacity:3tons
- Type:Compact Telehandler Crane
- Model Number:XC6-3007K
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
Specifications
- Weight:6990.000kg
- Condition:New
- Moving Type:Wheel
- Power:70 kw
- Max. outreach:3600mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

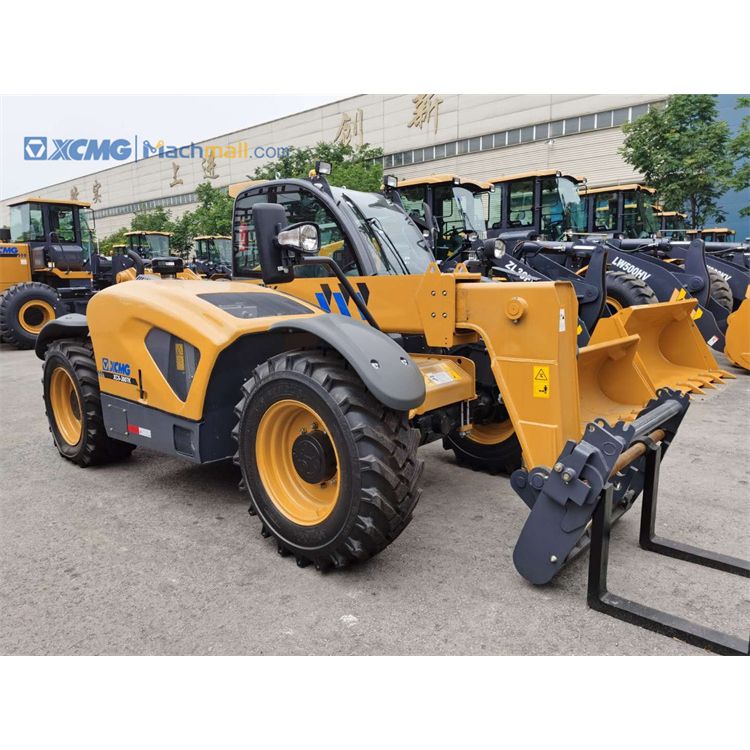

XCMG Compact Telehandler Crane with Telehandler Forklift and Bucket.
XC6 is the latest version XCMG compact telehandler Crane which features the highest operation simplicity, safety and efficiency. This product is equipped with imported engine of strong and reliable power and imported axles and transmission of stable drive.
* The 4wd compact telehandler Crane with multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* XCMG telehandler crane which features the highest operation simplicity, safety and efficiency. can be equipped with diversified attachments, including aerial platform, bucket, forklift and bale clamp, to meet the users' individual needs.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
|
Description |
Unit |
Parameter value |
|
Gross weight |
kg |
6990 |
|
Engine power |
kW |
90 |
|
Rated load |
kg |
3000 |
|
Effective load at maximum forward reach |
kg |
1250 |
|
Maximum lifting height |
mm |
6200 |
|
Maximum forward reach |
mm |
2990 |
|
Center distance of load |
mm |
500 |
|
Luffing angle |
° |
-3~65 |
|
Fork angle |
° |
-90~18 |
|
Maximum traction force |
kN |
≥55 |
|
Gradeability |
° |
≥25 |
|
Maximum traveling speed |
km/h |
40* |
|
Turning radius |
mm |
≤4020 |
|
Braking distance |
m |
≤8 |
|
Overall length |
mm |
4620 |
|
Overall width |
mm |
2355 |
|
Overall height |
mm |
2415 |
|
Wheelbase |
mm |
2850 |
|
Wheel tread |
mm |
1920 |
|
Fork length |
mm |
1000 |
|
Bale clamp diameter |
mm |
800-1800 |
