Summary
- Dimension(Long * Breadth * High):5128*3416*3120mm
- Machine Weight:18200kg
- Model Number:TY160
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO
Specifications
- weight:18200.000kg
- Condition:New
- Moving Type:Other
- Moving Type:Crawler Bulldozer
- Minimum turning radius:3100mm
- Maximum traction power:148kN
- Warranty of core components:1 Year
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

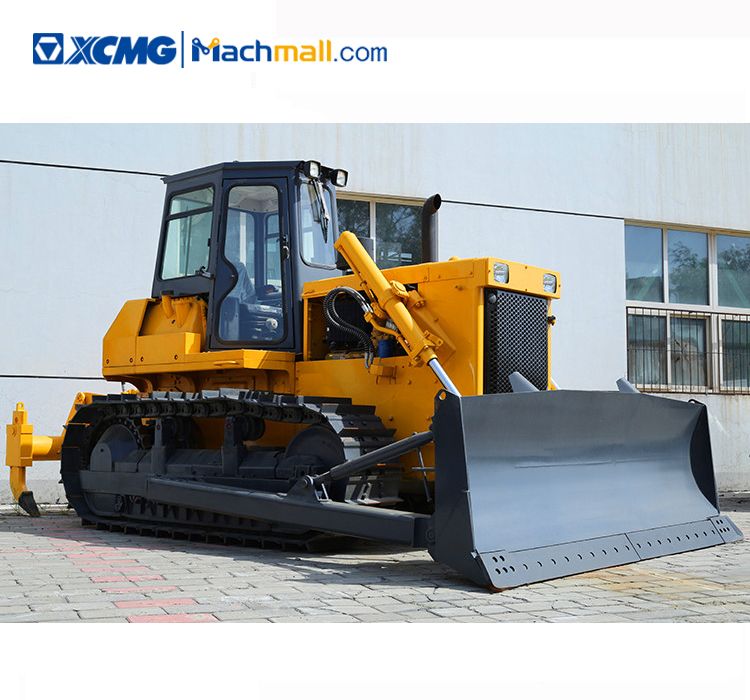

XCMG Offcial TY160 160HP Small Crawler Bulldozer.
XCMG bulldozer TY160 which has excellent power, reliability and a long service life. Through the introduction of Japanese D65A-8 bulldozer technology, at the same time absorb the advantages of D60A-8, The TY160 crawler type bulldozer has been developed by the domestic design.
XCMG Bulldozer TY160 Technical Characteristics:
* The appearance of the vehicle is based on optimization design.
* High engine power reserve, strong torque output, low fuel consumption, reliable controls.
* Hydraulically powered, automatic speed change, shift the gears without stop the vehicle.
* 3 elements, single stage and single phase torque convertor features high efficiency and capacity.
* The updated hexahedral cab features outstanding visibility and good tightness.
* Using the triangle spline and the gear of crowned teeth and tip relief in the final drive to average the loads on the trans-mission components for more stability, prolong the lifetime.
* New blade is more durable and capacious.
* Alarming & monitoring system is reliable.
* Reliable manual- operated spool valve and external mounted valve for easy maintenance.
Name | Remarks | Specifications |
Overall size of the machine(mm) | Straight shovel, traction rod | 5128×3416×3120 |
Straight shovel, three toothed soil loosen | 6215×3416×3120 | |
The use quality of the whole machine(kg) | Straight shovel, traction rod | 17100 |
Straight shovel, three toothed soil loosen | 18700 | |
Maximum traction power (kN) | 148 | |
Minimum turning radius (mm) | 3100 | |
Maximum climbing performance (°) | 30 | |
Minimum ground clearance (mm) | No crawler | 400 |
Average ground specific pressure (MPa) | 0.065 | |
Forward speed (km/h) | F1 | 3.1 |
F2 | 5.47 | |
F3 | 9.07 | |
Back speed (km/h) | R1 | 4.03 |
R2 | 7.12 | |
R3 | 11.81 | |
Tracked ground length (mm) | 2430 | |
Caterpillar center distance (mm) | 1880 | |
Production efficiency (m3/h) | 30m distance | 350 |
Engine | ||
Model | Weichai WD10G178E25 | |
type | Water cooling,straight line,four stroke,direct injection | |
The number of cylinder - bore * stroke (mm) | 6-126×130 | |
Rated power (kW) | 131 | |
Rated speed (r/min) | 1850 | |
Maximum torque (N.m/r/min) | 830/1000~1200 | |
Fuel consumption rate (g/kW.h) | ≤210 | |
Walking system | ||
type | Swing type and balance beam suspension structure | |
Pitch (mm) | 203.2 | |
Number of wheels of single side belt | 2 | |
Number of single side pulley | unilateral and 2 bilateral | 6 |
Crawler height (mm) | 60 | |
Working device | ||
Straight shovel single shovel capacity (M3) | 3.9 | |
The maximum lifting height of the blade (mm) | 1095 | |
The maximum depth of soil cutting blade (mm) | 545 | |
The maximum tilt blade height (mm) | 860 | |
Type of soil looser | Three teeth | |
Three tooth looser tooth distance (mm) | 950 | |
Three tooth looser | Soil depth (mm) | 572 |
Elevation (mm) | 702 | |
The three tooth scarifier weight (kg) | 1621 |
