Summary
- Rated Load:0.3m3
- Dimension(Long*Breadth*High):8000*2310*3424mm
- Type:Backhoe loader
- Place of Origin:Xuzhou, China
- Model Number:WZ30-25
- Brand Name:XCMG
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Wheel
- Rated capacity of backhoe bucket:0.3m3
- Rated capacity of loader bucket:1m3
- Rated power:73kw
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

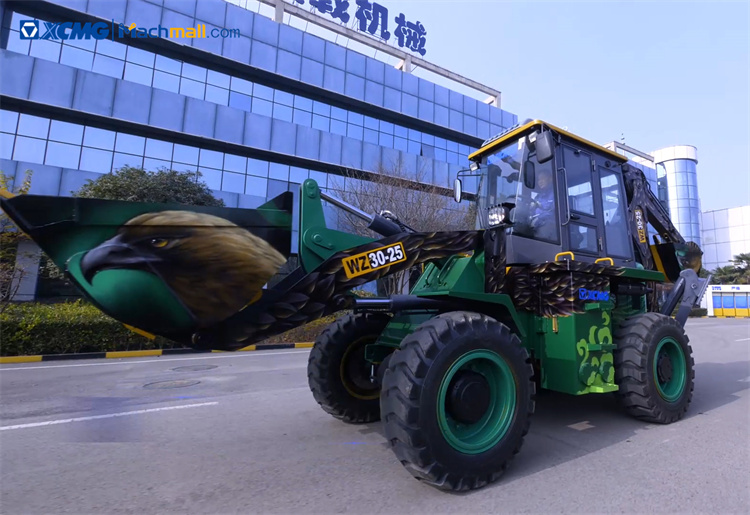

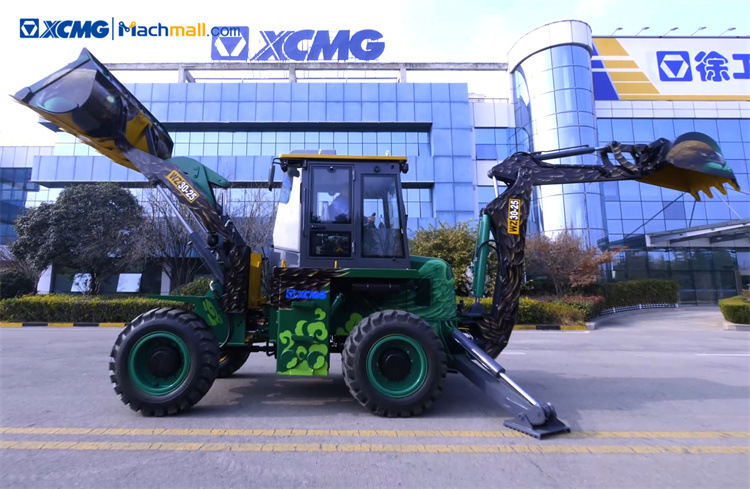

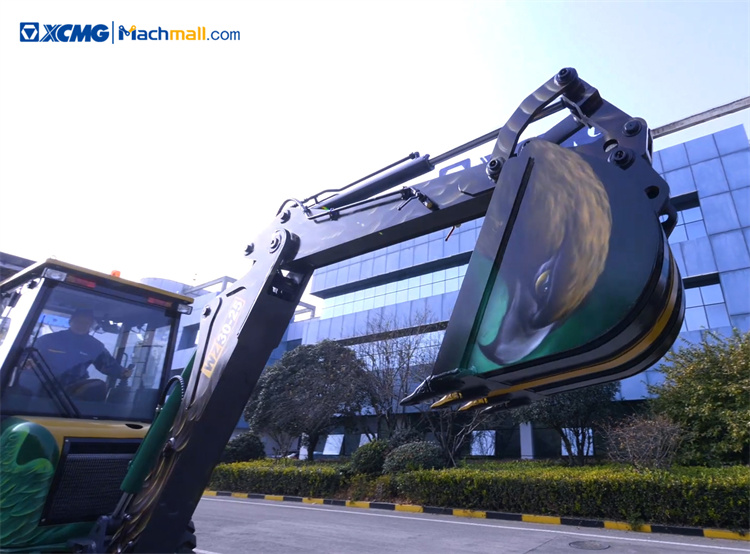

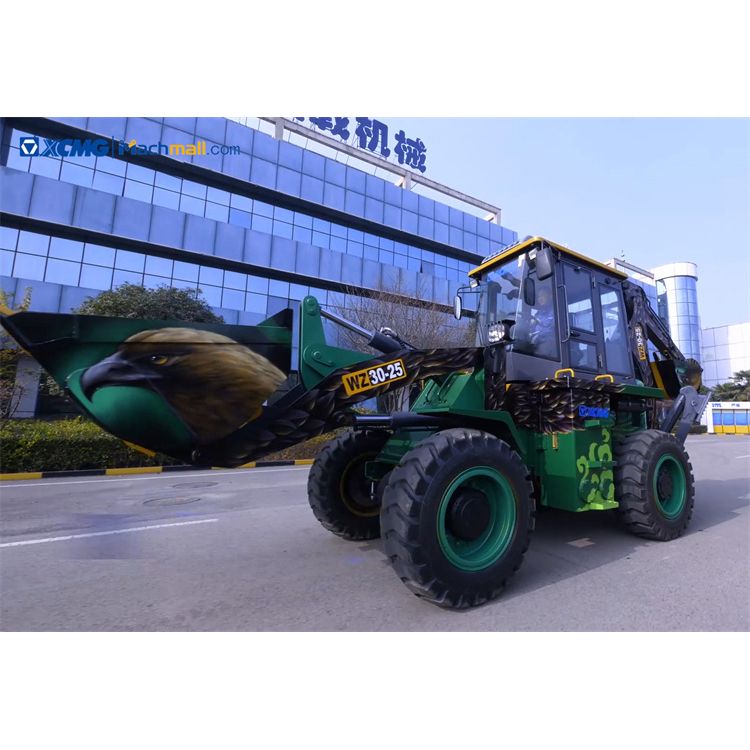

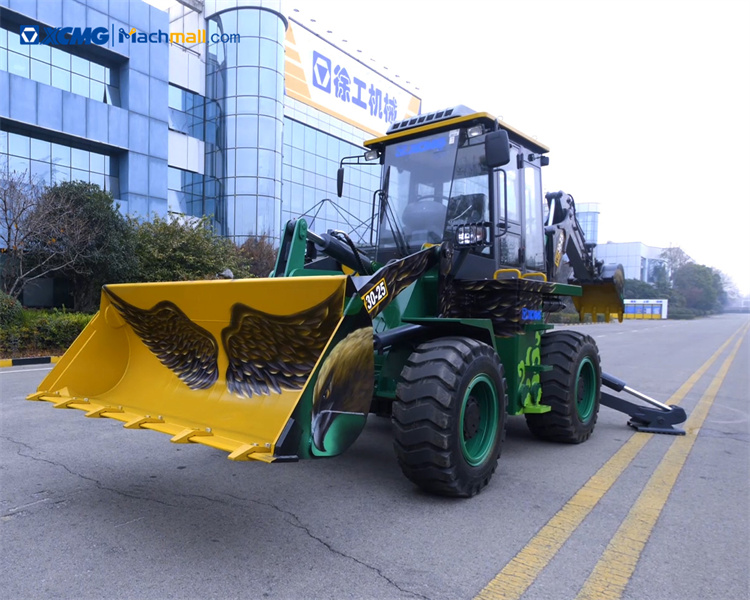

XCMG Backhoe Loader with Customized Chinese Style Paint.

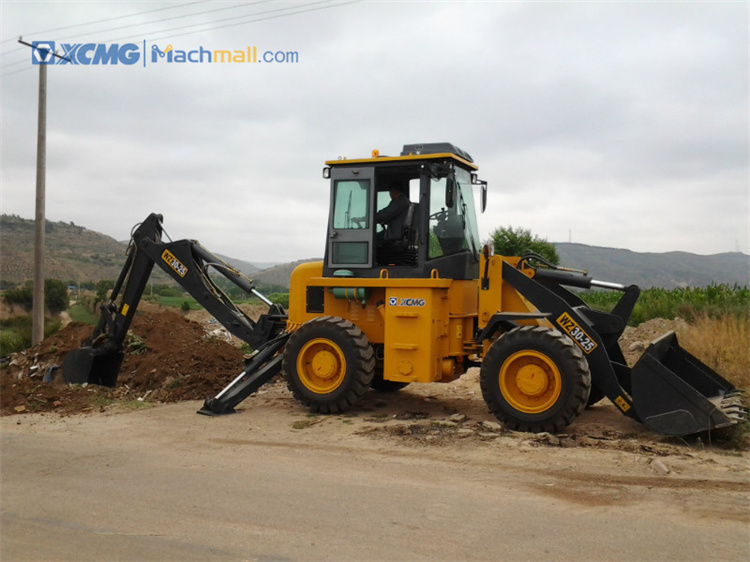

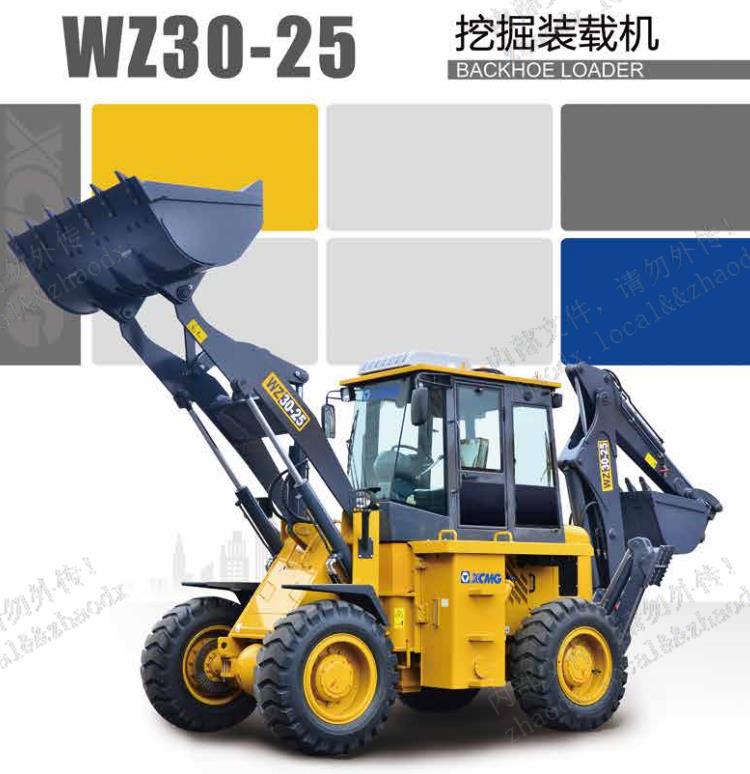

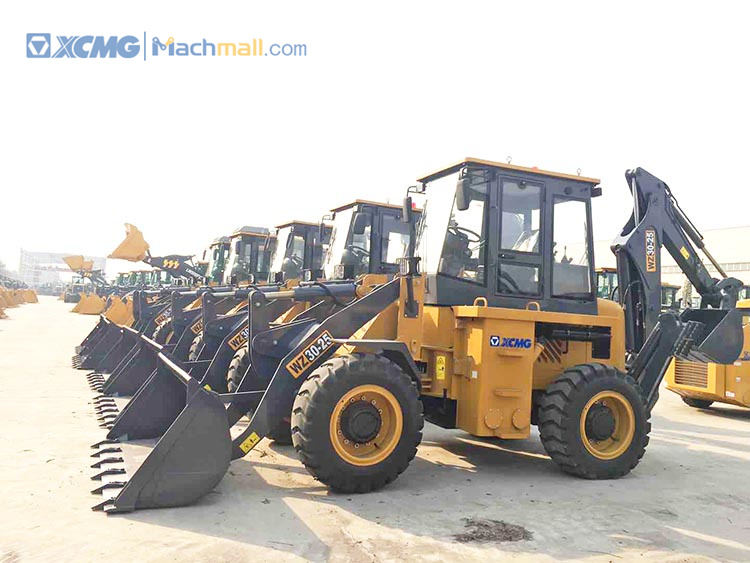

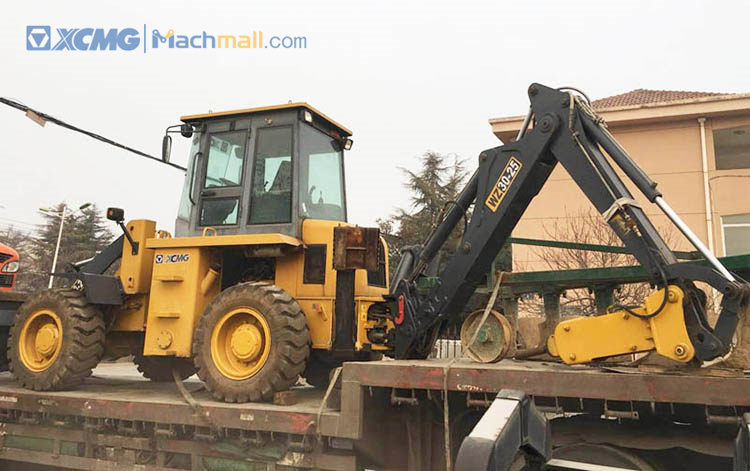

XCMG WZ30-25 is a new multi-function backhoe loader which gathering the loading and excavating and adopts four wheel drive.
WZ30-25 backhoe loader is extensively used in the farml developments, piping builds, the cable builds, park virescence and roadworks etc.
1. The Yuchai engine
Low noise, low exhaust gas, low fuel-consumption, green environmental protection, driving motive, good reliability.
2. Humanization designs
The mache take the lead in pilot control, manipulating is portable and orientation is exact, it may do multipul, work efficiency is high.Optional air condition, low noise, safe and comfortable.
3. Optimized load work device
Special middle placed backhoe and wing-spread support leg. It has stronger stability than other kind backhoe loader when excavating and breaking. The work range is larger and the work efficiency is higher.
4. Optional attachments:
More than 10 kinds of attachments such as: 4 in 1 bucket, hammers, snow plough, augers.
|
Description |
Unit |
Parameter value |
|
|
Digging device |
Rated capacity of backhoe bucket |
m3 |
0.3 |
|
Max. digging radius |
mm |
5433 |
|
|
Max. digging depth |
mm |
4137 |
|
|
System pressure |
mpa |
18 |
|
|
Loading device |
Rated capacity of loader bucket |
m3 |
1 |
|
Rated working load |
kg |
2500 |
|
|
Max. dumping height |
mm |
2650 |
|
|
Max. dumping distance |
mm |
930 |
|
|
System pressure |
MPa |
18 |
|
|
Lifting time |
s |
≤5 |
|
|
Total cycle time |
s |
≤10 |
|
|
|
Max.steering angle |
° |
±35 |
|
Max.steering angle of dig working device |
° |
±85 |
|
|
Traceing speed I / II / III / IV |
km/h |
0-6.2 / 0-12 / 0-20 / 0-30 |
|
|
Back I / II speed |
km/h |
0-8 / 0-28.5 |
|
|
Diesel Model |
|
YC4A110-T310 / YC41390-T20 |
|
|
Modality |
|
4-stroke water-cooled inline type / 4-stroke water-cooled inline type |
|
|
Rated power |
kW |
73.5 (Turbocharged)/65 |
|
|
Rated speed |
r/min |
2200 |
|
|
Wheel base |
mm |
2600 |
|
|
Tread |
mm |
1700 |
|
|
Tires |
|
16/70-24 |
|
|
Max.digging depth |
mm |
4400 |
|
|
Max.digging radium |
mm |
5471 |
|
|
Overall dimensions(L*W*H) |
mm |
8000*2310*3424 |
|
|
Operating weight |
kg |
9500 |
|
|
Driving model |
/ |
4*4 |
|
