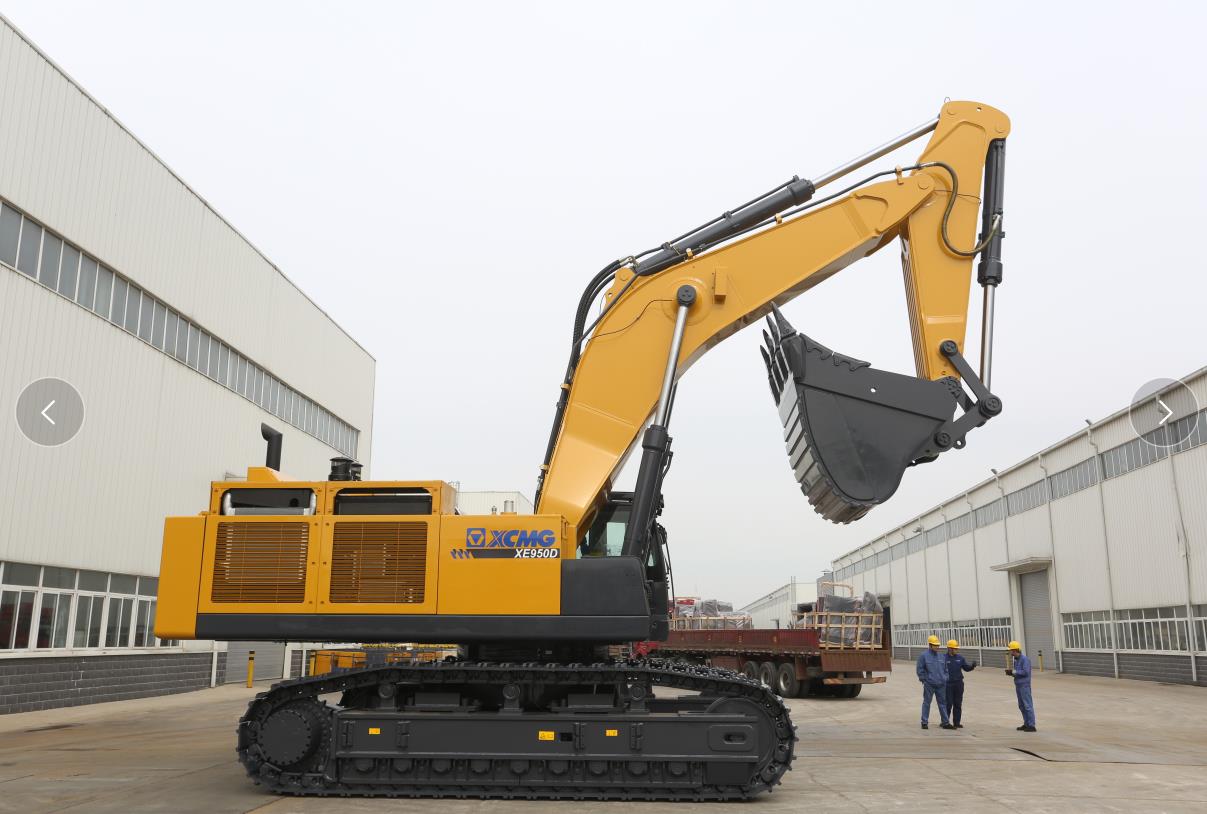

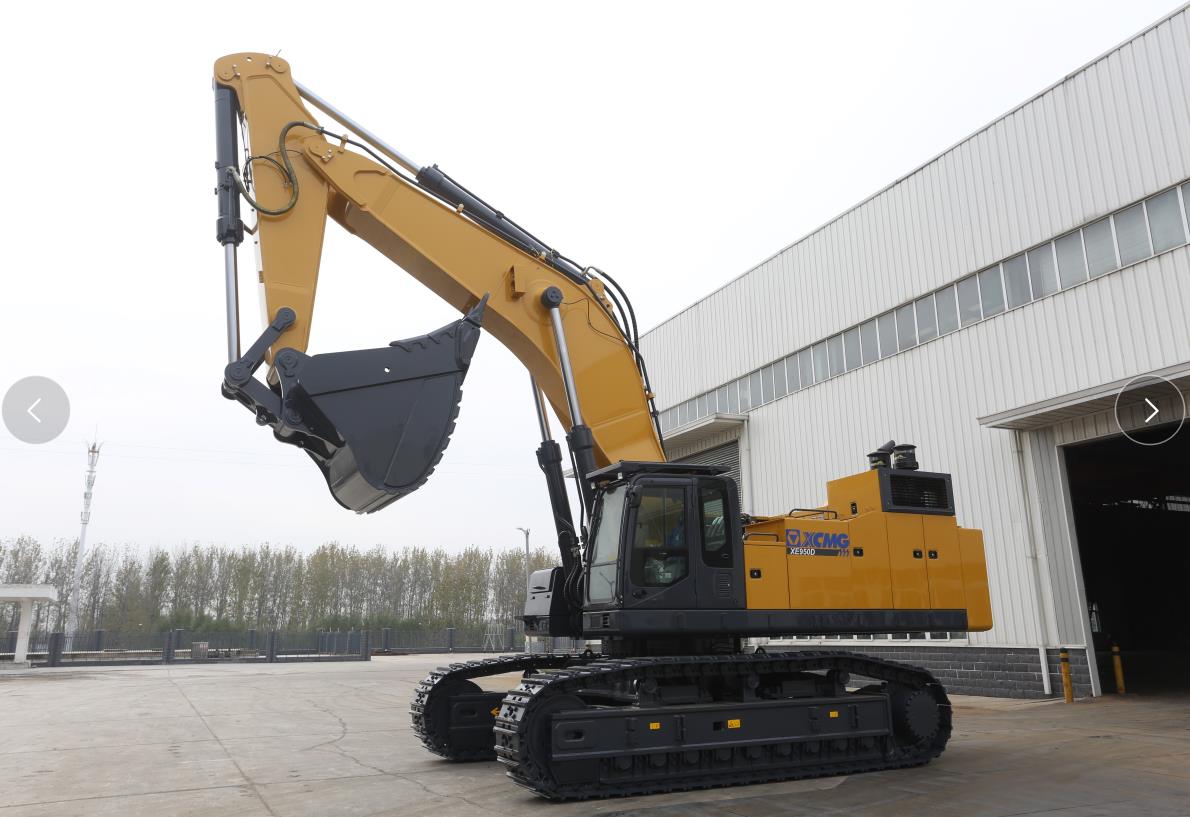

XCMG Official 95ton Mining Excavator XE950D for sale
Specifications
- Weight:93000.000kg
- Condition:New
- Moving Type:Crawler
- Operation weight:93000kg
- Bucket capacity:4.6-6.0m³
- Rotating speed:6.4r/min
- Gradeability:35°
- Ground pressure:127kPa
- Bucket digging force:460kN
- Arm crowd force:350kN
- Maximum traction:618kN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 95ton Mining Excavator XE950D.
1, The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed. 2, The domestic leading hydraulic system distribution technology features high energy-saving and efficiency. 3, The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models. 4, The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
|
Model |
UOM |
Parameters |
|
Operation Weight |
Kg |
93000 |
|
Bucket Capacity |
m³ |
4.6-6.0 |
|
Engine |
|
|
|
Model |
/ |
QSK19(CUMMINS) |
|
Direct injection |
/ |
√ |
|
Four strokes |
/ |
√ |
|
Water cooling |
/ |
√ |
|
Turbo-charging |
/ |
√ |
|
Air to air intercooler |
/ |
√ |
|
No.of cylinders |
/ |
6 |
|
Output power |
Kw/rpm |
503/1800 |
|
Torque/Speed |
N.m |
2983/1400 |
|
Displacement |
L |
18.9 |
|
Main performance |
|
|
|
Travel speed(H/L) |
Km/h |
4.2/2.8 |
|
Rotating speed |
r/min |
6.4 |
|
Gradeability |
° |
35° |
|
Groud pressure |
kPa |
127 |
|
Bucket digging force |
kN |
460 |
|
Arm crowd force |
kN |
350 |
|
Maximum traction |
kN |
618 |
|
Hydraulic system |
|
|
|
Main pump |
/ |
2 Piston pump |
|
Rated flow of main pump |
L/min |
2×549 |
|
Pressure of prime valve |
MPa |
34.3 |
|
Pressure of travel system |
MPa |
34.3 |
|
Pressure of swing system |
MPa |
29 |
|
Pressure of pilot system |
MPa |
3.9 |
|
Oil capacity |
|
|
|
Fuel tank capacity |
L |
1480 |
|
Hydraulic tank capacity |
L |
765 |
|
Engine oil capacity |
L |
60 |
|
Outline dimension |
|
|
|
Overall length |
mm |
13880 |
|
Overall width |
mm |
4545 |
|
Overall height |
mm |
5180 |
|
Width of platform |
mm |
3510 |
|
Length of crawler |
mm |
6350 |
|
Overall width of chassis |
mm |
4150 |
|
Width of crawler |
mm |
650 |
|
Track length on ground |
mm |
5090 |
|
Crawler gauge |
mm |
2960/3500 |
|
Clearance under counterweight |
mm |
1685 |
|
Min.ground clearance |
mm |
903 |
|
Min tail swing radius |
mm |
4700 |
|
Height of crawler |
mm |
1470 |
|
Working scope |
|
|
|
Max.digging height |
mm |
12060 |
|
Max.dumping height |
mm |
8070 |
|
Max.digging depth |
mm |
7200 |
|
8-inch horizontalplane digging depth |
mm |
7060 |
|
Max.vertical wall digging depth |
mm |
3160 |
|
Max.digging reach |
mm |
12690 |
|
Standard |
|
|
|
Length of boom |
mm |
7250 |
|
Length of arm |
mm |
2925 |
|
Bucket capacity |
m³ |
6 |
