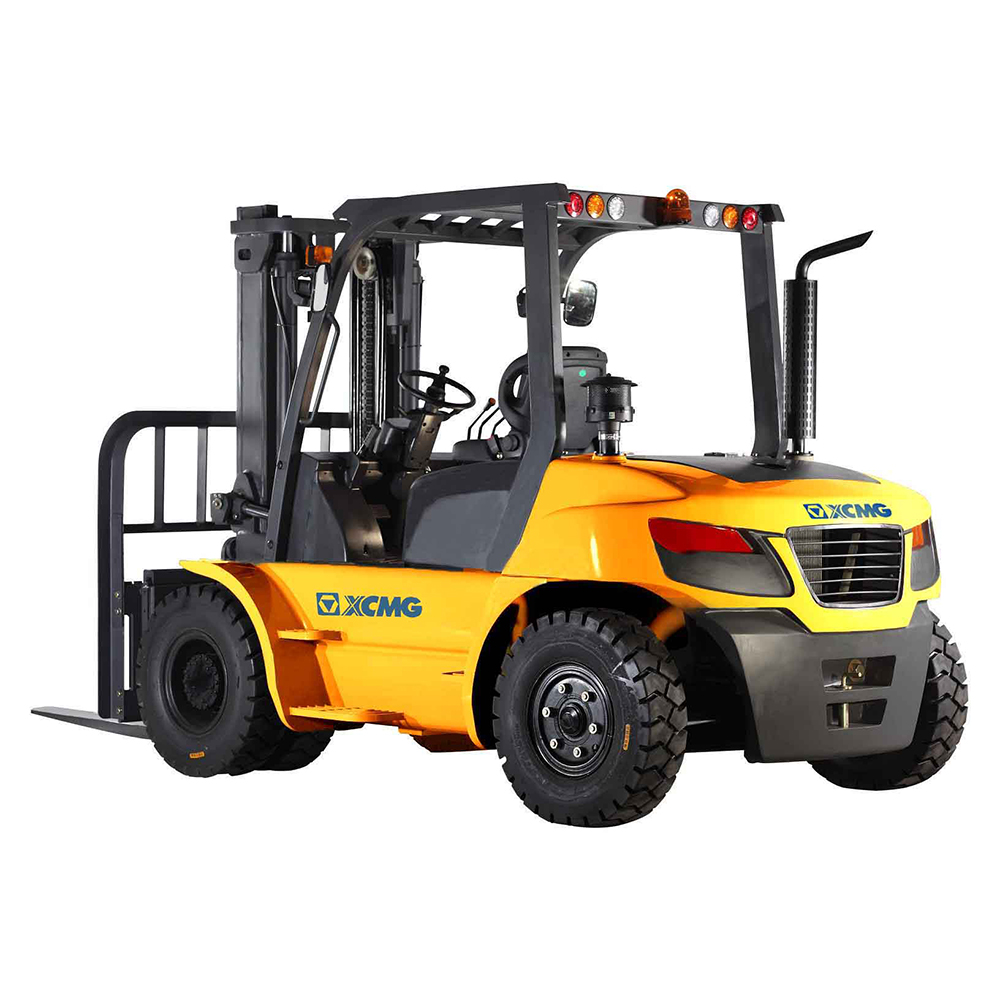

XCMG 8T Diesel Forklift FD80T for Sale
Summary
- Fork Width:150mm
- Fork Length:1220mm
- Rated Loading Capacity:8000kg
- Type:Powered Pallet Truck
- Model Number:FD80T
- Brand Name:XCMG
- Place of Origin:China
- Min. Lifting Height:3000mm
- Max. Lifting Height:6000mm
- Power Souce:Diesel
- Overall Dimensions:4040*2165*2695mm
Specifications
- Weight:11850.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG FD80 Diesel Forklift 8 Ton for Sale
1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating safety.
|
Model |
FD80T-H |
FD80T-JF |
FD80T-JI |
|
|
Power Type |
Diesel |
|||
|
Rated Load Capacity |
Q(kg) |
8000 |
||
|
Load Centre |
C(mm) |
600 |
||
|
Rated Lift Height |
H3(mm) |
3000 |
||
|
Free Lift Height |
H2(mm) |
120 |
||
|
Fork Size (L×W×T) |
mm |
1220×175×75 |
||
|
Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
||
|
Fork Overhang (Wheel Center
to Fork Face) |
X1(mm) |
721 |
||
|
Rear Overhang |
X2(mm) |
760 |
||
|
Ground Clearance (Bottom of
Mast) |
H7(mm) |
250 |
||
|
Length to Face of Fork
(Without Fork) |
L1(mm) |
4040 |
||
|
Overall Width |
B1(mm) |
2165 |
||
|
Mast Lowered Height |
H1(mm) |
2695 |
||
|
Mast Extended Height (With
Backrest) |
H4(mm) |
4020 |
||
|
Side Shift |
X(mm) |
340-2000 |
||
|
Overhead Guard Height |
H5(mm) |
2520 |
||
|
Turning Radius (Outside) |
Wa(mm) |
3700 |
||
|
Min.Aisle width for pallets |
Ast(mm) |
5845 |
||
|
Travel Speed (No Load) |
km/h |
20 |
||
|
Lifting Speed (Full Load) |
mm/sec |
380 |
||
|
Lowering Speed (Full Load) |
mm/sec |
480 |
||
|
Max.Drawbar Pull (Full Load) |
KN |
58 |
||
|
Max.Gradeability (Full Load) |
% |
≤20 |
||
|
Tyre (Front x 4) |
8.25-20-14PR |
|||
|
Tyre (Rear x 2) |
8.25-20-14PR |
|||
|
Front Tread |
B2(mm) |
1600 |
||
|
Rear Tread |
B3(mm) |
1700 |
||
|
Wheelbase |
Y(mm) |
2500 |
||
|
Total Weight |
kg |
11850 |
||
|
Front Axle Weight
Distribution (Full Load) |
kg |
17800 |
||
|
Rear Axle Weight
Distribution (Full Load) |
kg |
2050 |
||
|
Front Axle Weight
Distribution (No Load) |
kg |
4740 |
||
|
Rear Axle Weight
Distribution (No Load) |
kg |
7110 |
||
|
Battery |
V/Ah |
24/90 |
||
|
Engine Model |
6102BG6 |
A-6BG1QC |
QSB4.5 (EUIII & EPAIII) |
|
|
Engine Manufacturer |
CHAOCHAI |
ISUZU |
CUMMINS |
|
|
Rated Output / r.p.m. |
kw |
80.9/2500 |
82/2000 |
82/2200 |
|
Rated Torque / r.p.m. |
N·m |
353/1650 |
416/1400-1600 |
489/1500 |
|
No.of Cylinder |
6 |
4 |
||
|
Bore x Stroke |
mm |
102×118 |
105×125 |
107×124 |
|
Displacement |
L |
5.785 |
6.494 |
4.5 |
|
Fuel Tank Capacity |
L |
120 |
140 |
|
|
Transmission Type |
Powershift |
|||
|
Transmission Stage (FWD/RVS) |
2/2 |
|||
|
Operating Pressure (For
Attachments) |
Mpa |
17 |
||
