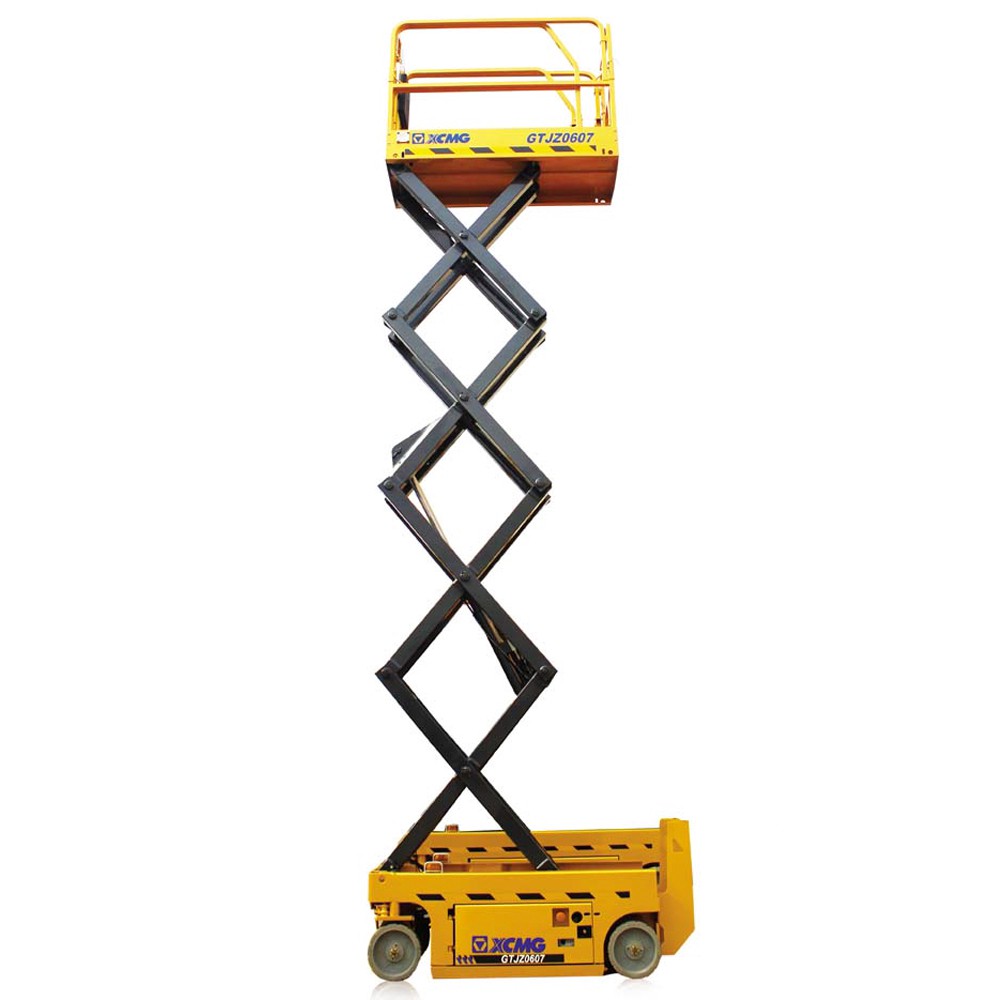

XCMG Official 6m Scissor Lift GTJZ0607 for sale
Summary
- Weight:1520kg
- Table Size:1655×740mm
- Rated Loading Capacity:230kg
- Power:4×6(225)V/(Ah)
- Model Number:GTJZ0607
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
- Max. Lifting Height:5.8m
- Overall Dimension(L*W*H):1882×760×2148mm
Specifications
- Weight:1520.000kg
- Condition:New
- Moving Type:Wheel
- Max. Working Height:7.8m
- Max. Platform Height:5.8m
- Platform Extension Length:900mm
- Travel Speed(High Speed):4km/h
- Travel Speed(low Speed):0.8km/h
- Max.Travel Platform Height:5.8m
- Min. Turning Radius:0m
- Max. Grade Ability:0.25
- Warning Angle of Inclination both sides/front or rear:1.5°/3°
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
GTJZ0607 Scissors Aerial Work Platform:
1、Low noise and zero release
The electric drive system of zero emission,low noise, high efficiency, and high energy-conservation is applied and the traceless tires are equipped to realize environmental-friendly and convenient constructions in enclosed environments, including office buildings, hospitals, and schools.
2、Meeting individual demands
Perfect safety protection,independently-designed control system and abundant matching combinations may fully meet the customized demands of customer.
3、Compact and flexible operation
The narrow design enables the vehicle to pass through single gateway with ease and the unique “zero inner turning radius” works with folding platform to realize easier transportation and translocation and flexible application in narrow spaces. The 25% gradeability makes the driving of vehicle easier.
Description |
Unit |
Parameter value |
|
Overall length |
mm |
1882 |
|
Overall width |
mm |
760 |
|
Overall Height(Guardrail folding)
|
mm |
2148(1770) |
|
Wheel Base |
mm |
1360 |
|
Maximum Working Height |
m |
7.8 |
|
Maximum Platform Height |
m |
5.8 |
|
Maximum Load Capacity |
kg |
230 |
|
Extension Platform Load |
kg |
115 |
|
Platform Size |
mm |
1655×740 |
|
Platform Extension Length |
mm |
900 |
|
Lifting Speed of Working Platform |
s |
18 |
|
Falling Speed of Working Platform |
s |
21 |
|
Total Weight |
kg |
1520 |
|
Travel Speed (High Speed) |
km/h |
4 |
|
Travel Speed (low Speed) |
Km/h |
0.8 |
|
Max. Travel Platform Height |
m |
5.8 |
|
Minimum Turning Radius |
m |
0 |
|
Minimum Ground Clearance (Pot Hole Protector Rises/Falls) |
mm |
60/20 |
|
Maximum Grade Ability |
% |
25 |
|
Tire Specification |
30.5cm×10.0cm |
||
Battery |
V/(Ah) |
4×6(225) |
|
Charger |
A |
30 |
|
Warning Angle of Inclination |
° |
1.5 (Both sides) |
|
° |
3(Front or Rear) |
