Summary
- Max Digging Radius:6110mm
- Machine Weight:5700kg
- Maximum Digging Depth:3640mm
- Maximum Digging Height:5650mm
- Bucket capacity:0.16m3
- Model Number:XE55U
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
Specifications
- Weight:5700.000kg
- Condition:New
- Moving Type:Crawler
- Rated power:31.2/2200kw/rpm
- Gradeability:≤35%
- Appearance size:5340*1960*2555mm
- Track width:400mm
- Engine model:V2403-CR-E5B
- Emission standard:Euro stage V
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

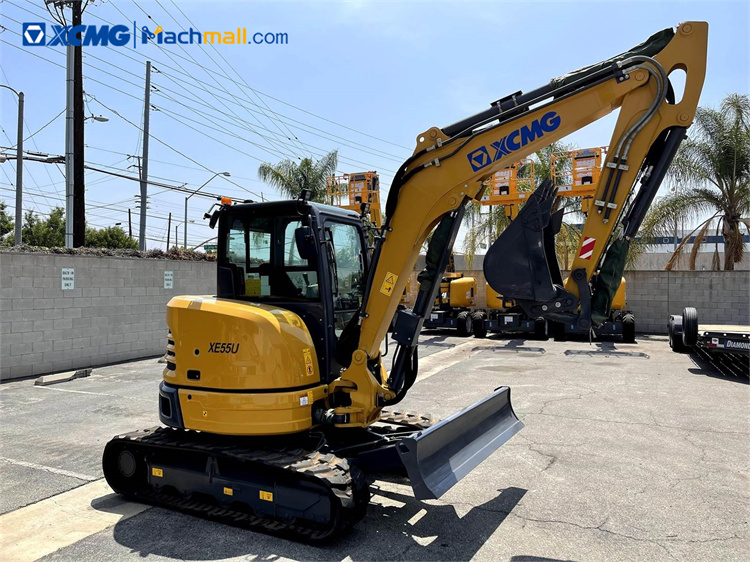

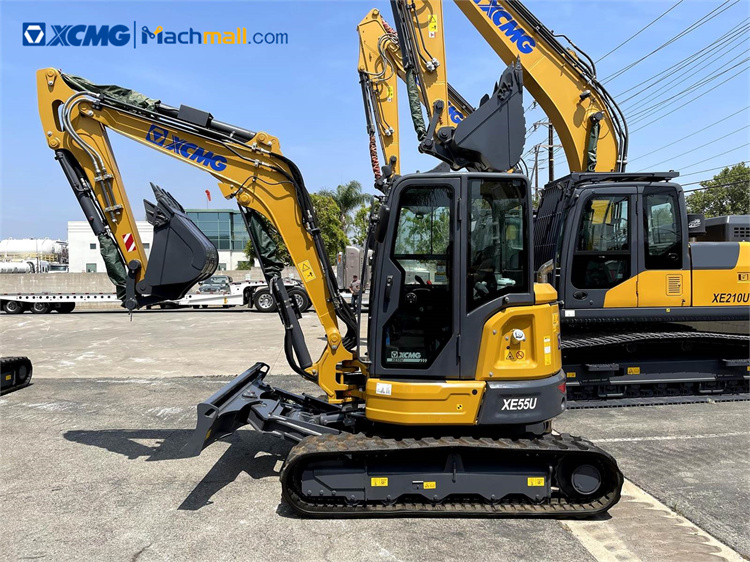

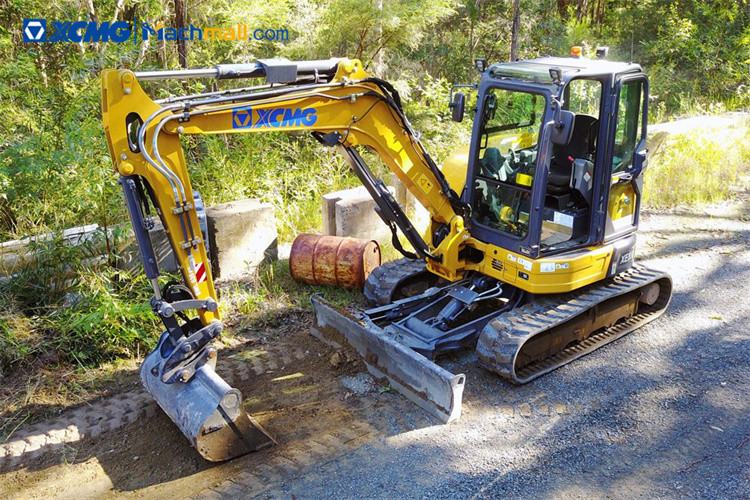

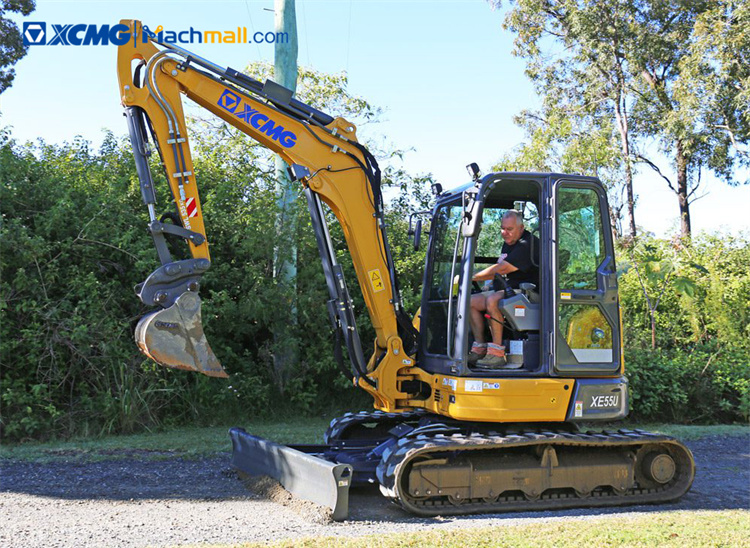

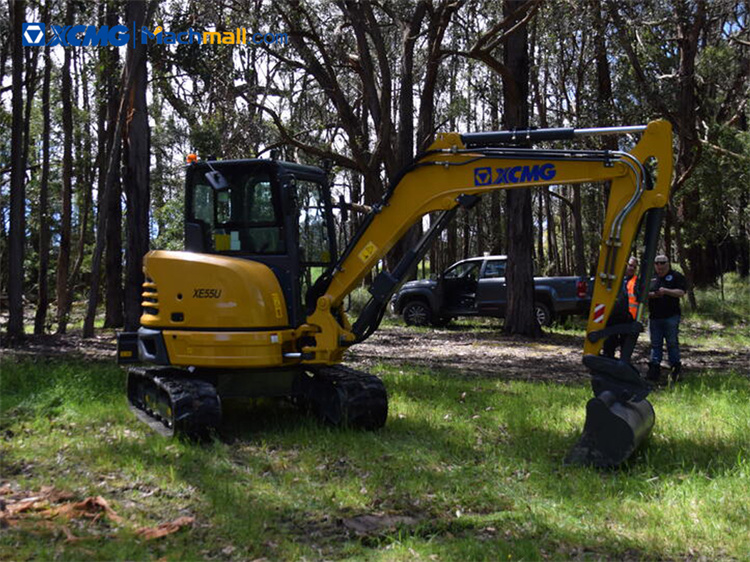

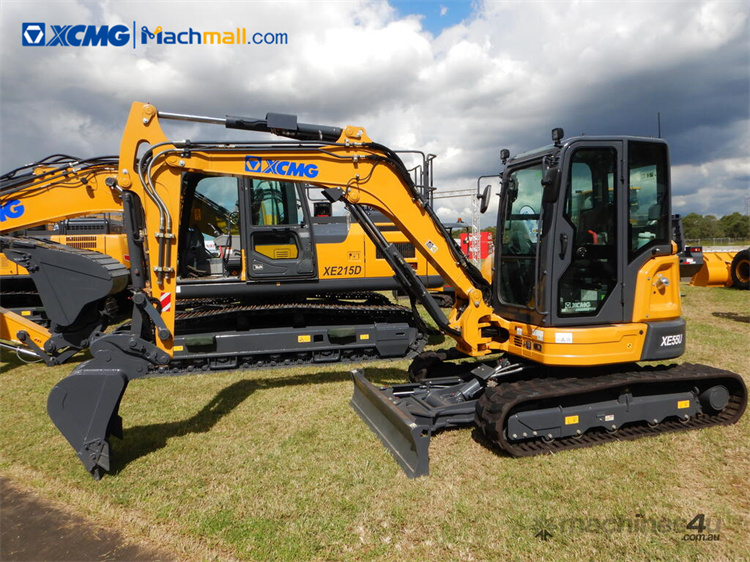

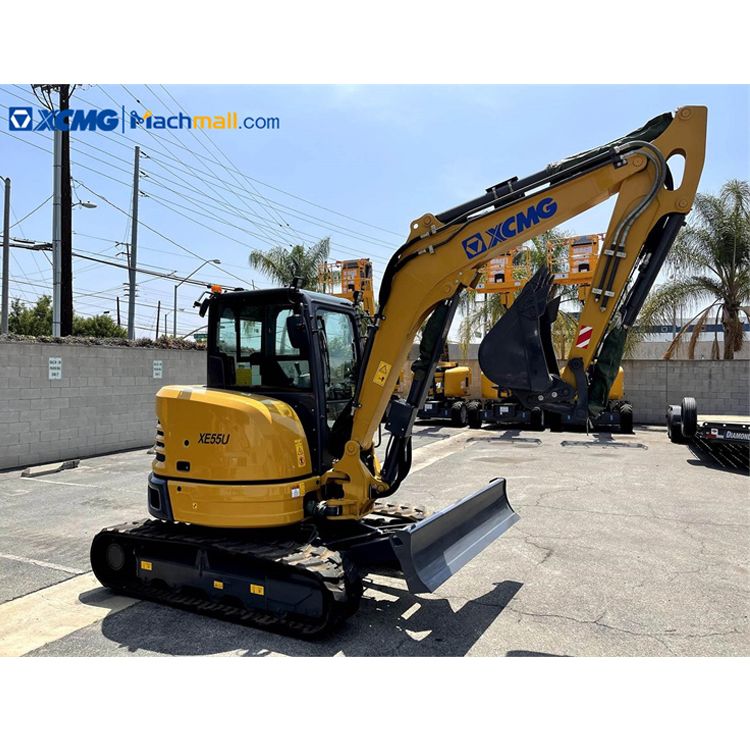

XCMG 6 ton Small Digger Excavator XE55U.

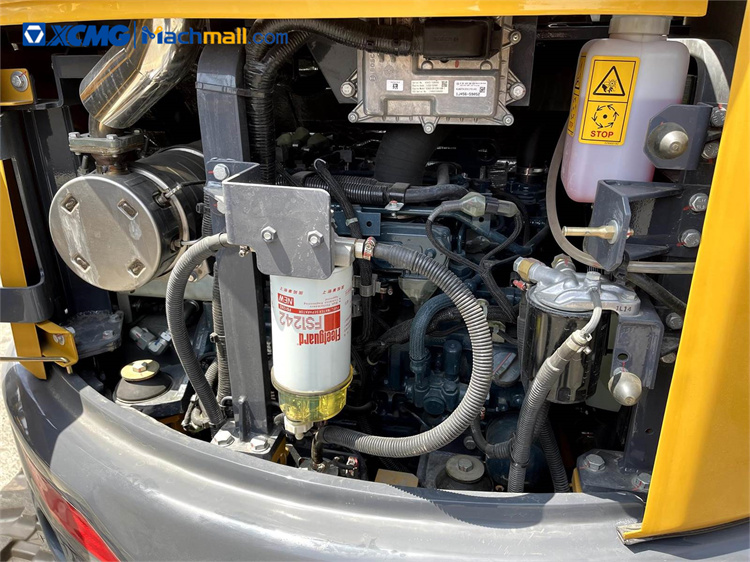

XCMG small digger excavator XE55U offers a powerful yet efficient Kubota 2403 engine, the XE55U delivers versatile, durable, and cost-effective performance.

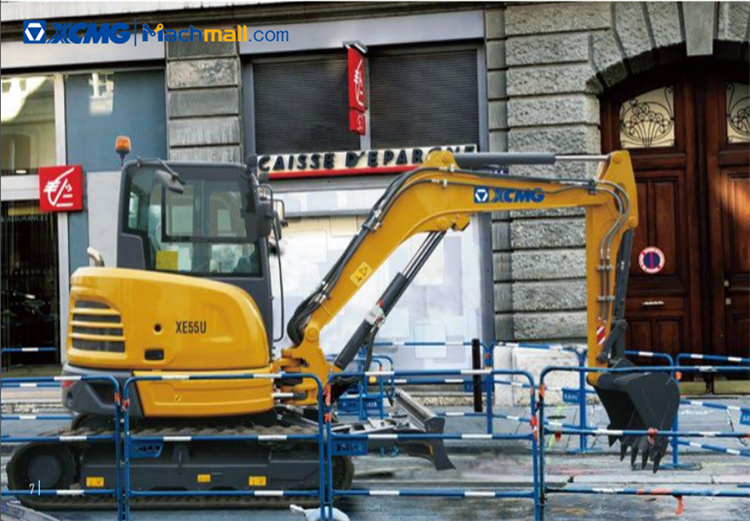

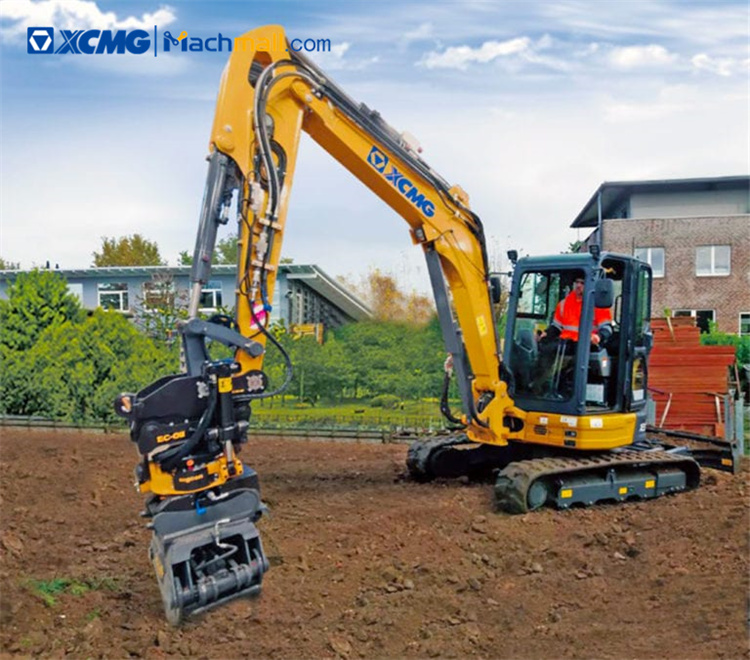

The XE55U digger excavator excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, clamping, lifting, etc. in hydropower, transportation, municipal, garden, farmland transformation and oil pipeline works.
The XE55U is also designed for lower maintenance cost with longer service intervals – resulting in more machine availability on-site.
|
model |
Unit |
XE55U |
|
|
Operating weight |
Kg |
5700 |
|
|
Bucket capacity |
m³ |
0.16 |
|
|
Engine |
Model |
/ |
V2403-CR-E5B |
|
No. of cylinders |
/ |
4 |
|
|
Rated power |
kw/rpm |
31.2/2200 |
|
|
Maximum torque/speed |
N.m/rpm |
159.8 / 1500 |
|
|
Displacement |
L |
2.434 |
|
|
Main performance |
Travel speed |
km/h |
4.6/2.8 |
|
Swing speed |
r/min |
9.5 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
32 |
|
|
Bucket digging force |
kN |
44.5 |
|
|
Arm digging force |
kN |
24.3 |
|
|
Maximum tractive force |
kN |
52.8 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
158.4 |
|
Main safety valve pressure |
MPa |
30 |
|
|
Travel system pressure |
MPa |
30 |
|
|
Swing system pressure |
MPa |
24 |
|
|
Pilot system pressure |
MPa |
3.5 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
68 |
|
Hydraulic tank capacity |
L |
46 |
|
|
Engine oil capacity |
L |
9.5 |
|
|
Appearance size |
A Overall length |
mm |
5340 |
|
B Overall width |
mm |
1960 |
|
|
C Overall height |
mm |
2555 |
|
|
D Width of platform |
mm |
1830 |
|
|
E Track length |
mm |
2490 |
|
|
F Overall width of chassis |
mm |
1960 |
|
|
G Track width |
mm |
400 |
|
|
H Wheel base of crawler |
mm |
1990 |
|
|
I Track gauge |
mm |
1560 |
|
|
J Counterweight clearance |
mm |
637 |
|
|
K Min. ground clearance |
mm |
315 |
|
|
L Min. tail swing radius |
mm |
2430 |
|
|
M Track height |
mm |
550 |
|
|
Working scope |
A Max. digging height |
mm |
5650 |
|
B Max. dumping height |
mm |
4010 |
|
|
C Max. digging depth |
mm |
3640 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
3200 |
|
|
E Max. vertical wall digging depth |
mm |
2690 |
|
|
F Max. digging radius |
mm |
6110 |
|
|
G Min. swing radius |
mm |
1040 |
|
|
Standard |
Length of boom |
mm |
2850 |
|
Length of arm |
mm |
1570 |
|
|
Bucket capacity |
m³ |
0.16 |
|
