Specifications
- Weight:17500.000kg
- Bucket capacity:2.5~4.5m3
- Wheel base:3300mm
- Max.breakout force:170kN
- Gradeability:45 º
- Rated Power:162kw
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

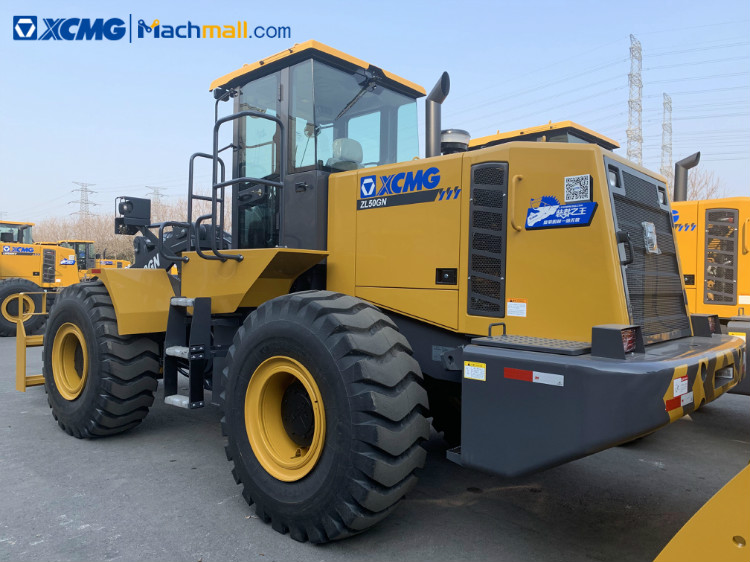

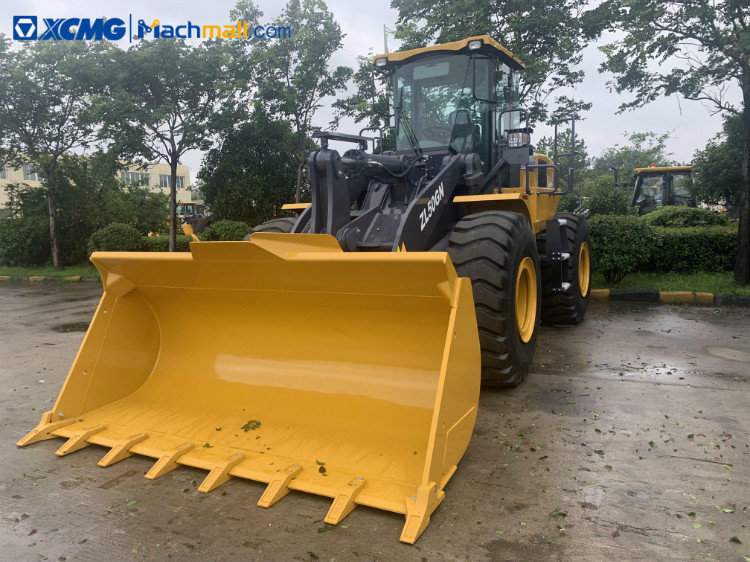

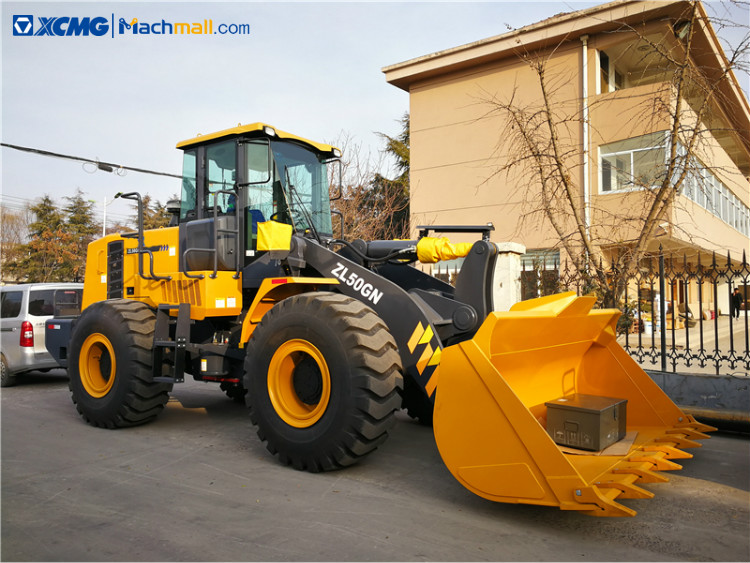

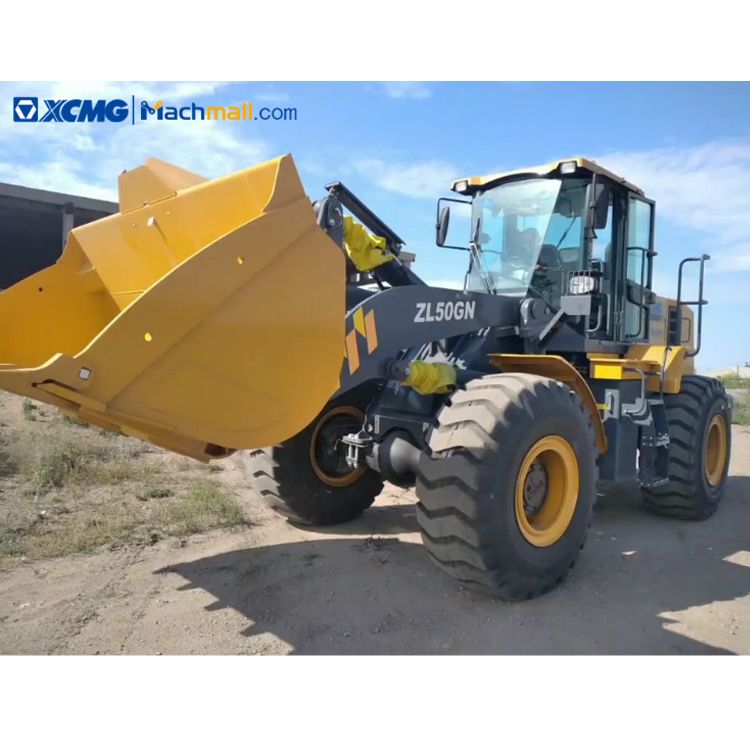

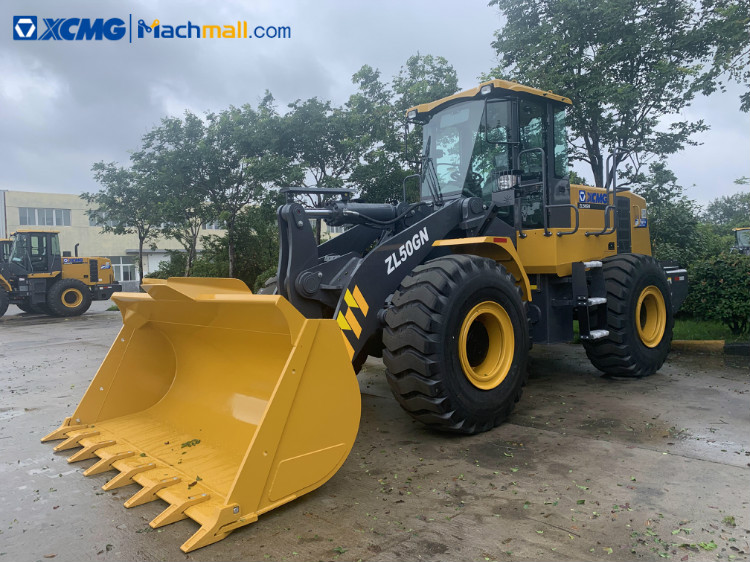

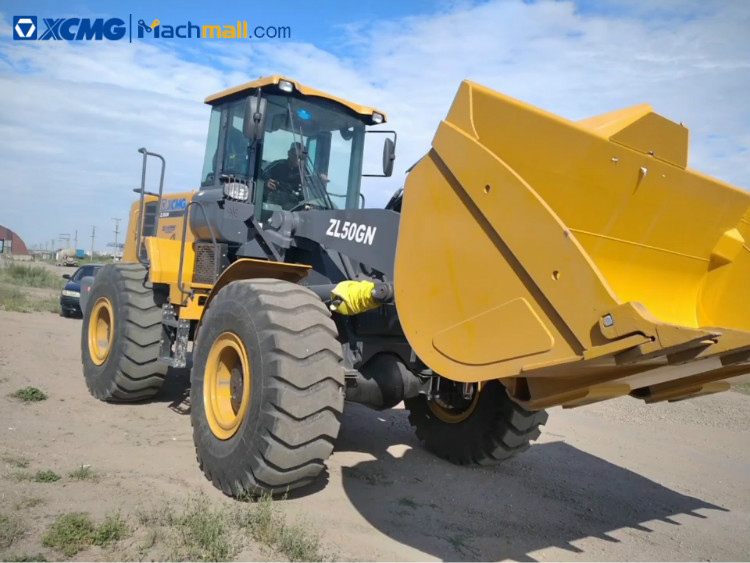

XCMG 5 ton loader machine ZL50GN for sale
ZL50GN working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
1, The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
2, ≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.

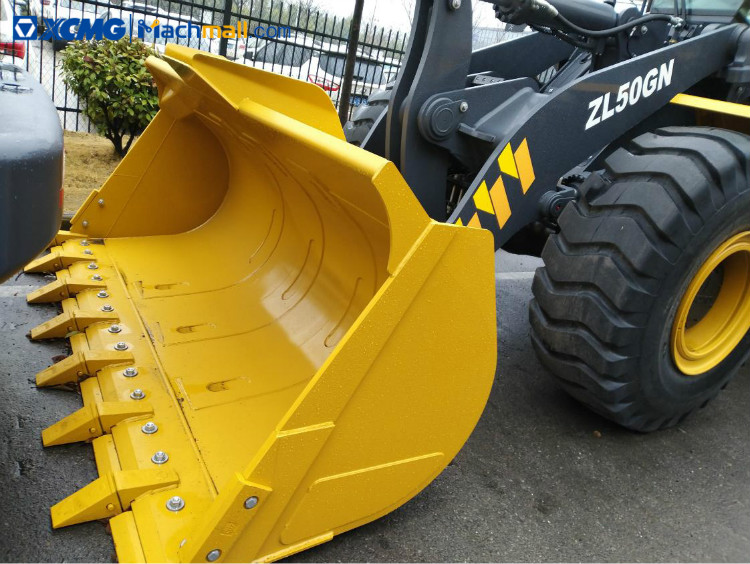

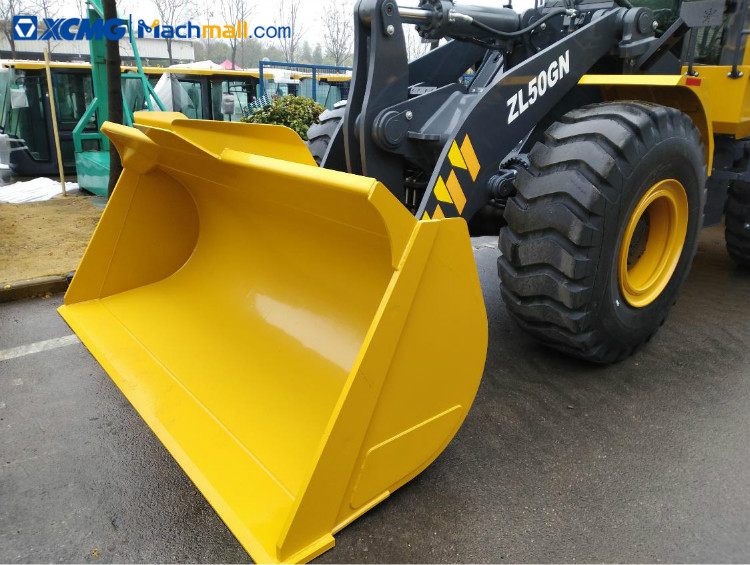

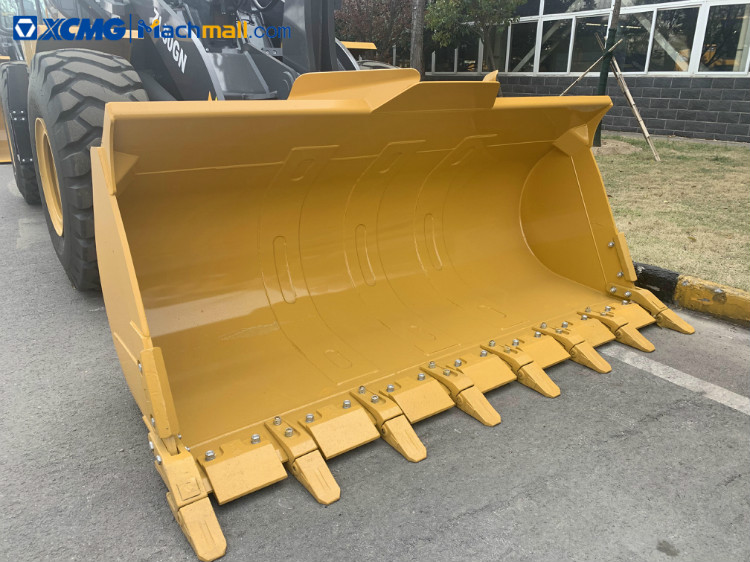

3, The large rock bucket with capacity of 2.5 - 4.5M3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of tooth holder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
4. The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption.
5. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
|

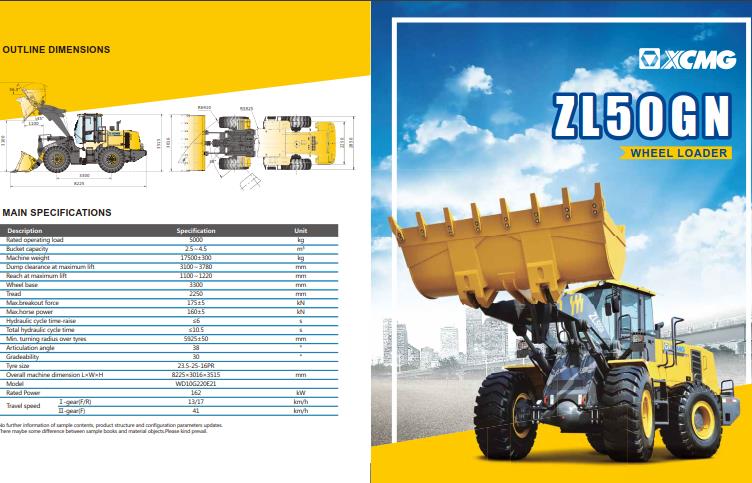

Description |
Unit |
lw500kn |
|
Rated operating load |
kg |
5000 |
|
Bucket capacity |
m³ |
2.5~4.5 |
|
Machine weight |
kg |
17200 |
|
Dump clearance at maximum lift |
mm |
3150~3560 |
|
Reach at maximum lift |
mm |
1100~1190 |
|
Wheel base |
mm |
3300 |
|
Tread |
mm |
2250 |
|
Height of hinge at maximum lift height |
mm |
4112 |
|
Working height(fully lifted) |
mm |
5407 |
|
Max.breakout force |
kN |
170 |
|
Hydraulic cycle time-raise |
s |
≤6.5 s |
|
Total hydraulic cycle time |
s |
≤11 s |
|
Min. turning radius over tyres |
mm |
5925 mm |
|
Articulation angle |
° |
30 º |
|
Gradeability |
° |
45 º |
|
Tyre size |
|
23.5-25-16PR |
|
Overall machine dimension L×W×H |
mm |
8870*3000*3350 |
|
Model |
|
WD10G220E21 |
|
Rated Power |
kW |
162 |
