XCMG 25ton 2022 China Hydraulic Rough Terrain Crane XCR25L5 best price
Summary
- Model Number:XCR25L5
- Place of Origin: Jiangsu, China
- Span: 6.8m
- Max. Lifting Height: 46.6m
- Max. Lifting Load:25 ton
- Rated Lifting Moment:901.6kn.m
- Rated Loading Capacity:25 ton
- Application: construction works
- Certification:CE/ISO9001
Specifications
- Weight:28357.000kg
- Condition:New
- Moving Type:Other
- Port:Any China Port
- Supply Ability:1000 Unit/Units per Year
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

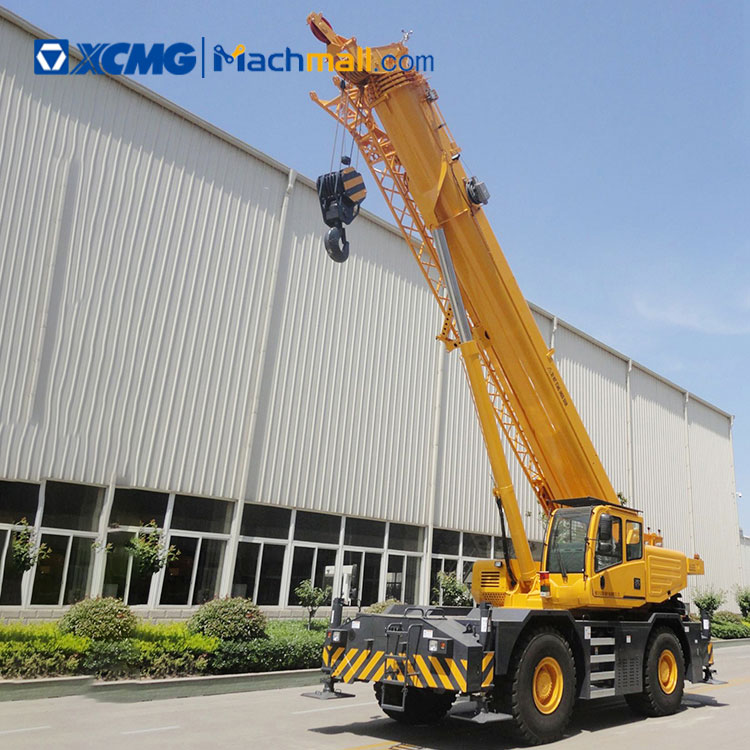

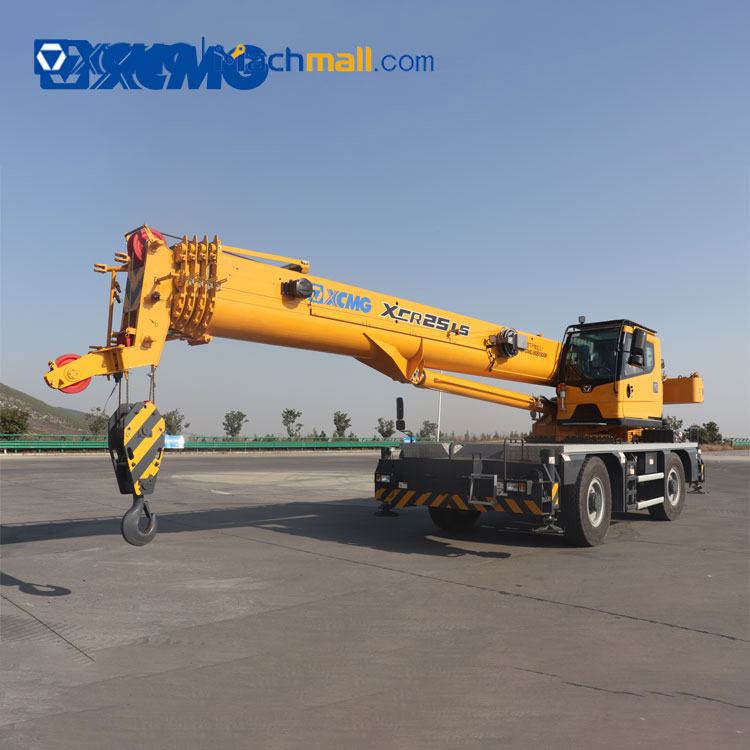

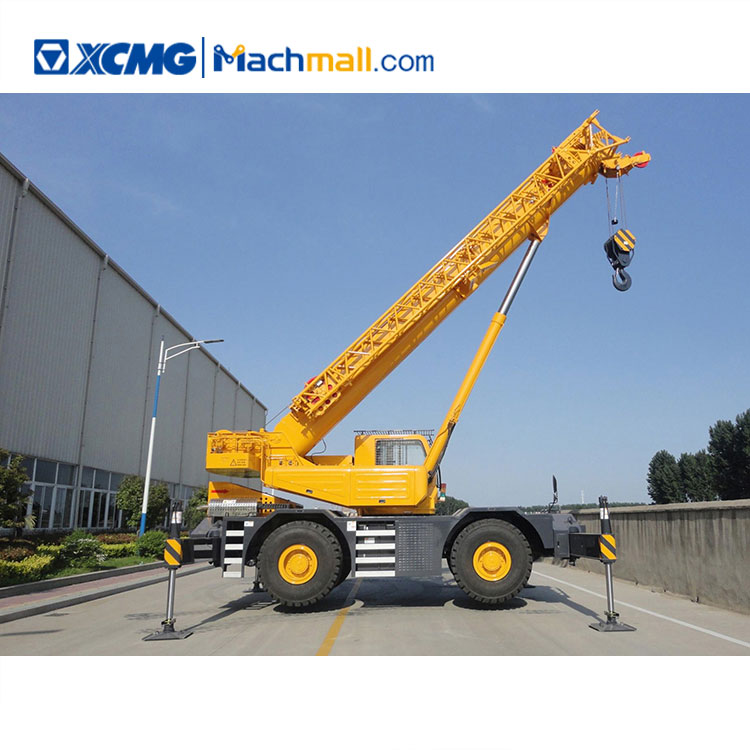

XCMG 25ton 2022 China Hydraulic Rough Terrain Crane XCR25L5 best price
XCR25L5 is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes and backward-forward driving functions. It also has four sections of dodecagon main booms, Jib stowed under boom, H type outrigger, fixed balance counterweight, as well as three working modes, including: hoisting with the support of outriggers, hoisting with the support of tire and hoisting when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.
1. High mobility and efficiency
* Two driving types of 4×2 and 4×4 are adopted with forwards and backwards driving function.
* Four steering modes are adopted , and the min. turning radius is 5.0m with better job site adaptability.
* Due to powerful power configuration, specific off-road tires and all-wheel drive, the crane can easily handle various tough terrains.
2. Powerful lifting capacity
* Single-cylinder plus ropes telescoping system, stable and reliable.
* 4-section boom of 31m and jib of 13m with wide operation range.
3. Energy-saving and environmental friendly
* The torque converter with lockout function has features of large torque at low speeds and high efficiency at high speeds.
* Elevating control system for freefall, without additional power needed.
4. High safety
Dedicated traveling safety protection system is adopted, which can realize classified and graded management for various abnormal information, and automatic warning, speed-limiting and braking with improved active driving safety.
|
Dimension |
Unit |
XCR25L5 |
|
Overall length |
mm |
12202 |
|
Overall width |
mm |
2850 |
|
Overall height |
mm |
3495 |
|
Weight |
|
|
|
Total weight in travel |
kg |
28357 |
|
Power |
|
|
|
Engine model |
|
QSB6.7-C190-3.0 |
|
Engine rated power |
kW/(r/min) |
142/2200 |
|
Engine rated torque |
N.m/(r/min) |
931/1400 |
|
Travel |
|
|
|
Max. travel speed |
km/h |
≥40 |
|
Min. turning diameter |
m |
≤9.8 |
|
Min. ground clearance |
mm |
413 |
|
Approach angle |
° |
19.1 |
|
Departure angle |
° |
19.3 |
|
Max. grade ability |
% |
≥90 |
|
Main performance |
|
|
|
Max. rated total lifting capacity |
t |
25 |
|
Min. rated working radius |
m |
3 |
|
Turning radius at turntable tail |
m |
3.823 |
|
Max. lifting torque |
kN.m |
901.6 |
|
Full-extend boom |
m |
39.5 |
|
Full-extend boom+jib |
m |
46.6 |
|
Boom length |
m |
48.3 |
