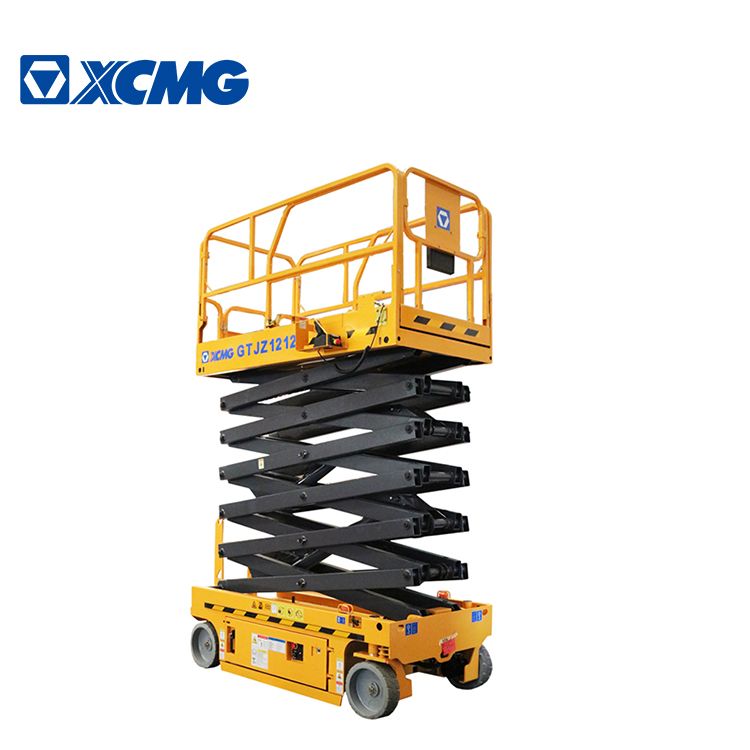

XCMG Official 12m Scissor Lift GTJZ1212 for sale
Summary
- Weight:3140kg
- Table Size:2276×1120mm
- Rated Loading Capacity:320kg
- Power:4×12(300)V/(Ah)
- Model Number:GTJZ1212
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
- Max. Lifting Height:11.8m
- Overall Dimension(L*W*H):2485×1190×2600mm
Specifications
- Weight:3140.000kg
- Condition:New
- Moving Type:Wheel
- Max. Working Height:13.8m
- Max. Platform Height:11.8m
- Platform Extension Length:900mm
- Travel Speed(High Speed):3.2km/h
- Travel Speed(low Speed):0.8km/h
- Max.Travel Platform Height:11.8m
- Min. Turning Radius:0m
- Max. Grade Ability:0.25
- Warning Angle of Inclination both sides/front or rear:1.5°/3°
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
GTJZ1212 Scissors Aerial Work Platform:
The telescoping sub-platform achieves large working space and works with folding platform to realize easier transportation and translocation.The industry-leading automatic pit protection system and the widened wheel tread design enable your free operations even on rough ground.
2、Environmental construction and convenient service
Pure electric drive, zero release,low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.
3、General and modular design
The modular design for the machine guarantees the universality of parts,makes the customers’repairs and maintenances easier, and achieves more competitive cost.
|
Description |
Unit |
Parameter value |
|
|
Overall length |
mm |
2485 |
|
|
Overall width |
mm |
1190 |
|
|
Overall Height(Guardrail folding) |
mm |
2600(2036) |
|
|
Wheel Base |
mm |
1877 |
|
|
Maximum Working Height |
m |
13.8 |
|
|
Maximum Platform Height |
m |
11.8 |
|
|
Maximum Load Capacity |
kg |
320 |
|
|
Extension Platform Load |
kg |
115 |
|
|
Platform Size |
mm |
2276×1120 |
|
|
Platform Extension Length |
mm |
900 |
|
|
Lifting Speed of Working Platform |
s |
60 |
|
|
Falling Speed of Working Platform |
s |
52 |
|
|
Total Weight |
kg |
3140 |
|
|
Travel Speed (High Speed) |
km/h |
3.2 |
|
|
Travel Speed (low Speed) |
Km/h |
0.8 |
|
|
Max. Travel Platform Height |
m |
11.8 |
|
|
Minimum Turning Radius |
m |
0 |
|
|
Minimum Ground Clearance (Pot Hole
Protector Rises/Falls) |
mm |
100/20 |
|
|
Maximum Grade Ability |
% |
25 |
|
|
Tire Specification |
38.1cm×12.7cm |
||
|
Battery |
V/(Ah) |
4×12(300) |
|
|
Charger |
A |
30 |
|
|
Warning Angle of Inclination |
° |
1.5 |
|
|
° |
3 |
