XCMG Official 1 Ton Mini Skid Steer Track Loader XC740K Price
Summary
- Rated Load:750kg
- Dimension(Long*Breadth*High):3270*1807*1970mm
- Type:Skid Steer Loader
- Place of Origin:Xuzhou, Jiangsu, China
- Model Number:XC740K
- Brand Name:XCMG
- Certification:CE/ISO90001
Specifications
- Weight:3140.000kg
- Condition:New
- Moving Type:Crawler
- Machine Weight:3140kg
- Power:36.8KW
- Engine Brand:XINCHAI
- Bucket capacity:0.35M3
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

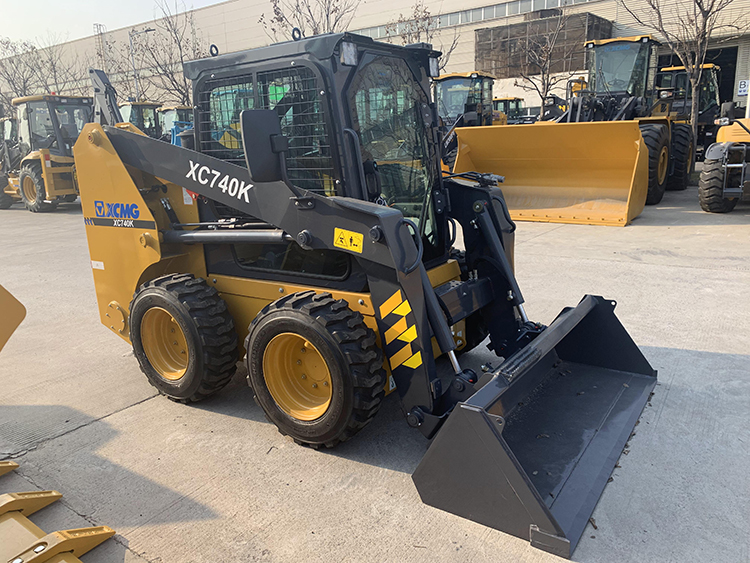

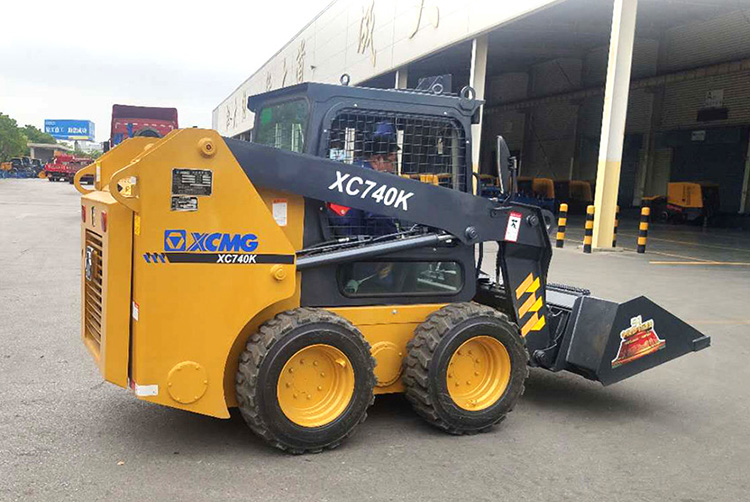

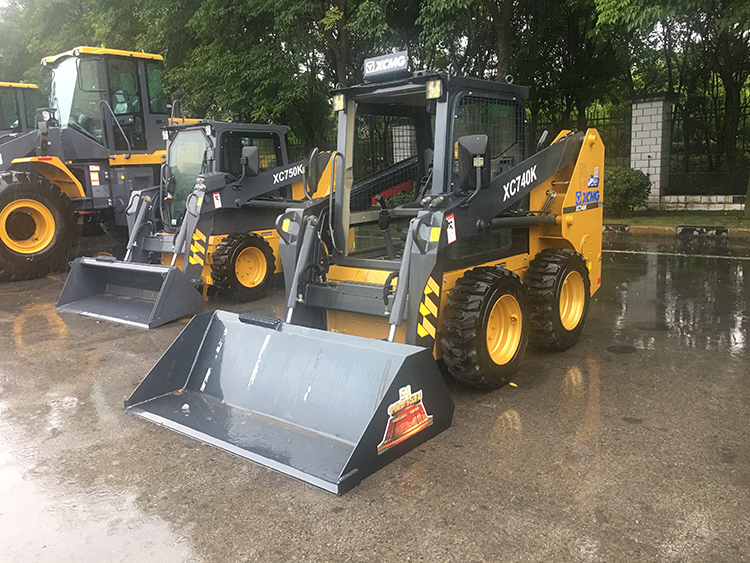

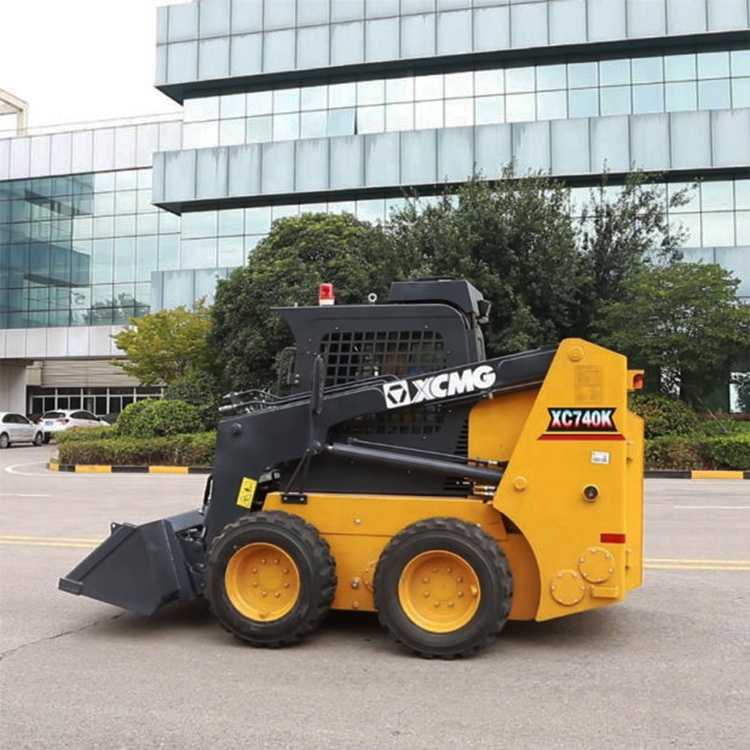

XCMG Official 1 Ton Mini Skid Steer Track Loader XC740K.
1.Strong and
Efficient Power Transmission System
The renowned
brand engine equipped features strong power, ultra-low emission, and higher
fuel efficiency. The static hydraulic drive technology adopted features stable
drive and high efficiency and reliability. The fully-sealed sprocket case and
high strength chains feature automatic lubrication and maintenance-free.
2.Flexible
Operations
Compact
structure, low turning radius, and strong site adaptability. The quick-change
coupling equipped can change attachments rapidly in the construction site. The
bucket can automatically maintain level status during lifting to prevent
scattering of material and improve working efficiency.
3.Incomparable
Multi-functionality
The
international interchangeable quick-change coupling enables the change of tens
of attachments, including sweeper, planer, breaking hammer, and ditcher,
rapidly and conveniently.
4.Safe and
Comfortable Operating Environment
The
ROPS&FOPS cab and the seat belt, bumper, fire extinguisher, and safety
hammer equipped guarantee the personal safety of the operator. The cab features
large space, adjustable seats, and comfortable operations.The standard
double-accelerator control model can use the pedal accelerator or work at
preset constant power to save the operation labor.
5.Convenient
Maintenance
The cab can be
tilted backward for a large angle to make the repair and maintenance portions
more accessible. The rear hood and upper hood can be opened conveniently and
all units and pipelines are easily accessible to save the repair and
maintenance labor and time.
Description | Unit | Parameter value | |
Rated load | kg | 750 | |
Tipping load | kg | 1500 | |
Operating weight | kg | 3140 | |
Maximum breakout force | kN | 18 | |
Engine | Manufacturer | Xinchai | |
Model | 4D27G31 | ||
Rated power | Hp/kw | 49.3/36.8 | |
Rated speed | rpm | 2500 | |
Cooling mode | Water-cooling | ||
Performance parameter | Operation mode | Mechanical & multi-function electronic control | |
Tire standard | 10-16.5 | ||
Maximum speed | Km/h | 14 | |
Hydraulic system | Hydraulic flow rate | L/min | 62.5 |
Optional large flow | -- | ||
Hydraulic pressure | bar | 200 | |
Maximum operating height | mm | 3878 | |
Bucket hinge pin height | mm | 3057 | |
Cabin top height | mm | 1960 | |
Maximum horizontal height of bucket bottom | mm | 2851 | |
Length without bucket | mm | 2533 | |
Length with bucket | mm | 3310 | |
Toppling angle | ° | 40 | |
Maximum unloading height | mm | 2375 | |
Ground-bucket angle | ° | 30 | |
Rotating angle of bucket at highest point | ° | 83 | |
Unloading distance | mm | 575 | |
Wheel base | mm | 1027 | |
Departure angle | ° | 25 | |
Ground clearance | mm | 183 | |
Front radius of turning circle (without bucket ) | mm | 1183 | |
Front radius of turning circle (with bucket) | mm | 2066 | |
Rear radius of turning circle | mm | 1564 | |
Length of tail | mm | 1005 | |
Wheel track | mm | 1380 | |
Tire edge width | mm | 1640 | |
Bucket edge width | mm | 1800 | |
Bucket capacity (stacking height) | m³ | 0.45 | |
Bucket capacity (tiling) | m³ | 0.35 | |
Diesel tank capacity | L | 80 | |
Capacity of hydraulic oil tank | L | 60 |
