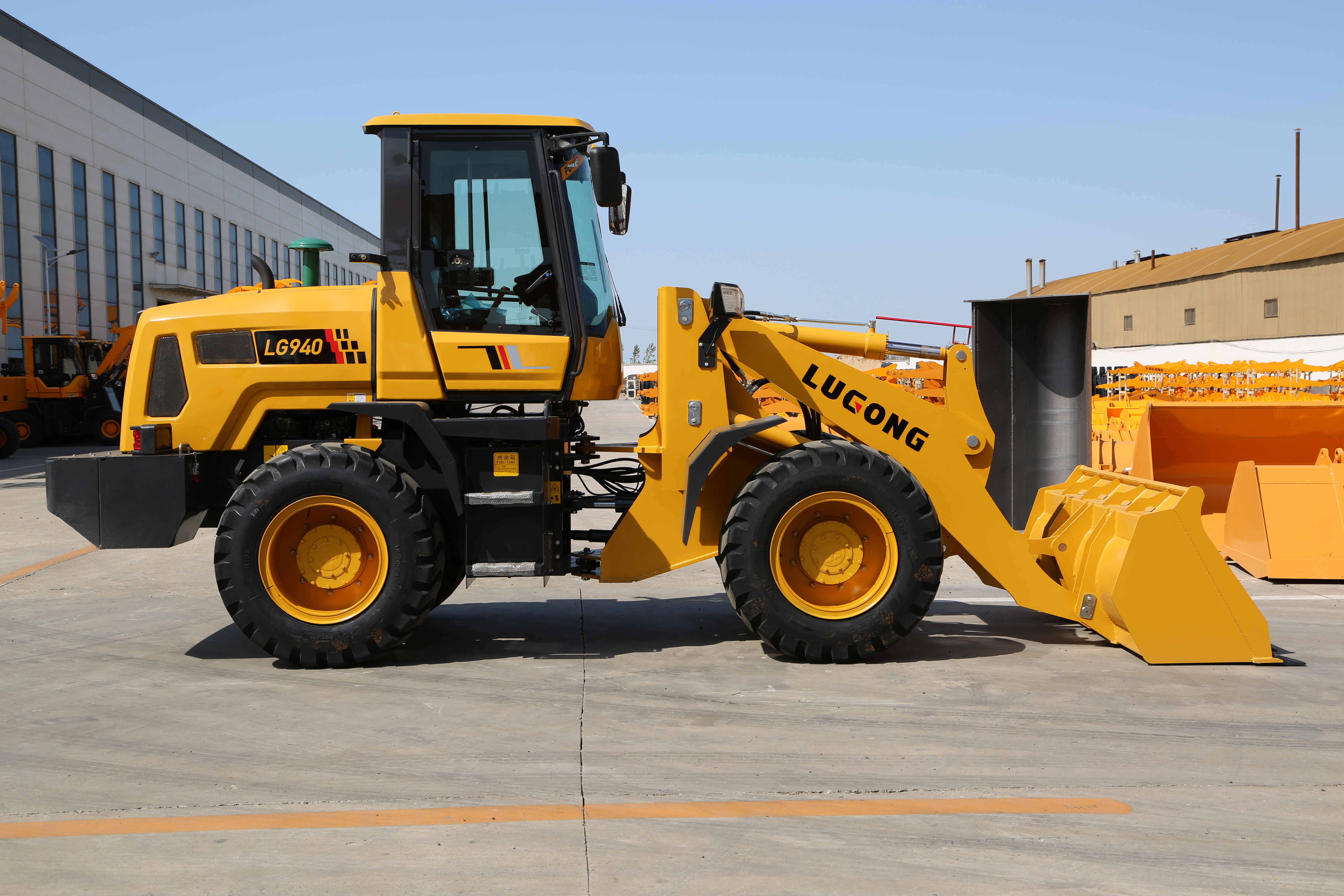

LUGONG LG940 Cost-effective Compact Wheel Loader For Sale For Construction Site
Summary
- Rated Load:2200kg
- Dimension(Long* Breadth * High):6250x2150x2950
- Type:Wheel Loader
- Place of Origin:Shandong, China
- Model Number:LG940
- Brand Name:LUGONG
Specifications
- Weight:5750.000kg
- Engine Brand:Other
- Rated Load:1-2 ton
- Bucket Capacity:2.5 - 3.5m³
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
| main technical parameters | transmission | ||
| bucket capacity | 1.0m³ | type | hydraulic torque converter |
| rated load | 2200kg | box | automatic 280 |
| machine weight | 5750kg（+430） | gear shift | F1/R1,double H/L |
| overall dimension (mm) | 6250x2150x2950mm | axle | AWD, LG2.5T big hub reduction |
| wheel base | 2710mm | tyre | |
| wheel track | 1680mm | tyre size | 16/70-24 |
| bucket width | 2200mm | working hydraulic system | |
| Max. dumping height | 3800mm | operating type | mechanical single joystick |
| Max. dumping height | 800mm | lifting time | 6.5S |
| turning radius | 6000mm | falling time | 5.5S |
| Min. ground clearance | 380mm | braking system | |
| Engine | service brake | air hydraulic disc brake | |
| model | Yuchai 4105 turbo | parking brake | hand operated caliper brake |
| pattern | in-line,4 cylinder | optional: A/C, Cabin heater, forklift | |
| rated power/speed | 85kw/116HP/2400 | Pallet fork, log grapple, grass fork | |
| weight | 360kg | ||
Company Profile:
*First-rate manufacturer of Compact Wheel Loader;
*Founded in 2000. Land 200,000 Sq. meters;
*Employee more than 1100;
*Sales more than 40,000 Loaders in 2020
MORE ABOUT US
1. Drawing stamping , electrophoresis painting and arc design.
2.Design of three-layer articulation beam
*Three-layer articulation steering design uniform stress, prevent deformation;
*Lengthened and widened hinge plate wedge in column get better chassis strength, more durability;
*Trajectory coincidence technology reduce engine load and tire wear, get small turning circle and more flexible operation.
3. Axle
- *Patented axle, speed ratio changed from 6:37 to 7:41, stronger power.
- *Casting process, compared with other brands in the same specification, the weight is increased
by 200kg, stronger and more durable.
4. Cab
- *Frame is welded by high-strength rectangular materials.
- *drawing stamping process
- *arc design
- *electrophoresis painting: high anticorrosion
- *no dead angle of vision with one sheet of front glass
- *air-damped seat; Germany tech. Design
- *high-efficiency conditioner
5.Cooling System
*High level water tank, Large hole grid with 32mm double-row radiating pipe increase radiation effect and not be blocked;
*Tank temperature not exceed 80ºC even continuous working 20 hours at surface temperature 50ºC.
6. Appearance
*Drawing stamping sheet metal gets high structural strength;
*Arc design brings good visual effect;
*Electro-coating ensures excellent anti-corrosion property.
7. More Detail
*Separate design of front and rear brake pumps avoid brake failure;
*Integrated design of pump and valve, cancel flexile hose, increase steering performance and safety;
*H type joint with two sealing ring ensure lifelong no leakage.
*New LED lights bring better brightness and longer life;
*Pickling and phosphating treated oil tank avoid block in hydraulic system;
*Fast joint on air cylinder for blowing dust gun, inflation and grease gun;
*Muffler covered with heat resistant material avoid body scalding and components ageing;
*Shanghai "Steel" brand 18PR Nylon tire.
optional: A/C, Cabin heater, forklift
