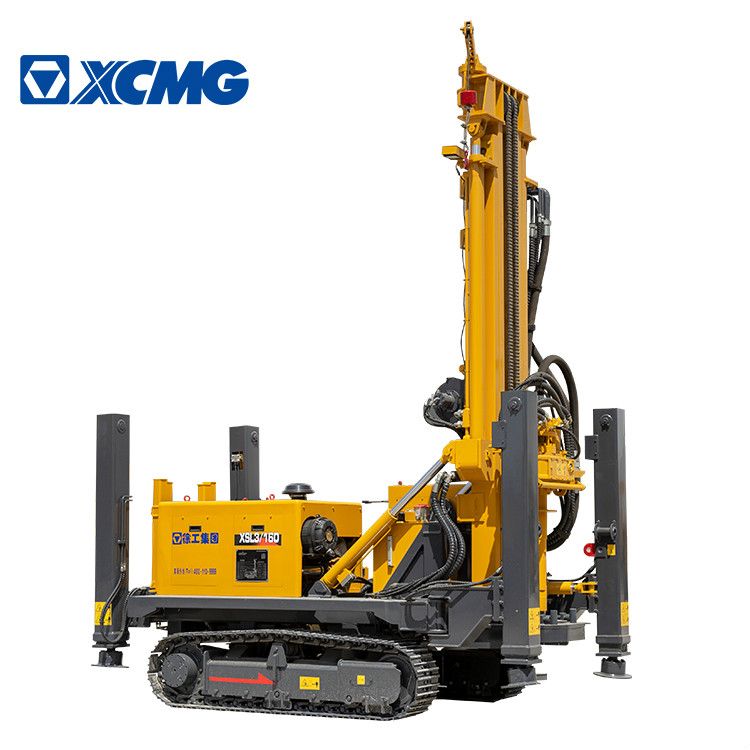

XCMG 300m Water Well Drilling Rig XSL3/160 Machine with Factory Price
![](/app/topc/statics/images/close.png)
![XCMG 300m Water Well Drilling Rig XSL3/160 Machine with Factory Price](http://www.machmall.com/images/store/357636/item/XSL3、160 (2).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):4450(3980)*1800*2400(6050(3980)*1800*2400)mm
- Weight:8.7(9.7)t
- Power(W):242kW
- Usage:Water Well
- Model Number:XSL3/160
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Power Type:Diesel
- Type:Deep (Water) Well Drilling Rig
Specifications
- weight:8700.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

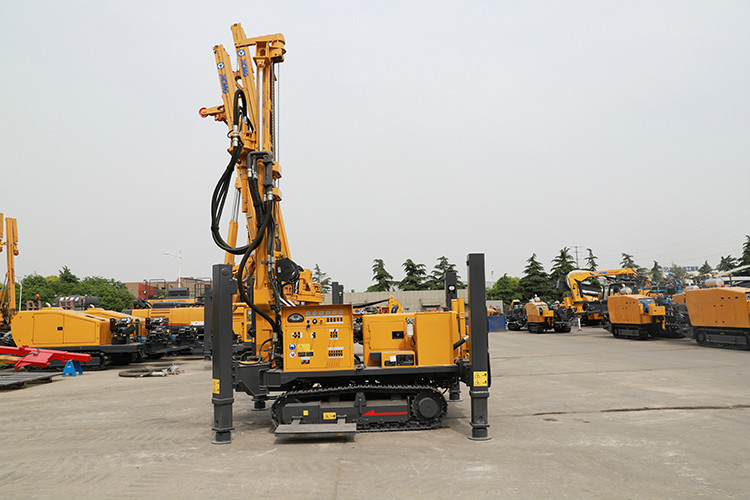

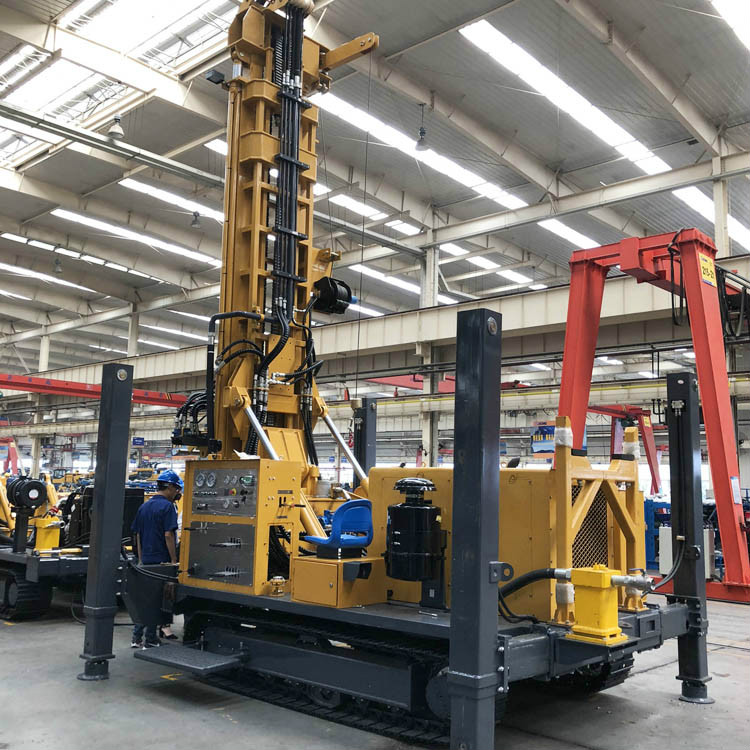

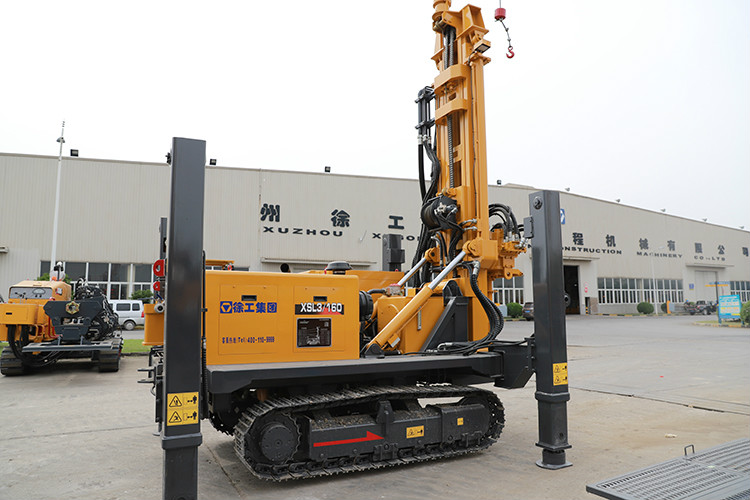

XCMG 300m Water Well Drilling Rig XSL3/160 Machine.

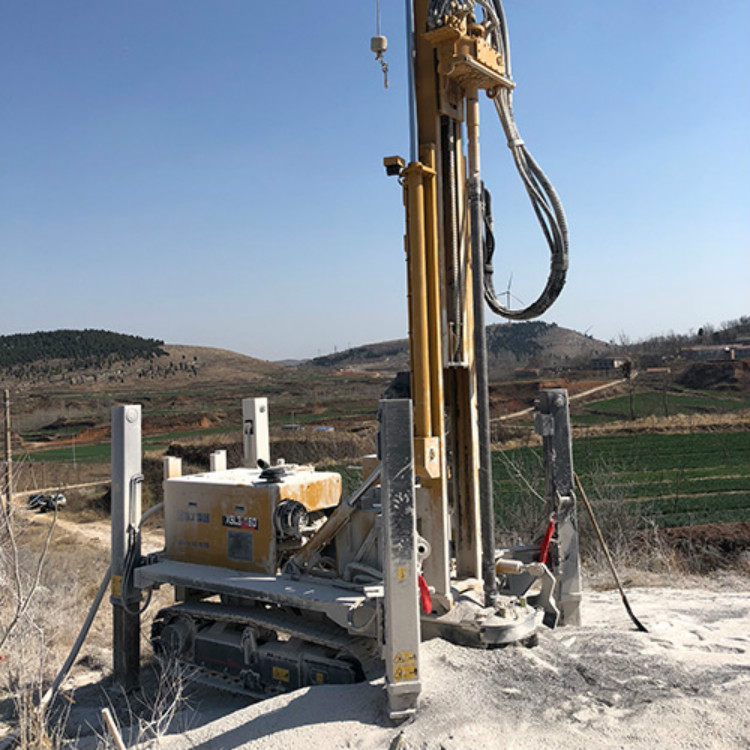

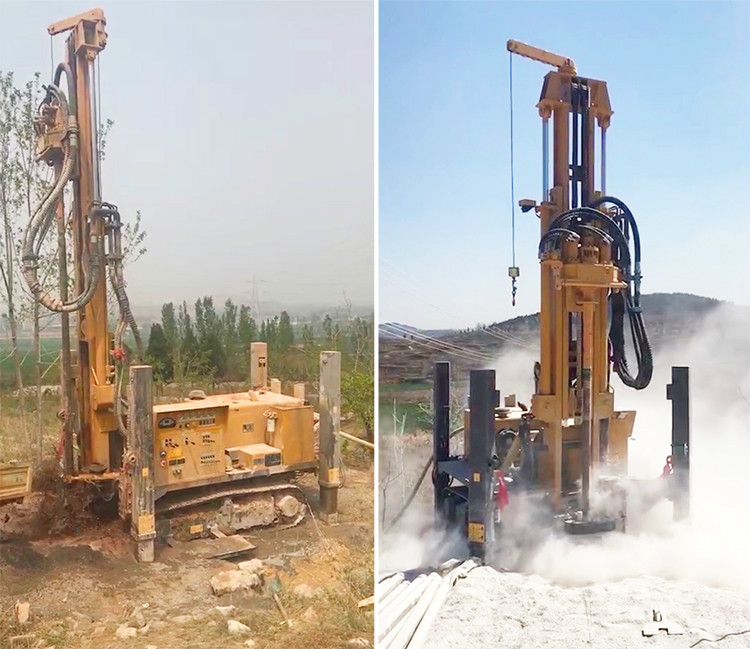

XSL series deep(water) well drilling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. It can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc., and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
Performance Characteristics:
1. Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.
2. Unique hydraulic matching technology for high system efficiency.
3. Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of drilling pressure according to drilling depth.

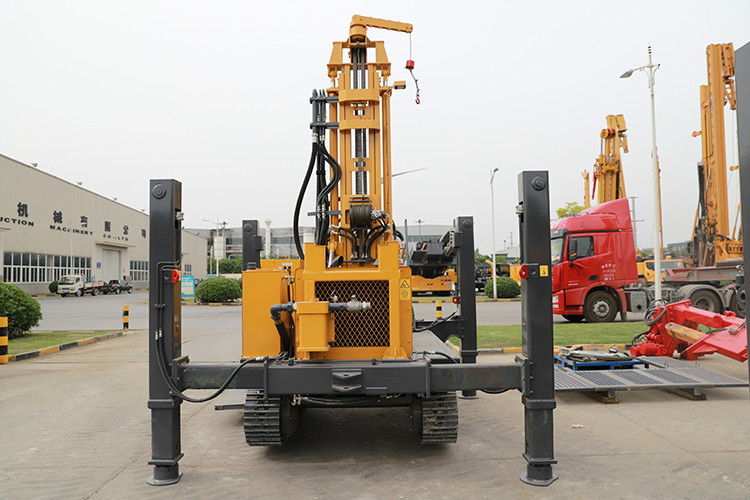

4. Four hydraulic high supporting legs are provided to achieve rapid leveling of the rig without lifting.
Parameter | Unit | XSL3/160 | |
Drilling capability | Drilling depth | m | 300(φ89) |
Max. diameter of working floor | mm | φ330 | |
Feeding system | Max. lifting capacity | kN | 160 |
Max. feeding capacity | kN | 80 | |
Max. lifting speed | m/min | 32(25) | |
Max. feeding speed | m/min | 60(48) | |
Stroke | mm | 3800(7000) | |
Top drive | Max. torque | N.m | 6600/3300 |
Max. speed | r/min | 95/190 | |
I.D | mm | φ45 | |
Deck engine | Type | YC4A125-T30 | |
Rated power | kW | 92 | |
Tool winch | Hoisting capacity | kN | 15 |
Breakout device | Max. breakout torque | N.m | 18000 |
Mud pipe | I.D | mm | φ55 |
Max. pressure | MPa | 8 | |
Chassis | Highest speed | km/h | 2.4 |
Max. climbing gradient | % | 39 | |
Max. ground clearance of crawler | mm | 1000 | |
Max. inner distance between front support legs | mm | 2600 | |
Max. inner distance between back support legs | mm | 2700 | |
Working dimension | mm | 3980*3130*6500 (3980*3130*8100) | |
Transportation dimension | mm | 4450(3980)*1800*2400 (6050(3980)*1800*2400) | |
Weight | t | 8.7(9.7) |
