WYS50 double power hydraulic tyre type grab
Summary
Specifications
- Weight:50000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

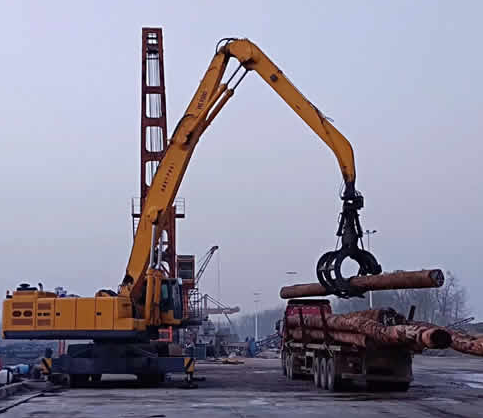

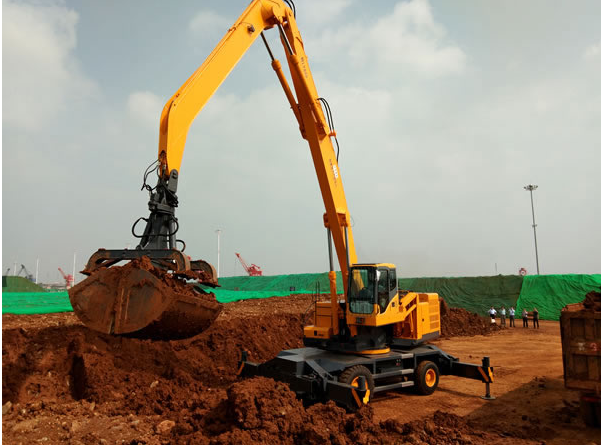

The equipment is mainly used for loading and unloading of railway and port terminals, loading and unloading of stockyard, stacking and destacking operations; According to different loading and unloading materials, different grippers can be replaced for operation. Engine driven operation can be used for fast transition; In the fixed place with motor drive operation, energy saving, more cost saving.
The product is a kind of mobile loading and unloading, stacking and destacking special equipment, which contains a number of patented technologies. The product adopts folding jib, which overcomes the shortcomings of the grab easy to rotate when the crane is lifting with soft cable, no downward pressure during operation, and poor grasping effect for solid materials. It is the best equipment for loading, unloading, stacking and destacking of soft raw materials such as wood, bamboo, waste paper, soil, sand and stone.
The product has a "dual power" system of internal combustion engine and 380V electric interchange operation; Electric operation can choose explosion-proof motor, fully enclosed electrical, safe fire, and save 60% energy consumption than internal combustion engine operation; It can quickly replace different hydraulic grabs and realize the multi-function of one machine. It has the following characteristics:
"Double power" intercommunication and interlock (patented technology) device with internal combustion engine and 380V electric power alternately driving operation;
There are over-current, overload, overheat and leakage protection devices for electric operation;
Equipped with Y / △ step-down starting device;
Automatic identification of phase sequence to prevent reverse rotation of oil pump;
Hydraulic system power off, oil cut-off self-locking, self-stop protection device;
There are multiple compound actions during operation to improve operation efficiency;
Installation of air cooled radiator for hydraulic system;
The gripper can rotate and change direction 360 degrees automatically;
When electric operation is carried out in the upper control room, there is a dual-purpose air conditioning device for cooling and heating;
The cab is controlled lifting type;
