Specifications
- Weight:10000.000kg
- Condition:New
- Moving Type:Wheel
- Kerb Mass:10000kg
- Drive Type:6*4
- GVW:90000kg
- Dimension:6860*2550*3675mm
- Left/Right Driving:LHD/RHD
- Emission Standard:EUR II
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

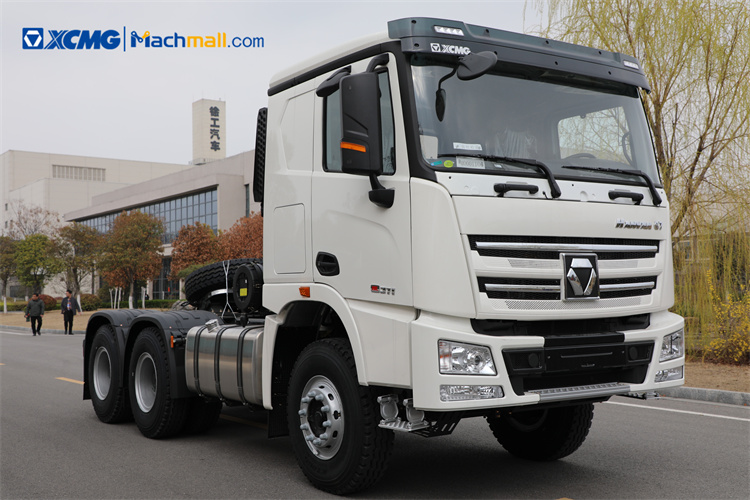

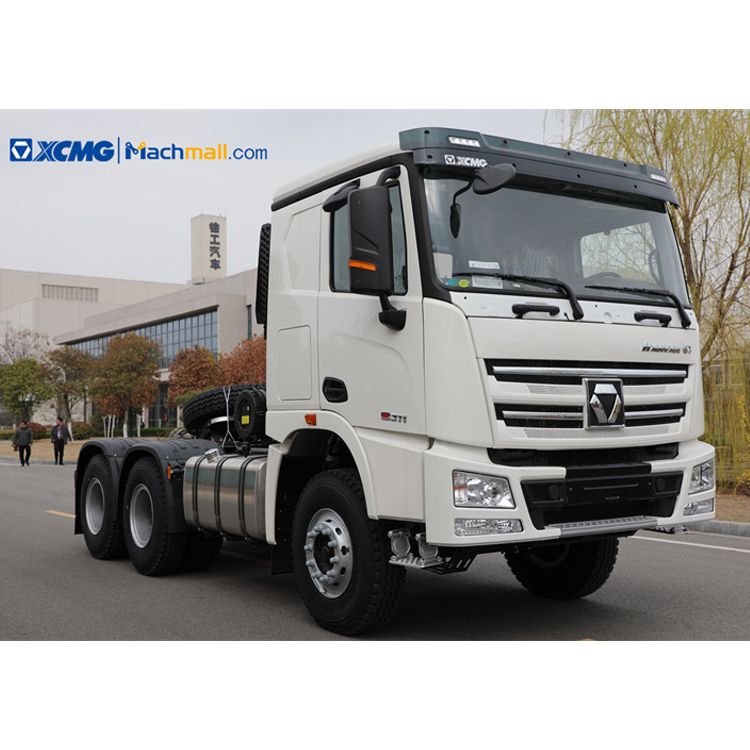

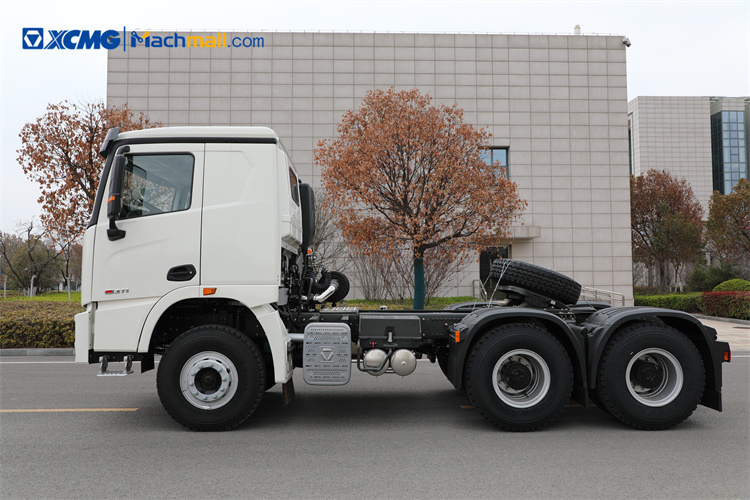

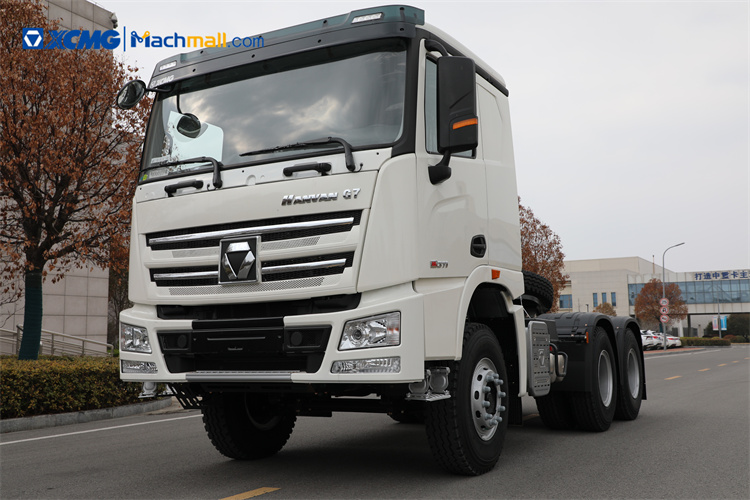

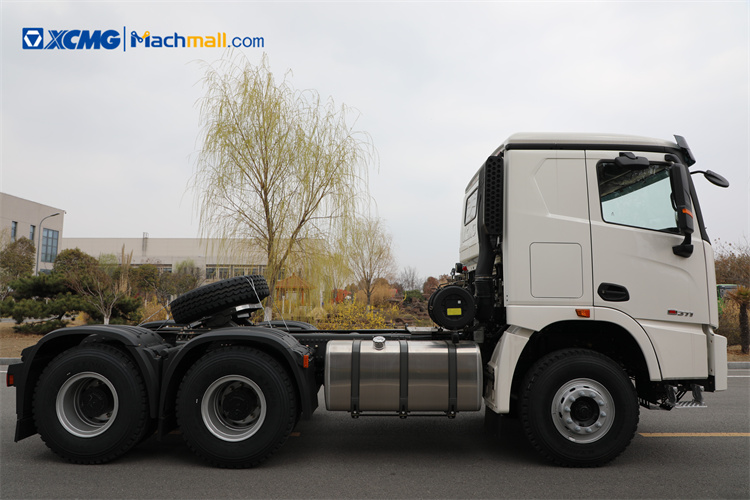

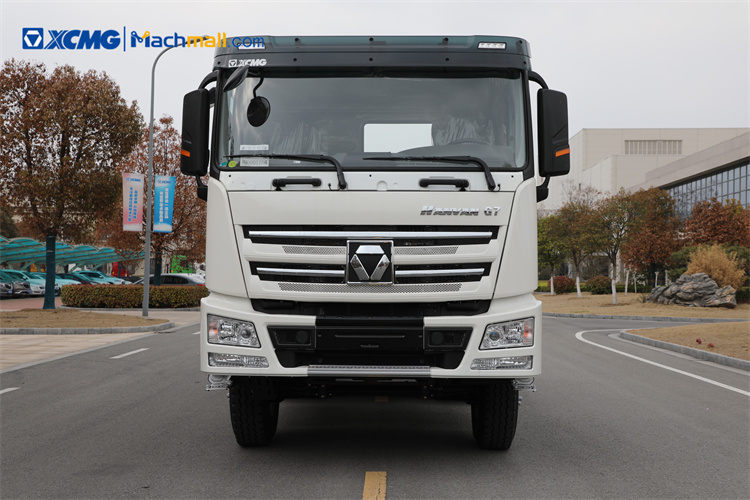

XCMG HANVAN G7 6*4 Tractor Trucks for Transport.
Perfect power transmission chain:
XCMG HANVAN G7 6*4 Tractor Trucks capable of complex conditions, delivers a more reliable and powerful drive force.

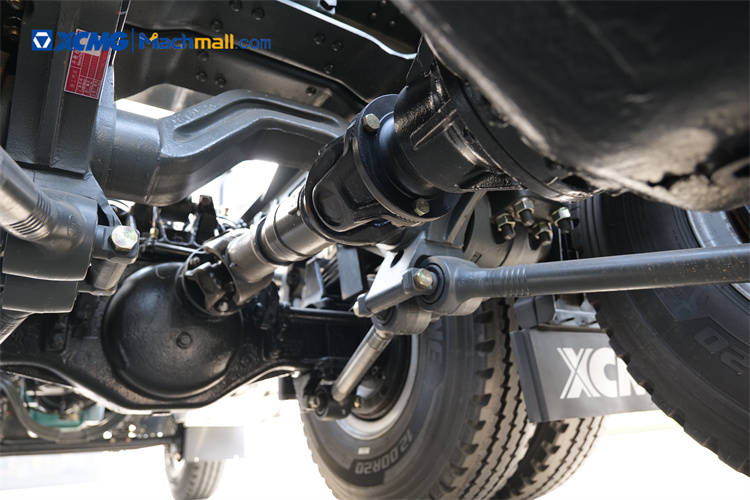

Weichai engines + Fast gearboxes + Hande axles: forming a perfect match of tractor head trucks, which are reliable, easy to maintain and affordable.
Structural components:
CAE techniques are widely employed to conduct detailed analysis of strength, rigidity and modalities of various components, and the impact strength of the driving cab.
Electric devices:
more reliable electrical elements are selected to secure a high reliability for the entire electric systems.
Less Dead-weight:
Lightweight assemblies/parts and the CAE technology-based topological design on the whole vehicle help strike an optimal balance among higher safety, higher reliability and less dead-weight.
Lower Wind Drag:
Integrated aerodynamic analysis & design is conducted to bring down the overall wind drag for the whole vehicle to the leading level at home.
Excessive Load Capacity:
Sticking to the best industry practices and higher ethical standards, XCMG has always sought to strike a balance between the reasonable weight and the highest safety in its product design.
User-friendly Layout:
Well-designed primary illumination, courtesy lamp, berth lamp, reading lamp, and inspection lamp for radiator grille make up a considerate caretaker and a great helper throughout your business journey.
Air of Luxury & Style European Style:
full profile, plump facade, elegant look and bold spirit.
Service:
1. Maximum warranty period is 60 months for the whole machine.
2. Three parts are only replaced but not repaired: engine, gearbox, and drive axle.
3. Free warranty: the first maintenance materials and all working hours are free after the customer purchases the engine, gearbox, and drive axle.
4. Fast channel for emergency accessories: exclusive procurement channel.
|
PERFORMANCE PARAMETERS |
|
|
Drive Type |
6×4 |
|
Mass |
10000kg |
|
GVW |
90000kg (With Trailer） |
|
Max. Speed |
90km/h |
|
Min. Turning Diameter |
14m |
|
Grade Ability |
18.50% |
|
Fuel Tank |
600L |
|
DIMENSIONS |
|
|
Dimension (mm) |
6860×2550×3250(LM) |
|
6860×2550×3675(LH) |
|
|
Wheelbase (mm) |
3200+1400 |
|
Min. Clearance |
250mm |
|
Approach Angle |
25° |
|
Departure Angle |
19° |
|
Front Overhang |
1500mm |
|
Rear Overhang |
760mm |
|
Height of traction base from the ground (no load)（mm） |
1410±30 |
|
CABIN |
|
|
Model |
HANVAN G7 LM |
|
|
HANVAN G7 LH |
|
Left/Right Driving |
LHD/RHD |
|
AC |
Optional |
|
Person Allowed in |
2 |
|
ENGINE |
|
|
Model |
WD615.47 |
|
Emission Standard |
EUR II |
|
Displacement |
9.726L |
|
Output Power |
273kW |
|
Max Torque Speed |
1500N·m |
