Specifications
- Weight:2280.000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Xuzhou WORLDO Machinery Technology Co.Ltd.was a branch Company of XCMG Group,the former is the branch of construction machinery form Xuzhou Construction Machinery Co .,Ltd.IT is specialized in the R&D,manufacturing,installation and maintenance of building hoist sand various construction machinery applicable tools.
Since 1995,it started production of SC(D)200/200 building hoist ,after twenty years of concentrated training ,currently the building hoists include load capacity is from 1 ton to 3.2TONS,speed is from low to middle high ,driving form is from the traditional worm gear drive to gear drive control system is from ordinary AC contractor control to transducer control etc.The brand “XZJJ” win a widely reputation at home and abroad.
Xuzhou WORLDO Machinery Technology Co., Ltd.has a high-quality R&D team ,established a partnerships with Dalian University of Technology and its R&D Center,for the building hoist product series ,optimized design,combining internet technology the building hoist products to get continued promote.We have acquired a dozen patents.We also won the certification of national high-tech enterprises, Jiangsu Province private technology enterprises ,high-tech products identification.

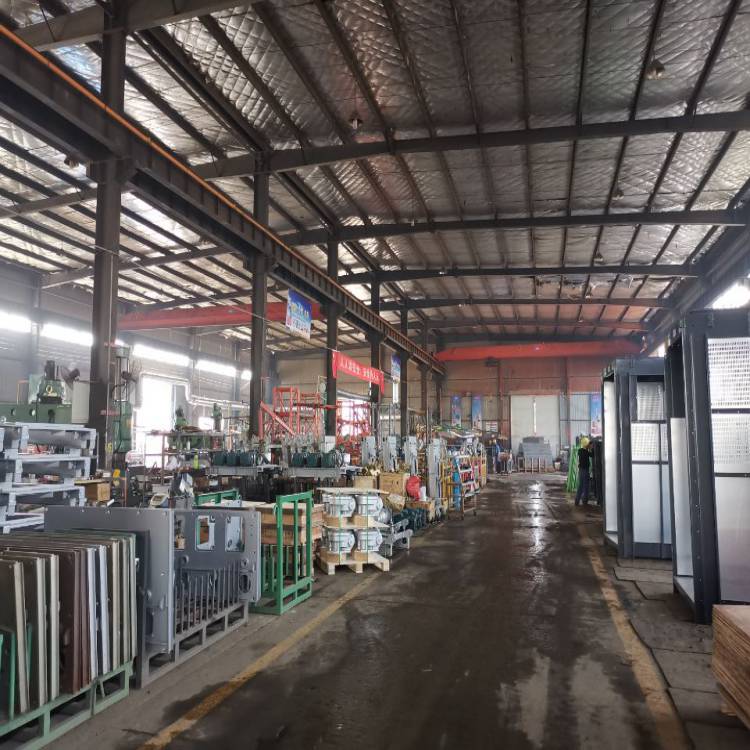

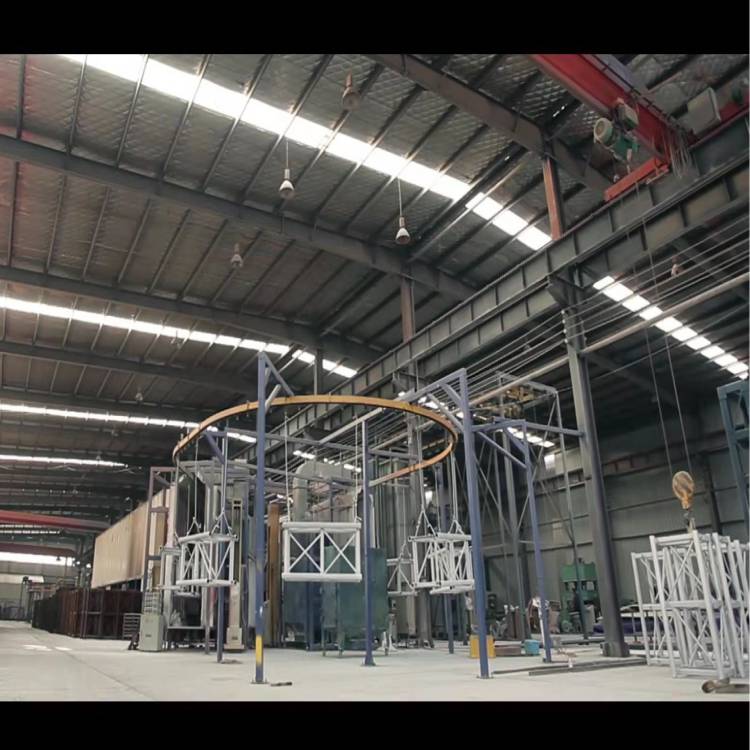

The company constantly strengthen and perfect quality management system according to Standard ISO 9001.It keeps scientific management,careful operation ,a variety of manufacturing ,testing equipment ,the special tooling ,full facilities .With an annual manufacturing capacity of 1000units of building hoists and construction machinery attachments,our annual output value of more than three hundred million RMB,can meet the various needs of customers.
The company keeps innovation and diversity of development,based on the main business.We have designed crane clamp grab,clamshell grab,orange peel grab,port crane and crane clamshell grab attachments ,which are received a high praise .As the parking problem gradually revealed,three-dimensional garage as our company strategic goods have been effective technical reserves,which make WORLDO diversified development being more impressive.

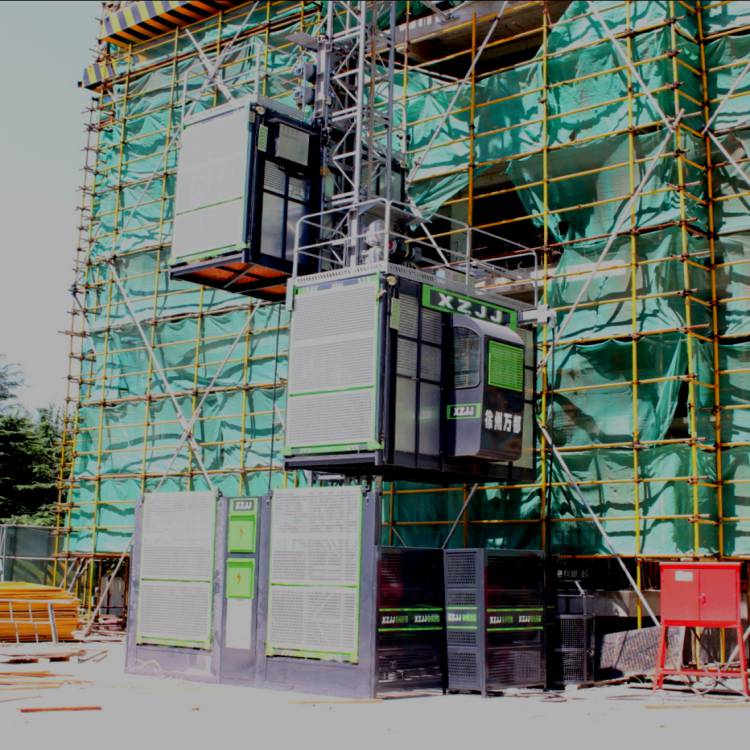

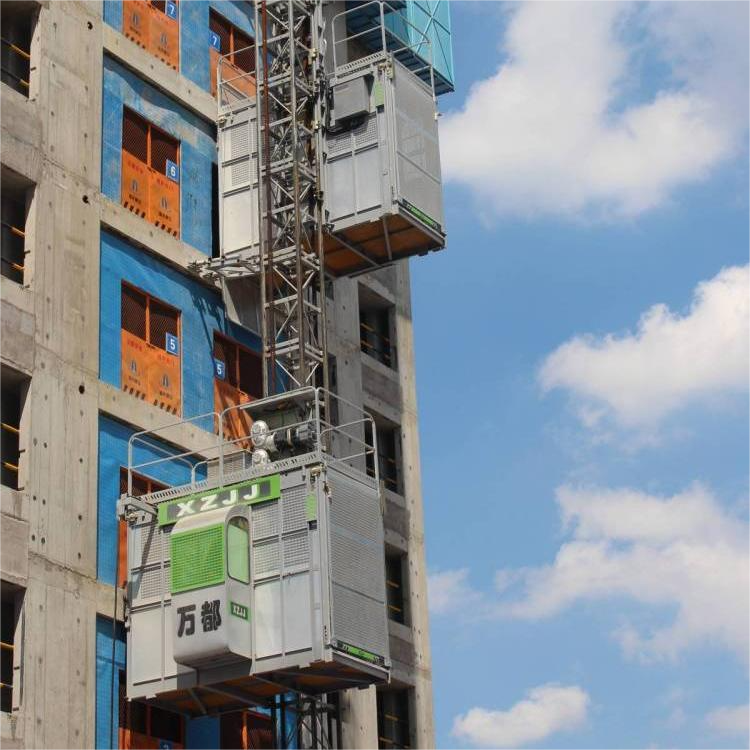

SC200/200(BP)(low speed -variable frequency control)construction hoist is designed based on SC200/200 by adding variable frequency control system with advantages of stable start and stop ,energy saving,little mechanical wear and low noise .The speed is adjustable with 0-40m/min.
Technical data |
单位 |
Value |
||||
SC200/200 |
SC200/200BP |
SC200/200Z |
SC200/200G |
|||
Rated load |
kg |
2*2000 |
||||
Maximum lifting heigjt |
m |
250 |
450 |
|||
Lifting speed |
M/min |
33 |
0-40 |
0-63 |
0-96 |
|
Jid attachment rated load |
kg |
250 |
||||
Rated output |
kw |
2*3*11 |
2*3*18.5 |
2*3*18.5 |
2*2*18.5 |
|
Rated current |
A |
2*3*23.2 |
2*3*37.8 |
2*3*39 |
||
Inverter power |
kw |
/ |
37 |
75 |
|
|
Security anti-dropping model |
/ |
SAJ4.0-1.2 |
SAJ4.0-1.2 |
SAJ5..0-1.4 |
SAJ5.0-2.0 |
|
Voltag of power suooly |
V/Hz |
380/50 |
380/50 |
380/50 |
380/50 |
|
Power capacity |
KVA |
120 |
120 |
120 |
120 |
|

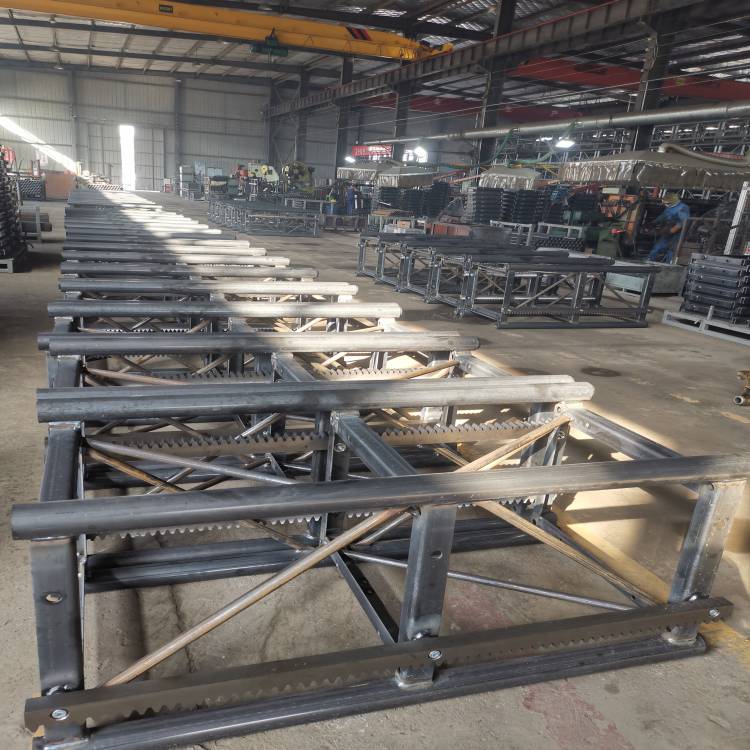

Mast section |
mm |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
The hoist space |
mm |
3000*1300*2200 3000*1500*2200 3200*1500*2500 |
3000*1300*2200 3000*1500*2200 3200*1500*2500 |
3000*1300*2200 3000*1500*2200 3200*1500*2500 |
3000*1300*2200 3000*1500*2200 3200*1500*2500 |
