Summary

Specifications

Weight:111.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

Overview:
    It is used to tamper engineering foundation, road margin and asphalt surface on construction road, street, building, ditch and bridge in the field of road, municipal engineering, construction and water conservancy etc. It is better used for the tamping of narrow laneway.

    Characteristics:
    ·Famous brand HONDA gasoline engine.
    ·NSK/SKF bearing.
    ·MITSUBOSHI/ CONTITECH V-belt.
    ·Hydraulic reversing.

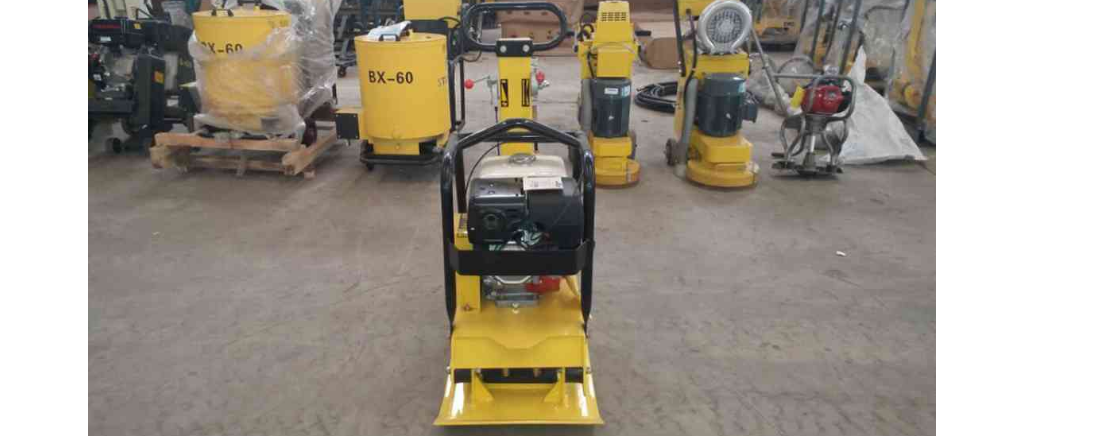

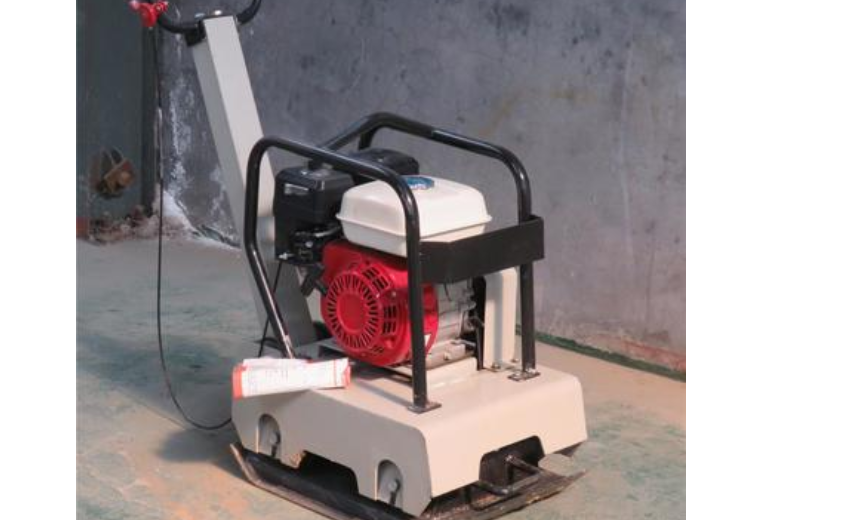

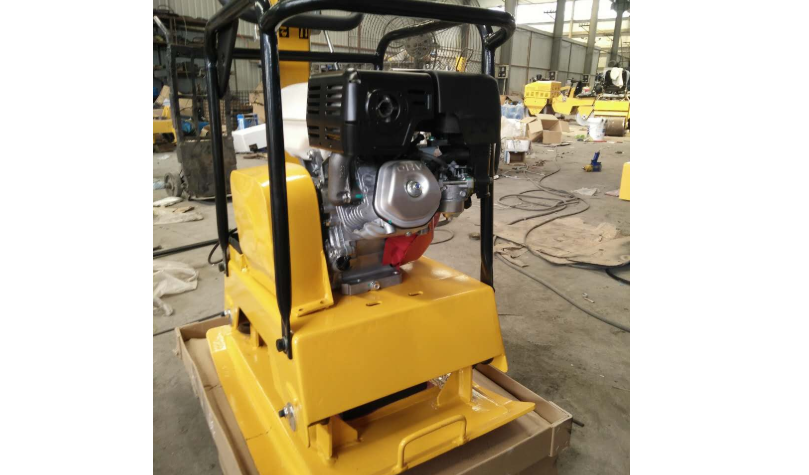

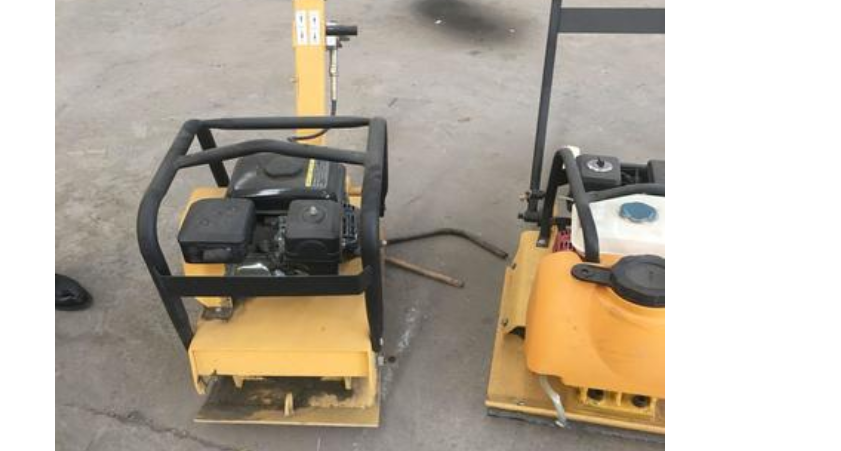

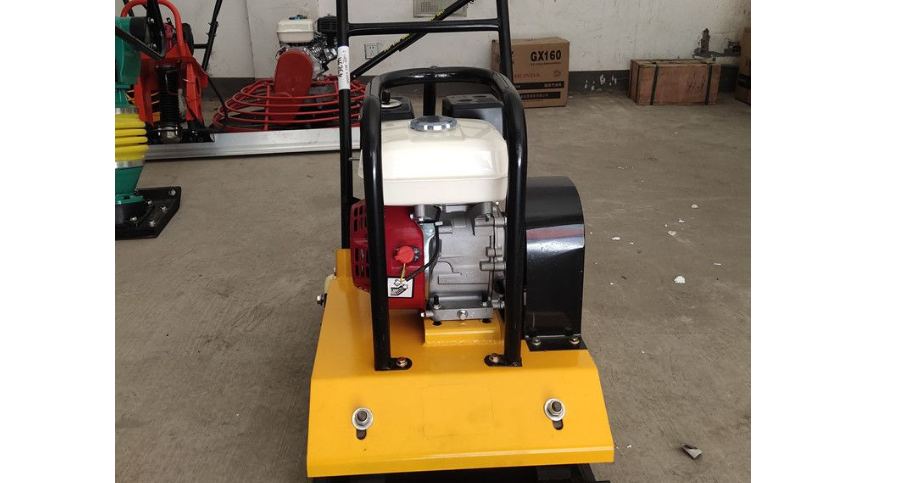

ROADWAY Plate compactor RWBH31B Hydraulic reversing, excitation force 30KN

Technical Parameters

Working		Power	5.5hp / 3600rpm
Speed	23m / min	Fuel tank capacity	3.6L
Climbing capacity in theory	25%	Dimension
Compaction		Plate size	710 × 430mm
Nominal amplitude	0.5mm	Packing size	950 × 650 × 1450mm
Vibration frequency	75Hz	Total length	1320mm
Exciting force	30kN	Total width	430mm
Engine		Total height	1330mm
Model	HONDA GX160	Weight
Type	Gasoline engine, air-cooled 4-stroke, OHV, single-cylinder	Working weight	165kg
