Summary
- Model Number:QY50KA
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:58m
- Max. Lifting Load:50 ton
Specifications
- Weight:42200.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000

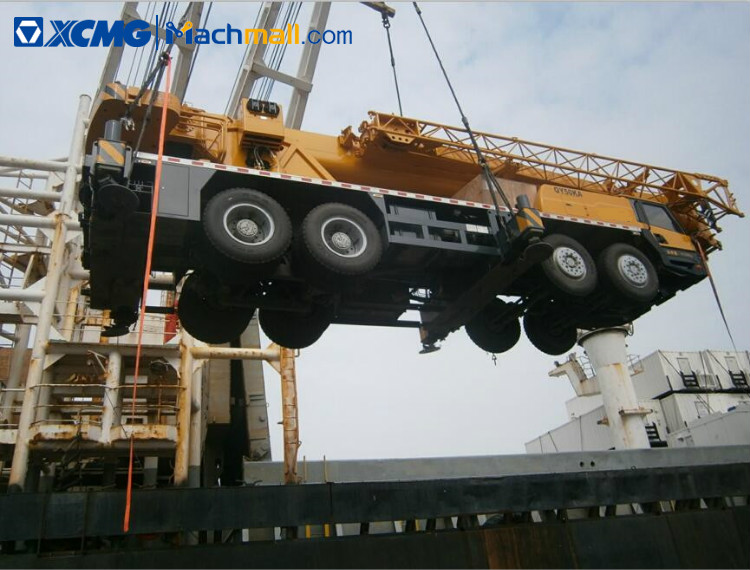

- Delivery Port:Any Port In China

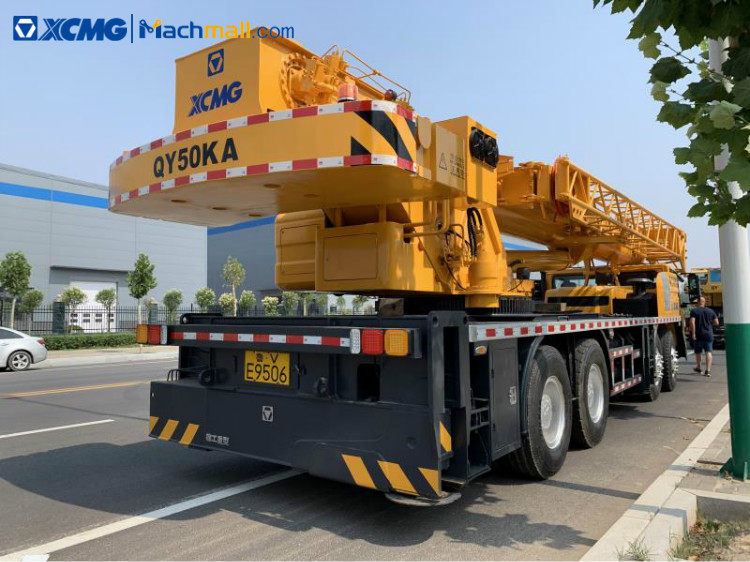

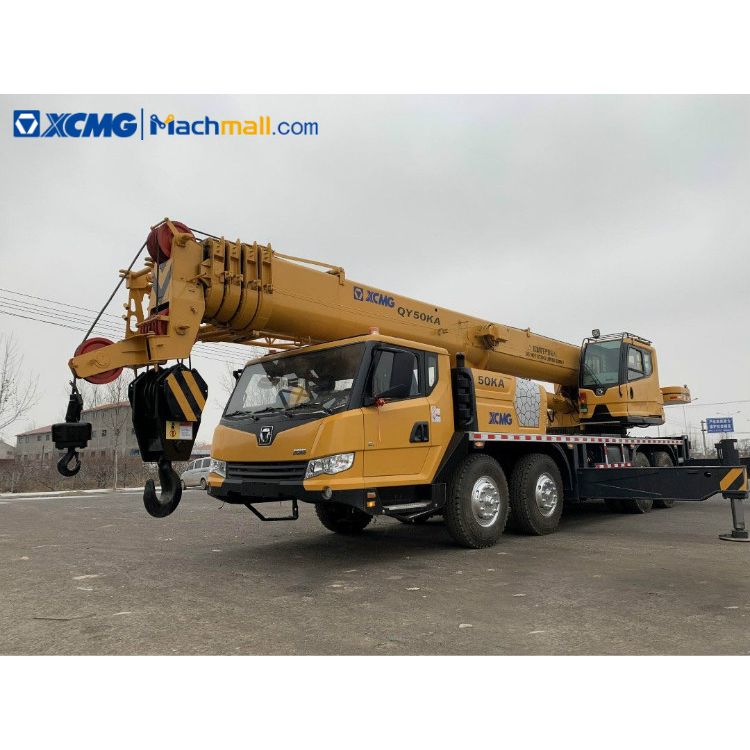

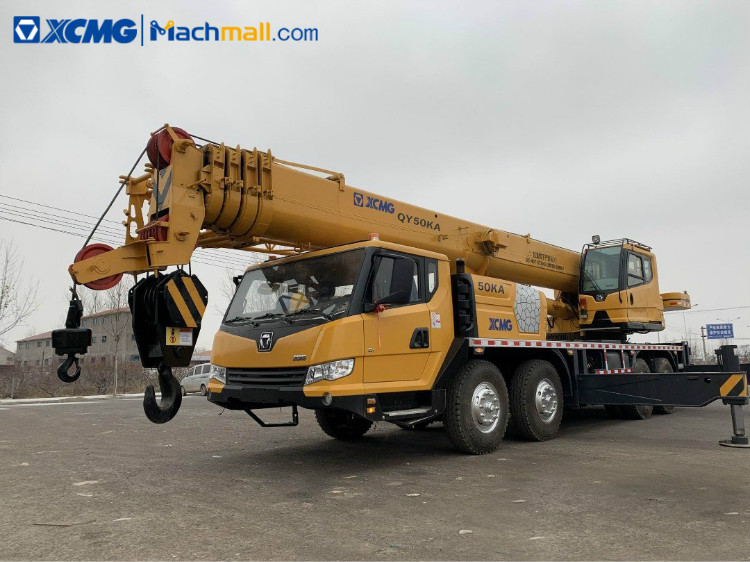

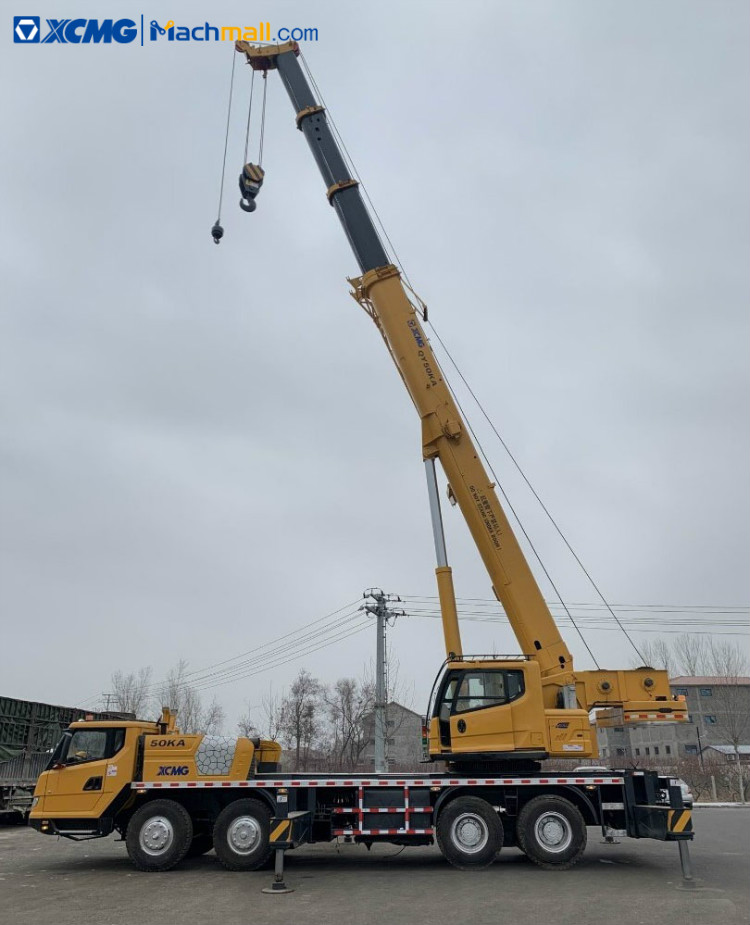

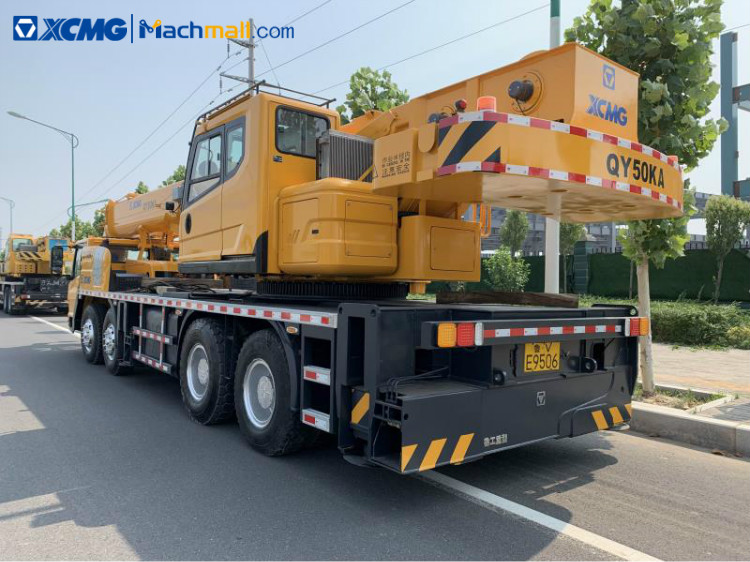

XCMG QY50KA 50 ton crane for sale.
XCMG QY50KA 50 ton crane structure is compact, the industry operating performance is the highest. Lifting performance and driving performance of a comprehensive upgrade, leading competitors. Dual-pump confluence technology, operating efficiency of a comprehensive lead.
1. Leading lifting and driving performances

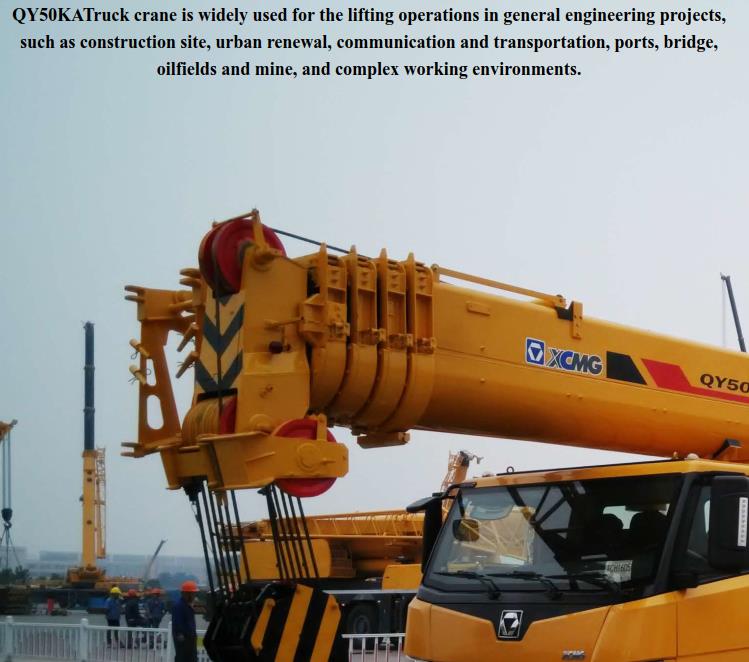

Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.
High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
2. Reliability of heat dissipation, electrical system etc. has been improved with safer operation and driving
Waterproof connector clip is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.
The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.
3. Mature and reliable double-pump confluence technique, maintaining the advantages of efficient operation
The double-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.
|
Description |
|
Unit |
Parameter value |
|
Overall length |
|
mm |
13930 |
|
Overall width |
|
mm |
2780 |
|
Overall Height |
|
mm |
3630 |
|
Axle base |
1st ,2nd axle |
mm |
1470 |
|
|
2nd ,3rd axle |
|
4300 |
|
|
3rd ,4th axle |
|
1350 |
|
Wheel Base |
|
mm |
2304+2075 |
|
Front overhang/rear overhang |
|
mm |
2389/2064or 2376/2064 |
|
Front extension/rear extension |
|
mm |
2131/226 or 2144/226 |
|
Total vehicle mass in travel configuration |
|
kg |
42200 |
|
Axle load |
Front axle |
kg |
16200 |
|
|
Rear axle |
|
26000 |
|
Engine Model |
|
|
WD615.338 |
|
Engine rated power |
|
kw/(r/min) |
276/2200 |
|
Engine rated torque |
|
N.m/(r/min) |
1500/1300-1600 |
|
Max. travel speed |
|
km/h |
85 |
|
Min. steady travel speed |
|
km/h |
2~3 |
|
Min. turning diameter |
|
m |
24 |
|
Min. ground clearance |
|
mm |
327 |
|
Max. grade ability |
|
% |
42 |
|
Approach angle |
|
° |
19 |
|
Departure angle |
|
° |
15 |
|
Braking distance (at 30 km/h, full load ) |
|
m |
≤10 |
|
Oil consumption per 100km |
|
L |
40 |
|
Exterior noise level during acceleration traveling |
|
dB (A) |
≤88 |
|
Noise level at seated position |
|
dB (A) |
≤90 |
