QY25K5A crane for sale - XCMG 53m 25t truck crane QY25K5A price
Summary
- Model Number:QY25K5A
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:53m
- Max. Lifting Load:25 ton
Specifications
- Weight:33000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

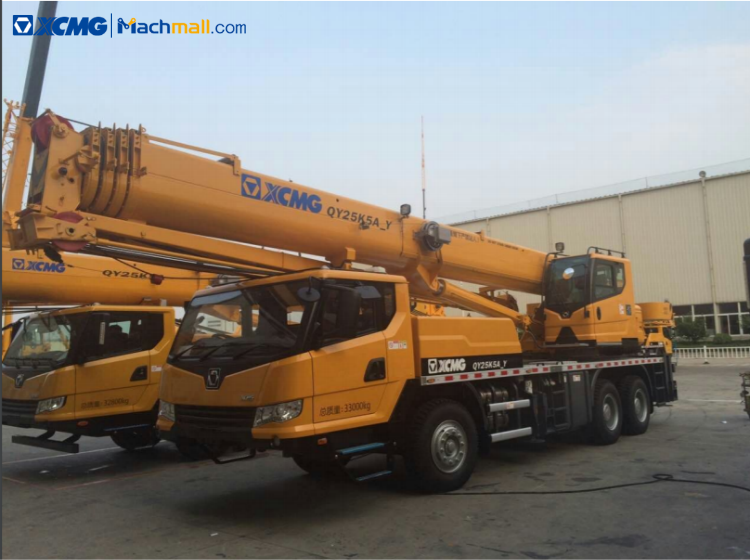

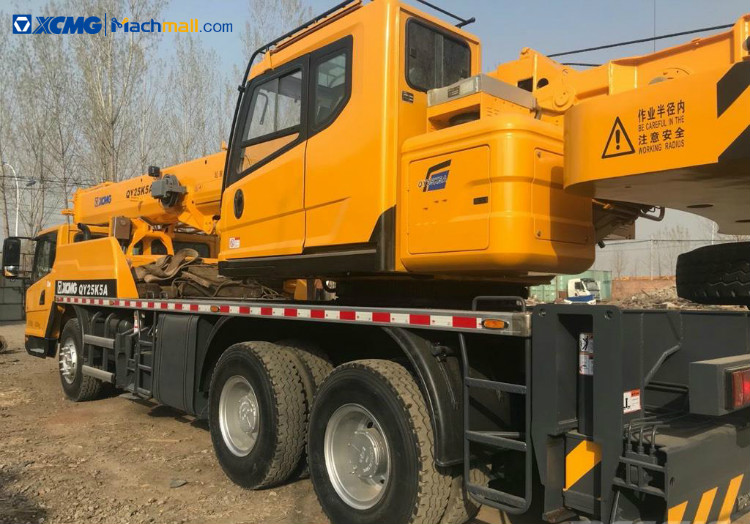

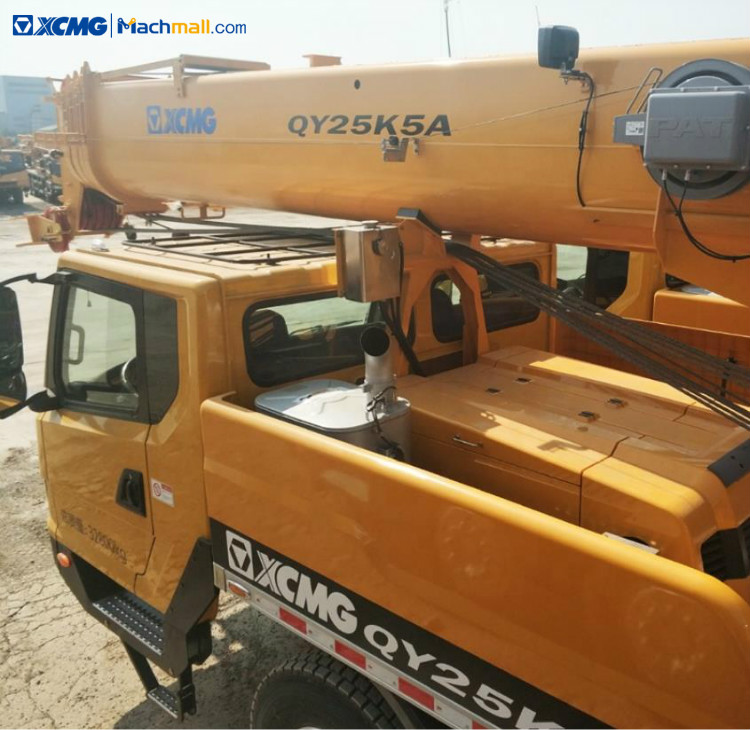

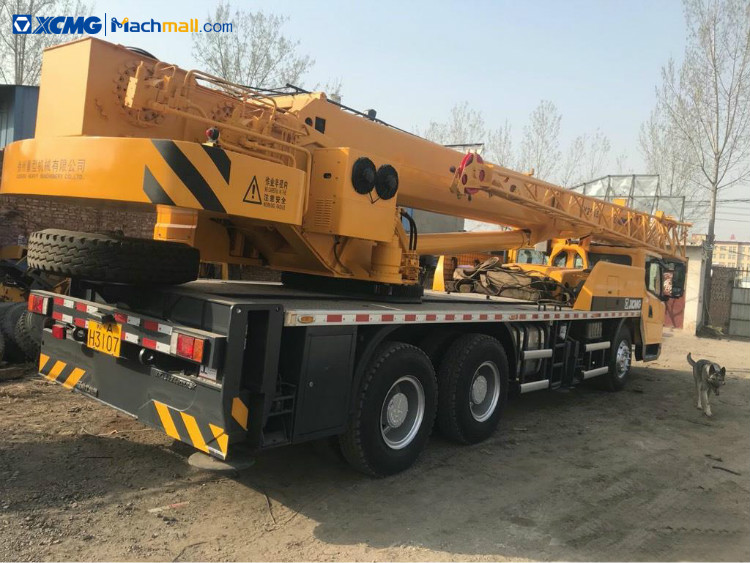

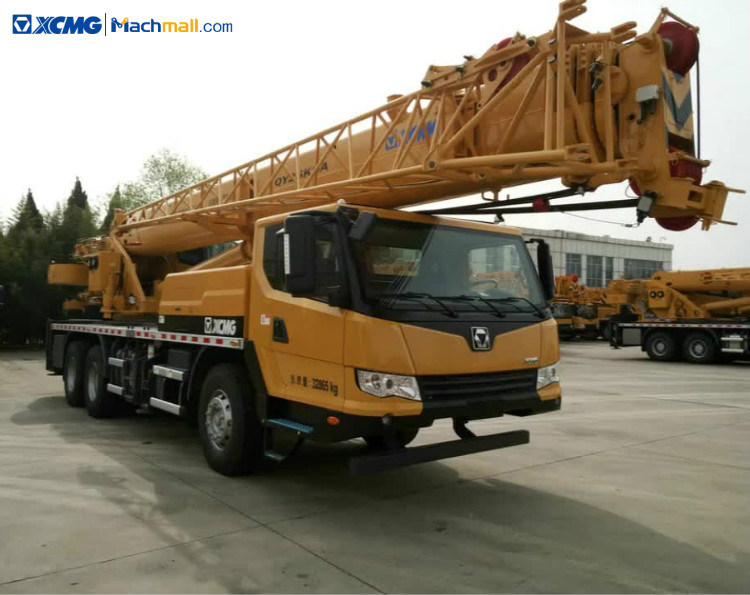

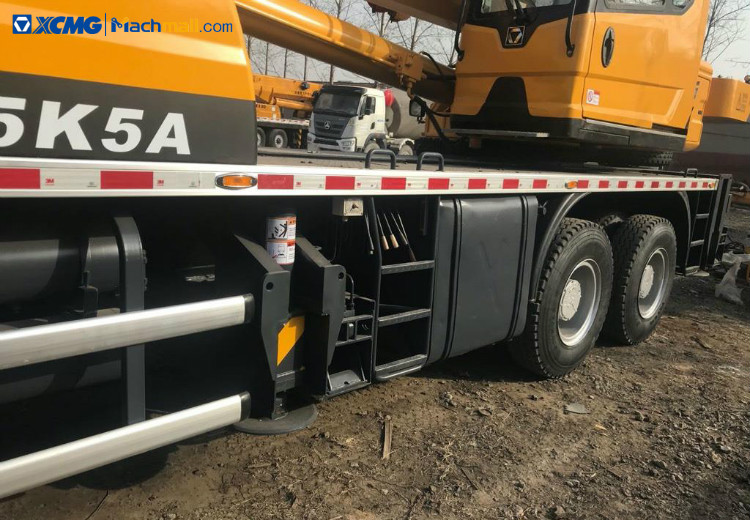

XCMG 53m 25t truck crane QY25K5A.
The operations of XCMG 53m 25t truck crane QY25K5A are very simple, convenient and flexible. Mobile crane QY25K5A is widely used forlifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield,industrial and mining enterprises, etc.

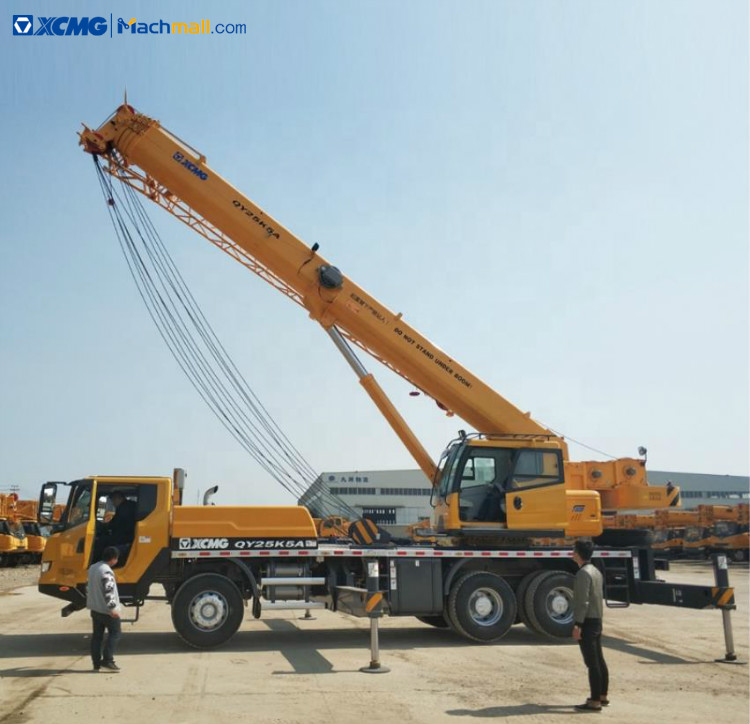

1. U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, smalldeformation, strong anti-bending and powerful lifting capacity. The main boom length is 10.6 mto 41.0 m, the performance of mid-extended boom and fully-extended are also superior.
2. Plug-in boom head effectively increases the boom connect length and reduces boomdeformation. Embedded sliders are equipped, which enlarge the contact square and reduce thecontact stress of boom.
3. With 9-speed transmission equipped, it has superior travel and grade ability. The max.grade ability is 40%, max. travel speed is 90 km/h.
4. Particular slewing technology realizes smooth slewing and no jitter. Free fall isadopted in the elevating system, which effectively realizes energy-saving.
5. Equipped withnew hydraulic variable displacement motor with large original torque to ensure no gliding duringsecond-lifting, improve working efficiency.
6. The boom telescoping system of XCMG had obtained Chinese patent, effectively preventoccurrence of telescoping cylinder bending and boom broking cause by mis-operation, andtherefore operation safety is improved.
7. The arrangement of jib stowed under boom is designed to facilitate operations inconfined space, which is suitable for applications in southeast Asian countries.
8. Duplex mode of the engine working condition, uses higher power during normal drivingto ensure the driving performance of the vehicle, uses less power when working on thesuperstructure as much as possible to reduce fuel consumption.
9. The main performance parameter of the lifting can be monitored and displayed, thenecessary test points are set in the electrical and hydraulic system, to facilitate testing and faultisolation. With attendant tools and spare parts, ease for common fault diagnosis and repair.
|
Category |
Item |
Unit |
Parameter |
|
Outline Dimensions |
Overall length |
mm |
12680 |
|
|
Overall width |
mm |
2500 |
|
|
Overall height |
mm |
3400 |
|
|
Axle base |
mm |
4425+1350 |
|
|
Wheel base |
mm |
2074/1834/1834 |
|
Weight |
Total vehicle mass in travel configuration |
kg |
32800 |
|
Power |
Model |
|
SC9DF290Q4 |
|
|
Rated power |
kw/(r/min) |
213/2200 |
|
|
Rated torque |
N.m/(r/min) |
1200/1400 |
|
Travel Performance |
Max. travel speed |
km/h |
90 |
|
|
Min. turning diameter |
m |
22 |
|
|
Min. ground clearance |
mm |
275 |
|
|
Approach angle |
° |
11 |
|
|
Departure angle |
° |
12 |
|
|
Braking distance(at 30 km/h) |
m |
≤10 |
|
|
Max. grade ability |
% |
41 |
|
|
Oil consumption per 100km |
L |
≤32 |
|
Noise |
Exterior noise level in accelerating |
dB(A) |
88 |
|
|
Noise Level at seated position |
dB(A) |
90 |
