Summary
- Model Number:QY25K5-II
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:47m
- Max. Lifting Load:25 ton
Specifications
- Weight:32865.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

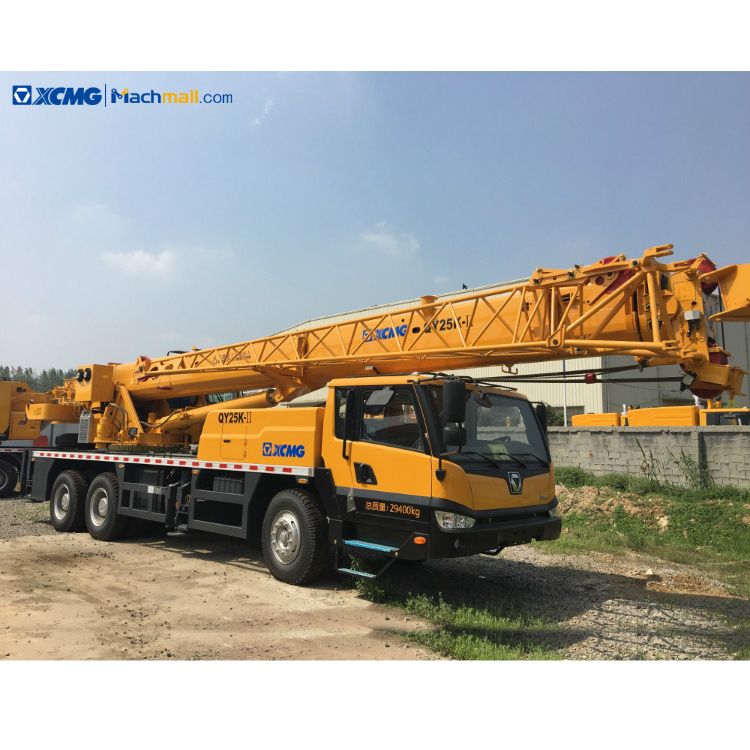

XCMG QY25K5 25 ton truck crane.
XCMG QY25K5 25 ton truck crane is the product with high reliability inheriting classical and advanced technology aboutdesign and manufacture truck crane of many years and based on mature technology.
Truck crane QY25k5 the operations of crane are very simple, convenient and flexible. Truck crane QY25k5 is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
QY25k5 truck crane performance characteristics:
1. Truck crane QY25k5 adopts U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation,strong anti-bending and powerful lifting capacity.The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully-extended are also superior.
2. Plug-in boom head effectively increases theboom connect length andreducesboom deformation.
3. Truck crane QY25k5 embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.
4. Truck crane QY25k5 with 9-speed transmission equipped, it has superior travel and grade ability. The max. grade abilityis 40%, max. travel speed is 90km/h.
5.Meets the requirements of speed and reduces the energy consumption and system heat effectively.
|
Category |
Item |
Unit |
Parameter |
|
Outline Dimensions |
Overall length |
mm |
12680 |
|
|
Overall width |
mm |
2500 |
|
|
Overall height |
mm |
3400 |
|
|
Axle base |
mm |
4425+1350 |
|
|
Wheel base |
mm |
2074/1834/1834 |
|
Weight |
Total vehicle mass in travel configuration |
kg |
32865 |
|
Power |
Model |
|
SC9DF290Q3 |
|
|
Rated power |
kw/(r/min) |
213/2200 |
|
|
Rated torque |
N.m/(r/min) |
1200/1400 |
|
Travel Performance |
Max. travel speed |
km/h |
90 |
|
|
Min. turning diameter |
m |
22 |
|
|
Min. ground clearance |
mm |
275 |
|
|
Approach angle |
° |
11 |
|
|
Departure angle |
° |
12 |
|
|
Braking distance(at 30 km/h) |
m |
≤10 |
|
|
Max. grade ability |
% |
41 |
|
|
Oil consumption per 100km |
L |
≤32 |
|
Noise |
Exterior noise level in accelerating |
dB(A) |
88 |
|
|
Noise Level at seated position |
dB(A) |
90 |
