Summary
- Model Number:QY25K5-II
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:47m
- Max. Lifting Load:25 ton
Specifications
- Weight:32865.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

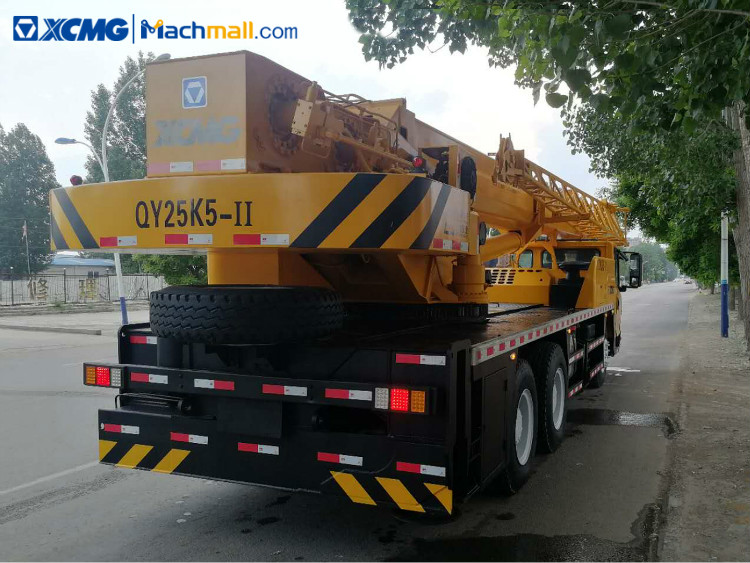

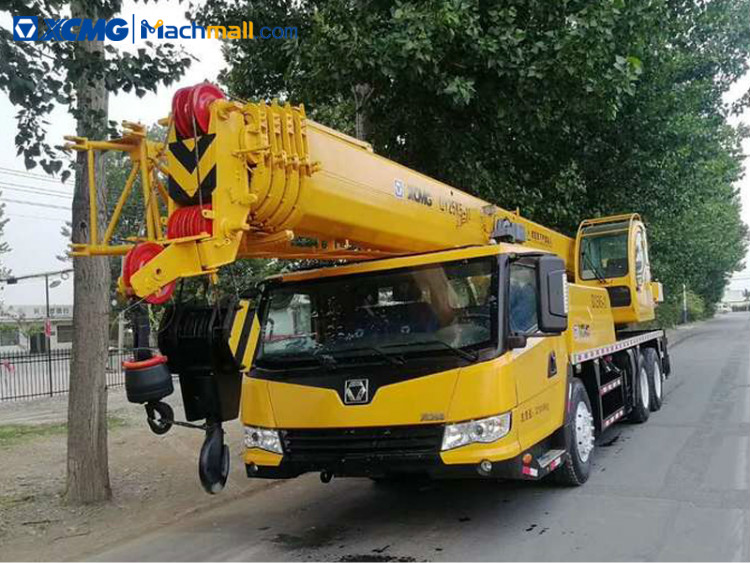

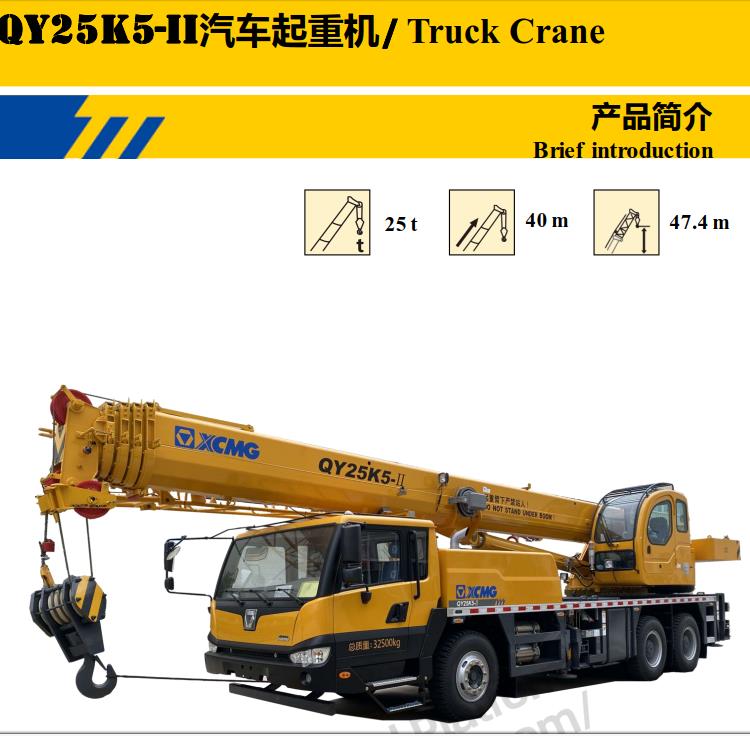

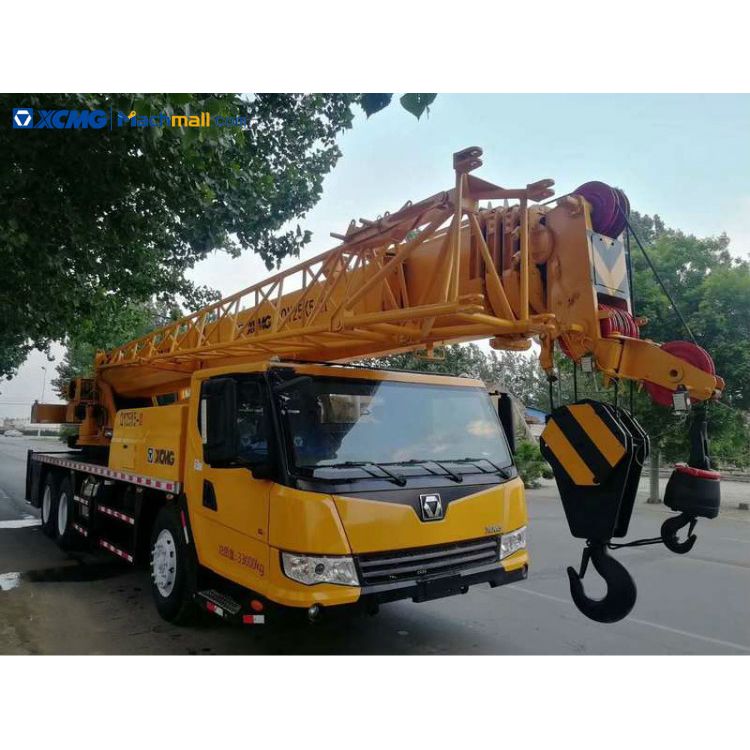

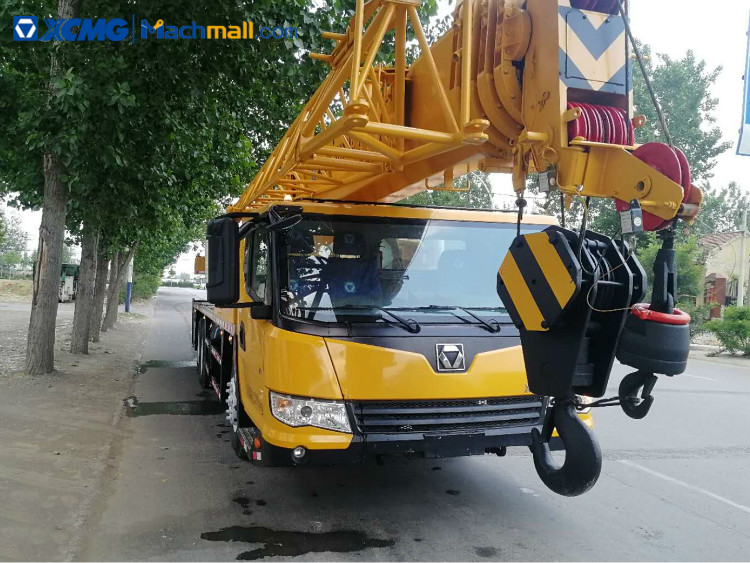

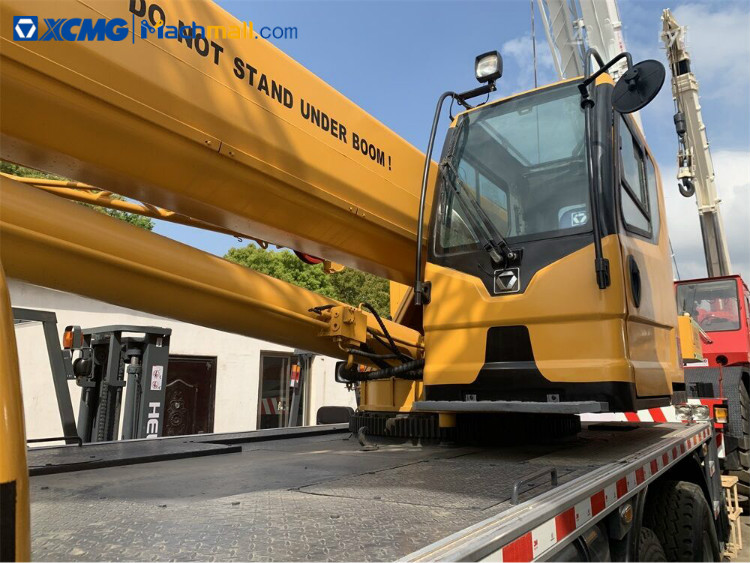

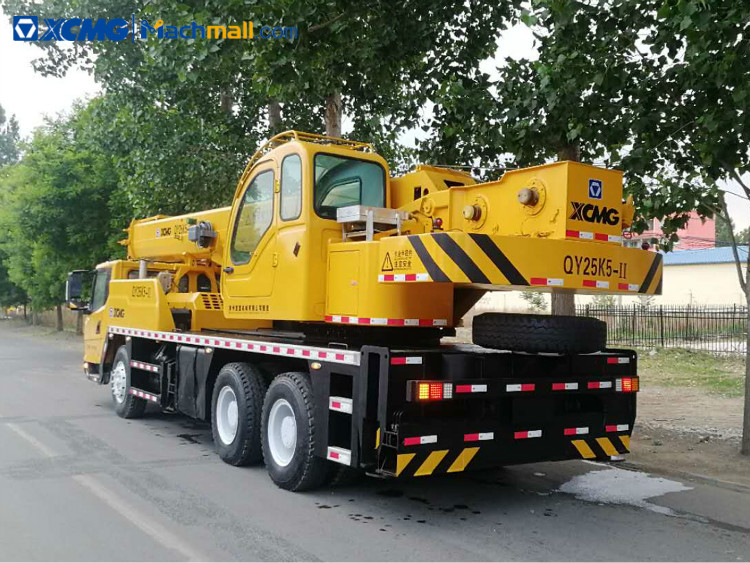

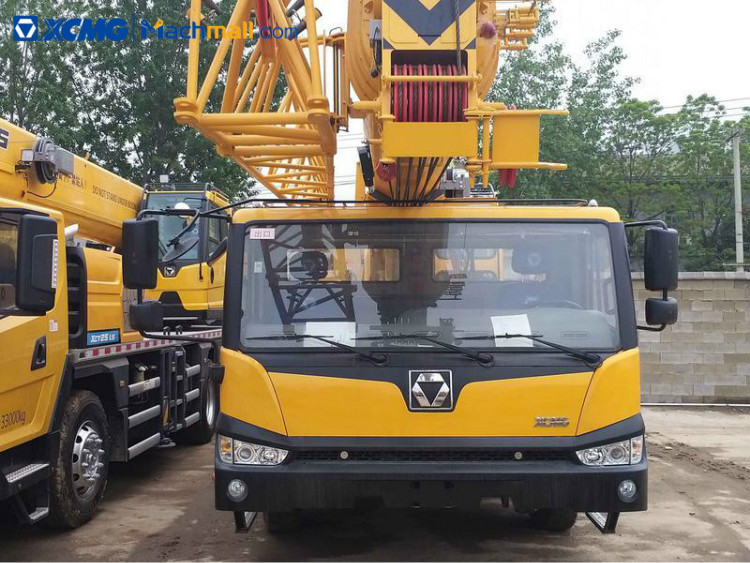

XCMG manufacturer QY25K5-II 47m 25 ton Construction crane.
XCMG QY25K5-II 47m 25 ton Construction crane is the product with high reliability inheriting classical and advanced technology aboutdesign and manufacture truck crane of many years and based on mature technology.

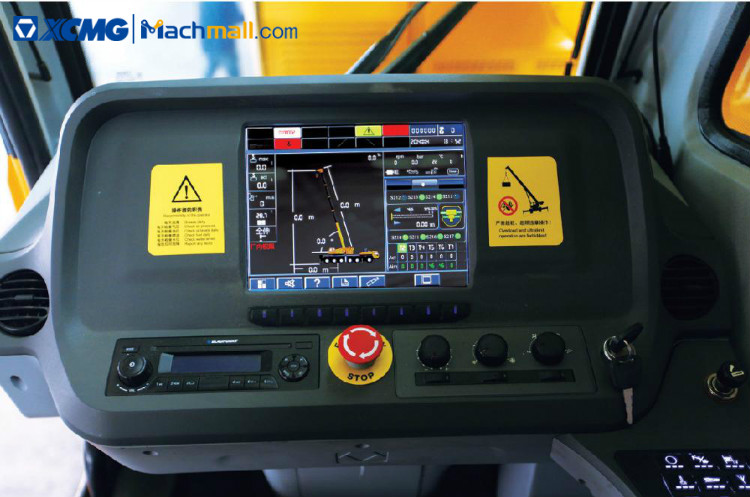

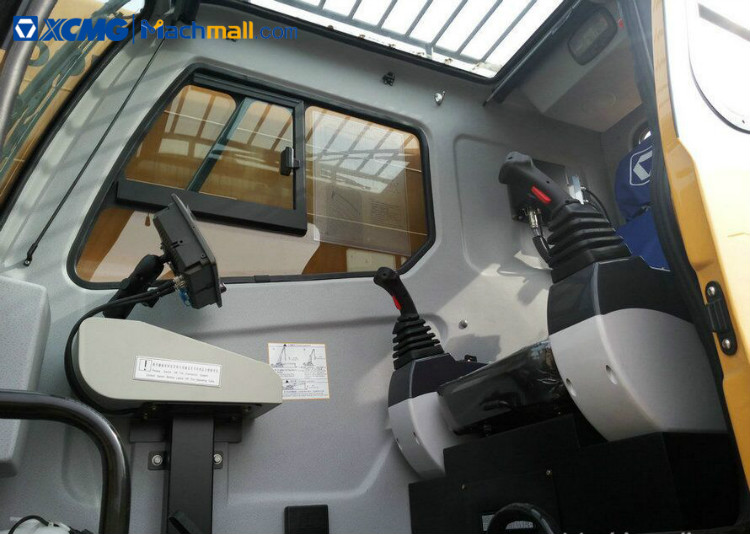

Construction crane QY25k5-II the operations of crane are very simple,convenient and flexible. Construction crane QY25k5-II is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
QY25k5-II Construction crane performance characteristics:
1. Construction crane QY25k5-II adopts U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation,strong anti-bending and powerful lifting capacity.The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully-extended are also superior.
2. Plug-in boom head effectively increases theboom connect length andreducesboom deformation.
3. Construction crane QY25k5-II embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.
4. Construction crane QY25k5-II with 9-speed transmission equipped, it has superior travel and grade ability. The max. grade abilityis 40%, max. travel speed is 90km/h.
5.Meets the requirements of speed and reduces the energy consumption and system heat effectively.
|
Category |
Item |
Unit |
Parameter |
|
Outline Dimensions |
Overall length |
mm |
12680 |
|
|
Overall width |
mm |
2500 |
|
|
Overall height |
mm |
3400 |
|
|
Axle base |
mm |
4425+1350 |
|
|
Wheel base |
mm |
2074/1834/1834 |
|
Weight |
Total vehicle mass in travel configuration |
kg |
32865 |
|
Power |
Model |
|
SC9DF290Q3 |
|
|
Rated power |
kw/(r/min) |
213/2200 |
|
|
Rated torque |
N.m/(r/min) |
1200/1400 |
|
Travel Performance |
Max. travel speed |
km/h |
90 |
|
|
Min. turning diameter |
m |
22 |
|
|
Min. ground clearance |
mm |
275 |
|
|
Approach angle |
° |
11 |
|
|
Departure angle |
° |
12 |
|
|
Braking distance(at 30 km/h) |
m |
≤10 |
|
|
Max. grade ability |
% |
41 |
|
|
Oil consumption per 100km |
L |
≤32 |
|
Noise |
Exterior noise level in accelerating |
dB(A) |
88 |
|
|
Noise Level at seated position |
dB(A) |
90 |
