Consumable Spare Parts List of XCMG GR135 Motor Grader

Consumable Spare Parts List of XCMG GR135 Motor Grader.



Consumable spare parts list of XCMG GR135 motor grader: oil filter, fuel filter, air filter element, rotary joint, blade, Washer, Left ball hinge, right ball hinge, copper sleeve, copper sleeve, Copper guide groove, filter element dawn, Hydraulic oil filter, brake light pressure switch, accumulator, pressure switch, hand pressure pump, Hood lifting cylinder, electric horn, front combination lamp, Torque converter pressure sensor, oil pressure sensor, hose,Water supply pipe , front wheel steering cylinder, water temperature sensor, torque converter oil temperature sensor.



Consumable Spare Parts List of XCMG GR135 Motor Grader



Number

Remarks

Q'TY/Unit

1

800107060

0750131053H oil filter

2

2

803190285

FF5052/3931063 fuel filter

8

3

803190284

FS1280/3930942 fuel filter

4

4

803190293

Oil filter LF9009/3401544

4

5

803190291

AF25270/271 air filter element AF25270/271

4

6

Consumable Spare Parts List of XCMG GR135 Motor Grader380300747

GR135.06.1.1.1 rotary joint

1

7

380601559

GR180R.10.2-4 blade

8

8

805048195

GB/T21934-2008 Bolt M16×55 (Dacro)

100

9

380903801

GR215.10.1-7 nut

100

10

805338263

GB/T93-1987 Washer 16 (Dacromet)

100

11

380901068

GR215X.17.7.2 Left ball hinge

1

12

380901101

GR215X.17.7.4 right ball hinge

1

13

381600372

PY180G.10.1-4A copper sleeve

2

14

381600397

PY180G.13-5 copper sleeve

2

15

381601244

PY180G.10.1-3 Copper guide groove

8

16

803192968

TFX-250×100 filter element dawn

1

17

803192566

Hydraulic oil filter N×400×10

1

18

803078015

YK100-03-1NZS-1-DPF-IP-Z-SP5BARR brake light pressure switch

1

19

803078016

YK100-69-3SZS-2-DPF-IP-SP110BARF accumulator pressure switch

1

20

803094284

WE-16ADL hand pressure pump

1

21

803093139

YTG40-320ADL Hood lifting cylinder

1

22

803506732

DL125B/24V electric horn

1

23

803506776

HBM1-001A front combination lamp

1

24

803506973

360.081/037/008 Torque converter pressure sensor

1

25

803507248

360.081/029/012 oil pressure sensor

1

26

380600526

GR180.01-8 hose φ57-150

1

27

380600525

GR180.01-7 Water supply pipe φ20-1400

1

28

803087366

XGYG07-192 front wheel steering cylinder

1

29

803506974

323.801/001/010 water temperature sensor

1

30

803646231

323.801/004/002 torque converter oil temperature sensor

1



Consumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor GraderConsumable Spare Parts List of XCMG GR135 Motor Grader

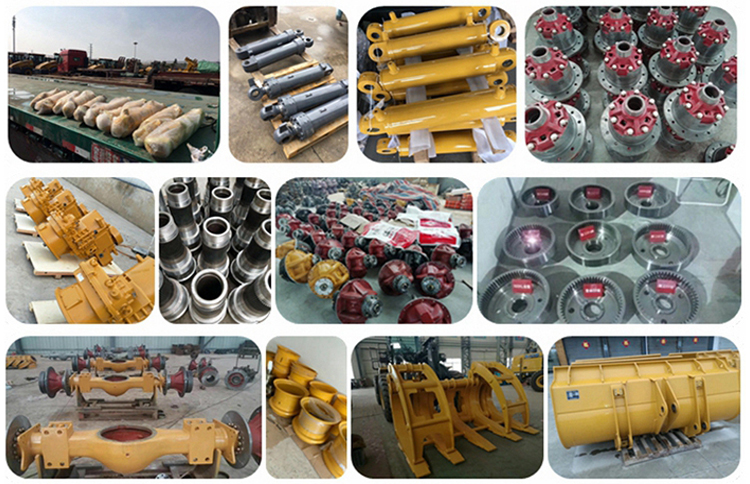

More About Motor Grader Parts
