Summary
- Rated Load:7 ton
- Dimension(Long* Breadth * High):9455*3430*3630mm
- Type:wheel loader
- Place of Origin:Xuzhou, China
- Model Number:LW700KN
- Brand Name:XCMG
- Certification:CE, ISO
Specifications
- Weight:25500.000kg
- Moving Type:Other
- Engine Brand:WEICHAI
- Rated Load:6-10 ton
- Bucket Capacity:0.5 - 2m³
- Coal Bucket capacity:6m3
- Rock Bucket capacity:3.5m3
- Power:226kw
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

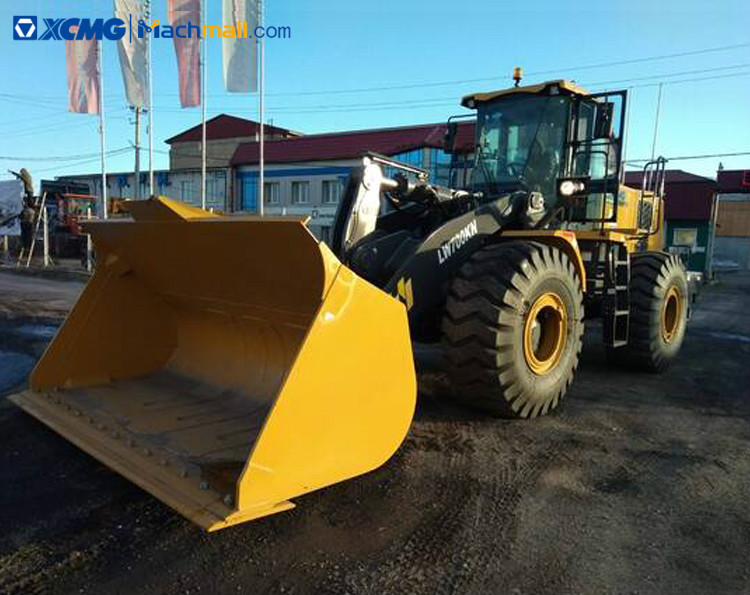

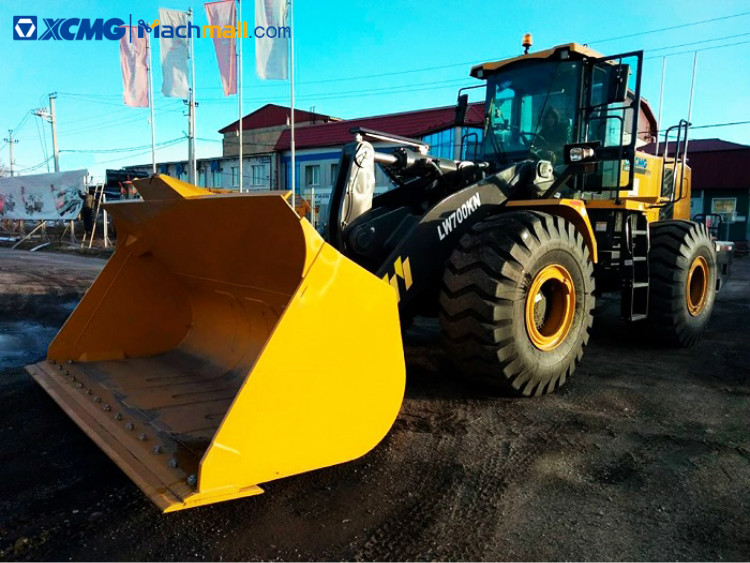

XCMG 226 kw 6 m3 7 ton wheel loader LW700KN.
LW700KN loader machine is XCMG's latest generation 7t loader product applied with XCMG’sexclusive globalized platform technology, with the comprehensive leadership in the fields of energy-conservation, efficiency, reliability, comfort, and maintainability. The corresponding models are designed respectively for the hard-heavy materials (such as ores) and light bulk materials to realize the best productivity and are extensively applicable for the production organizations in ports, mines, and logistics enterprises.
LW700KN loader machine performance advantages:
* Higher power performance and efficiency, with maximum breakout force at 210kN, boom lifting time at ≤6.5s, and total cycle time at ≤11s.

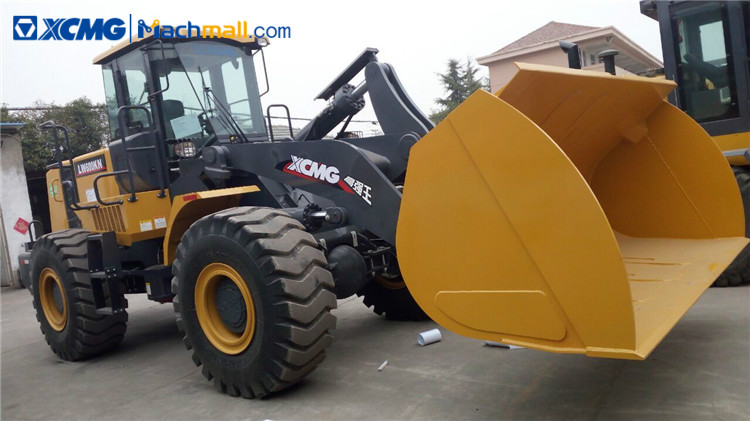

* Coal loader: The 6.0m3 light material bucket works with extended boom to realize a dumping height of up to 3.5m.

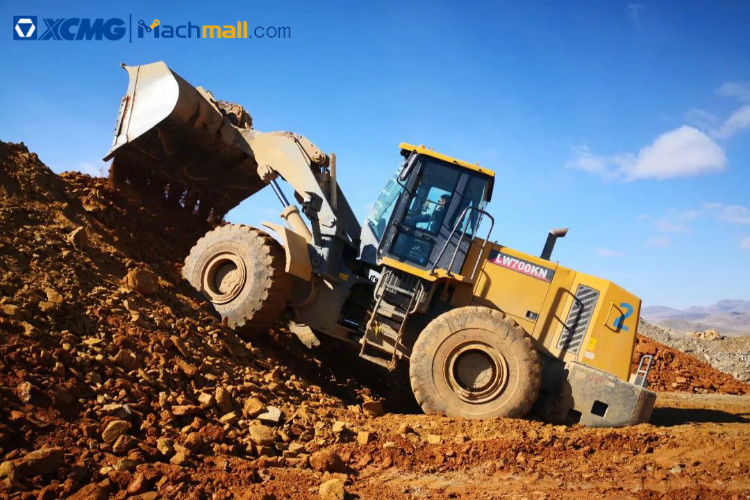

* Mine loader: The 3.5m3 mine bucket specially handles the hard materials (such as rock), featuring high wear resistance and higher reliability.
Model Characteristics:

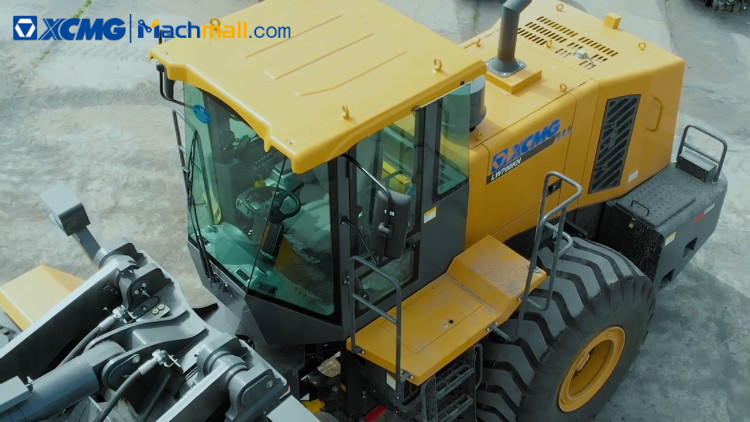

* The latest cab features higher safety, broader visual field, and more comfortable operations.
* The scientifically matched and in-depth optimized drive system and the transmission and drive axle of international advanced quality achieve higher efficiency and reliability.
* The three-segment drive shaft is applied and the front drive shaft adopts the flexible connection to reduce the impact on drive shaft and improve the drive reliability.
|

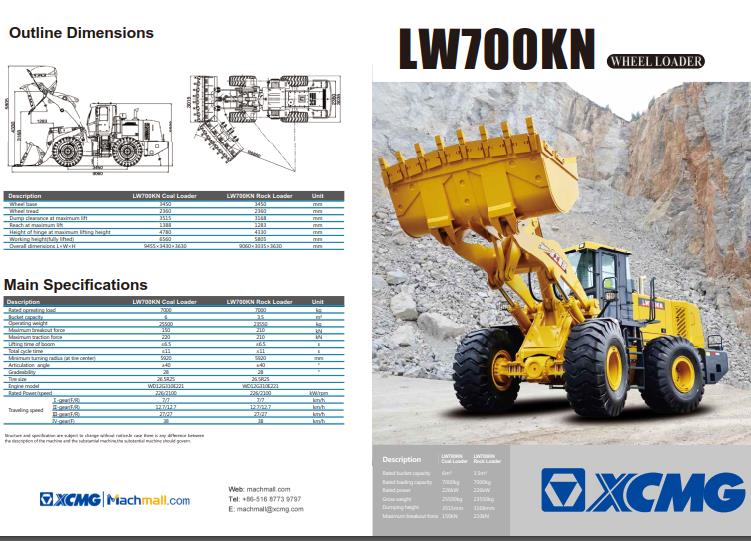

Description |
Unit |
Parameter value |
|
Wheel base |
mm |
3450 |
|
Tread |
mm |
2360 |
|
Dump clearance at maximum lift |
mm |
3515 |
|
Reach at maximum lift |
mm |
1388 |
|
Height of hinge at maximum lift height |
mm |
4780 |
|
Working height(fully lifted) |
mm |
6560 |
|
Overall machine dimension L×W×H |
mm |
9455×3430×3630 |
|
Rated operating load |
kg |
7000 |
|
Bucket capacity |
m³ |
6 |
|
Machine weight |
kg |
25500 |
|
Max.breakout force |
kN |
150 |
|
Max.horse power |
kN |
220 |
|
Lifting time of boom |
s |
≤6.5 |
|
Total cycle time |
s |
≤11 |
|
Minimum turning radius (at tire center) |
mm |
5920 |
|
Articulation angle |
° |
±40 |
|
Gradeability |
° |
28 |
|
Tyre size |
|
26.5R25 |
|
EngineModel |
|
WD12G310E221 |
|
Rated Power/Speed |
kW/rpm |
226/2100 |
