Summary
- Rated Load:6 ton
- Dimension(Long* Breadth * High):8505*3220*3515mm
- Type:front loader
- Place of Origin:Xuzhou, China
- Model Number:LW600KN
- Brand Name:XCMG
- Certification:CE, ISO
Specifications
- Weight:20000.000kg
- Moving Type:Other
- Engine Brand:SHANGCHAI
- Rated Load:6-10 ton
- Bucket Capacity:0.5 - 2m³
- Bucket capacity:3.0~4.5m3
- Wheel base:3350mm
- Engine:SC11CB240.1G2B
- Max.breakout force:205kN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

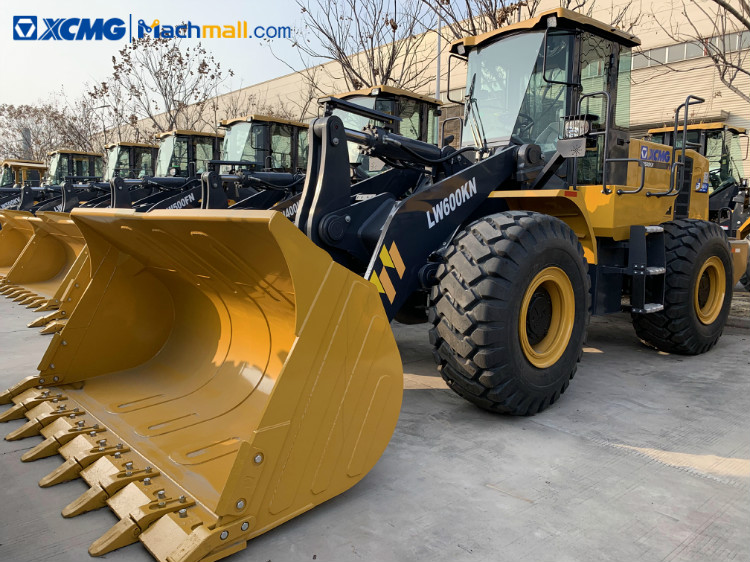

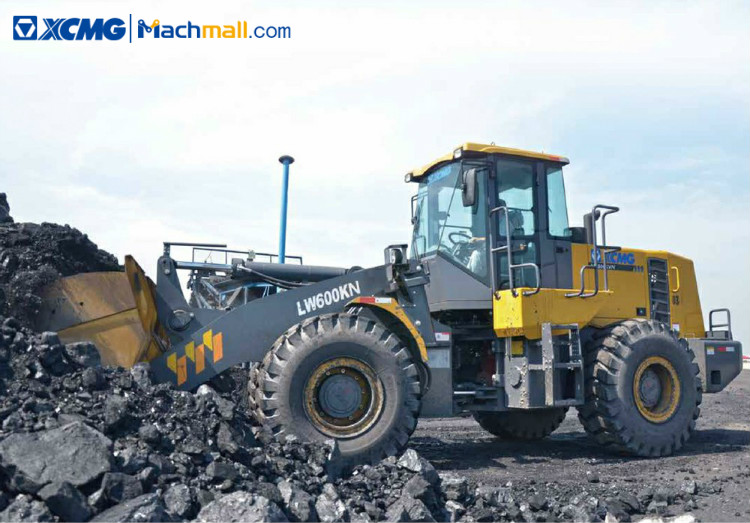

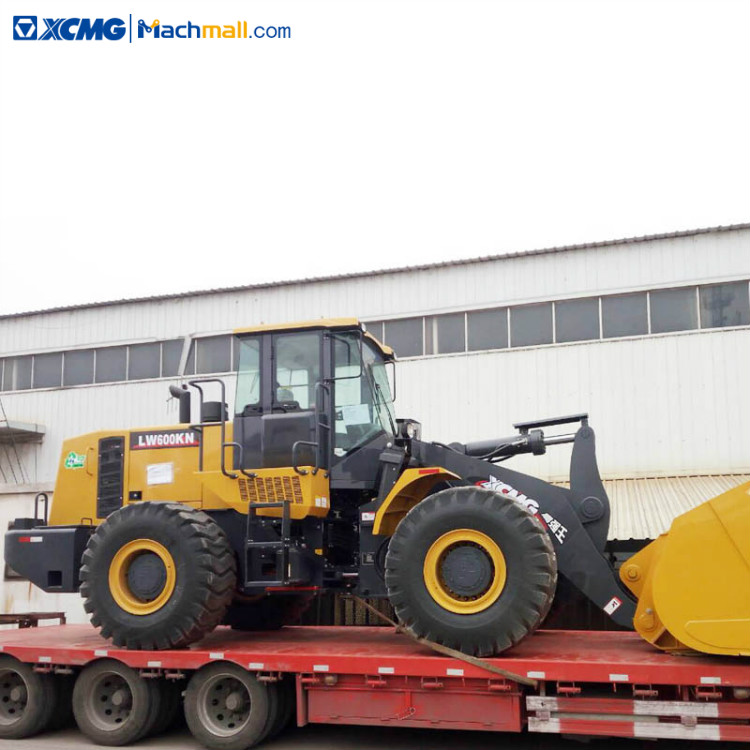

XCMG 178kw 4.5m3 6 ton wheel loader.
XCMG LW600KN front loader is rooted in the customers’ needs and based on the international R&D platform to thoroughly improvethe product reliability, economy, comfort, efficiency, maintenance convenience, and adaptability and is a preferential machinery product for the production organization in the fields of ports, engineering constructions, and logistics.
Advantages and highlights:
1.The super-strong heavy-duty structural parts, enhanced drive system, andglobally supplied critical parts can carry the torsion and impact loads underdiversified working conditions.
2.The high energy-conservation and high-efficiency hydraulic system is applied to realize higher fuel utilization efficiencyand more powerful working capacity.
3.The strong breakout force of 205kn ensure that the machine could adapt to various tough condition. The high-efficiency linkage system features fast motions, high breakoutforce, and powerful lifting capacity.

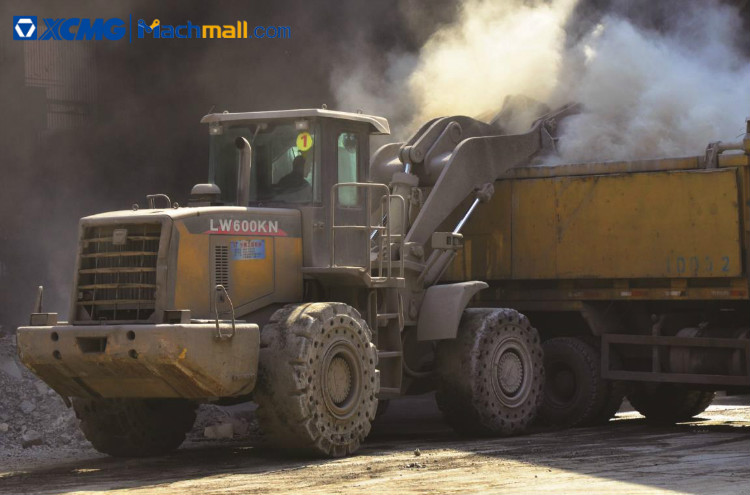

4.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

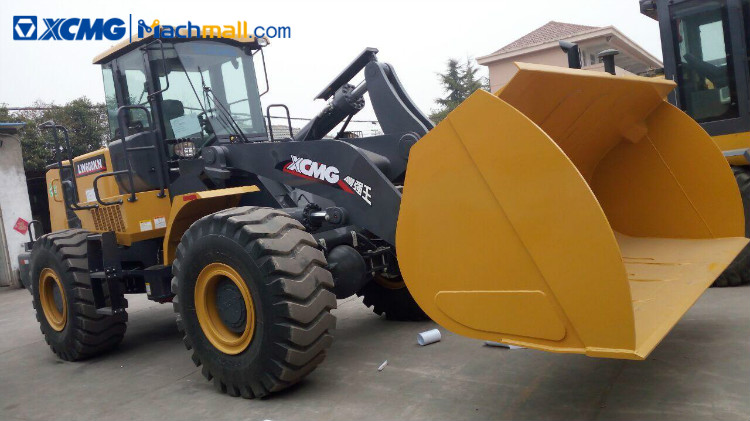

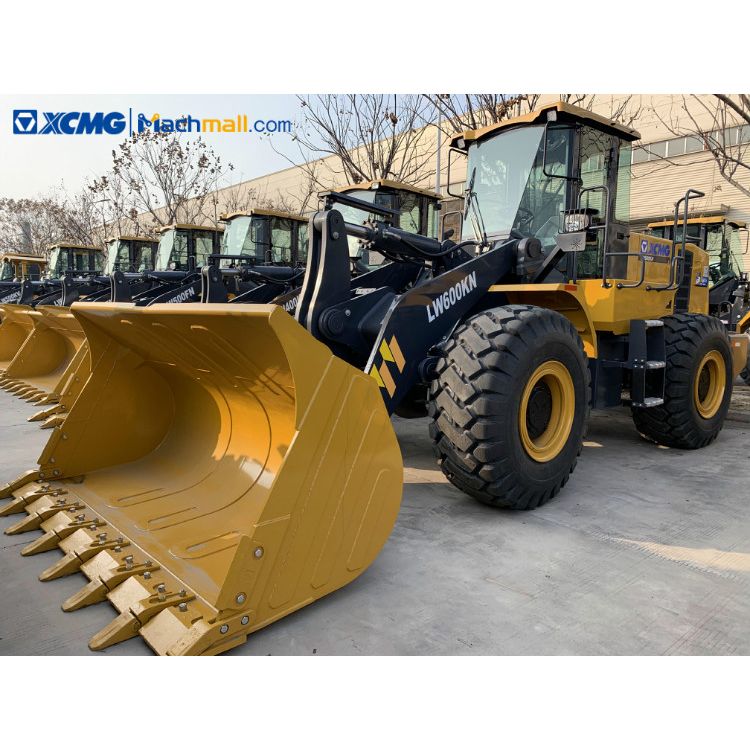

5.The large rock bucket with capacity of 3-4.5m³ is improved in terms of the work efficiency and adaptation. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
|
Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
6000 |
|
Bucket capacity |
m³ |
3.0～4.5 |
|
Machine weight |
kg |
20000±300 |
|
Dump clearance at maximum lift |
mm |
3170～3750 |
|
Reach at maximum lift |
mm |
1200～1360 |
|
Wheel base |
mm |
3350 |
|
Tread |
mm |
2265 |
|
Max.breakout force |
kN |
205 |
|
Max.horse power |
kN |
174 |
|
Hydraulic cycle time-raise |
s |
≤5.9 |
|
Total hydraulic cycle time |
s |
≤10.9 |
|
Min. turning radius over tyres |
mm |
6005 |
|
Articulation angle |
° |
38 |
|
Gradeability |
° |
28 |
|
Tyre size |
|
23.5-25 |
|
Overall machine dimension L×W×H |
mm |
8505×3220×3515 |
|
Model |
|
SC11CB240.1G2B |
|
Rated Power |
kW |
178 |
|
Fuel Tank |
L |
250 |
|
Hydraulic Tank |
L |
210 |
