LW500FN loader machine for sale | XCMG LW500FN 5ton 4 cubic meters 162kw wheel loader price
Summary
- Rated Load:5ton
- Dimension(Long* Breadth * High):7910*3016*3515mm
- Type:wheel loader
- Place of Origin:Xuzhou, China
- Model Number:LW500FN
- Brand Name:XCMG
Specifications
- Weight:16900.000kg
- Moving Type:Other
- Engine Brand:WEICHAI
- Rated Load:3-5 ton
- Bucket Capacity:2.5 - 3.5m³
- Bucket capacity:2.5~4.5m3
- Dump clearance at maximum lift:3150~3560mm
- Wheel base:2960mm
- Max.breakout force:170kn
- Model:WD10G220E21
- Rated Power:162kw
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

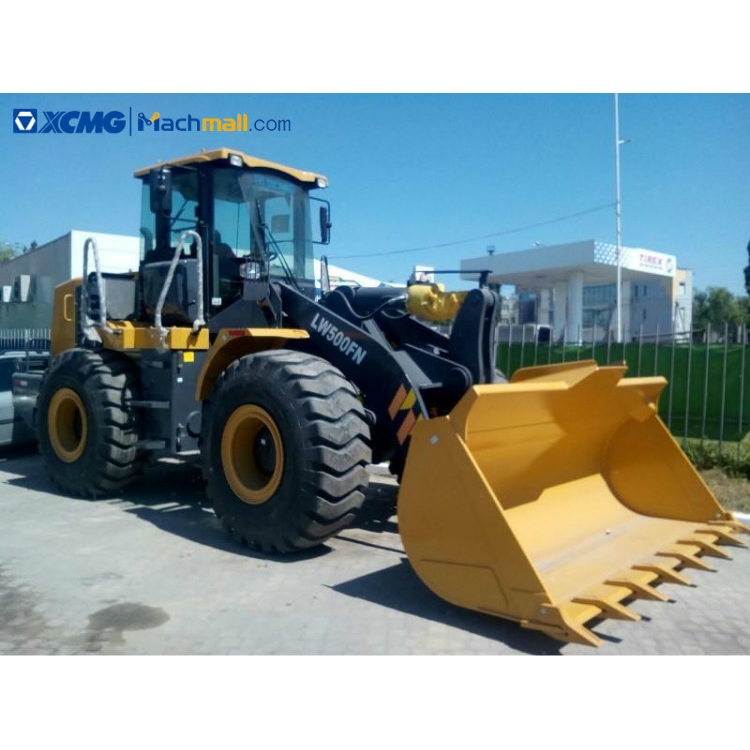

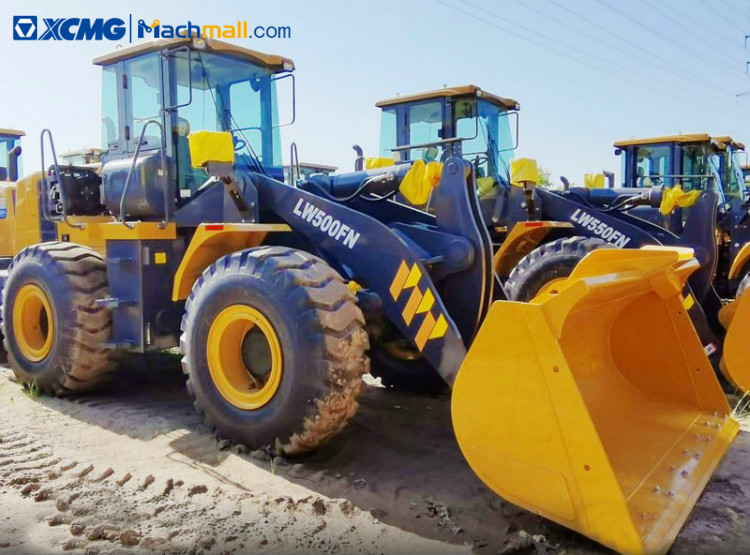

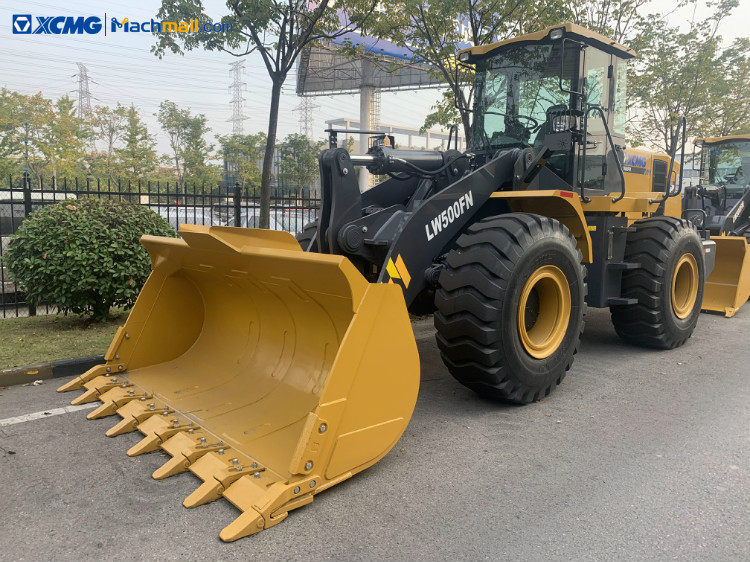

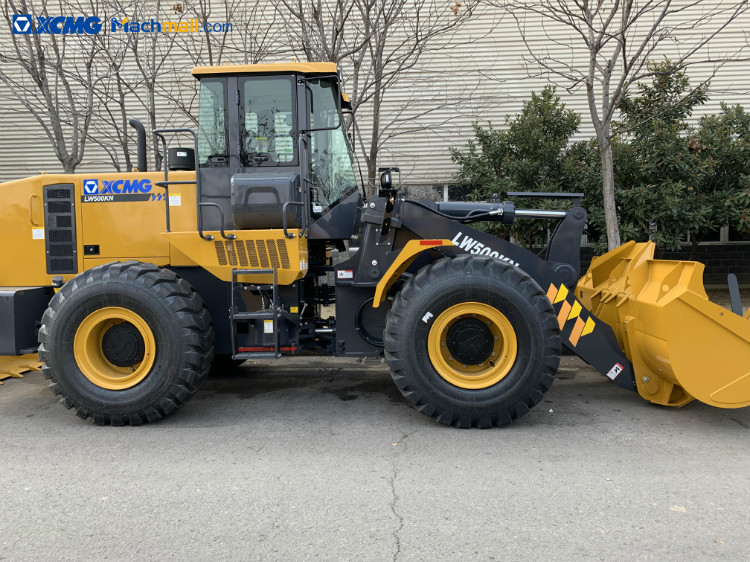

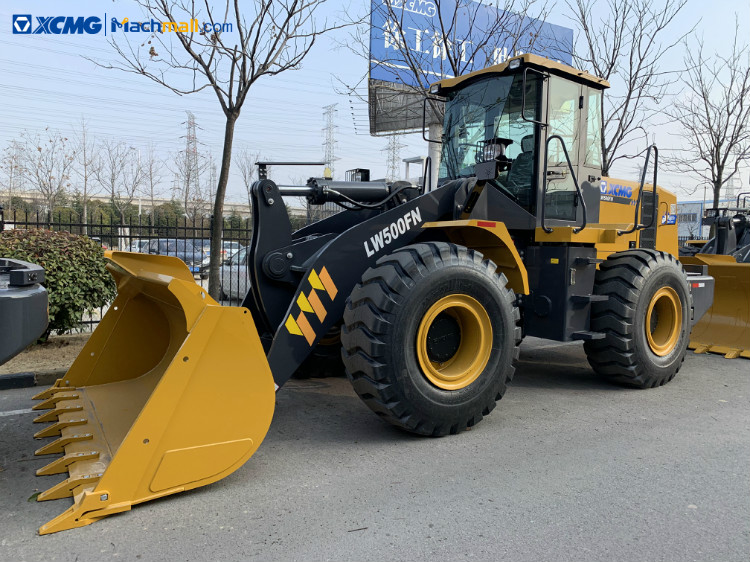

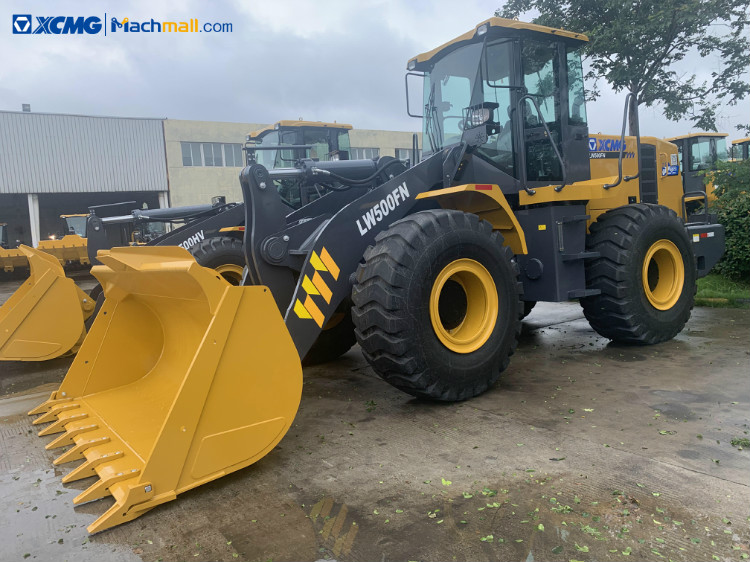

XCMG LW500FN 5ton 4 cubic meters 162kw wheel loader.

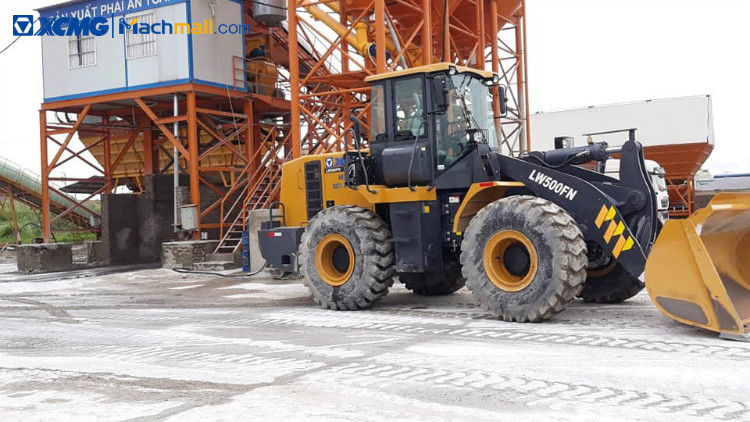

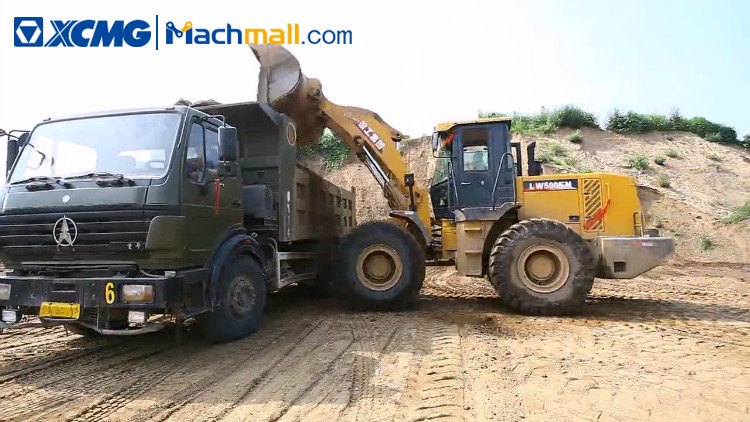

XCMG 5ton wheel loader machine LW500FN boasts outstanding advantages ( such as efficiency ) in the fields of engineering constructions and aggregate yards.

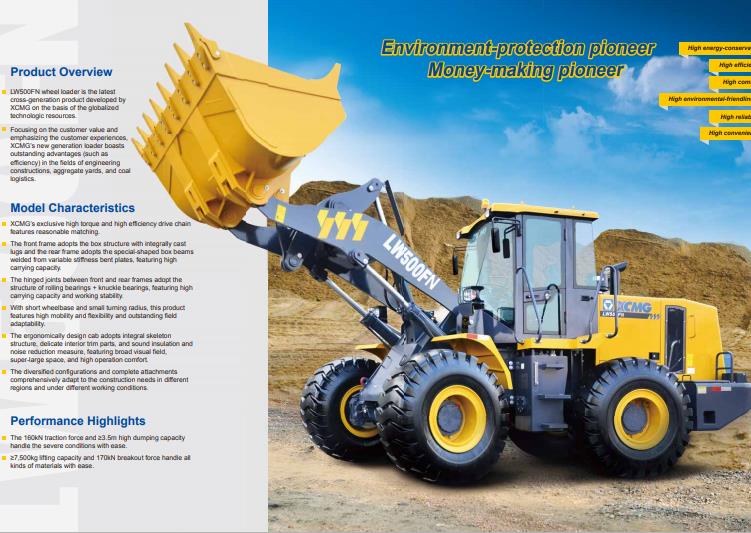

LW500FN performance highlights:
The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.
The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.
The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.
With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability.
The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
|
Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
5000 |
|
Bucket capacity |
m³ |
2.5～4.5 |
|
Machine weight |
kg |
16900 |
|
Dump clearance at maximum lift |
mm |
3150～3560 |
|
Reach at maximum lift |
mm |
1100～1190 |
|
Wheel base |
mm |
2960 |
|
Tread |
mm |
2250 |
|
Height of hinge at maximum lift height |
mm |
4112 |
|
Working height(fully lifted) |
mm |
5510 |
|
Max.breakout force |
kN |
170 |
|
Hydraulic cycle time-raise |
s |
≤6 |
|
Total hydraulic cycle time |
s |
≤10.5 |
|
Min. turning radius over tyres |
mm |
5950 |
|
Articulation angle |
° |
35 |
|
Gradeability |
° |
28 |
|
Tyre size |
|
23.5-25-16PR |
|
Overall machine dimension L×W×H |
mm |
7910×3016×3515 |
|
Model |
|
WD10G220E21 |
|
Rated Power |
kW |
162 |
|
Fuel Tank |
L |
250 |
|
Hydraulic Tank |
L |
210 |
|
Travel Speed |
km/h |
13-40 |
