Summary
- Rated Load:3000kg
- Dimension(Long* Breadth * High):7050*2482*3118mm
- Type:front loader
- Place of Origin: Jiangsu, China
- Model Number:LW300FN
- Brand Name: XCMG
- Certification: CE/ISO9001
Specifications
- Weight:10600.000kg
- Engine Brand:Other
- Rated Load:3-5 ton
- Bucket Capacity:2.5 - 3.5m³
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

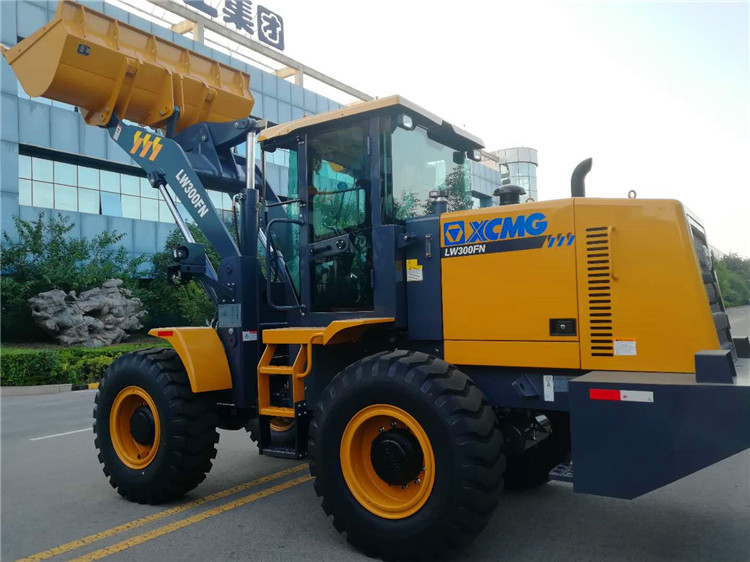

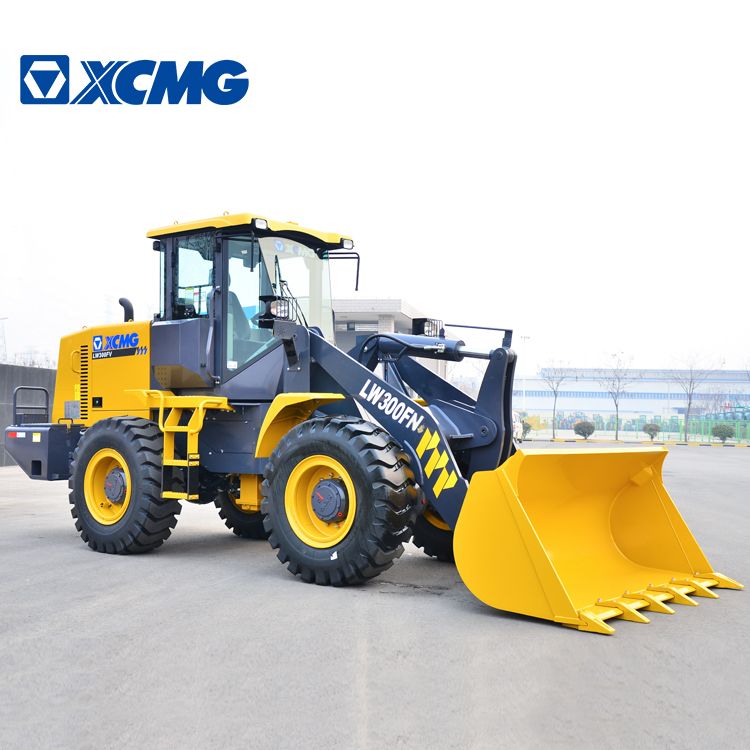

XCMG Official 3t small tractor front
wheel loader LW300FN.
XCMG
LW300FN is the most popular model of China 3t wheel loader, the updaged edition
of ZL30E (LW321F),With the features of maturity and reliability of the old
model, LW300FN is improved all round, and leads in the same kind of product.
【Performance Highlights】
1.With
traction at ≥9t and breakout force at ≥13t. High adaptability, with turning
radius at 5,165mm (tire center).
2. The
2600mm wheelbase features high mobility and flexibility and is applicable to
all kinds of working sites. The bucket is made of high strength material to
realize high wear and impact resistance.
3. It
features high efficiency, energy-saving, and strong power.
4. The
three-element torque converter and the fixed shaft power shift transmission
feature high maturity and reliability.
5. The
bucket is made of high strength material to realize high wear and impact
resistance.
6. The
optional A/C and the sound insulation and noise reduction measure build
elaborately a comfortable operating environment.
【Diversified attachments】
1.Standard
bucket:suitable for diversified working conditions.
2.Rock
bucket: It's dedicated for handing of hard materials (such as rock), featuring
good resistance against wear and impact.
3.Coal
bucket: It's dedicated for handling of bulk materials (such as coal), featuring
high bucket capacity and high efficiency.
4.Clamp:
For grab and transport of various woods and tubing.
5.Bale grabber: It's used
for the grabbing and handling of various light materials in farms, biological
power plants, and paper mills.
Description | Unit | Parameter value |
Rated operating load | kg | 3000 |
Bucket capacity | m³ | 1.5~2.5 |
Machine weight | kg | 10600±200 |
Dump clearance at maximum lift | mm | 2770~3260 |
Reach at maximum lift | mm | 1010~1210 |
Wheel base | mm | 2600 |
Tread | mm | 1850 |
Height of hinge at maximum lift height | mm | 3830 |
Working height(fully lifted) | mm | 4870 |
Max.breakout force | kN | 130 |
Max.horse power | kN | 95 |
Hydraulic cycle time-raise | s | 5.5 |
Total hydraulic cycle time | s | 10 |
Min. turning radius over tyres | mm | 5165 |
Articulation angle | ° | 35±1 |
Gradeability | ° | 28 |
Tyre size | 17.5-25-12PR | |
Overall machine dimension L×W×H | mm | 7050×2482×3118 |
Model | WP6G125E22 | |
Emission standards | Emission 2 | |
Rated Power/Speed | kW/rpm | 92/2200 |
Fuel Tank | L | 170 |
Hydraulic Tank | L | 170 |
Ⅰ-gear(F/R) | km/h | 8/10 |
Ⅱ-gear(F/R) | km/h | 13/30 |
Ⅲ-gear(F) | km/h | 24/- |
Ⅳ-gear(F) | km/h | 40/- |
