Summary
- Rated Load:12ton
- Dimension(Long* Breadth * High):12337×3875×4319mm
- Type:wheel loader
- Place of Origin:Xuzhou, China
- Model Number:LW1200KN
- Brand Name:XCMG
- Certification:CE, ISO
Specifications
- Weight:510000.000kg
- Engine Brand:CUMMINS
- Rated Load:other
- Bucket Capacity:
- Machine Weight:510T
- Wheel base:4500mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

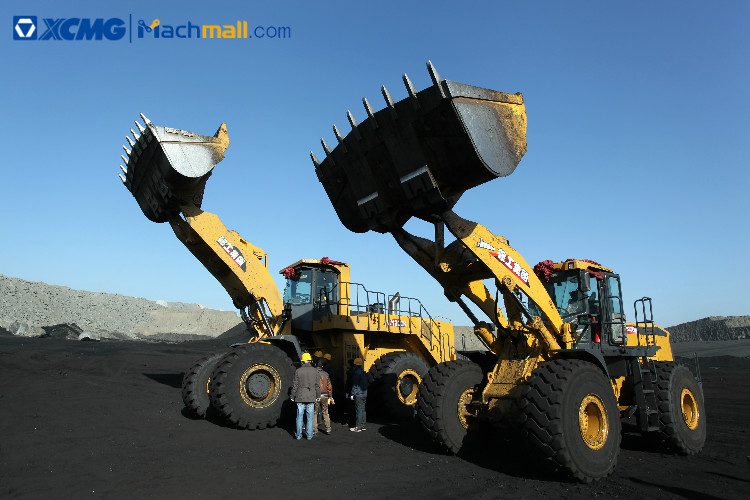

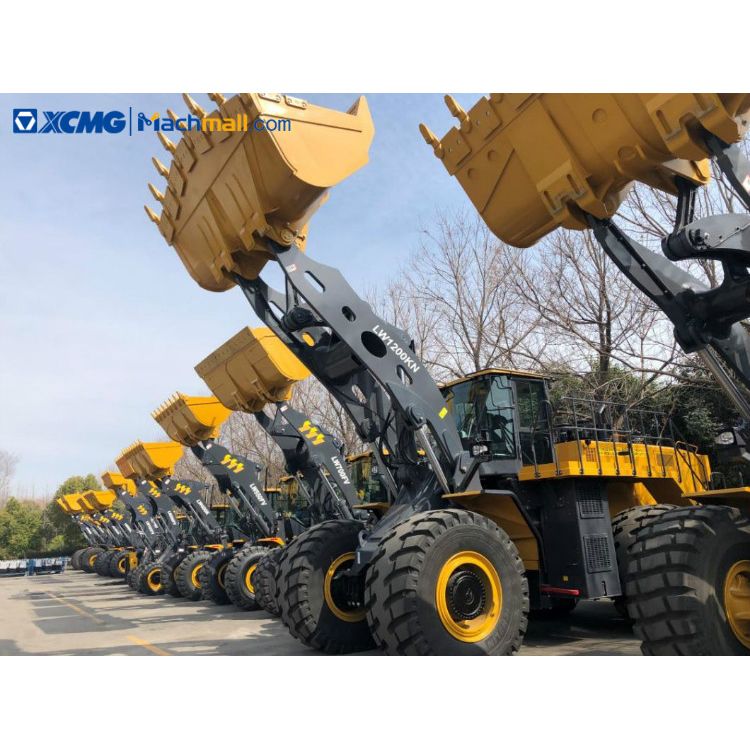

XCMG 12 ton 6.5m3 418kw heavy loader LW1200KN.

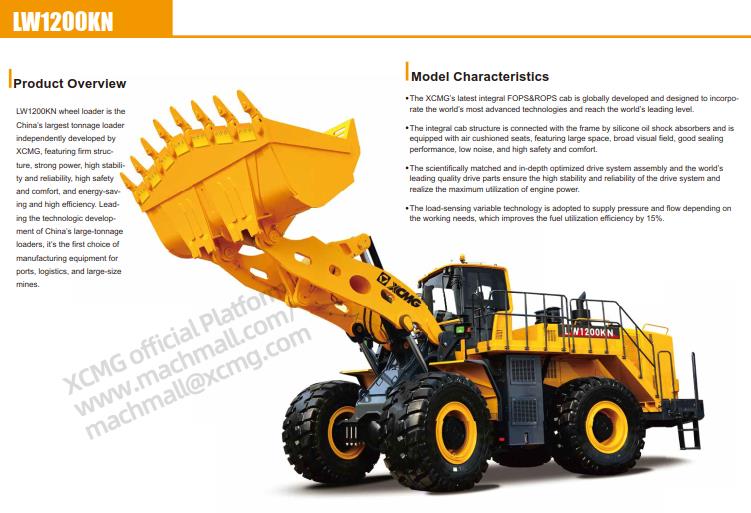

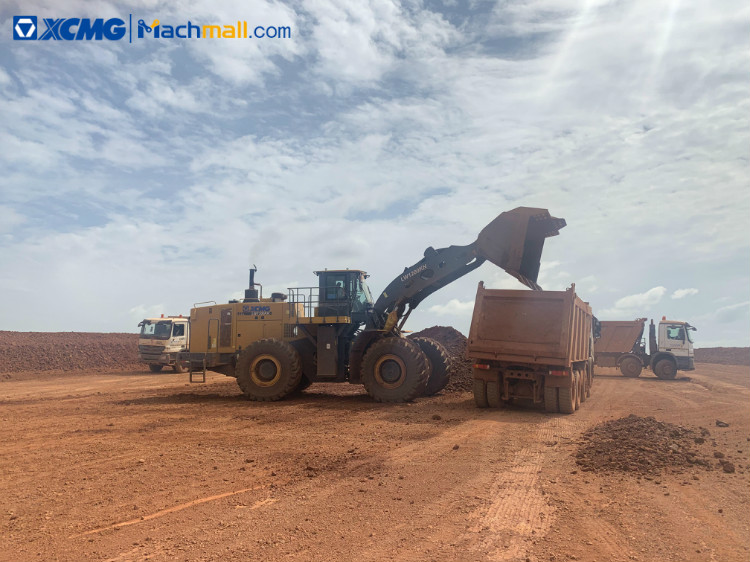

LW1200KN wheel loader is the China’s heavy tonnage loader independently developed by XCMG, featuring firm structure, strong power, high stability and reliability, high safety and comfort, and energy-saving and high efficiency. Leading the technologic development of China’s heavy tonnage loaders, it’s the first choice of manufacturing equipment for ports, logistics, and large-size mines.
The XCMG’s heavy integral FOPS&ROPS cab is globally developed and designed to incorporate the world’s most advanced technologies and reach the world’s leading level.

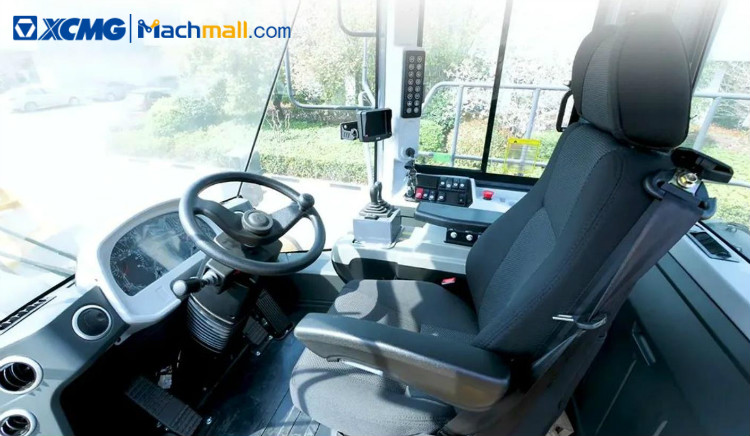

The integral cab structure is connected with the frame by silicone oil shock absorbers and is equipped with air cushioned seats, featuring large space, broad visual field, good sealing performance, low noise, and high safety and comfort.
The scientifically matched and in-depth optimized drive system assembly and the world’s leading quality drive parts ensure the high stability and reliability of the drive system and realize the maximum utilization of engine power.
The load-sensing variable technology is adopted to supply pressure and flow depending on the working needs, which improves the fuel utilization efficiency by 15%.
|
Description |
Unit |
Parameter value |
|
Wheel base |
mm |
4500 |
|
Tread |
mm |
2710 |
|
Dump clearance at maximum lift |
mm |
3845 |
|
Reach at maximum lift |
mm |
2168 |
|
Minmum ground clearance |
mm |
505 |
|
Overall machine dimension L×W×H |
mm |
12337×3875×4319 |
|
Rated operating load |
kg |
12000 |
|
Bucket capacity |
m³ |
6.5 |
|
Machine weight |
kg |
50000 |
|
Max.breakout force |
kN |
394 |
|
Total cycle time |
s |
15.3 |
|
Minimum turning radius (at tire center) |
mm |
7622 |
|
Articulation angle |
° |
40 |
|
Gradeability |
° |
25 |
|
Tyre size |
|
Radial35/65R33 |
|
EngineModel |
|
CummnisQSK19 |
|
Rated Power/Speed |
kW/rpm |
418/2000 |
