XCMG HDD Horizontal Directional Drilling Machine XZ180 Hot Sale
![](/app/topc/statics/images/close.png)
![XCMG HDD Horizontal Directional Drilling Machine XZ180 Hot Sale](http://www.machmall.com/images/store/357636/item/30f153b6ec673b791ce1f2227e9a75ae.jpg)
![](/app/topc/statics/images/close.png)
Summary
Specifications
- weight:8500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

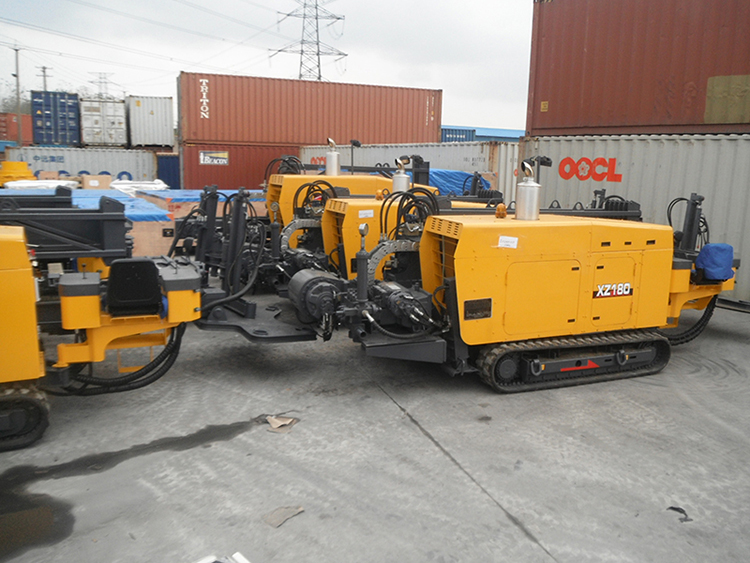

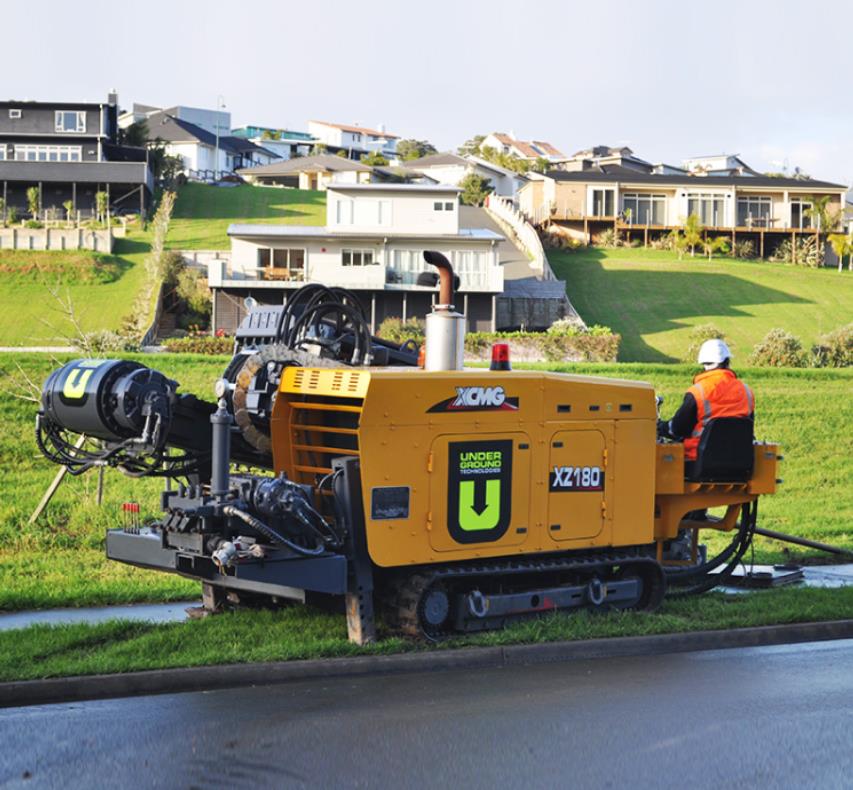

XCMG HDD Horizontal Directional Drilling Machine XZ180.
1.The dual-speed carriage is operated with low speed when drilling and dragging back to ensure smooth construction ,and can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the drilling rod with empty loads.
2.Rubber track: with minimum impact on the pedestrian way, lawn and landscape.
3.The floating clamp with patent technology can effectively prolong the service life of the pipe.
4.Rotatable Operator’s station, enlarge the field of the operators’ view and relieve their fatigue.
5.Automatic pipe loader can increase work efficiency, reduce work strength, reduce the number of construction staff.
6.The down and the up of the anchor is driven by hydraulics. The anchor is great in force and is easy and convenient to operate .
7.Engine cover is reasonable design ,it is simple and convenient when the engine and hydraulic system need to maintain and replace the filter .
Project |
Unit |
Parameter |
Engine |
|
|
Type |
|
Cummins 6BT5.9-C130 |
Pated power |
(kW/r/min) |
97/2200 |
Thrust-Pull |
|
|
Max thrust-pull force |
(kN) |
180 |
Thrust-pull speed |
(m/min) |
23 |
Rotation |
|
|
Torque |
(N·m) |
6000 |
Max spindle speed |
(r/min) |
23 |
Mud pump |
|
|
Max flow rate |
(L/min) |
250 |
Max pressure |
(MPa) |
8 |
Pipe |
(mm×m) |
φ60×3 |
Loader Crane |
|
|
Lifting weight |
(t) |
- |
Loading capacity |
(t•m) |
- |
Max inclination angle |
(°) |
22 |
Max backreamer diameter |
(mm) |
φ600 |
Weight |
(t) |
8.5 |
Dimension |
(mm) |
6500×2270×2340 |
Remark |
|
Optional:Ⅰ.Mud antifreeze;Ⅱ.Mud Cleaning |
