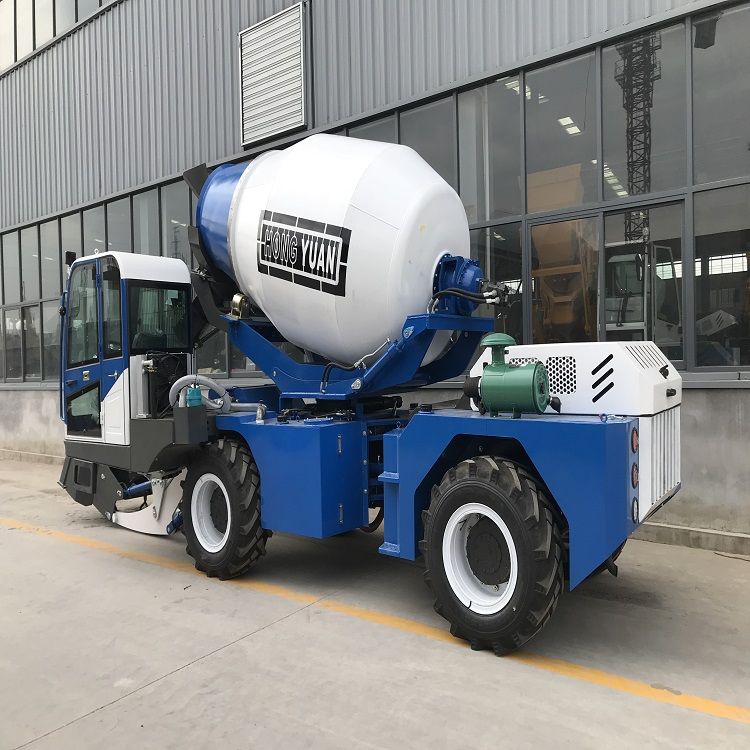

HY-350 self loading concrete mixer

View All >

Model： HY-350

Engine： Yunnei

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

HY-350 self loading concrete mixer

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

HY-350

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Dimension(L*W*H)

Weight

Power(W)

Model Number

Brand Name

Place of Origin

Engineering & Construction Machinery

HY-350

6180*2270*2626mm(3434mm)

+ Add a Product

Summary

Dimension(L*W*H):6180*2270*2626mm(3434mm)

Specifications

Weight:8100.000kg
Condition:New
Moving Type:Other
Tread:1600mm
Wheelbase:2500mm

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

Model

Desc

Qty

EXW (RMB)

HY350 mobile self loading concrete mixer with 270°rotation function

Yuchai 85KW engine

Concrete output productivity 3.5 cbm

With 270°rotation function

double reverse camera .

Automatic weighting system with printer

4 batches per hour.

Hydraulic Torque Converter Transmission,

4 wheel drive ,articulated style.

16/70-20 tyres .

Turbo-Wom rotation .

automatic upper water system ,with pump and pipes.

warning light, back sound, radio, fan, hand brake, extinguisher, window hammer, Easy damaged spare parts ,tool box.

Total

Name	Item		Spec
Overall machine	Net weight		8100kg
	Overall size		760023604380mm
	Transmission		Full Hydraulic
			4WD
	Brake		Air brake
	Chassis		Off-road
	Wheelbase		2850mm
	Loader bucket		Capacity	0.5cbm
			Control	Hydraulic
	Tilt Angle		30%
	Speed		High speed	0-25KM/H(40KM/H)
			Low speed	0-9KM/H
		Min turning radius	6.5m/r
		Tyre Model	16/70-20
Engine		Type	Yuchai
		Rated Power/RPM	85KW/2600RPM
		Max Torque/RPM	460N.W/1400RPM
		Cylinder	4
		Starter	Electric
		Cooling type	Water Cooling
Maxing Drum		Drum full capacity	5.8cbm
		Drum work capacity	3.5cbm
		Bank angle	16°
		Self rotation angle	270°
		Rotation speed	21R/min
Chute		Swing Angle	≥60°
		Angle control	Hydraulic
		Size	138CM
Loader		Weight model	Computer control
			Concrete standard	C15.C20.C25.C30
		Accuracy	Cement	≤±2%/time
			Relative error	≤±3%/time
			Water	≤±1%/time
			Additive	≤±1%/time
			Admixture	≤±2%/time
Loader control		Hydraulic control 4 way stick
