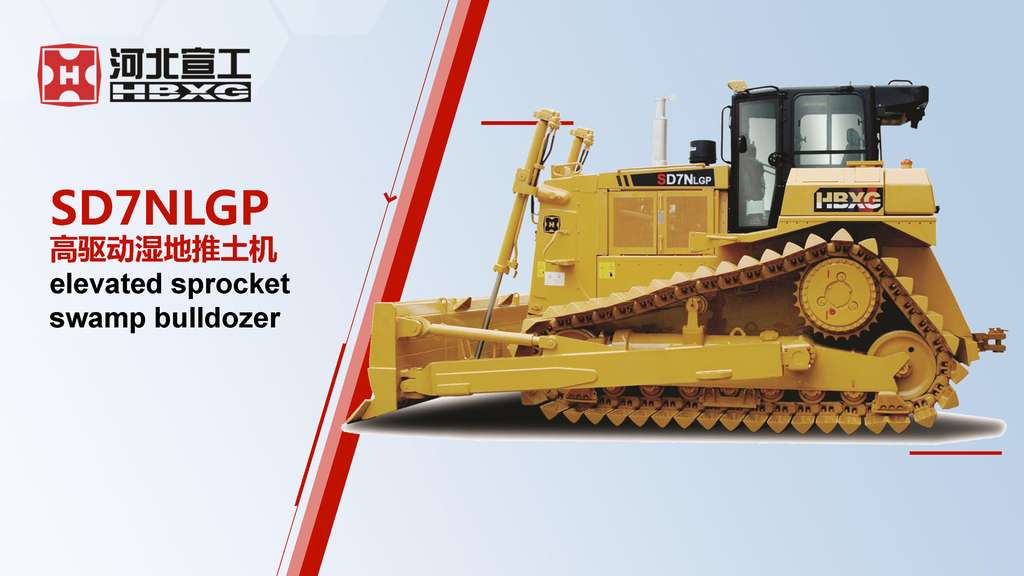

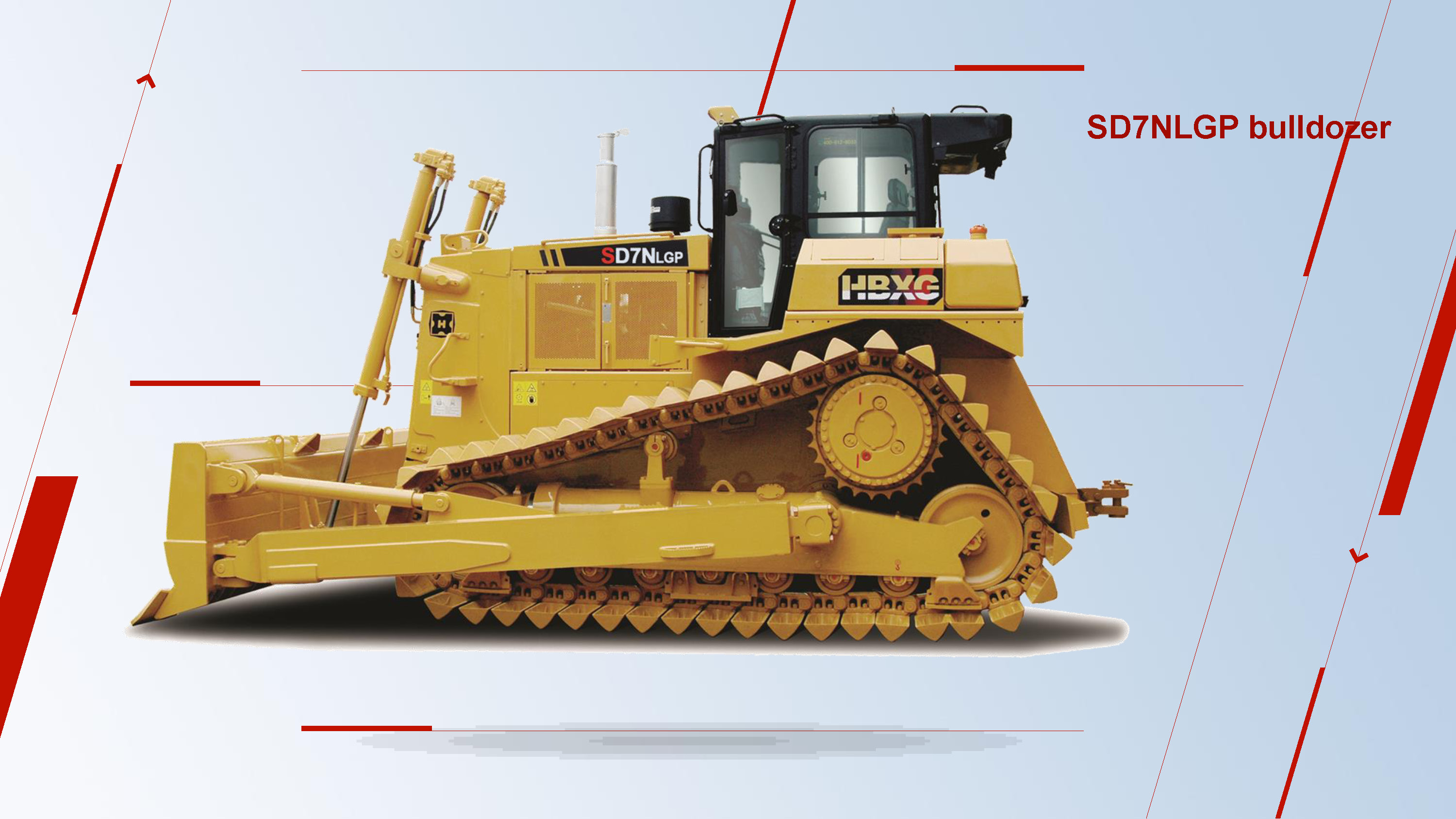

HBXG SD7NLGP Elevated sprocket swape Bulldozer
Specs & Compare
Details
Select 3 models for comparison
Dimension(Long * Breadth * High)
Machine Weight
Model Number
Brand Name
Place of Origin
Certification
Engineering & Construction Machinery
5473×4382×3482
26800kg
SD7NLGP
HBXG
China
ISO9001
+ Add a Product
+ Add a Product
Summary
- Dimension(Long * Breadth * High):5473×4382×3482
- Machine Weight:26800kg
- Model Number:SD7NLGP
- Brand Name:HBXG
- Place of Origin:China
- Certification:ISO9001

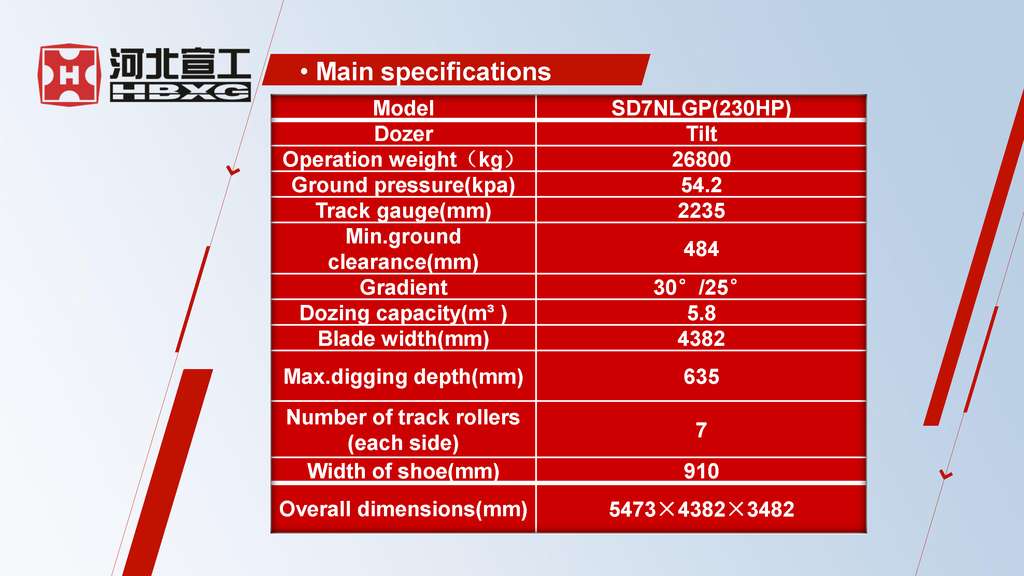

Specifications
- Weight:26800.000kg
- Condition:New
- Moving Type:Crawler
- Model:SD7NLGP(230HP)

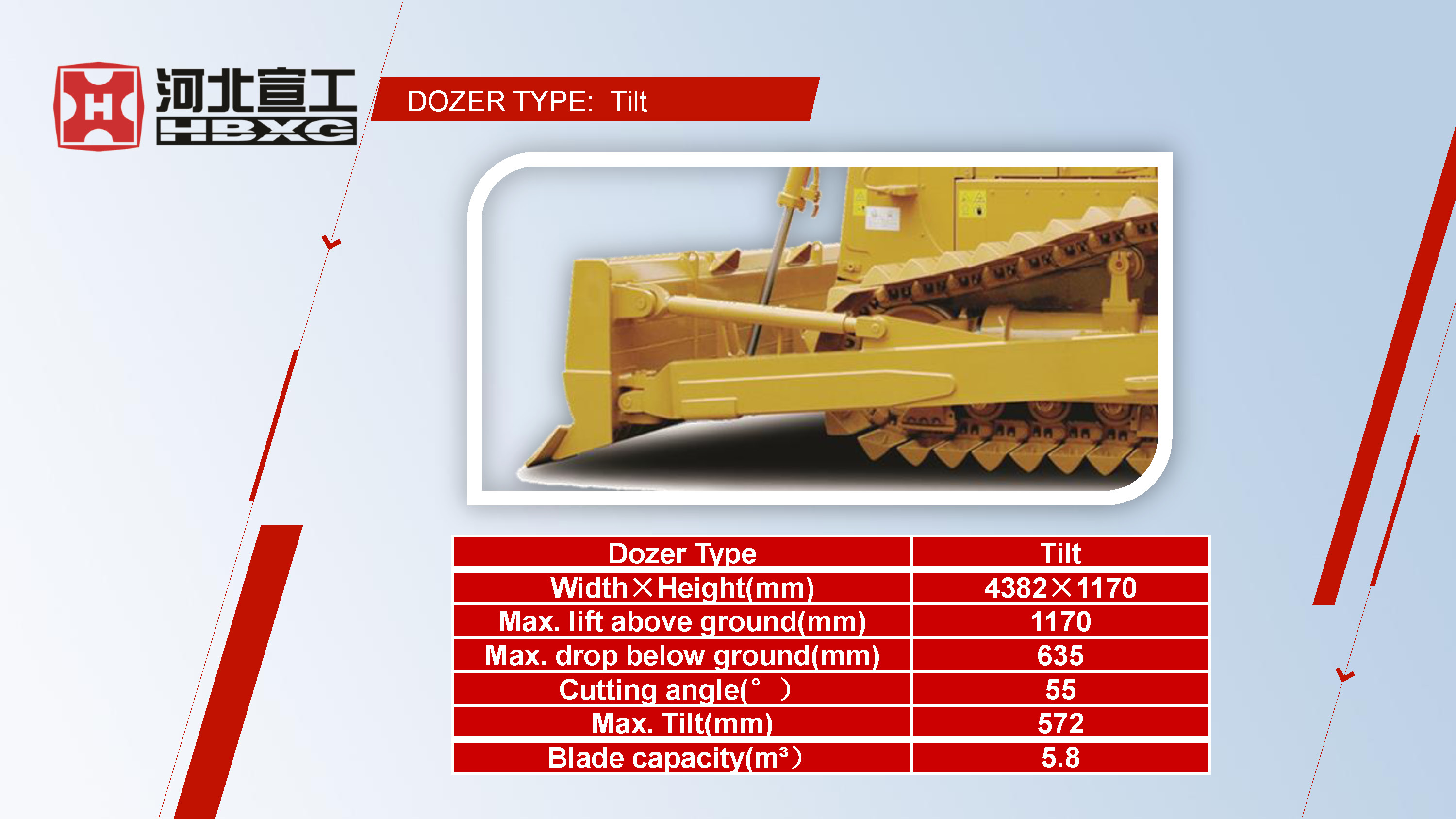

- Dozer:Tilt
- Operation weight(kg):26800.
- Ground pressure(kpa):54.2
- Track gauge(mm):2235
- Min.ground clearance(mm):484
- Gradient:30°/25°
- Dozing capacity(m³ ):5.8
- Blade width(mm):4382

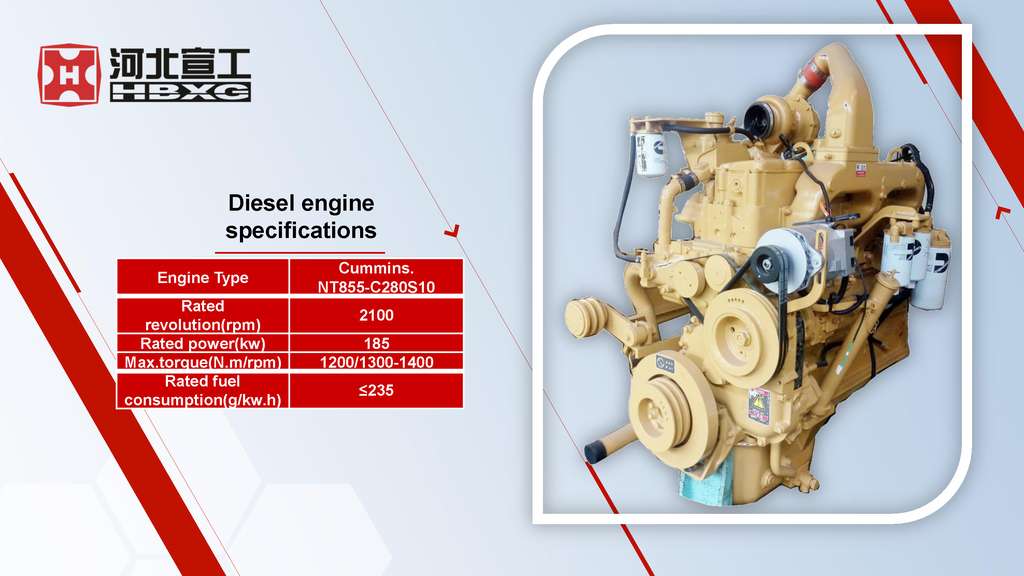

- Engine Type:Cummins.NT855-C280S10
- Rated revolution(rpm:2100
- Rated power(kw):185
- Max.torque(N.m/rpm):1200/1300-1400
- Rated fuel consumption(g/kw.h):≤235

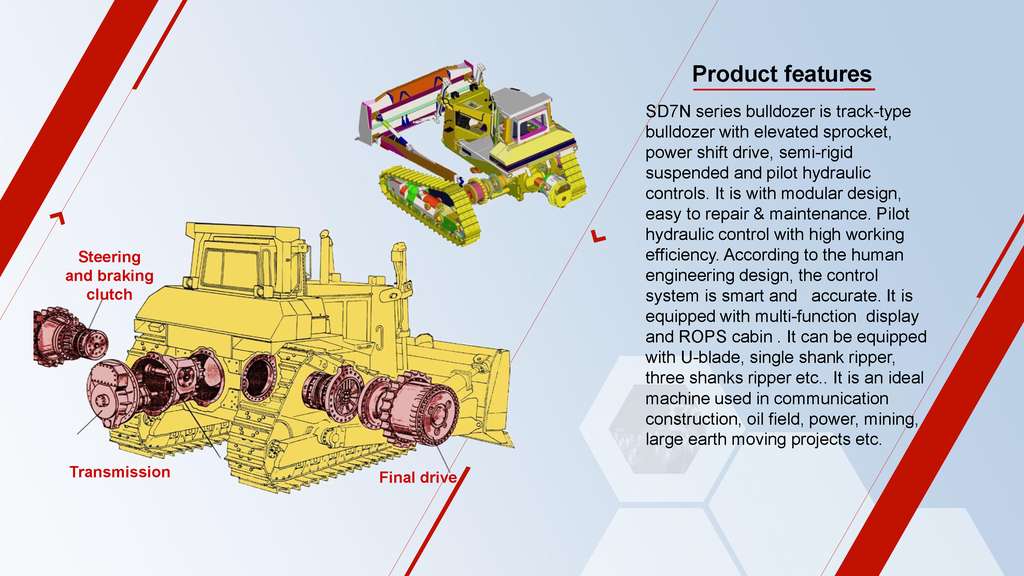

- Undercarriage system:The track is triangle shape.The sprocket is elevated
- Number of track rollers(each side):7
- Width of shoe(mm):910
- Forward (km/h):1st:0-3.9 2nd:0-6.5 3rd:0-10.9
- Backward (km/h):1st:0-4.8 2nd:0-8.2 3rd:0-13.2
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
