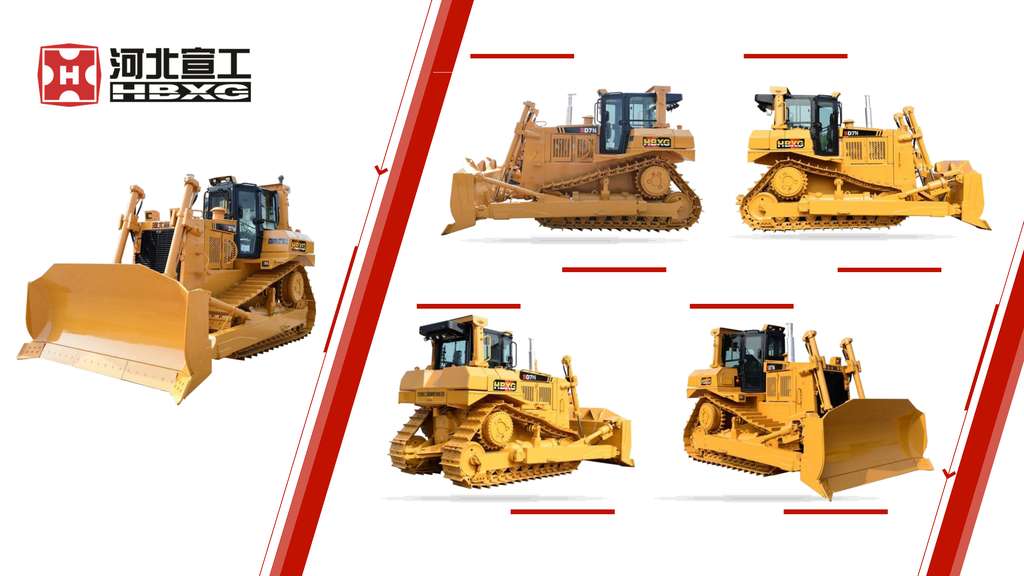

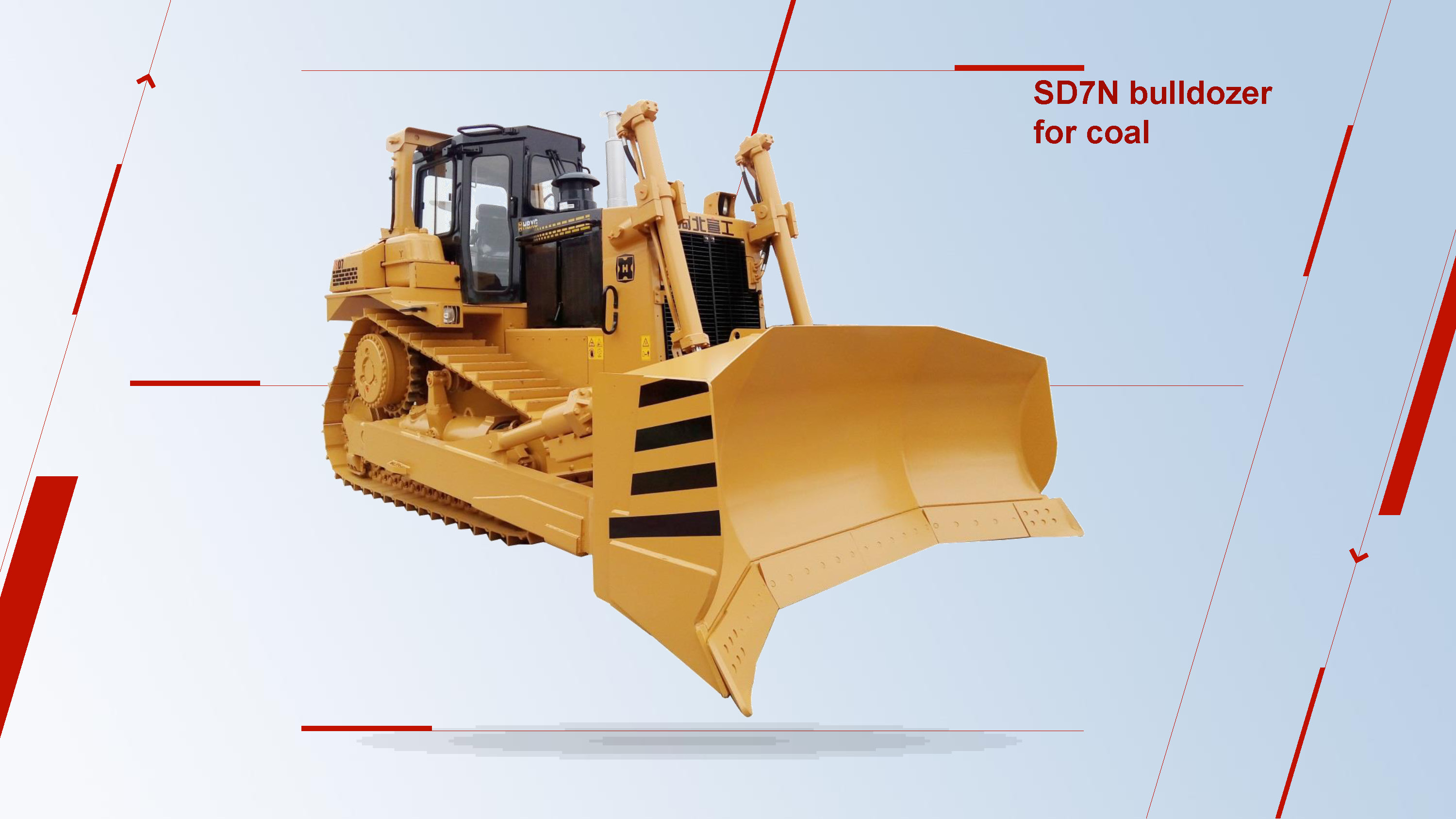

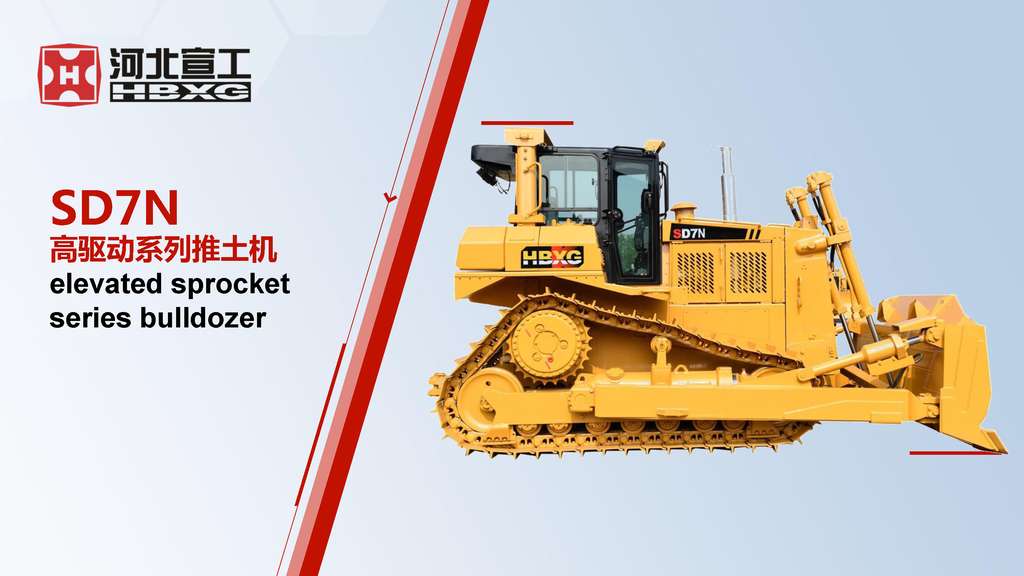

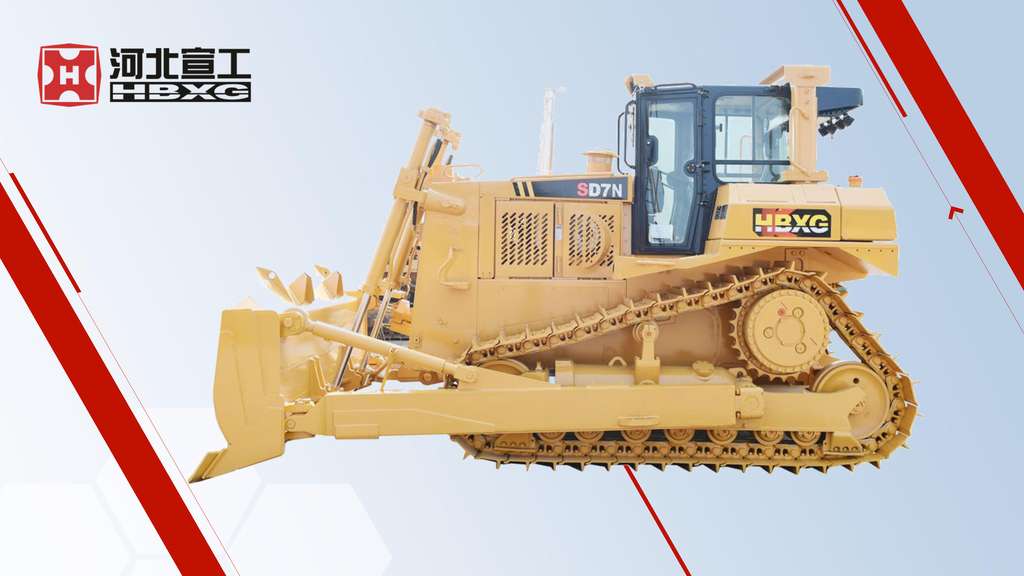

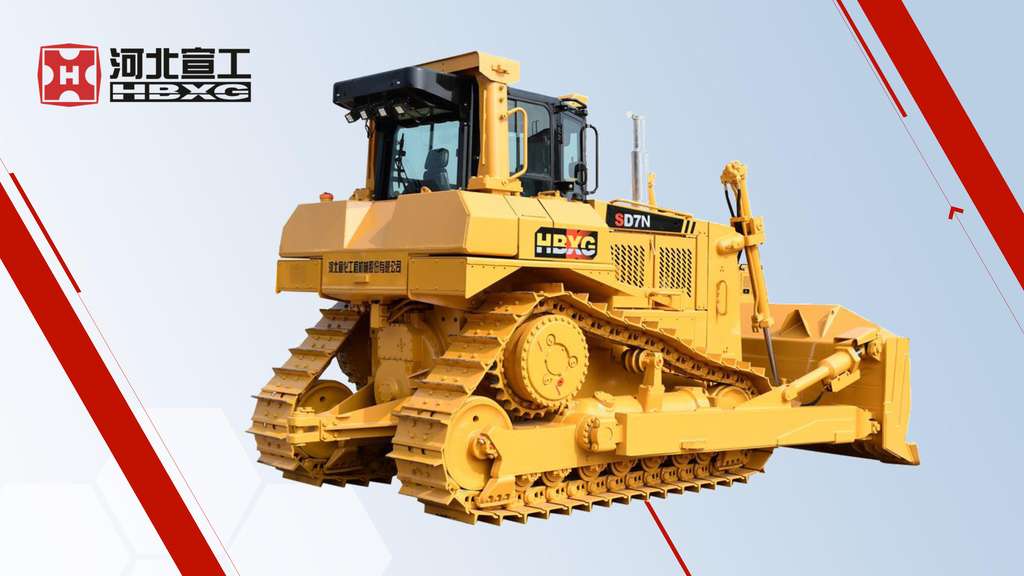

HBXG SD7N  Elevated sprocket series Bulldozer

  • HBXG SD7N  Elevated sprocket series Bulldozer
  • HBXG SD7N  Elevated sprocket series Bulldozer
  • HBXG SD7N  Elevated sprocket series Bulldozer
  • HBXG SD7N  Elevated sprocket series Bulldozer
  • HBXG SD7N  Elevated sprocket series Bulldozer
  • HBXG SD7N  Elevated sprocket series Bulldozer

HBXG SD7N Elevated sprocket series Bulldozer

HBXG SD7N  Elevated sprocket series Bulldozer
HBXG SD7N  Elevated sprocket series Bulldozer
HBXG SD7N  Elevated sprocket series Bulldozer
HBXG SD7N  Elevated sprocket series Bulldozer
HBXG SD7N  Elevated sprocket series Bulldozer
HBXG SD7N  Elevated sprocket series Bulldozer
HBXG SD7N  Elevated sprocket series Bulldozer

HBXG SD7N Elevated sprocket series Bulldozer

View All >
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
HBXG SD7N  Elevated sprocket series Bulldozer

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare
Details
Specs & Compare
Select 3 models for comparison
Dimension(Long * Breadth * High)
Machine Weight
Model Number
Brand Name
Place of Origin
Certification
Engineering & Construction Machinery
5677×3552×3402mm
24800kg
SD7N
HBXG
China
ISO9001
+   Add a Product
+   Add a Product

Summary

  • Dimension(Long * Breadth * High):5677×3552×3402mm
  • Machine Weight:24800kg
  • Model Number:SD7N
  • Brand Name:HBXG
  • Place of Origin:China
  • Certification:ISO9001

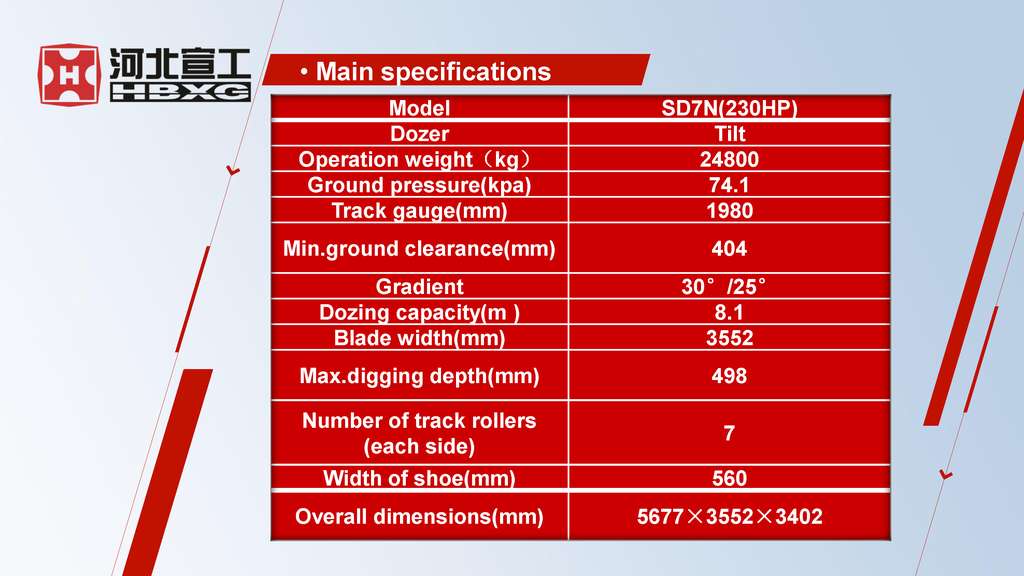

Specifications

  • Weight:24800.000kg
  • Condition:New
  • Moving Type:Crawler
  • Model:SD7N(230HP)

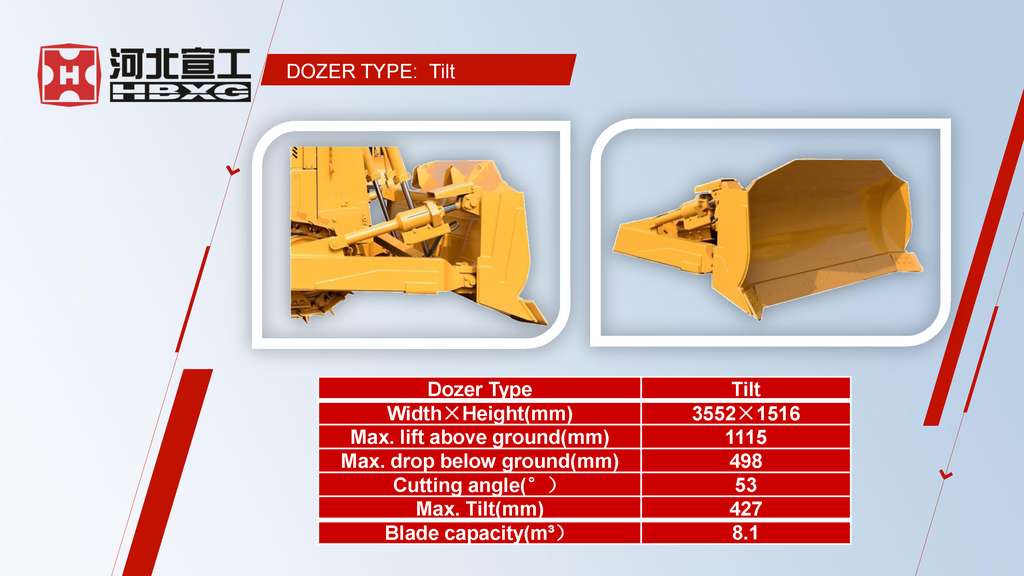

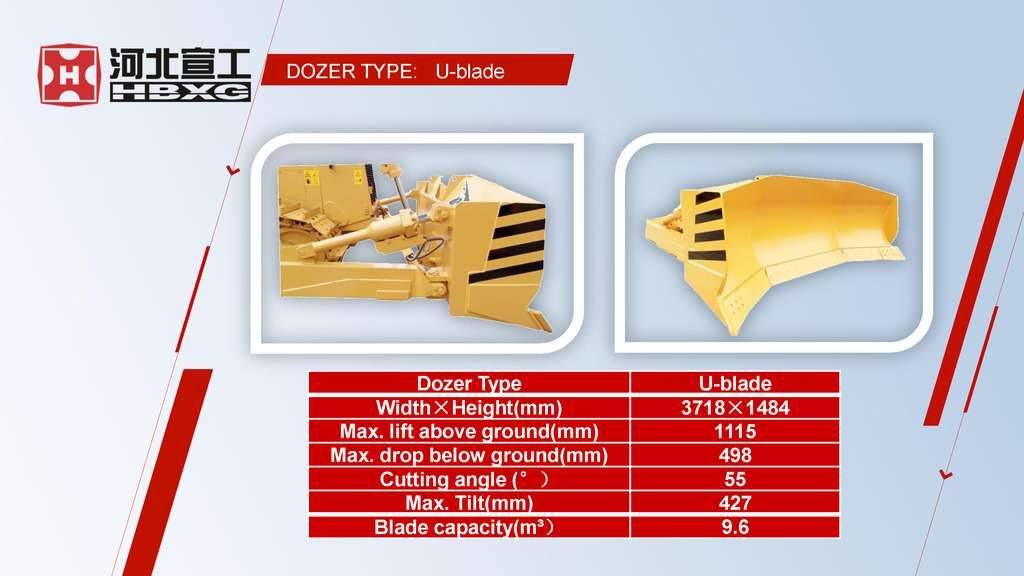

  • Dozer:Tilt
  • Operation weight(kg):24800.
  • Ground pressure(kpa):74.1
  • Track gauge(mm):1980
  • Min.ground clearance(mm):404
  • Gradient:30°/25°
  • Dozing capacity(m³ ):8.1
  • Blade width(mm):3552

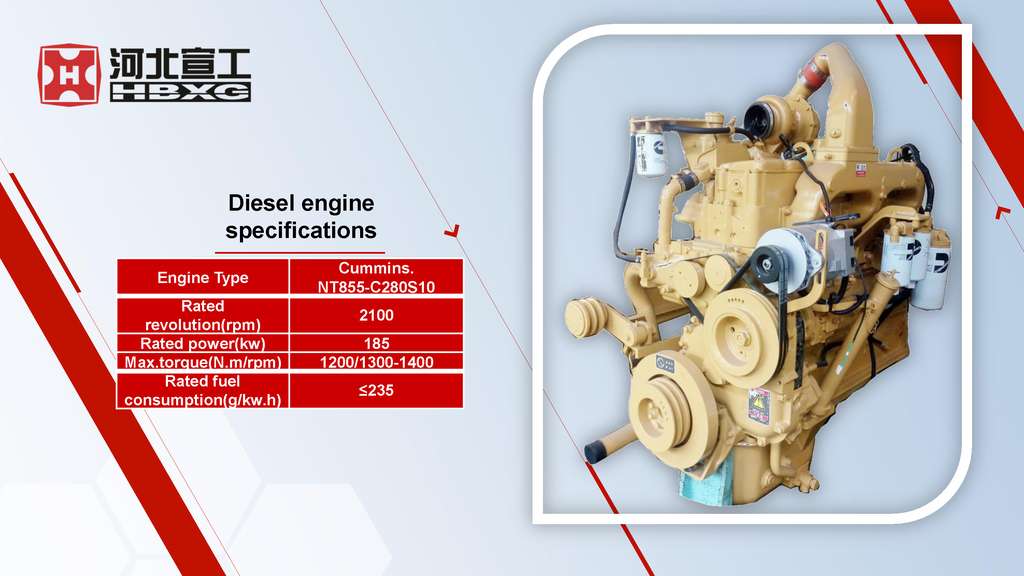

  • Engine Type:Cummins.NT855-C280S10
  • Rated revolution(rpm:2100
  • Rated power(kw):185
  • Max.torque(N.m/rpm):1200/1300-1400
  • Rated fuel consumption(g/kw.h):≤235

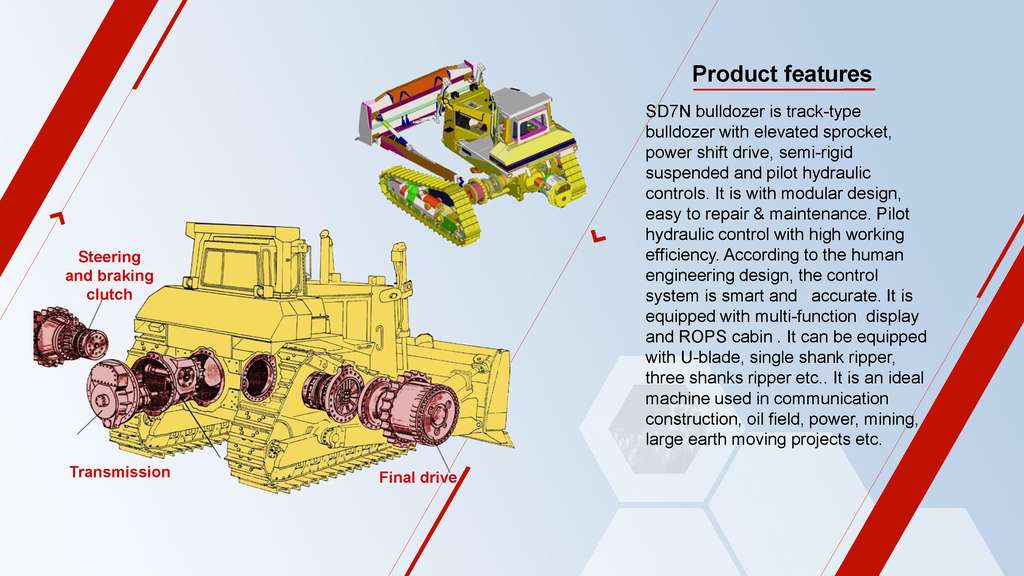

  • Undercarriage system:The track is triangle shape.The sprocket is elevated
  • Number of track rollers(each side):7
  • Width of shoe(mm):560
  • Forward (km/h):1st:0-3.9 2nd:0-6.5 3rd:0-10.9
  • Backward (km/h):1st:0-4.8 2nd:0-8.2 3rd:0-13.2

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China


HBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series BulldozerHBXG SD7N  Elevated sprocket series Bulldozer

Send your message to this supplier:

Email:
to:
HBXG BULLDOZER
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
back to top
brand_img
Certified for 3 years
Rating
Response Time
12 hours
Year of establishment

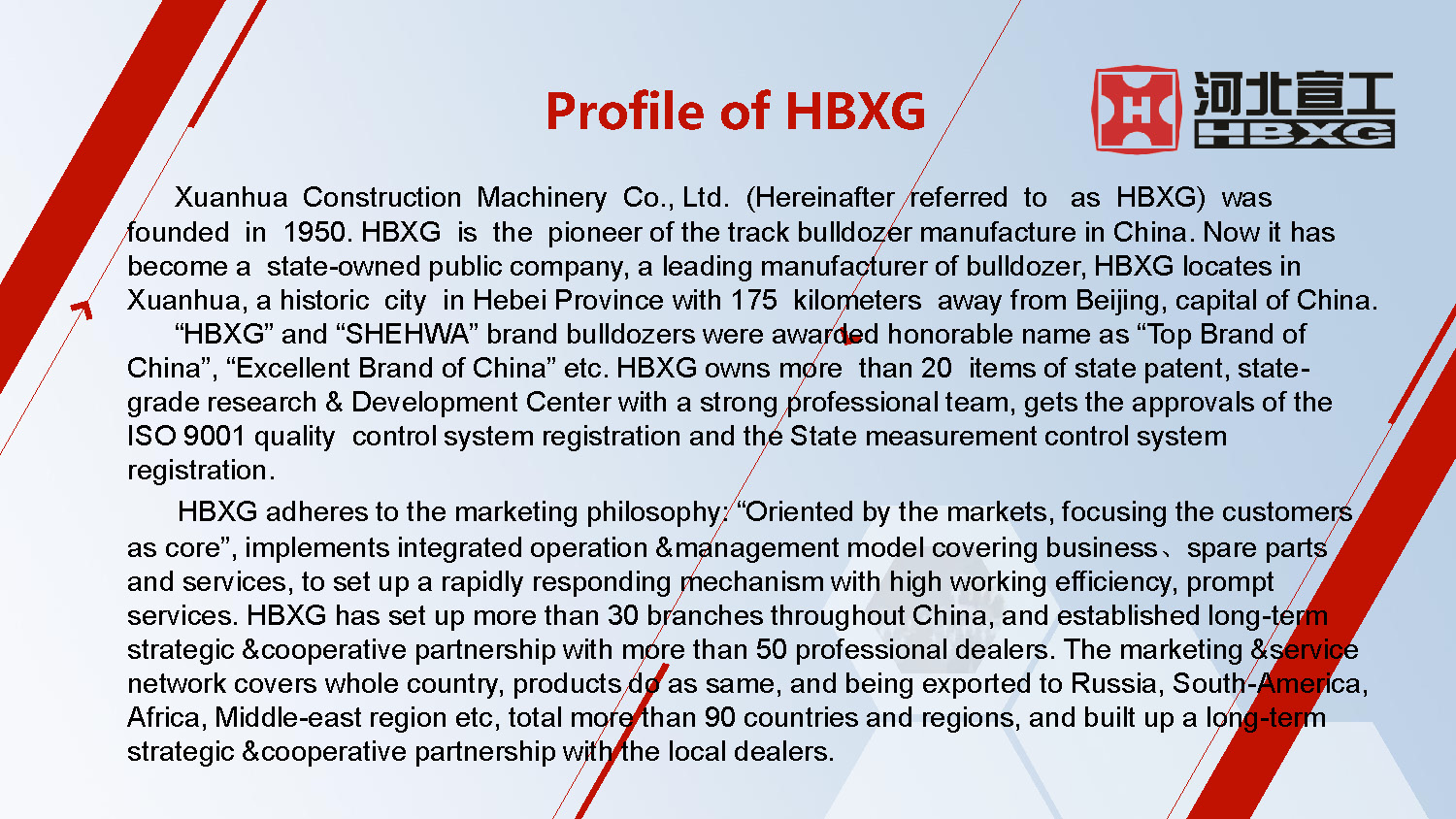

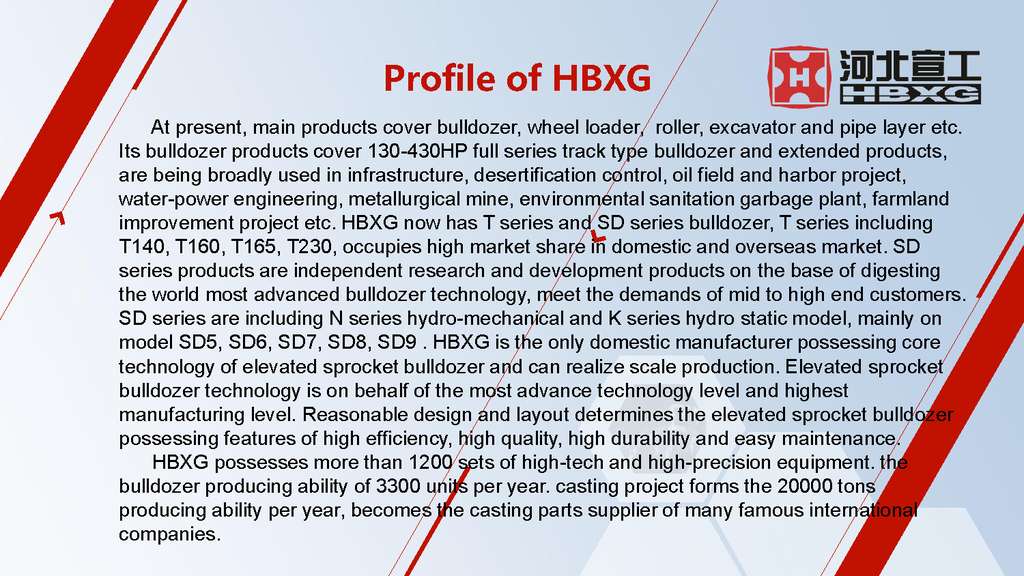

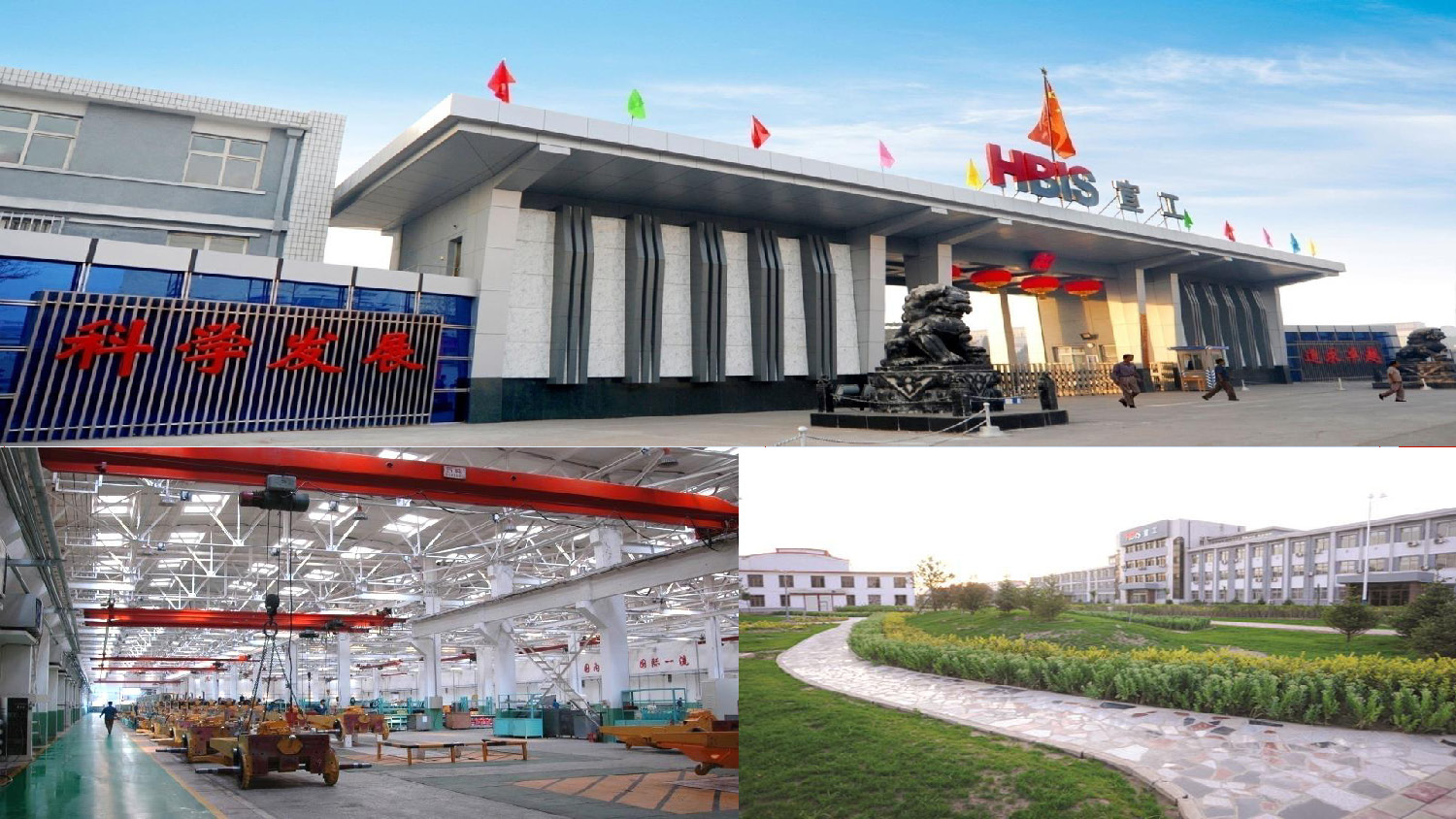

Xuanhua Construction Machinery Co., Ltd. (Hereinafter referred to as HBXG) was founded in 1950.
