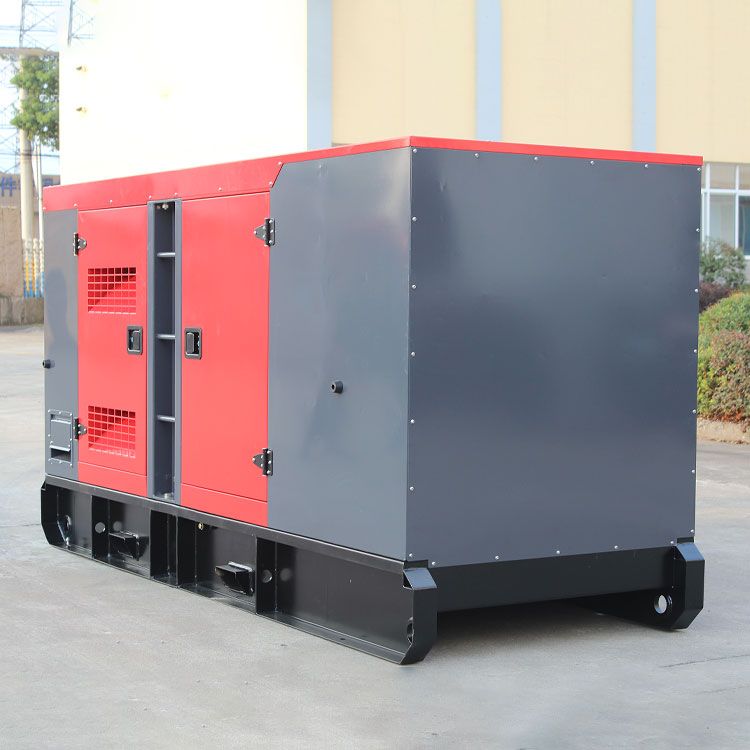

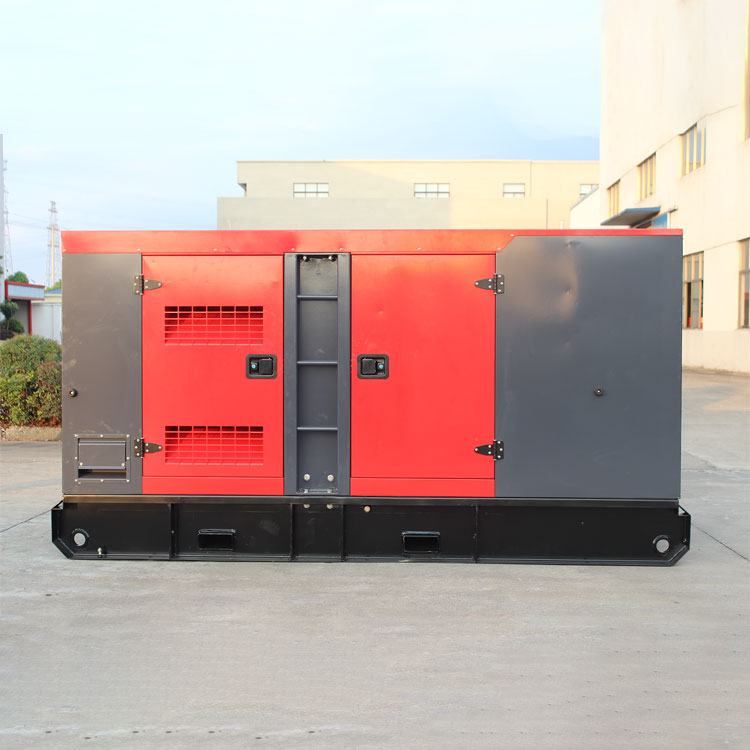

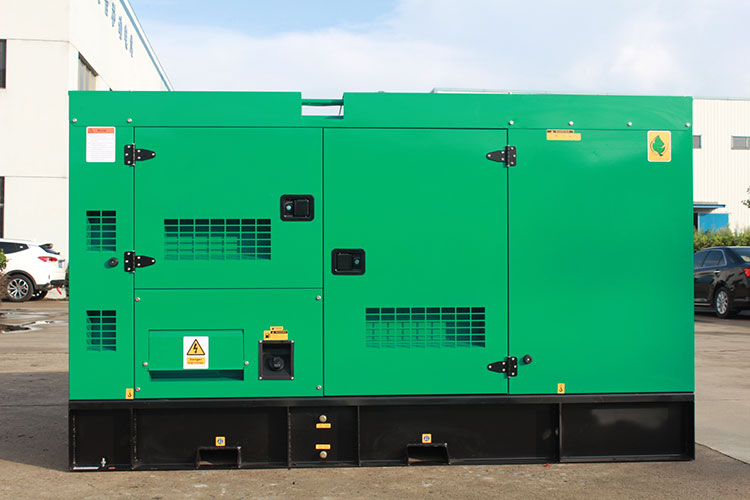

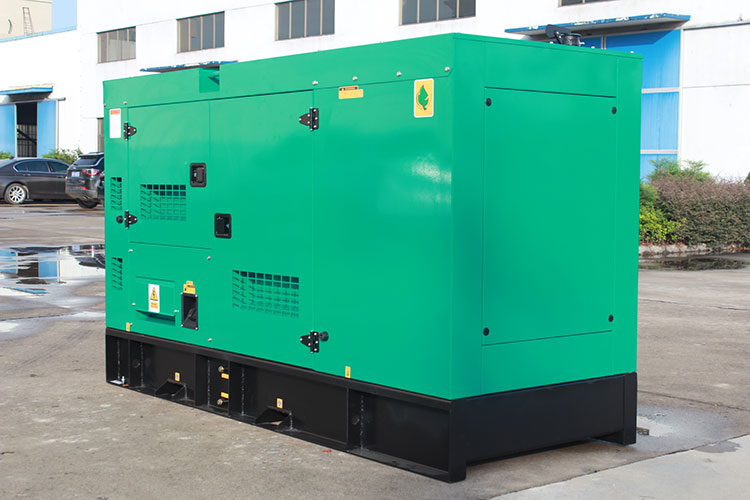

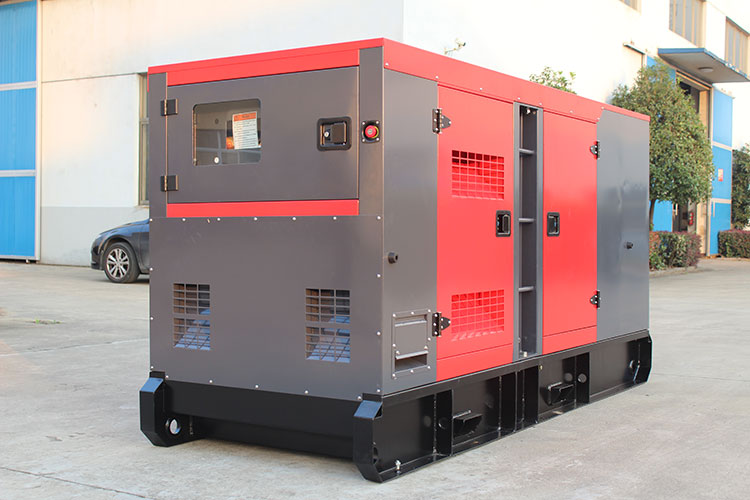

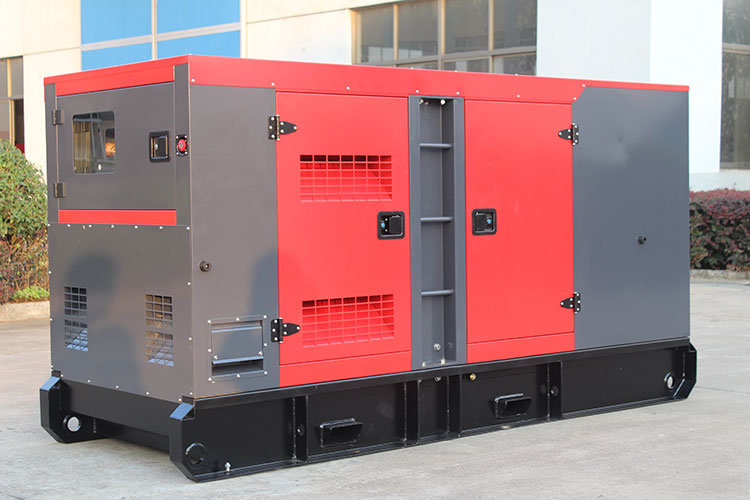

Generator Set XHZ 100KVA generator set XHZC-100GF price

View All >

Model： XHZC-100GF

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

Generator Set XHZ 100KVA generator set XHZC-100GF price

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XHZC-100GF

Specs & Compare

Details

Specifications

Weight:1200.000kg
Condition:New
Type:Open Frame
Engine Brand:Cummins
Power Range:10-200KW
Rated Power:100KW/125KVA
Rated voltage:400/230 V

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

One the main parameters of the set
The model of the unit	XHZC-100GF
Rated Power	100KW/125KVA
Standby power	110KW/156KVA
Rated voltage	400/230 V
Rated current	180A
Frequency/Speed	50Hz/1500RPM
The waste of fuel with full load	203g/kw.h

Engine specification
Engine	Cummins
Brand	DCEC
Model	6BTA5.9-G2
Rated Power	106KW/113KVA
Standby power	116KW/145KVA
No. of Cylinders	6
Type	4 cycle
Aspiration	Turbocharged & Aftercooled
Standby power	50Hz/1500RPM
Bore*Storke:	102 *120MM
Displacement	5.9L
Compression Ratio	17.3:1
Lubricating oil capacity	16L
Cooling system	30L
Starting way	DC24V starting with electricity

Alternator specification
Brand	XHZ
Place of production	Jiangsu
Model	WXHZ-100
Type	brushles
The connecting way of the phase	three phase four lines
Frequency/Speed	50Hz/1500RPM
Insulation degree	H degree
Grading Protection	IP23
Winding connection	Star
Voltage regulator type	AVR
Bearing	Single Bearing
Coating	Vacuum impregnation
coupling	Flexible disc

Engine specification
Engine	Cummins
Brand	DCEC
Model	6BT5.9-G2
Rated Power	96KW/120KVA
Standby power	106KW/133KVA
No. of Cylinders	6
Type	4 cycle
Aspiration	Turbochanger
Standby power	50Hz/1500RPM
Bore*Storke:	102 *120MM
Displacement	5.9L
Compression Ratio	17.3:1
Lubricating oil capacity	16L
Cooling system	30L
Starting way	DC24V starting with electricity

Engine specification
Engine	Cummins
Brand	DCEC
Model	6BT5.9-G2
Rated Power	96KW/120KVA
Standby power	106KW/133KVA
No. of Cylinders	6
Type	4 cycle
Aspiration	Turbochanger
Standby power	50Hz/1500RPM
Bore*Storke:	102 *120MM
Displacement	5.9L
Compression Ratio	17.3:1
Lubricating oil capacity	16L
Cooling system	30L
Starting way	DC24V starting with electricity

Control system introduction
Brand	Smartgen
Place of production	ZhengZhou
Model	HGM6110series
HGM6110series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of single genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and “three remote” (remote control, remote measurement and remote communication). The controller uses LCD display, optional language interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation. HGM6110series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment, timing and threshold setting etc. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.

Mains	Generator
Line voltage (Uab, Ubc, and Uca)	Line voltage (Uab, Ubc, and Uca)
Phase voltage (Ua, Ub, and Uc)	Phase voltage (Ua, Ub, and Uc)
Frequency HZ	Frequency HZ
Voltage regulator type	AVR
Load
Current IA, IB, IC	Active power KW
Reactive power KVar	Apparent power KVA
Power factor PF	Generator accumulated energy kWh
Mains have functions of over/under voltage and lack of phase; Gens have functions of over/under voltage, over/under frequency and over current;
Precision measure and display of parameters about engine
Temp. (WT)		°C/ °F both are displayed
Oil pressure (OP)		kPa/Psi/Bar are all displayed
Fuel level (FL)		%
Speed (SPD),		RPM
Battery Voltage (VB)		V
Charger Voltage (VD)		V
