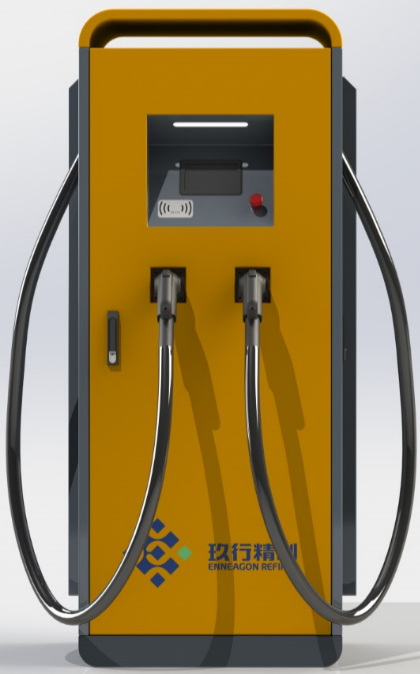

Epdc-300 series DC charging pile
Specifications
- Weight:100.000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Scope of application
Epdc-300 series DC fast charging pile is suitable for fast charging of electric vehicles. It is suitable for installation in electric vehicle charging and changing power station, public parking lot, residential parking space and other places. It can provide DC power for electric vehicle power battery, and the operation is safe and convenient
AC input current 250A 300A
AC input voltage 380VAC±15%
AC input frequency 43-67Hz
Output voltage range 200V~750V
Maximum output current 250A
THDi <5%
PF >0.99
efficiency >93%
Charging gun length 7m (double charging)
Auxiliary power supply (power supply for vehicle BMS) 10V/15A、24V/10A
Rated operating current of residual current protection 30mA
Accuracy class of watt hour meter Grade 1.0
DC insulation monitoring Operating condition R < 100 Ω / V
Protection level IP54
Noise ≤65dB
Cooling mode Intelligent air cooling
MTBF ≥8760h
Mechanical operation life of connector More than 10000 times
Human computer interaction mode touch screen
Charging mode Double gun alternate charging or double gun charging at the same time
Dimensions L * w * H = 600 * 850 * 1870mm3
Total weight (including module) 200kg
