XCMG official 6×4 XGA3250D3WC tipper truck price
Specifications
- Weight:60000.000kg
- Condition:New
- Moving Type:Other
- Driving type:6×4
- Engine:276kW
- Mix torque speed:1460N·m
- Wheelbase:4000+1400mm
- Overall size:8825*2500*3562mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

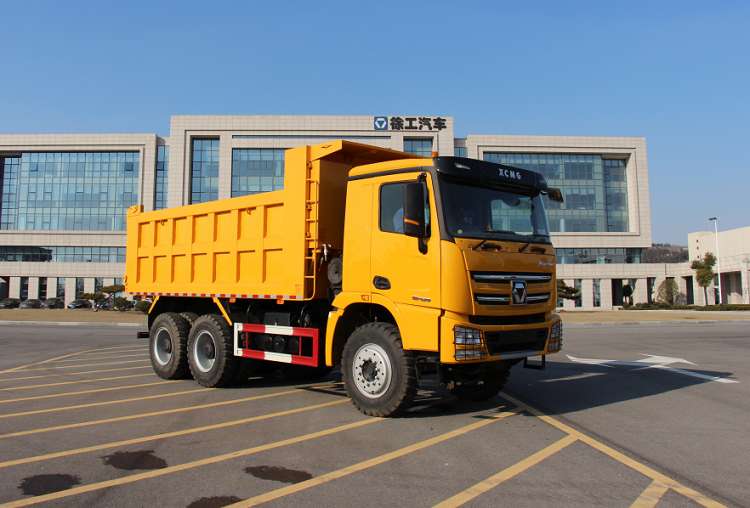

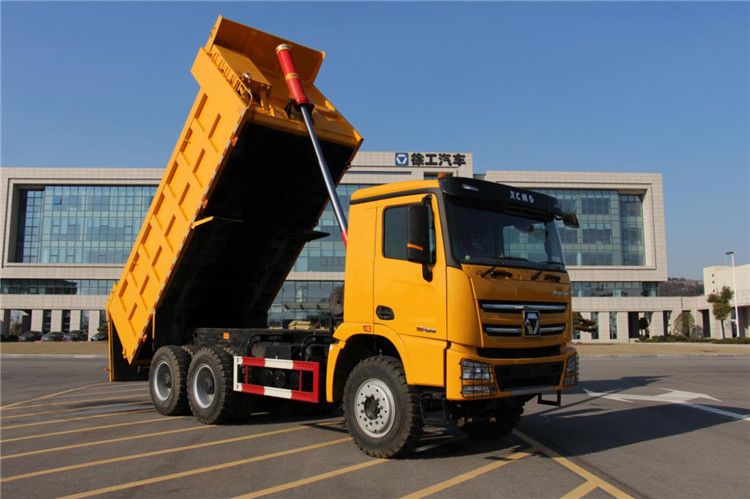

XCMG official 6×4 XGA3250D3WC tipper truck.
XCMG tipper trucks XGA3250D3WC is designed for sand, stone, ore, ore powder, iron powder, construction slag and other different loads. Based on the construction site and urban road driving, it has a series of products of heavy load type, composite type and urban construction slag type.
XCMG tipper trucks XGA3250D3WC is characterized by strong power and efficient transportation, and has passed thousands of industrial verification experiment.
After three years of practice and improvement, the power system, steering system and braking system have been comprehensively optimized and improved, which is more suitable for all kinds of heavy loads and complex working conditions.It has the obvious advantages of high bearing capacity, high reliability, high safety and high economy.
Advantages and Highlights:
1. Comfortable Driving, Pleasant Enjoyment
* Symmetrical, refined, excellent and ergonomic design, facilitates your driving operation; covering fttings adopt leather package, strong light absorption, no high-light points, reduce visual fatigue.
* Multi-functional configuration, large storage space; strictly control the gap and chromatism, meticulous work; silkstocking airbag seats.
2. Maximum Supporting capacity and practicability
* Golden power assembly-For the economic and reliabilit, reliable brands engine, Fast gearbox, Steyr axles are adopted for our manufacturing. The range of power output are from 280hp to 420hp to achieve multi-working-condition.
* Modular designed chassis, neat arrangement highly universalizable. Meanwhile, the reliability and convenience of maintenance have been improved.
* HANVAN is the industry leader of Chinese heavy- -duty truck market, we provide standard model, composite model, heavy model, super -duty model for your personal needs.
* The key part have been optimized by CAE and passed relative quality test, the reliability of vehicle can be guaranteed.
|
Vehicle Model |
XGA3250D3WC |
||
Mass parameter |
Curb weight |
16400kg |
||
GVW |
60000kg |
|||
Performances |
Max Speed |
78km/h |
||
Min. turning diameter |
20m |
|||
Grade ability |
≥30% |
|||
Hill-hold ability |
≥20% |
|||
Fuel Consumption |
40L |
|||
Fuel Tank |
400L |
|||
Dimensions |
Overall dimensions |
Length |
8065mm(Chassis)/8825mm(Total) |
|
Width |
2500mm |
|||
Height |
3192mm(Chassis)/3562mm(Total) |
|||
Wheelbase |
4000+1400 mm |
|||
Wheel tread |
Front |
2060mm |
||
Rear |
1860mm |
|||
Min. Clearance |
249mm |
|||
Approach angle |
24° |
|||
Departure angle |
23° |
|||
Front overhang |
1500mm |
|||
Rear overhang |
1165mm(Chassis)/1925mm(Total) |
|||
Cargo size |
5800×2350×1300mm |
|||
Cabin |
Model |
G7SM |
||
Passengers |
2 |
|||
Engine |
Model |
WP10.375 |
||
Displacement |
9.726L |
|||
Output power |
276kW |
|||
Mix torque speed |
1460N·m |
|||
Clutch |
Model |
Φ430 Pull type diaphragm spring clutch |
||
Operation |
Hydraulic manual |
|||
Transmission |
Model |
12JSD160T(PTO optional) |
||
Manipulation |
Flexible shaft |
|||
Forward ratio |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1 |
|||
Reverse ratio |
14.86/3.33 |
|||
Driven axle |
Model |
16T MAN |
||
Ratio |
5.73 |
|||
Brake type |
Drum type |
|||
Differential lock |
Differential lock between axles and wheels |
|||
Front axle |
Model |
9.5t |
||
Brake type |
Drum type |
|||
Tire |
Rim |
9.75×22.5/8.50V-20 |
||
Tire |
12.00R20-18PR |
|||
Frame |
Type |
Straight beam of equal width |
||
Main beam |
320×90×8 mm |
|||
Auxiliary beam |
304×90×8 mm |
|||
Width of chassis structure |
865mm |
|||
Suspension |
Front |
Type |
Multi-spring |
|
Amount of spring plate |
10 |
|||
Rear |
Type |
Multi-spring |
||
Amount of spring plate |
13 |
|||
Steering |
Steering type |
Φ130 Circulating ball type hydraulic power |
||
Ratio |
23.27 |
|||
Max pressure of pump |
17MPa |
|||
Brake |
Rated working pressure |
1MPa |
||
Driving brake |
Dual circuit pneumatic braking |
|||
Parking brake |
Spring energy storage air brake |
|||
Assistant brake |
Engine exhaust brake |
|||
Electric System |
Voltage |
24V |
||
Generator power |
1.96kw |
|||
Battery voltage and Capacitance |
2×12V/165Ah |
