Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
- Power source : :10–28 VDC
- Current : :1.75 A maximum
- Controls : :26.4 cm touchscreen
- Graphic display ::LCD
- Telemetry range ::550 m
- Weight ::3.1 kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Delivery Port:Any Port In China
PRODUCT DESCRIPTION
-

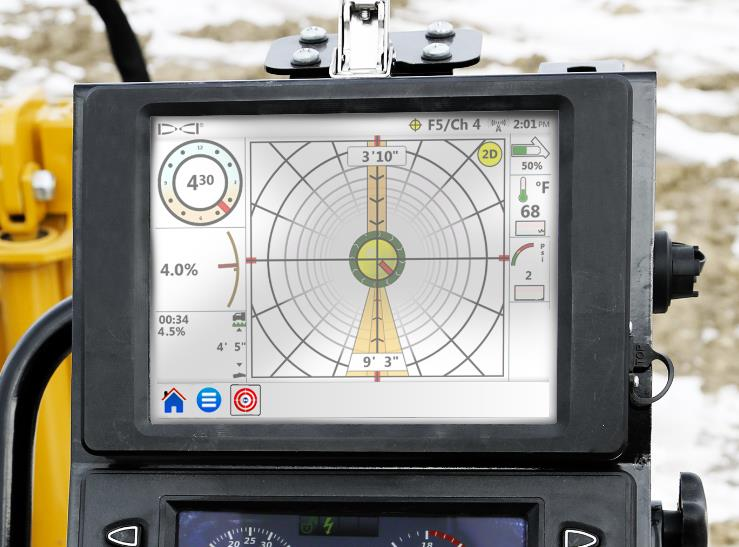

Color touchscreen interface
-
Wi-Fi and Bluetooth connectivity
-
Supports most prior DCI walkover receivers
-
Configurable alerts, data trending, and onboard training
-
Runs multiple apps simultaneously
-
GPS-enabled for future apps
-
Supports TensiTrak® pullback and pressure monitoring system and SST® steering tool
Specifications :
Model number/Product ID ..................................................... AP8
Power source.............................................................10–28 VDC
Current.............................................................. 1.75 A maximum
Controls.......................................................26.4 cm touchscreen
Graphic display .....................................................................LCD
Audio output....................................................................Speaker
Telemetry range1 ............................................................... 550 m
Telemetry channels.................................................................... 4
Wireless LAN ....................................2.4 GHz IEEE 802.11 b/g/n
Bluetooth...................2.1+EDR, and Low Energy (BLE) 4.0 radio
Operating temperature..............................................-20 to 60° C
Dimensions2 .................................................24.9 x 16.8 x 8.1 cm
Weight................................................................................ 3.1 kg
Locating—And a Whole Lot More

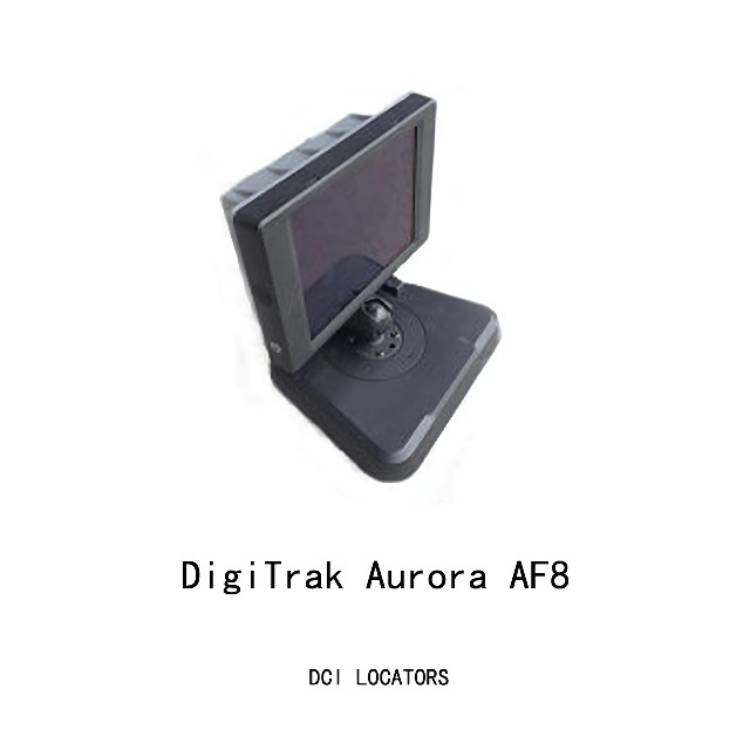

The DigiTrak® Aurora™ display from DCI represents the trenchless industry’s first color touchscreen interface for horizontal drilling. Aurora is DCI’s most rugged design to date and is compatible with most DigiTrak locating receivers. Aurora incorporates DCI’s newest telemetry technology for the best performance even in high interference environments. A larger display keeps critical information at your fingertips for easier management of HDD activities. Locating data and custom HDD apps are now combined into one ground-breaking device.
