Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
- Power source : :10–28 VDC
- Current : :2.1 A maximum
- Controls : :26.4 cm touchscreen
- Graphic display ::LCD
- Telemetry range ::550 m
- Weight :: 2.9 kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Delivery Port:Any Port In China
PRODUCT DESCRIPTION
-

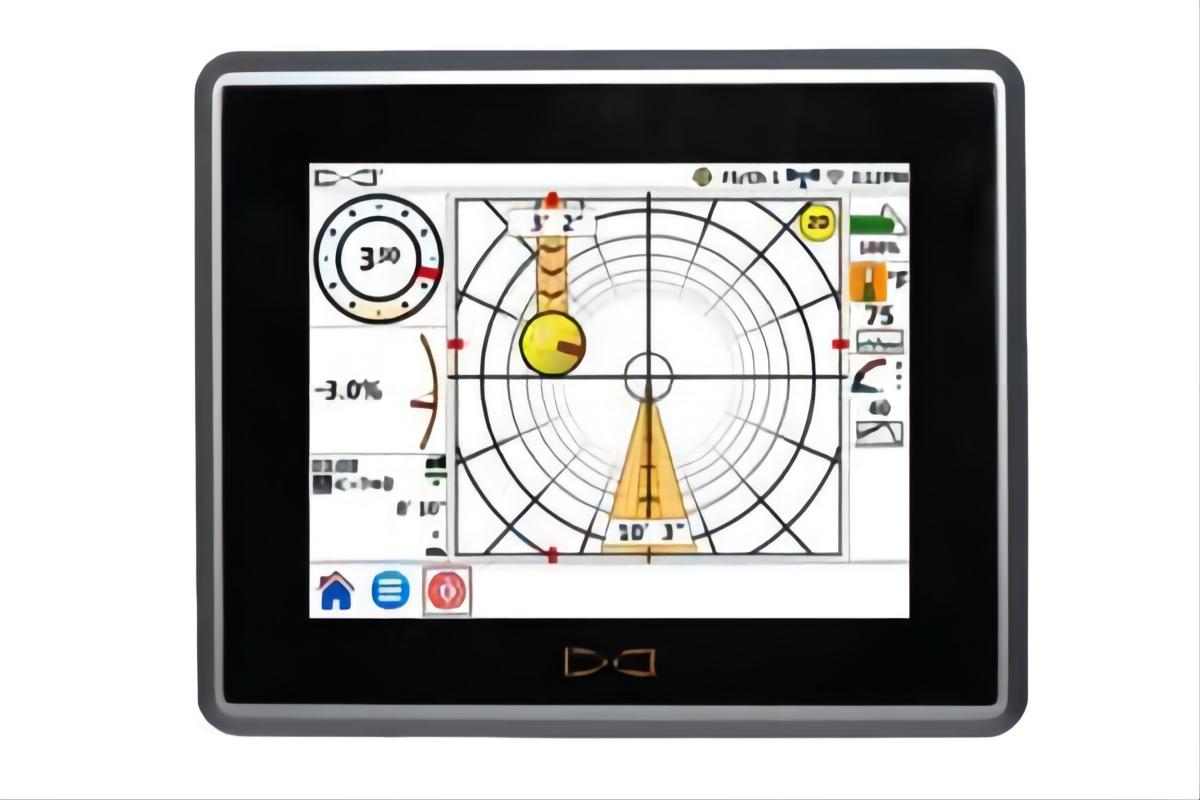

10.4-inch color touchscreen interface
-
Wi-Fi and Bluetooth® connectivity
-
Supports current DCI walkover receivers
-
Configurable alerts, data trending, and onboard training
-
Runs multiple apps simultaneously
-
GPS-enabled for future apps
-
Supports fluid pressure monitoring, TensiTrak® pullback system, and SST® steering tool
Specifications :
Product ID / Model number ......................................AF10
Power source - cabled .....................................10–28 VDC
Current .........................................................2.1 A maximum
Controls .............................................26.4 cm touchscreen
Graphic display ................................................................LCD
Audio output ............................................................Speaker
Telemetry channels............................................................. 4
Telemetry range1 .......................................................500 m
Operating Temperature............................... -20 to 60° C
Dimensions2 ......................................29.2 x 23.7 x 5.8 cm
Weight ............................................................................2.9 kg
Locating—And a Whole Lot More

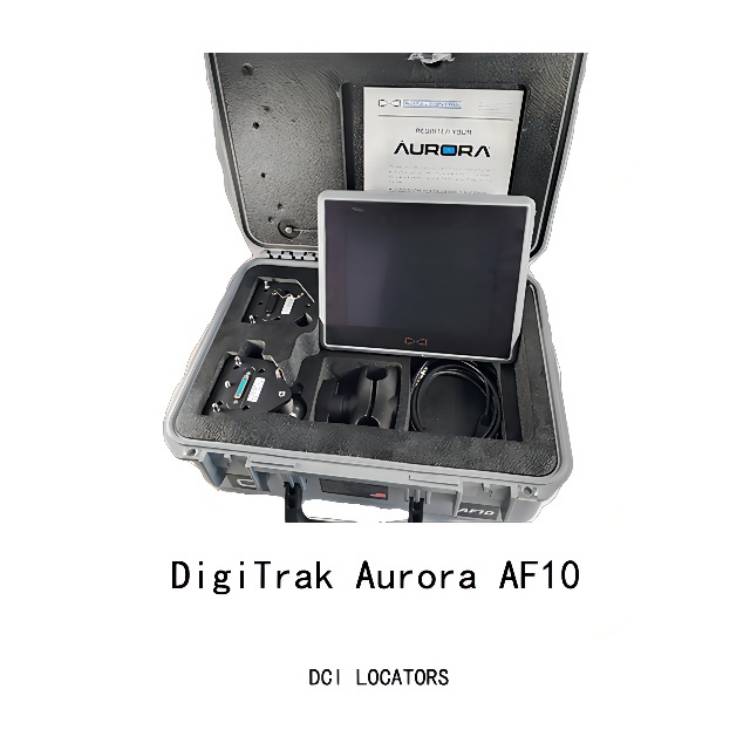

The DigiTrak® Aurora™ display from DCI represents the trenchless industry’s first color touchscreen interface for horizontal drilling. Aurora is DCI’s most rugged design to date and is compatible with most DigiTrak locating receivers. Aurora incorporates DCI’s newest telemetry technology for the best performance even in high interference environments. A larger display keeps critical information at your fingertips for easier management of HDD activities. Locating data and custom HDD apps are now combined into one ground-breaking device.
