Specifications
- Weight:15000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

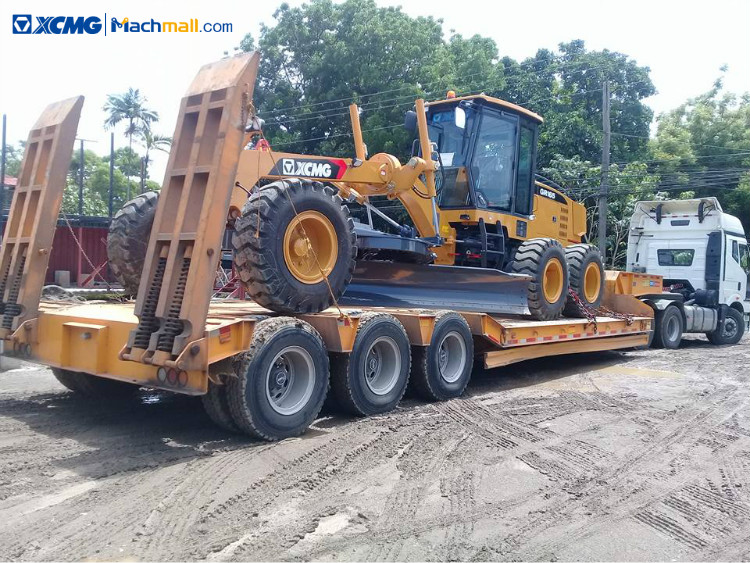

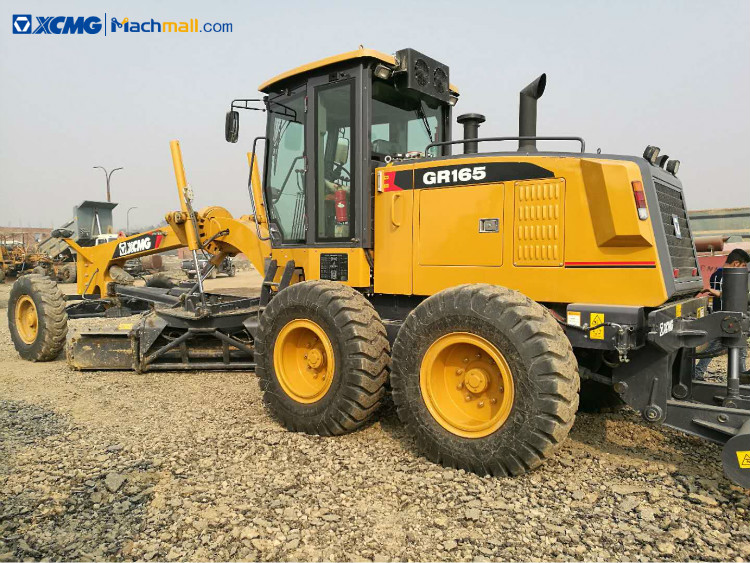

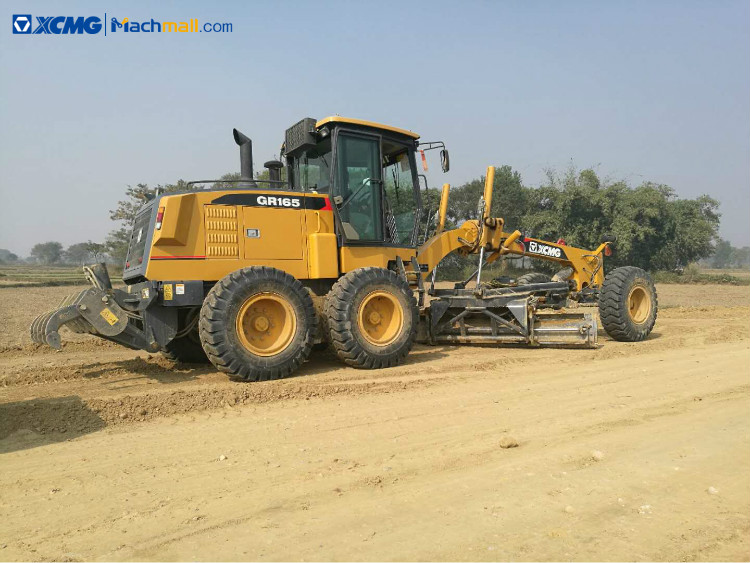

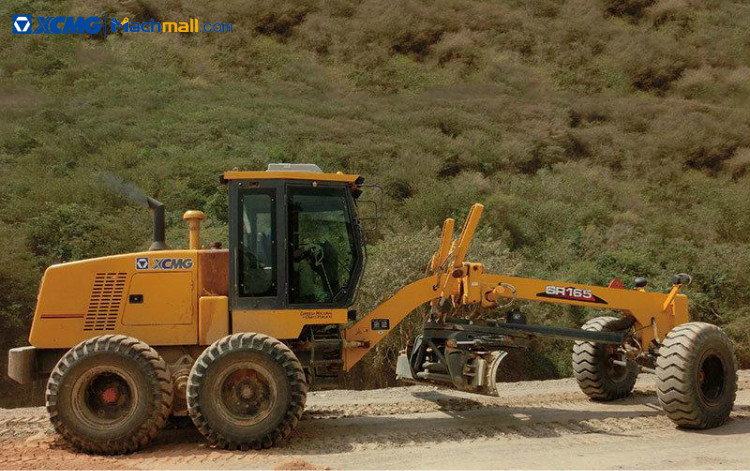

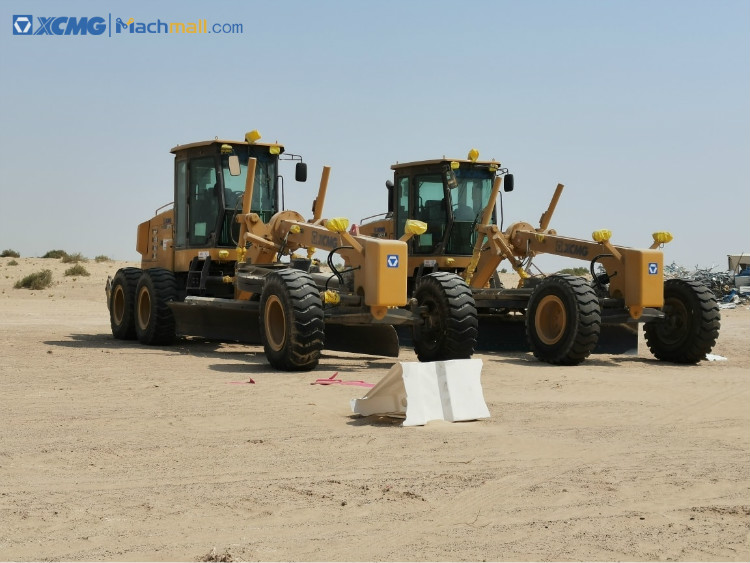

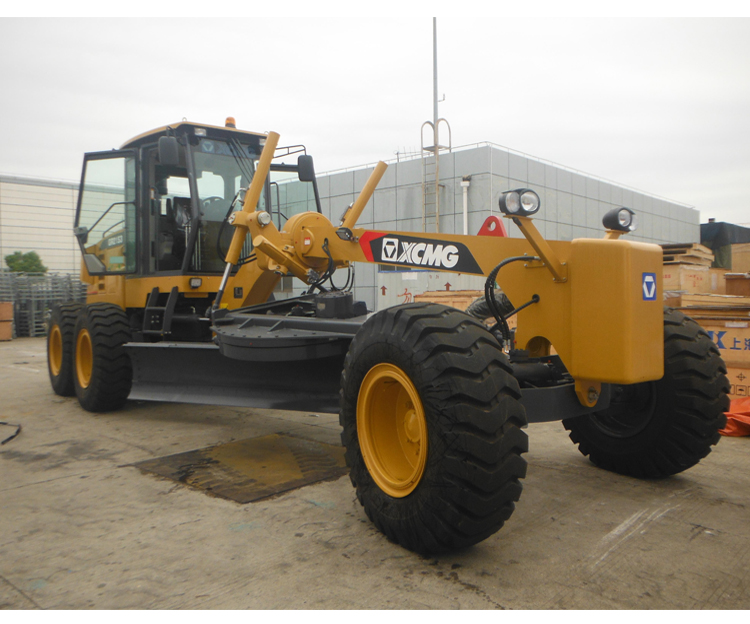

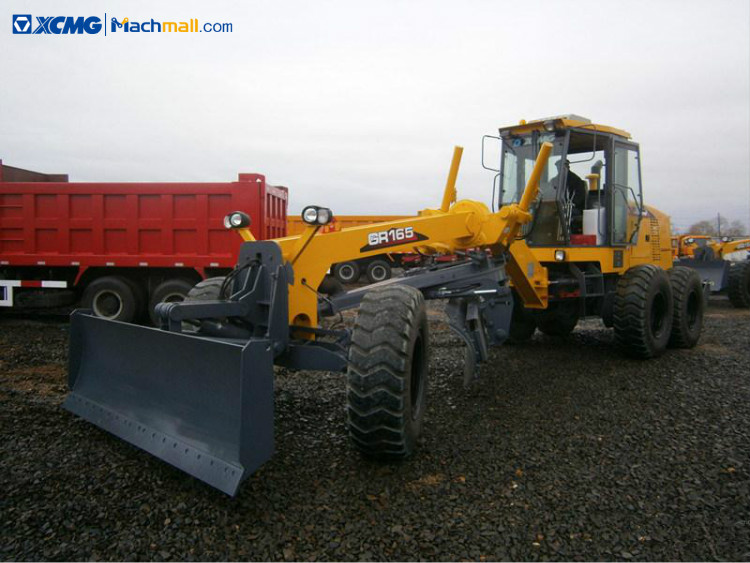

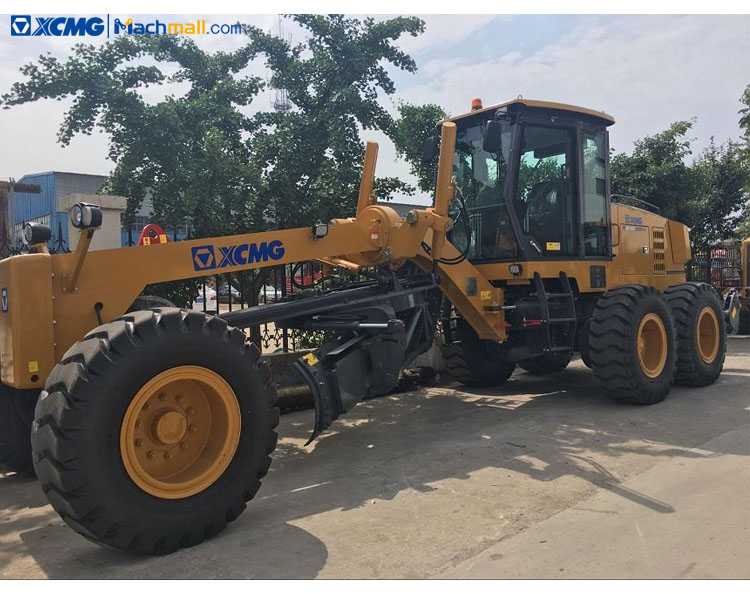

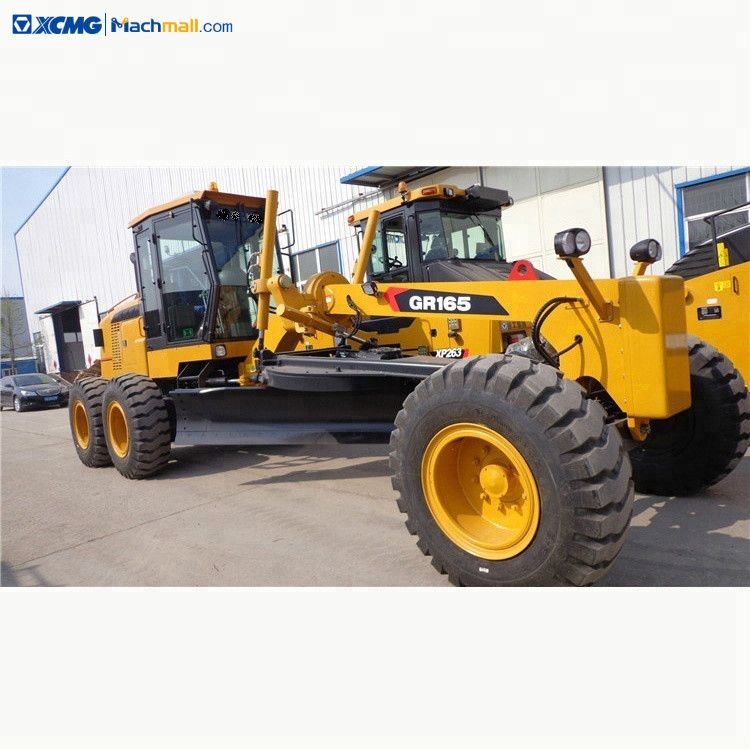

XCMG road equipment 165hp motor grader with Cummins Engine GR165.

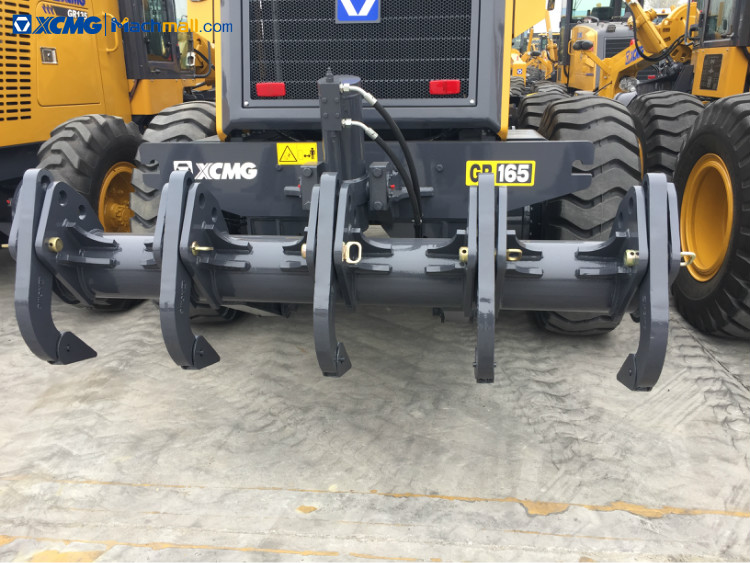

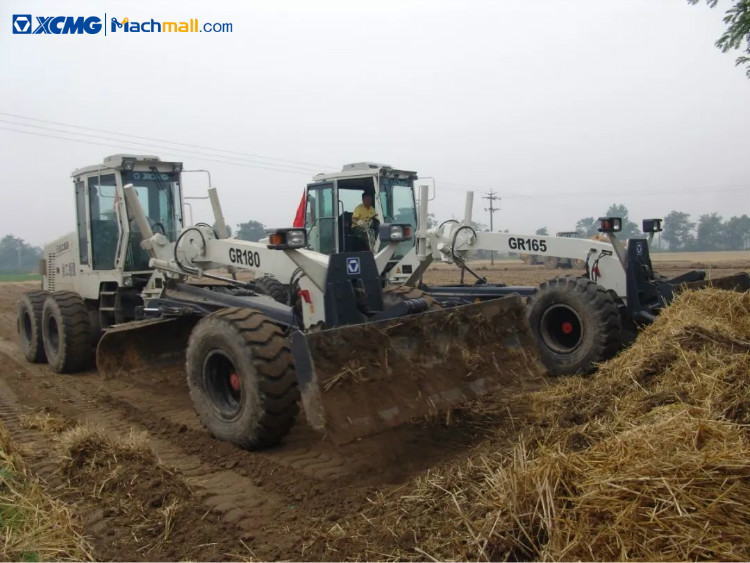

XCMG 165hp motor grader with Cummins Engine GR165 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as road construction, airports, farmlands etc.
XCMG motor grader GR165 is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
GR165 motor grader advantages and highlights:
1. The GR165 adopts Dongfeng Cummins 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
5. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
|

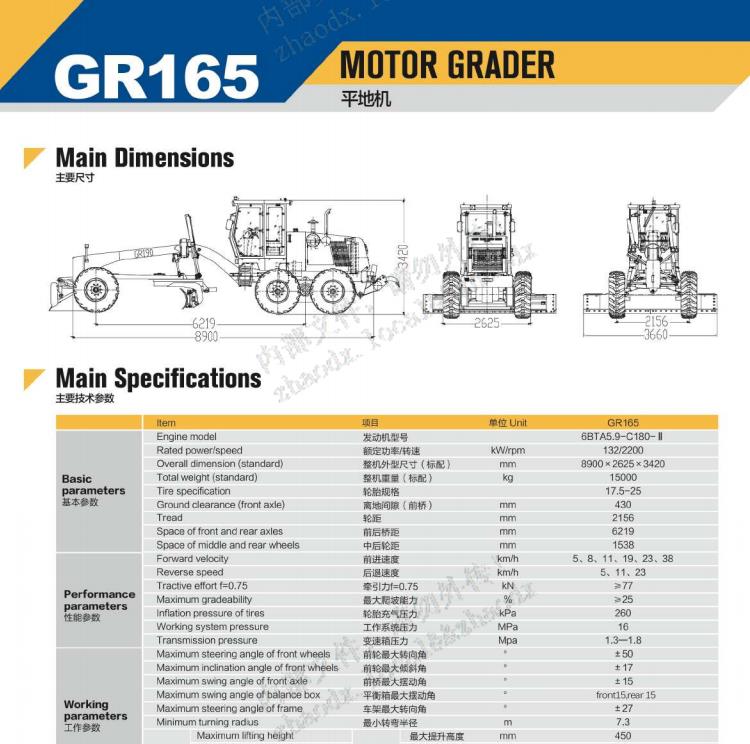

Item |
|
|
GR165 |
|
Basic parameters |
Engine model |
|
6BTA5.9-C180-Ⅱ |
|
|
Rated power/speed |
|
130kW/2200rpm |
|
|
Overall dimension (standard) |
|
8900*2625*3470mm |
|
|
Total weight (standard) |
|
15000kg |
|
|
Tire specification |
|
17.5-25 |
|
|
Ground clearance (front axle) |
|
430mm |
|
|
Tread |
|
2156mm |
|
|
Space of front and rear axles |
|
6219 mm |
|
Performance parameters |
Forward velocity |
|
5、8、11、19、23、38km/h |
|
|
Reverse speed |
|
5、11、23km/h |
|
|
Tractive effort f=0.75 |
|
77kN |
|
|
Maximum gradeability |
|
0.25 |
|
|
Tire inflation pressure |
|
260kPa |
|
|
Working system pressure |
|
16MPa |
|
|
Transmission pressure |
|
1.3—1.8Mpa |
|
Working parameters |
Maximum steering angle of front wheel |
|
±50° |
|
|
Maximum slant angle of front wheel |
|
±17° |
|
|
Maximum oscillating angle of front axle |
|
±15° |
|
|
Maximum oscillating angle of equilibrium box |
|
±15° |
|
|
Maximum steering angle of frame |
|
±27° |
|
|
Minimum turning radius |
|
7.3m |
|
|
Scrape knife |
Maximum lift height |
450mm |
|
|
|
Maximum cutting depth |
500mm |
|
|
|
Maximum tilt angle |
90° |
|
|
|
Cutting angle |
28°—70° |
|
|
|
Angle of revolution |
360° |
|
|
|
Length & chord height |
3660*610mm |
|
Oil filling amount |
Coolant |
|
50L |
|
|
Fuel tank |
|
280L |
|
|
Engine |
|
24L |
|
|
Transmission |
|
38L |
|
|
Hydraulic oil |
|
110L |
|
|
Drive axle |
|
28L |
|
|
Balancing box |
|
46 L |
