China diesel engine mini transporter 20Km/h crawler mini dumper
GT-1.5T/GT-3T/GT-5T
Specs & Compare
Details
Specifications
- Weight:20000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

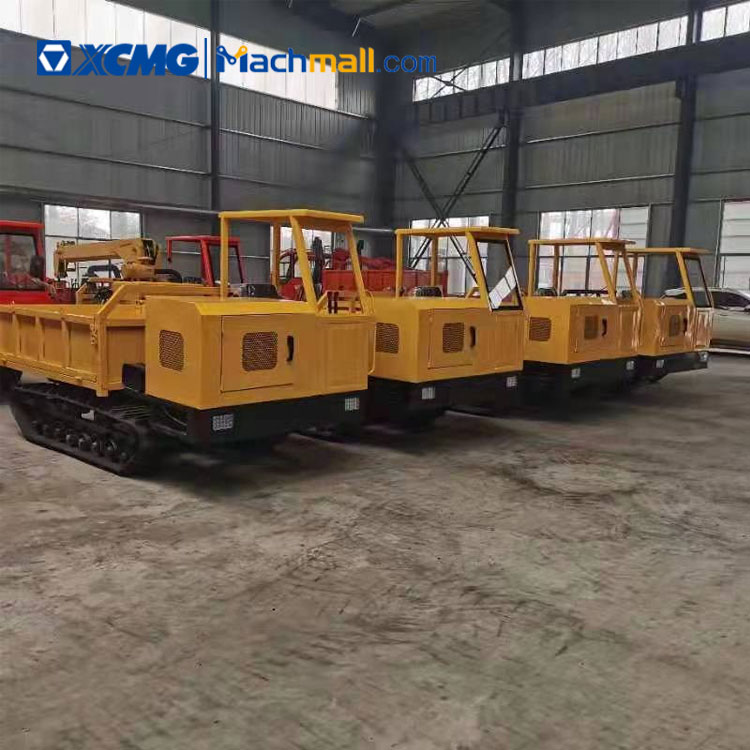

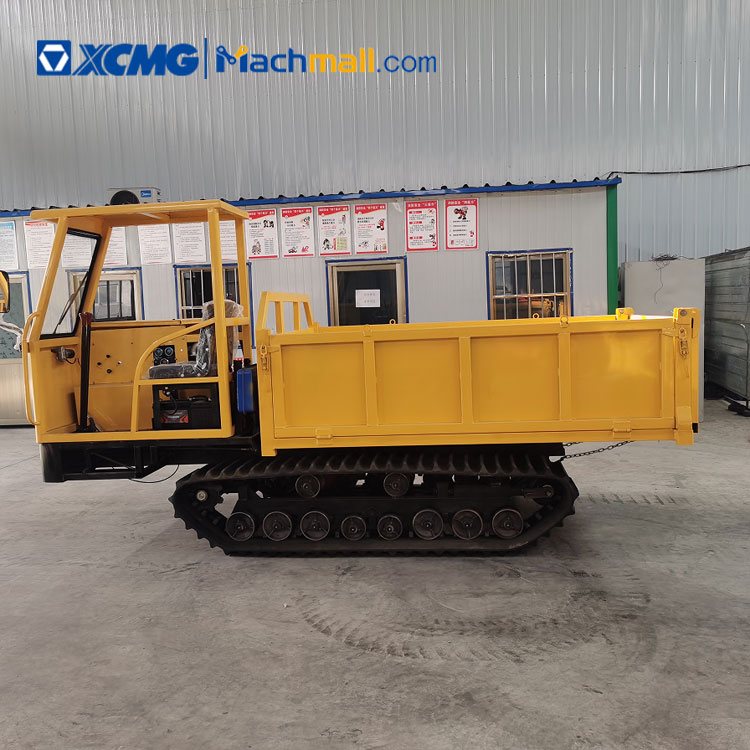

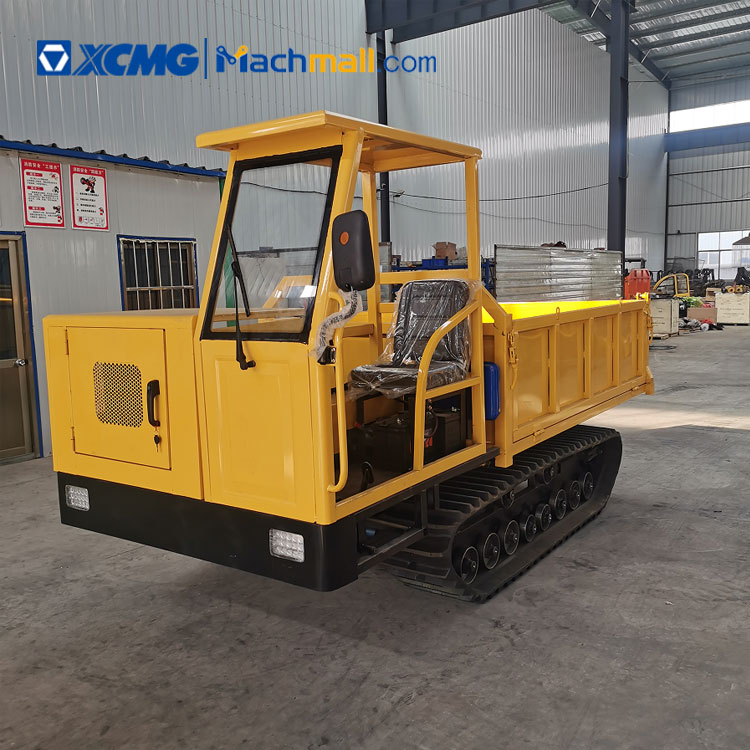

China diesel engine mini transporter 20Km/h crawler mini dumper
The crawler dumper is mainly used to transport materials in complex terrain such as farmland orchards, greenhouse nurseries, uphill, beach, snow, etc. It is referred to as transporter for short. It is powered by a net power (4kw-100kw) diesel engine, with a maximum speed of no more than 20km / h and a load capacity of no more than 20 tons.
Model | GT-1.5T | GT-3T | GT-5T |
Engine type | Often single cylinder | OEM 490 | OEM 490 |
Power/power | 13 | 34Kw | 34Kw |
Track specifications and models | 230 * 72 * 56 | 350 * 90 * 56 | 400 * 90 * 62 |
Crawler type | High tooth crawler | Agricultural crawler | Engineering crawler |
self-respect | 1.0 T | 1.5 T | 1.9 T |
load | 1.5 T | 3T | 6T |
Length * width * height | 2700 * 1200 * 1400 | 3500 * 1600 * 1450 | 4000 * 1600 * 2100 |
The car size | 1600 * 1100 * 500 | 2200 * 1600 * 560 | 2200 * 1600 * 660 |
Height of container above ground | 450mm | 600mm | 700mm |
Grounding length | 1300mm | 1800mm | 2000mm |
gear | 6 enter 2 back | 6 enter 2 back | 6 enter 2 back |
Start the way | Electric start/hand crank | Electric start/hand crank | Electric start/hand crank |
Cooling way | Water cooled | Water cooled | Water cooled |
The highest line speed | 12km/h | 12km/h | 10km/h |
Dump function | yes | yes | yes |
Can you add a crane | custom | custom | custom |
In the slope Angle | 30 degrees | 30 degrees | 30 degrees |
Maximum uphill Angle | 35 degrees | 35 degrees | 35 degrees |
Gearbox model | 21 | 21 | 29 |
