XCMG 150KN Small CFA Drilling Rig Machine XR150D-CFA price
Summary
- Dimension(L*W*H):8620*4100*22845mm
- Weight:48ton
- Power(W):133kw
- Model Number:XR150D-CFA
- Brand Name:XCMG
- Place of Origin:XUHZOU, CHINA
Specifications
- Weight:4800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

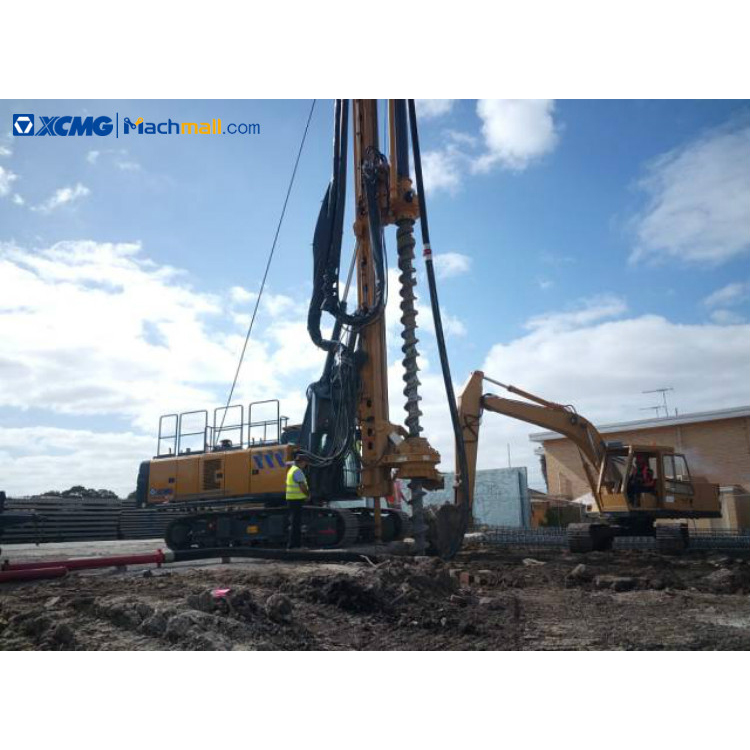

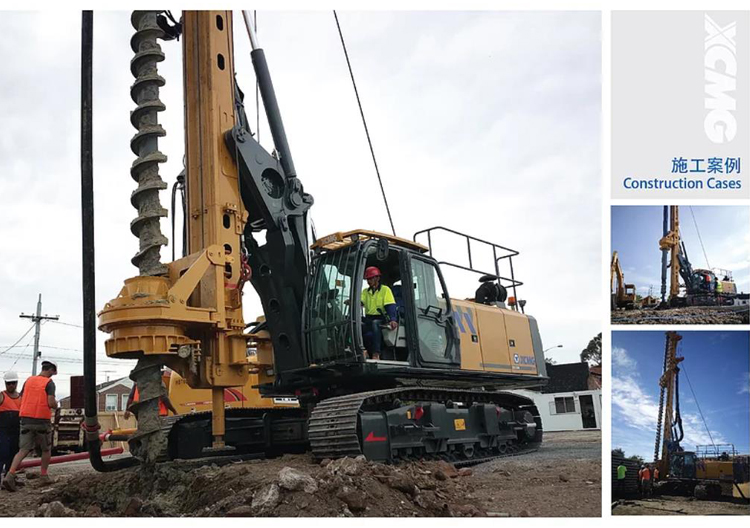

XCMG 150KN Small CFA Drilling Rig Machine XR150D-CFA.
XCMG 150KN Small CFA Drilling Rig Machine XR150D-CFA being a multi-purpose machine, it realizes CFA and Rotary Drilling method through changing working devices.
Using originally imported Cummins turbocharged engine, it is powerful, reliable in performance, unique in the design of regulating speed, and more energy efficient;
Imported Kawasaki hydraulic parts, a reasonable match of power system, high efficience in construction;
Specially stretchable chassis, equipped with luffing mechanism of dual boxes, it is easy to transport and adjust, making sure stability and reliability;
Main winch, using fourfold steel rope to lift, is effective to improve elevation force.
Equipped with the intelligent control system, CAN field-bus and PLC control system which are all protected under intellectual property rights, it includes auto/manual adjustment of the verticality of drilling mast、auto detection of depth、intelligent fault diagnosis control,etc.intelligent fault diagnosis control,etc.
Automatic control enhances perfusion of suited concrete, improving reliability.
|
Engine |
|
|
|
Model |
- |
CUMMINS B5.9-C |
|
Rated Power |
(kW) |
133 |
|
Rotary Drive |
|
|
|
Max.output torque |
(kN·m) |
150 |
|
Rotary speed |
(r/min) |
8～36 |
|
Max.Drilling Diameter |
(mm) |
φ800 |
|
Max.Drilling Depth |
(m) |
20 |
|
Max.Extraction Force |
(kN) |
400 |
|
Main Winch |
|
|
|
Max.single-rope speed |
(m/min) |
75 |
|
Diameter of the steel wire rope |
(mm) |
28 |
|
Auxiliary Winch |
|
|
|
Max.single-rope speed |
(kN) |
50 |
|
Diameter of the steel wire rope |
(m/min) |
60 |
|
Drilling Mast Inclination |
|
|
|
Lateral |
(°) |
3 |
|
Undercarrige |
|
|
|
Max.traveling speed |
(km/h) |
3.2 |
|
Max.grade ability |
(%) |
40 |
|
Min Ground Clearance |
(mm) |
352 |
|
Track Shoe Width |
(mm) |
700 |
|
Distance between tracks |
(mm) |
3100~4100 |
|
Hydraulic System |
|
|
|
Working pressure |
(MPa) |
32 |
|
Machine Working Quality/Transportation Quality |
(t) |
48/43 |
|
Dimensionv |
|
|
|
Working condition |
(mm) |
8620X4100X22845 |
|
Transportation condition |
(mm) |
13610X3100X3040 |
