Summary
- Rated Load:2500kg
- Dimension(Long*Breadth*High):7440*2350*3450mm
- Type:Long boom backhoe loader
- Place of Origin:Xuzhou, China
- Model Number:XC870K
- Brand Name:XCMG
Specifications
- Weight:7600.000kg
- Condition:New
- Moving Type:Wheel
- Engine:Cummins/Deutz/Weichai
- Power:70-82kw
- Max. digging radius:6640mm
- Max. digging depth:5690mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

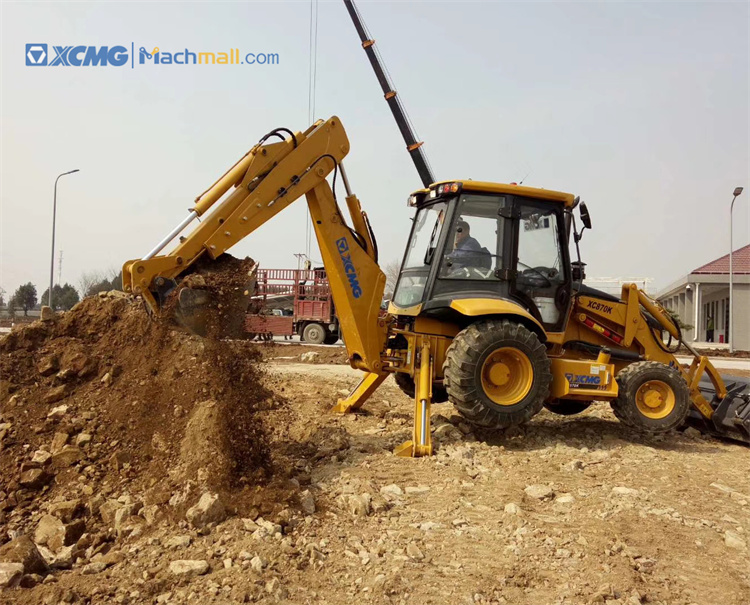

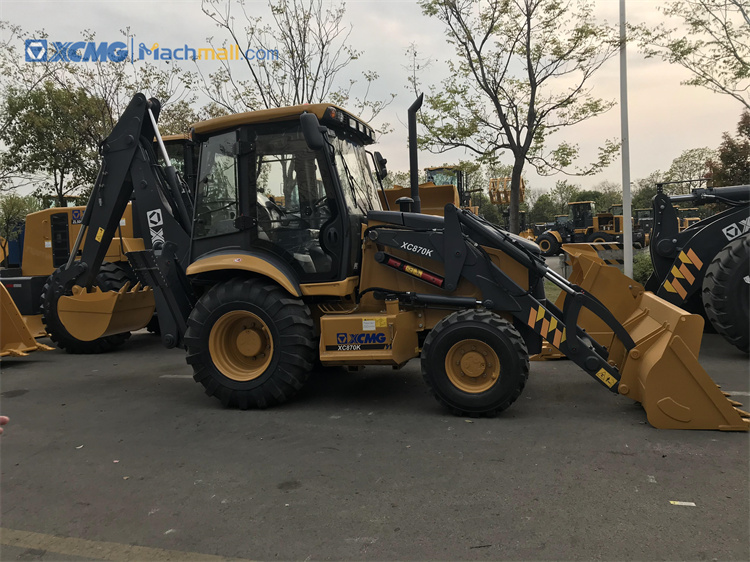

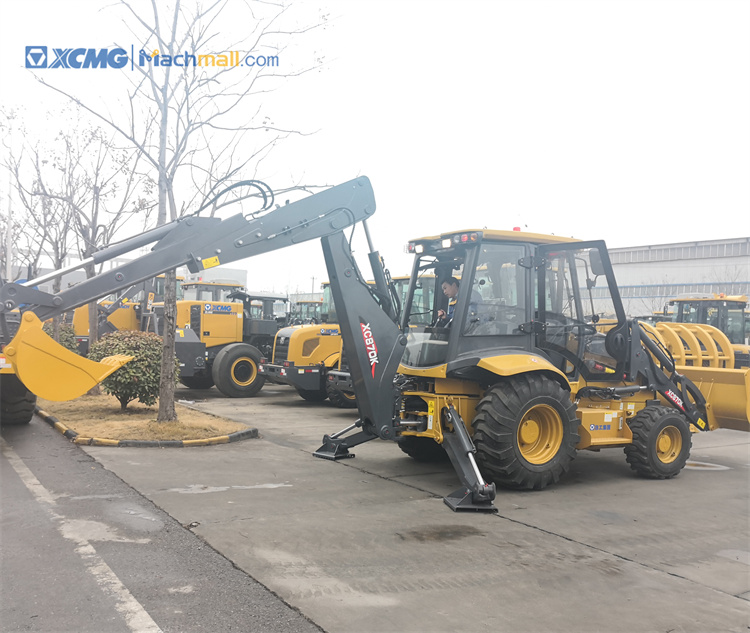

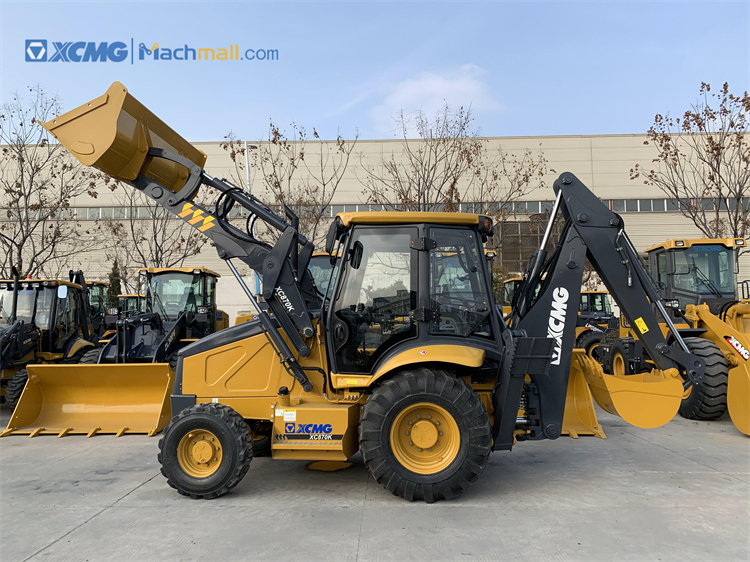

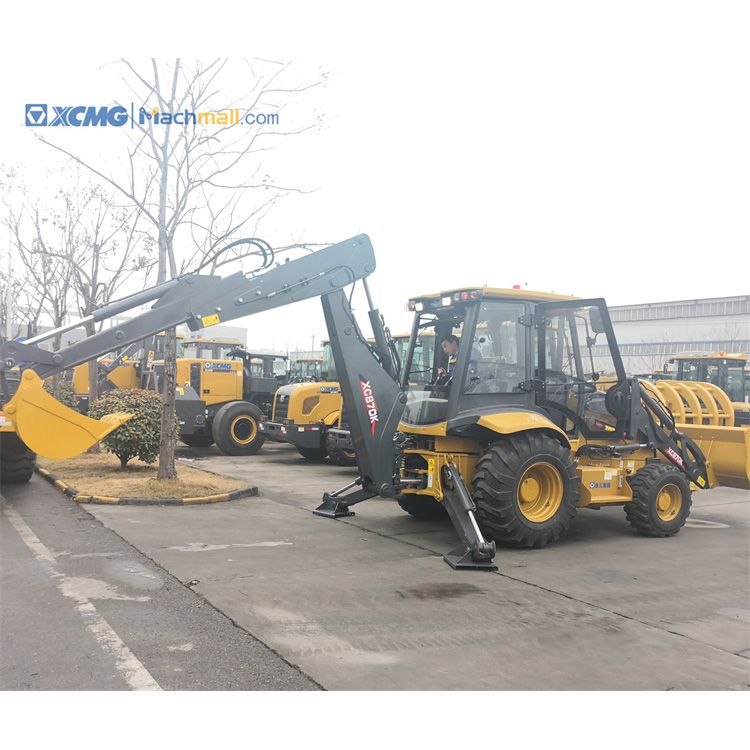

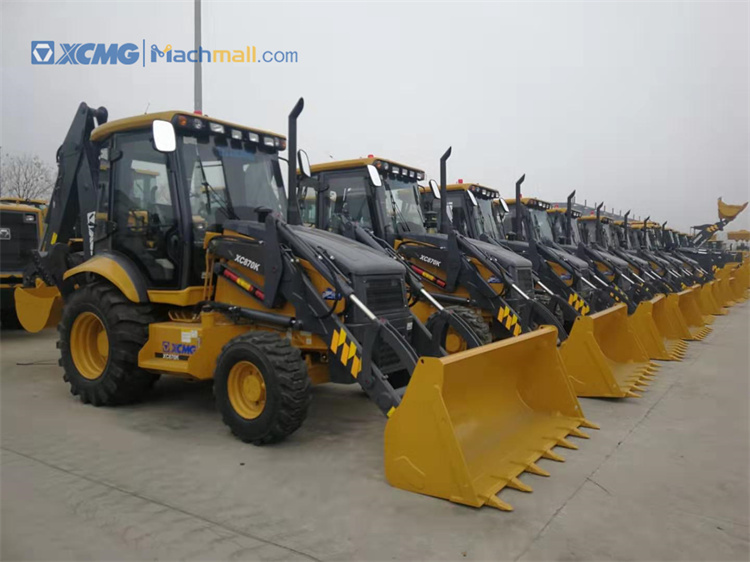

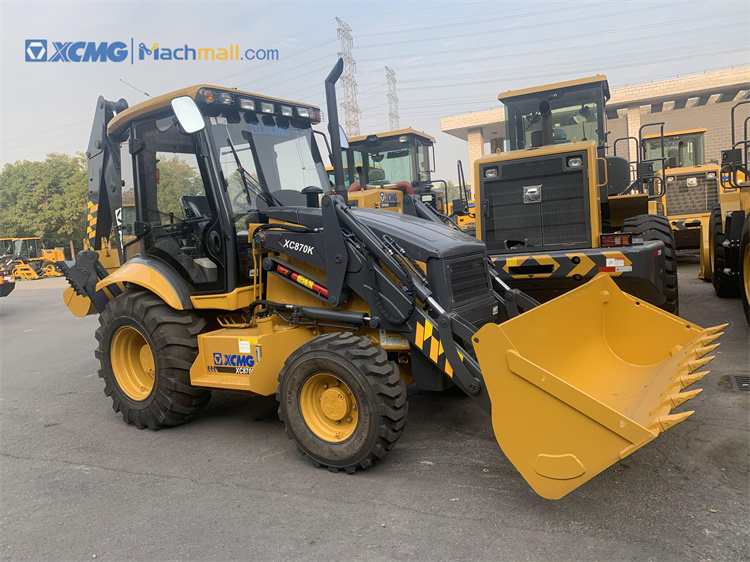

XCMG 2 ton Backhoe Loader Digger with Long Boom.
XCMG long boom backhoe loader digger XC870K with design industry leading 8-link working device features good levelness of bucket and rapid operations.
Advantages and Highlights:
1, The highest breakout force on the loading end is leading the industry by 15%~ 20% compared with like models. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
2, The high strength structural design features high operation efficiency, with the breakout force up to 63kN.
3, The design optimized and industry leading 8-link working device features good levelness of bucket and rapid operations.
4, The ultra high digging radius and ultra-high breakout force lead the like products.
5, The 360° panoramic view luxury cab with air conditioning system features large space, good sound and heat insulation, and good shock absorption. With openable side windows and rear window, the cab realizes broader visual field and comfortable operations.
Optional attachments:
1, The digging end can be equipped with various attachments, including breaking hammer, post hole digger , vibrating tamper, hydraulic shear, and planer.
2, The loading end can be equipped with four-in-one bucket, manhole cover planer, snow shovel, and forks.
|
Description |
Parameter Value |
Unit |
||||
|
Chassis type |
|
integrated |
|
|
|
|
|
Drive style |
|
4 drive/2 drive |
|
|
|
|
|
Digging working device |
|
middle |
|
|
|
|
|
Outline dimensions(L×W×H) |
|
7440*2350*3450 |
|
|
|
mm |
|
Total weight |
|
7600 |
|
|
|
kg |
|
Max. travel speed |
|
≥40 |
|
|
|
km/h |
|
Wheelbase |
|
2180 |
|
|
|
mm |
|
Engine |
Power |
82 |
74 |
74.9 |
70 |
kw |
|
|
Cummins |
Cummins |
Deutz dalian |
weichai |
|
|
|
Supplier |
tier 3 |
tier 2 |
tier 3 |
tier 2 |
|
|
|
Loading device |
Bucket capacity |
1 |
|
|
|
m3 |
|
Rated load |
2500 |
|
|
|
kg |
|
|
Max. breakout |
66 |
|
|
|
kN |
|
|
Max. discharge height |
2770 |
|
|
|
mm |
|
|
Max. discharge distance |
755 |
|
|
|
mm |
|
|
System pressure |
24 |
|
|
|
Mpa |
|
|
Digging device |
Bucket capacity |
0.3 |
|
|
|
m3 |
|
Max. digging radius |
5460 |
|
|
|
mm |
|
|
Max. digging depth |
4425 |
|
|
|
mm |
|
|
Max. digging force |
63 |
|
|
|
kN |
|
|
System pressure |
24 |
|
|
|
Mpa |
|
