XCMG official 20m towable hydraulic articulating boom lift XGA20K price
Summary
- Weight:9900kg
- Overall Dimension:8520*2300*2400mm
- Table Size:1830*760*1150mm
- Max Lifting Height:20.63m
- Rated Loading Capacity:256/350kg
- Power:36.8KW
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Articulated Lift
- Model Number:XGA20K
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:9900.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

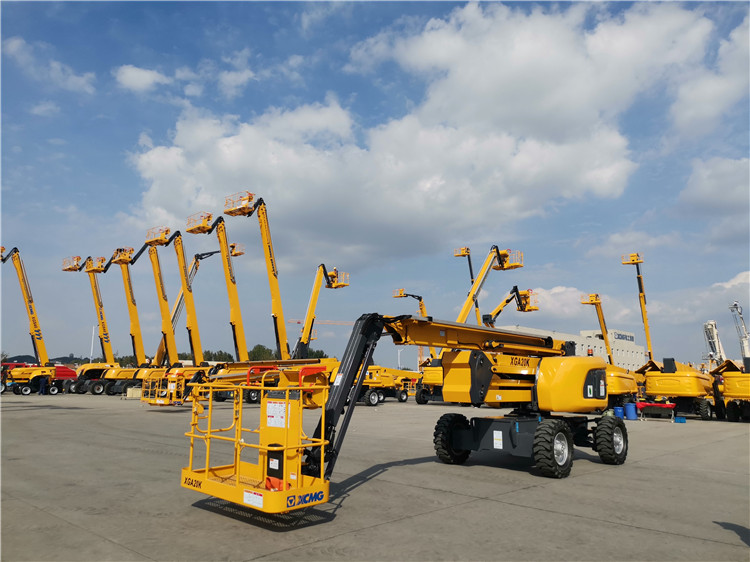

XCMG official 20m towable hydraulic articulating boom lift XGA20K.
Articulating boom lift XGA20K is a kind of layout is compact, the obstacle-surmounting efficiency and design precision, driving strong and simple operation of the crank arm type mobile elevating work platform. The machine is easy to operate, safe and reliable, accurate and efficient, and can widely meet the needs of users in construction, steel structure, petrochemical industry, venue and lease, etc.
Advantages and features:
1. 256/350 kg of double load and big load design, load performance in the industry advanced level.
2. Multi-directional precise positioning up, down and across functions as well as excellent stretch functions.
3. Electrical system USES a distributed PLC control technology, adaptive proportional valve control method, make the product environment adaptability with lead.
4. Full hydraulic pressure drive, 360 °angular free rotation, there is no Angle limits in full operation and simple operation, high reliability.
5. Compact clever, vehicle layout is compact, convenient for container transportation.
|
Item |
Unit |
Parameters |
|
Overall length |
mm |
8520 |
|
Overall width |
mm |
2300 |
|
Overall height |
mm |
2400 |
|
Wheelbase |
mm |
2500 |
|
Max. working height |
m |
20.63 |
|
Max. platform height |
m |
18.63 |
|
Max. working range |
m |
12.08 |
|
Max. carrying weight |
kg |
256(unlimited)/350(limited) |
|
Scope of luffing of No. 1 arm |
° |
0～+72 |
|
Scope of luffing of Boom No.2 |
° |
0～+73 |
|
Crank arm luffing range |
° |
-64～70 |
|
Slewing angle of turntable |
° |
360 |
|
Max. Tail swing |
mm |
0.54 |
|
Dimension of platform |
mm |
1830×760×1150 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
9900 |
|
Max. traveling speed |
km/h |
5.5 |
|
Min. turning radius |
m |
5.0 |
|
Min. ground clearance |
mm |
330 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
/ |
355/55D625 |
|
Engine model |
/ |
YCF3050-T302 |
|
Engine rated power |
kW/(r/min) |
36.8/(2400) |
