XCMG official 20m electric articulating boom lift XGA20AC price
Summary
- Weight:9100kg
- Overall Dimension:8.49×2.49×2.38m
- Table Size:1.8×0.76×1.1m
- Max Lifting Height:18.7m
- Rated Loading Capacity:256/350kg
- Lift Drive / Actuation:Electric Motor
- Lift Mechanism:Articulated Lift
- Model Number:XGA20AC
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:9100.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

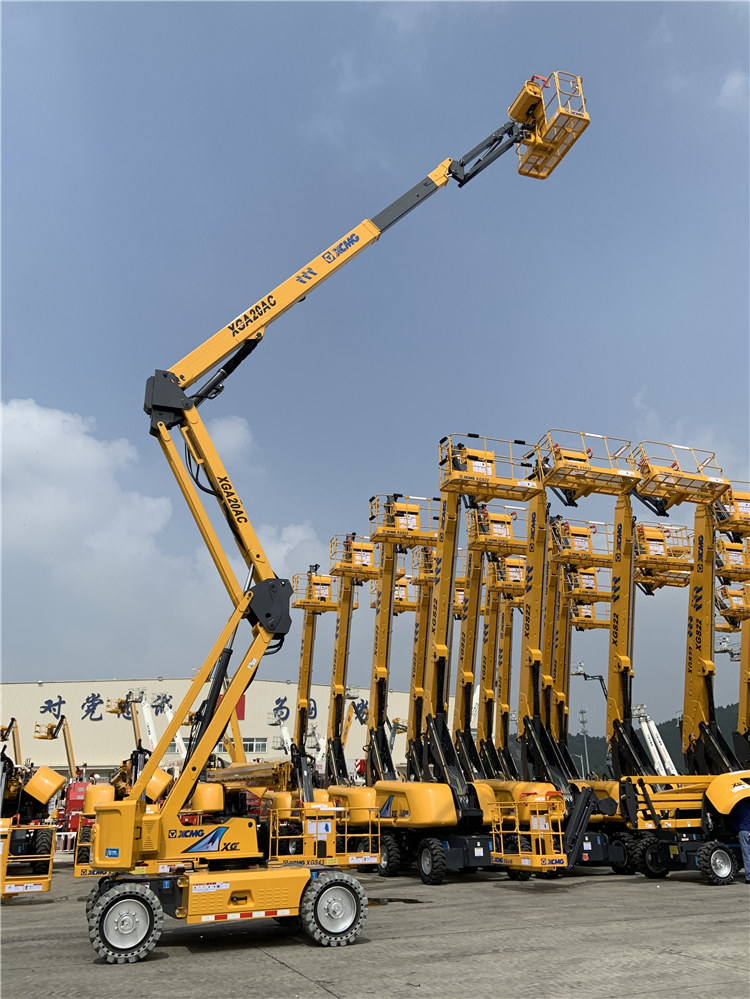

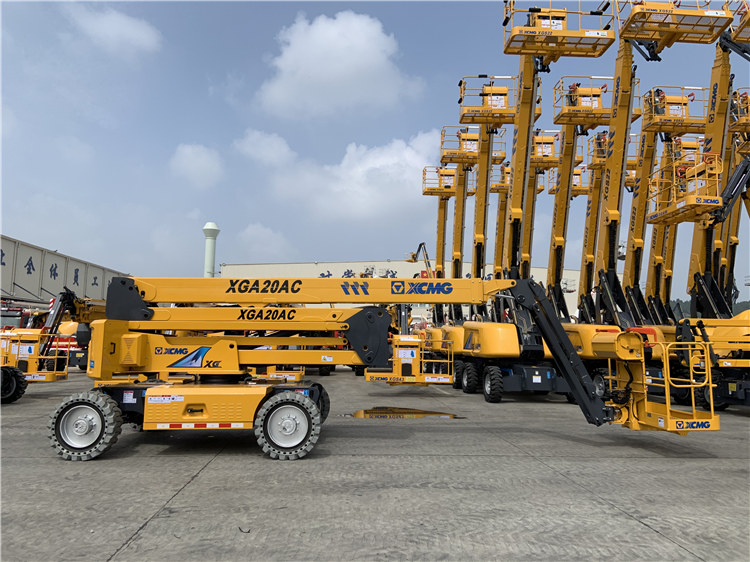

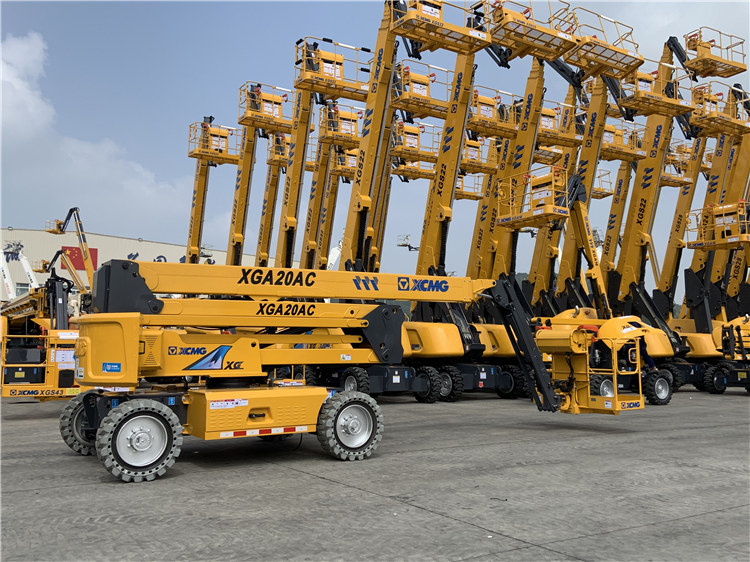

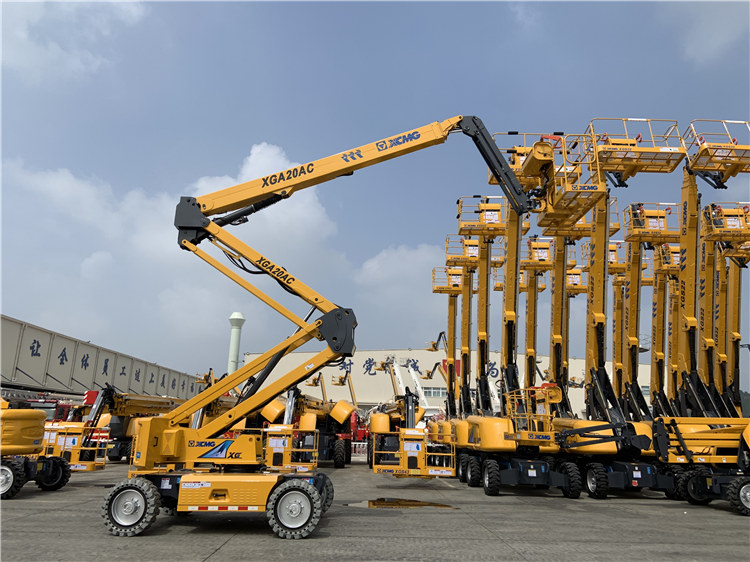

XCMG official 20m electric articulating boom lift XGA20AC.
XGA20AC articulating boom lift, the compact whole machine structure, the strong load capacity and driving ability, the long endurance, the energy conservation environmental protection, suits the indoor and outdoor working condition to use.
Advantages and features:
1. The load capacity of 256kg/350kg is leading in the industry.
2. The overall dimensions are small in the industry and convenient for transportation.
3. Σ combined boom improves working efficiency.
4. Turning radius as low as 5m, flexible, challenging tight space operation.
5. Environmental protection, zero emission, low noise, non-trace driving, suitable for indoor clean environment construction.
6. Lower dead weight of boom, stable energy saving.
7. Advanced four-wheel AC drive walking technology, steering differential control technology, strong power, smooth movement, climbing ability to reach 45%.
8. AC pump control and proportional control technology combined application, to provide users with more safe and smooth operation experience.
|
Item |
Parameter |
|
Parameters of running state |
|
|
Overall dimensions (L × W × H) |
8.49×2.49×2.38 m |
|
Working platform overall dimensions |
1.8×0.76×1.1 m |
|
Max. speed |
4.8 km/h |
|
Max. gradeability |
≥45％ |
|
Min. external turning radius |
≤5 m |
|
Ground clearance/m (center) |
0.3 m |
|
Wheelbase |
2.5 m |
|
Total mass |
9100 kg |
|
Main Operation Performance Parameters |
|
|
Rated working height |
20.7 m |
|
Max. platform height |
18.7 m |
|
Max. working range |
11.98 m |
|
Max. net spanning height |
8.0 m |
|
Scope of luffing of No. 1 arm |
0°～72° |
|
Scope of luffing of No. 2 arm |
0°～73° |
|
Fly Jib Luffing Range |
-64°～70° |
|
Scope of platform swing |
160° |
|
Slewing angle |
360° |
|
Max. load capacity |
256/350 kg |
|
Max. rearward slewing |
0.66 m |
|
Control system |
12V DC proportional control |
|
Tire |
830*285（835*295，33×12-20） |
|
Power parameters |
|
|
Power source |
420 Ah/48 V DC |
|
Power unit |
12 kw/32 V AC |
|
Auxiliary power unit |
12 V DC |
|
Traveling motor |
3.3 kw/32 V AC |
