Specifications
- Weight:26000.000kg
- Condition:New
- Moving Type:Wheel
- Tire:12.00R20
- Fuel tanker capacity :400L
- Wheel base :3450+1450 mm
- Fuel type:Diesel EUROⅡ
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

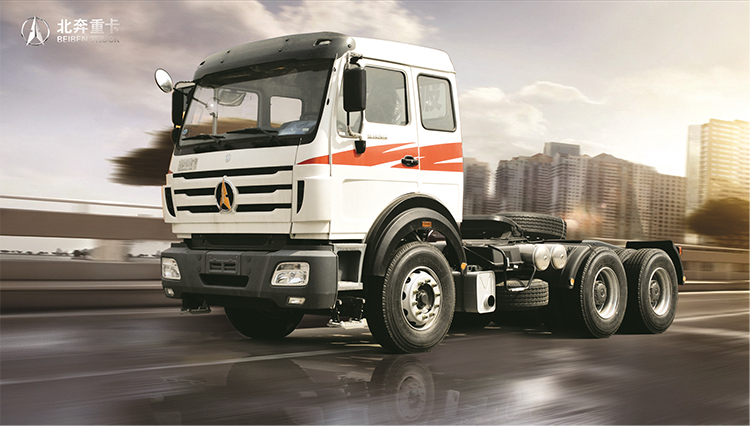

BEIBEN 6x4 tractor truck 2642SZ 420HP diesel engine.
BEIBEN 6x4 tractor truck 2642SZ 420HP diesel engine has a metal frame + skin structure, which has the same level of safety as a European car, and meets the European ECER29 safety regulations.
The frame is stamped and formed at one time to ensure the strength of the girder. The axle is selected as Beiben axle. Mercedes-Benz's unique axle technology improves the reliability of the vehicle, fuel-saving, and high attendance rate. Reinforced structure, suitable for transporting all kinds of heavy goods.
After recent years of construction and development capacity,the company currently has 100,000 vehicle supporting ability.The company currently production area of 70,000 M3,existing staff 688 peosons,including engineering and technical personnel 66 persons,senior engineer 8 peosons,engineer 47 persons.The company has a complete operation system from product development to market sales,the weapons and equipment system certification and ISO9001-2008 system certification.
|
Wheel base (mm) |
3450+1450 |
|||
|
Engine(WEICHAI) |
Model |
WP12.420E32，water-cooled，four strokes，6 cylinders straight in line，turbocharged,
|
||
|
Fuel type |
Diesel EUROⅡ |
|||
|
Power |
420HP |
|||
|
Fuel tanker capacity （L） |
400L |
|||
|
Clutch |
Model |
Φ430, Diaphragm Spring，Hydraulic boosting |
||
|
Gearbox |
Model |
12JS200T |
||
|
Brake system |
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
||
|
Assistant brake
|
Engine exhaust brake |
|||
|
Park brake
|
Potential springs pressing on middle and rear wheels |
|||
|
Steering system |
Model |
8098 Hydraulic boosting |
||
|
Suspension system
|
Front Suspension
|
Non-free standing leaf spring，telescopic shock absorber with stabilizer bar suspension |
||
|
Rear Suspension
|
Non-free standing stabilization spring， stabilization suspension
|
|||
|
Frame (Benz Technology) |
Fish belly shape, variable width, variable sections
|
|||
|
Cross section dimension of frame（mm）
|
317×70×8.5+7+12mm |
|||
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake,7.5tons non-driving steering axle
|
|||
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio 5.263
|
|||
|
Tire |
12.00R20 |
|||
|
Electrical system |
Battery |
2X12V/135Ah |
||
|
Generator |
28V-35A |
|||
|
Starter |
5.4Kw/24V |
|||
|
Cab |
NG80B Long flat cab with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly;
|
|||
|
Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio, high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C。
|
||||
|
Color |
Ice white |
|||
|
Fifth wheel |
#90 single direction |
|||
