Summary
- Max Digging Radius:6130mm
- Maximum Digging Depth:3830mm
- Maximum Digging Height:5630mm
- Bucket capacity:0.23-0.25m³
- Operating Weight:6010kg
- Model Number:XE60DA PLUS
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:6010.000kg
- Condition:New
- Moving Type:Crawler
- Displacement:3.054L
- Swing speed:10r/min
- Travel system pressure:24Mpa
- Engine oil capacity:12L
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

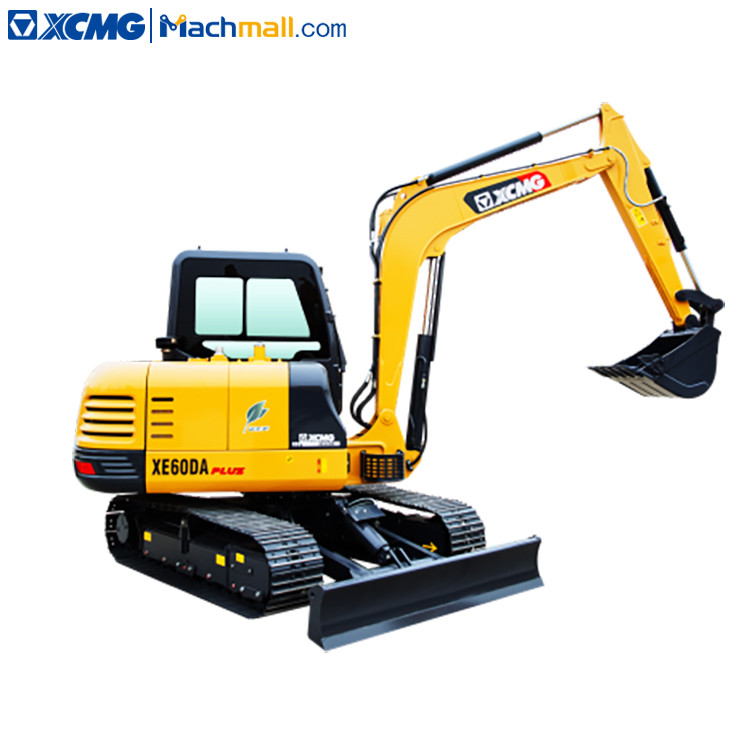

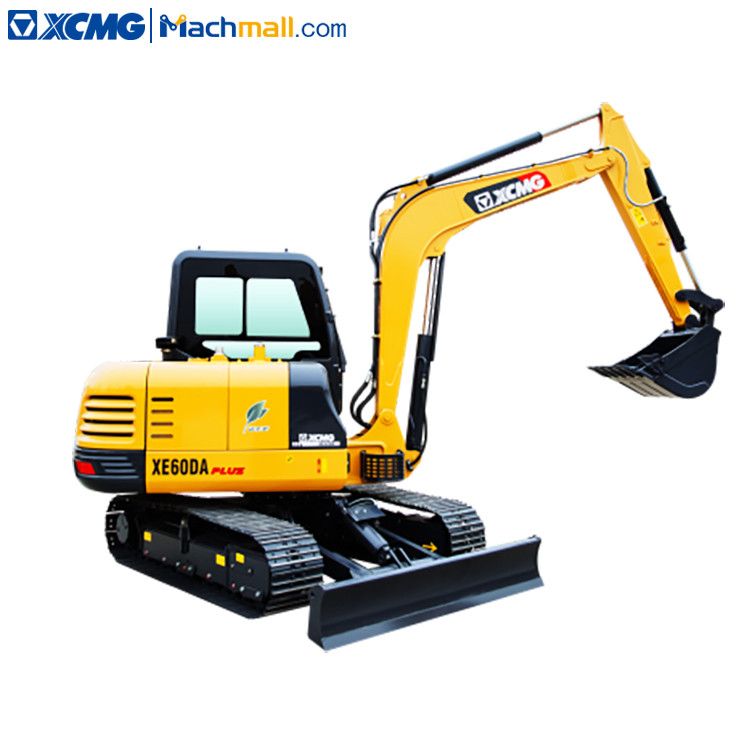

XCMG 6 ton crawler excavator XE60DA PLUS.
XCMG 6 ton crawler excavator XE60DA PLUS has the functions of digging, loading, leveling, opening, breaking, drilling, clamping, lifting and so on. It plays an increasingly important role in the construction and production fields of water and electricity, transportation, municipal administration, garden, farmland transformation, oil pipeline and so on.
Advantages:
1. The chassis is widened by 100mm, with good excavation stability;
2. Standard electronic throttle, with automatic idle function, E/P/B three operating modes;
3. Upgrade of main valve, small impact of action, high coordination of compound action;
4. Optimize the floor structure and seal of the cab, reduce indoor noise and operation fatigue, make the cab cleaner and improve the cab texture;
5. Rotation start stop impact optimization, start stop impact is small, lifting operation is easier;
6. The walking speed automatically switches according to the resistance, with simple operation and high walking efficiency.
|
Sales model |
|
Unit |
XE60DA PLUS |
|
Operating weight |
|
Kg |
6010 |
|
Bucket capacity |
|
m³ |
0.23-0.25 |
|
Engine |
Model |
/ |
4TNV94L |
|
|
No. of cylinders |
/ |
4 |
|
|
Rated power |
kw/rpm |
36.2/2100 |
|
|
Displacement |
L |
3.054 |
|
Main performance |
Travel speed |
km/h |
4.2/2.4 |
|
|
Swing speed |
r/min |
10 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
32.5 |
|
|
Bucket digging force |
kN |
48.3 |
|
|
Arm digging force |
kN |
32.5 |
|
|
Maximum tractive force |
kN |
50.5 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
151.8 |
|
|
Main safety valve pressure |
MPa |
24.5 |
|
|
Travel system pressure |
MPa |
24 |
|
|
Swing system pressure |
MPa |
24 |
|
|
Pilot system pressure |
MPa |
3.5 |
|
Oil Capacity |
Fuel tank capacity |
L |
110 |
|
|
Hydraulic tank capacity |
L |
85 |
|
|
Engine oil capacity |
L |
12 |
|
Appearance size |
A Overall length |
mm |
5860 |
|
|
B Overall width |
mm |
2020 |
|
|
C Overall height |
mm |
2585 |
|
|
D Width of platform |
mm |
1780 |
|
|
F Overall width of chassis |
mm |
2020 |
|
|
G Track width |
mm |
400 |
|
|
H Wheel base of crawler |
mm |
2060 |
|
|
I Track gauge |
mm |
1600 |
|
|
J Counterweight clearance |
mm |
700 |
|
|
K Min. ground clearance |
mm |
385 |
|
Working scope |
A Max. digging height |
mm |
5630 |
|
|
B Max. dumping height |
mm |
3945 |
|
|
C Max. digging depth |
mm |
3830 |
|
|
F Max. digging radius |
mm |
6130 |
|
|
G Min. swing radius |
mm |
2460 |
