Summary
- Max Digging Radius:6130mm
- Maximum Digging Depth:3830mm
- Maximum Digging Height:5630mm
- Bucket capacity:0.21-0.23m³
- Operating Weight:5750kg
- Model Number:XE55DA PLUS
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- weight:5750.000kg
- Condition:New
- Moving Type:Crawler
- Swing speed:10r/min
- Fuel tank capacity:110L
- No. of cylinders:4
- Travel speed:4.2/2.2km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

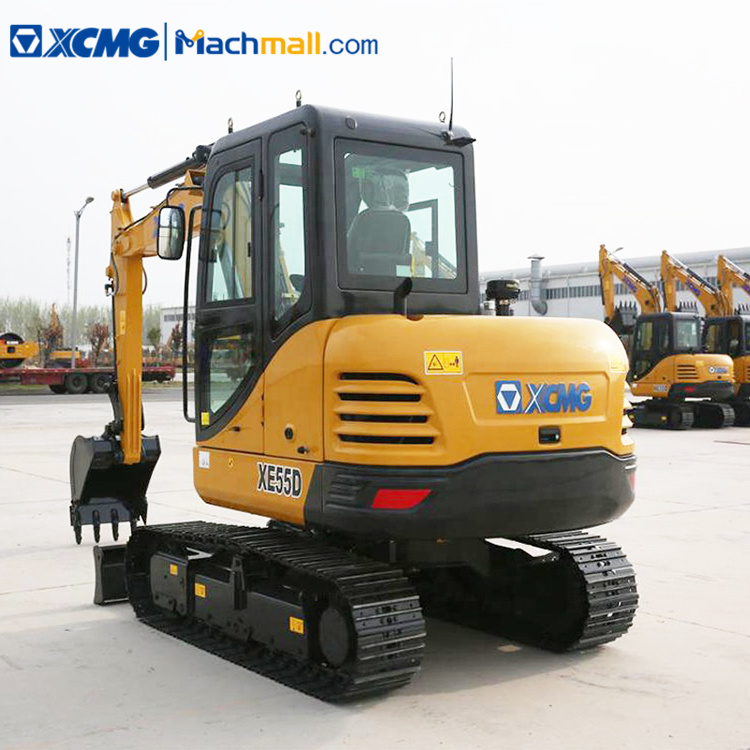

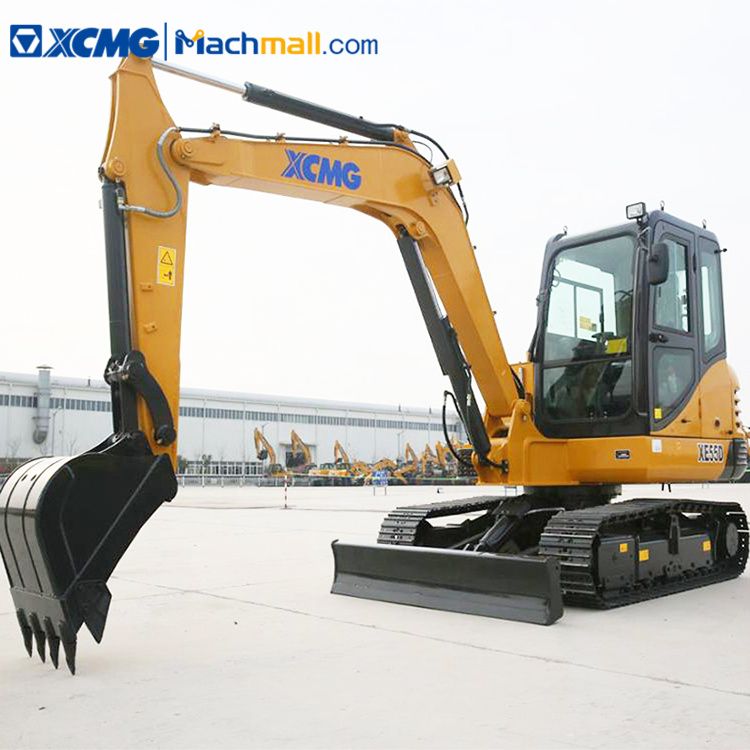

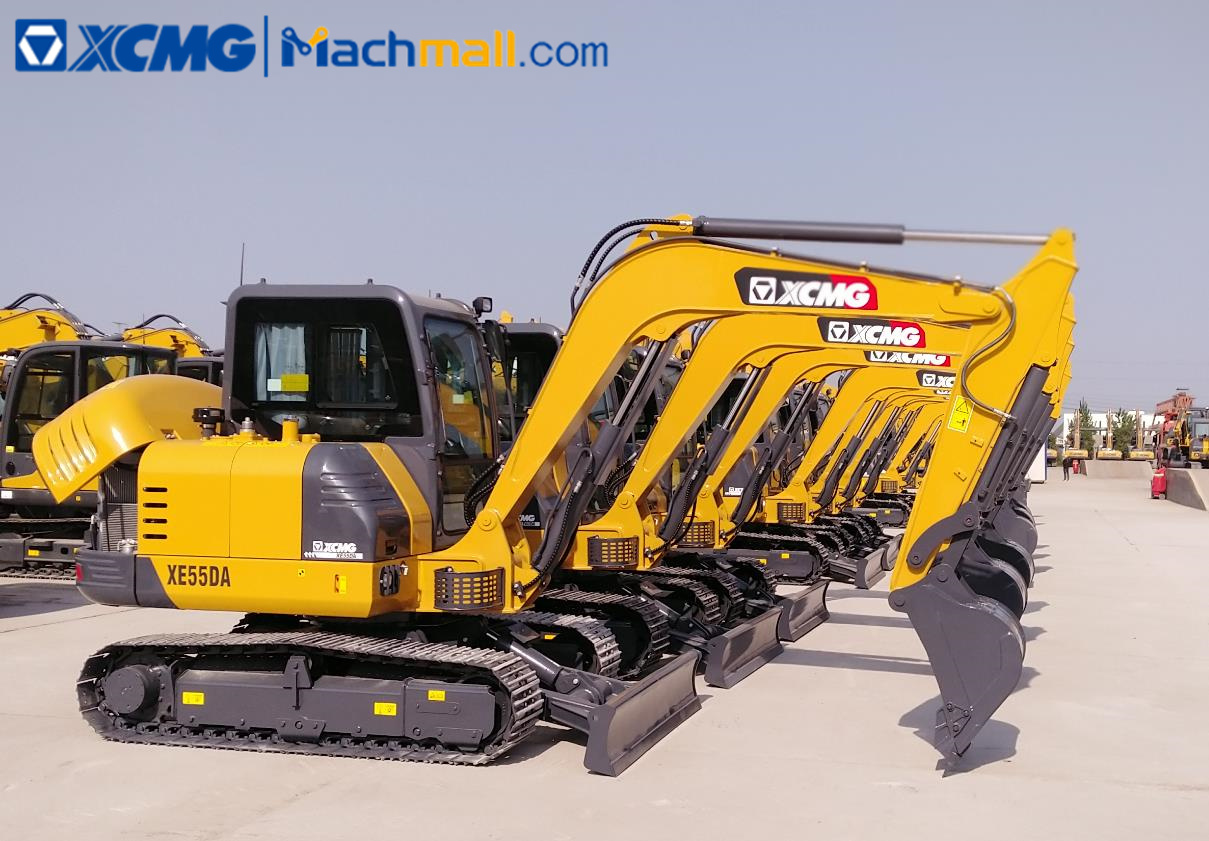

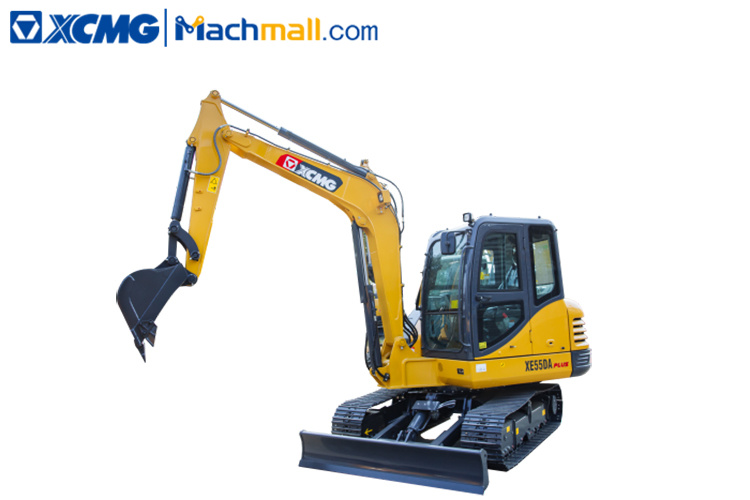

China 5 ton excavator XCMG XE55DA PLUS small hydraulic excavator.
XCMG 5 ton excavatorXE55DA PLUS is widely used in small earthwork, municipal construction, road repair, broken concrete, buried cable, irrigation and water conservancy construction, garden cultivation and river silting and other projects.
Advantages:
1. Widened and lengthened chassis with good excavation stability.
2. Match "8-ton" large diameter main valve, soft control, good coordination of composite action, good flat performance.
3. Heat balance temperature is reduced by 6 degrees, high temperature adaptability and anti-pollution ability is strengthened.
4. Optimize the structure and seal of the cab, reduce indoor noise and operation fatigue, make the cab cleaner and improve the cab texture.
5. Optimized handle operation force to reduce fatigue.
6. Optimized rotary control, easier lifting operation.
Sales model |
|
Unit |
XE55DA PLUS |
Operating weight |
|
Kg |
5750 |
Bucket capacity |
|
m³ |
0.21-0.23 |
Engine |
Model |
/ |
V2607 |
|
No. of cylinders |
/ |
4 |
|
Rated power |
kw/rpm |
35/2000 |
|
Displacement |
L |
2.615 |
Main performance |
Travel speed |
km/h |
4.2/2.2 |
|
Swing speed |
r/min |
10 |
|
Gradeability |
° |
35 |
|
Ground pressure |
kPa |
31 |
|
Bucket digging force |
kN |
48.3 |
|
Arm digging force |
kN |
32.5 |
|
Maximum tractive force |
kN |
50.5 |
Hydraulic system |
Rated flow of main pump |
L/min |
150 |
|
Main safety valve pressure |
MPa |
24.5 |
|
Travel system pressure |
MPa |
24.5 |
|
Swing system pressure |
MPa |
24 |
|
Pilot system pressure |
MPa |
3.5 |
Oil Capacity |
Fuel tank capacity |
L |
110 |
|
Hydraulic tank capacity |
L |
77 |
|
Engine oil capacity |
L |
10 |
Appearance size |
A Overall length |
mm |
5860 |
|
B Overall width |
mm |
1980 |
|
C Overall height |
mm |
2585 |
|
D Width of platform |
mm |
1780 |
|
F Overall width of chassis |
mm |
1980 |
|
G Track width |
mm |
400 |
|
H Wheel base of crawler |
mm |
2060 |
|
I Track gauge |
mm |
1560 |
|
J Counterweight clearance |
mm |
700 |
|
K Min. ground clearance |
mm |
385 |
Working scope |
A Max. digging height |
mm |
5630 |
|
B Max. dumping height |
mm |
3945 |
|
C Max. digging depth |
mm |
3830 |
|
F Max. digging radius |
mm |
6130 |
|
G Min. swing radius |
mm |
2640 |
