XCMG Manufacturer 40 tons Excavator Machine XE370CA for sale
Summary
- Machine Weight:36600kg
- Maximum Digging Depth:6786mm
- Maximum Digging Height:9891mm
- Bucket capacity:1.4～1.8m3
- Model Number:XE370CA
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
Specifications
- Weight:36600.000kg
- Condition:New
- Moving Type:Crawler
- Output power:190.5/2000kW/ r/min
- Bucket digging force:263kn
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

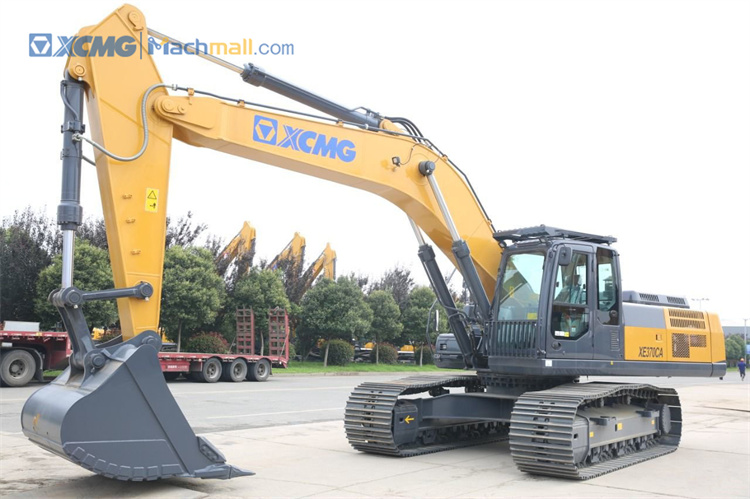

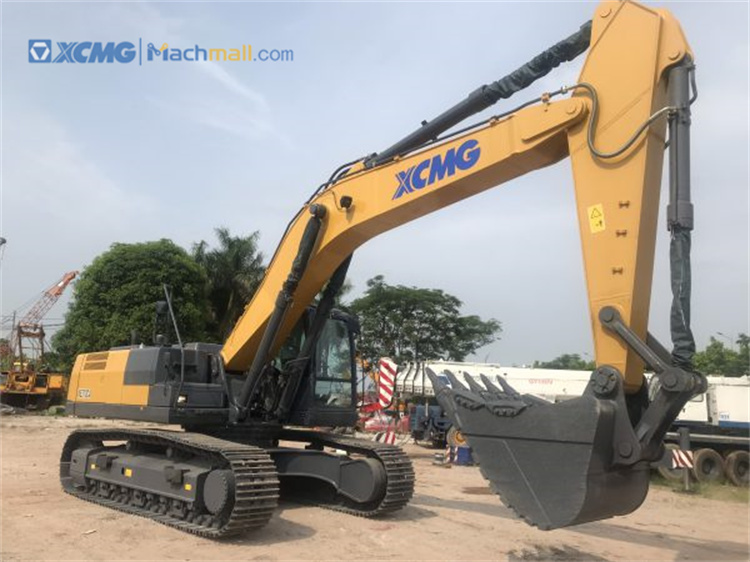

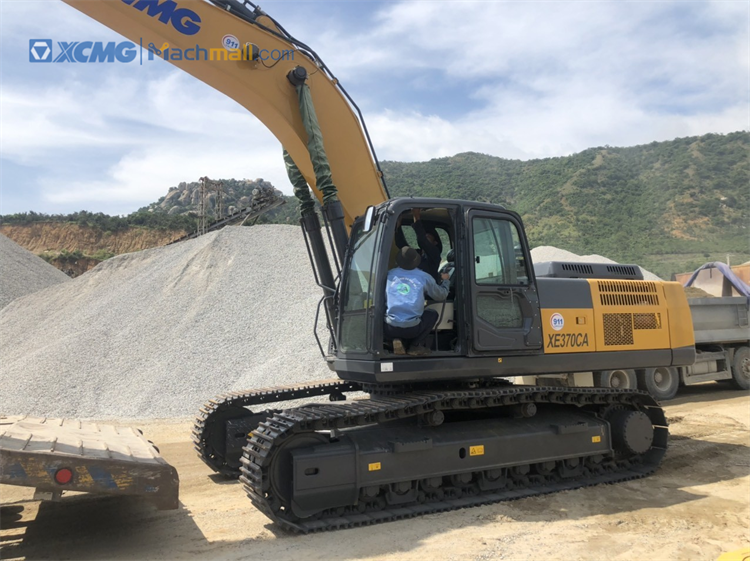

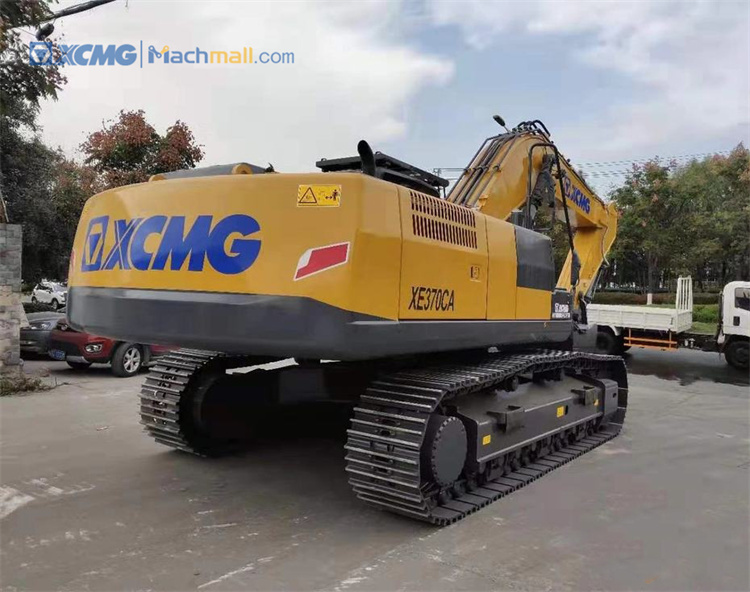

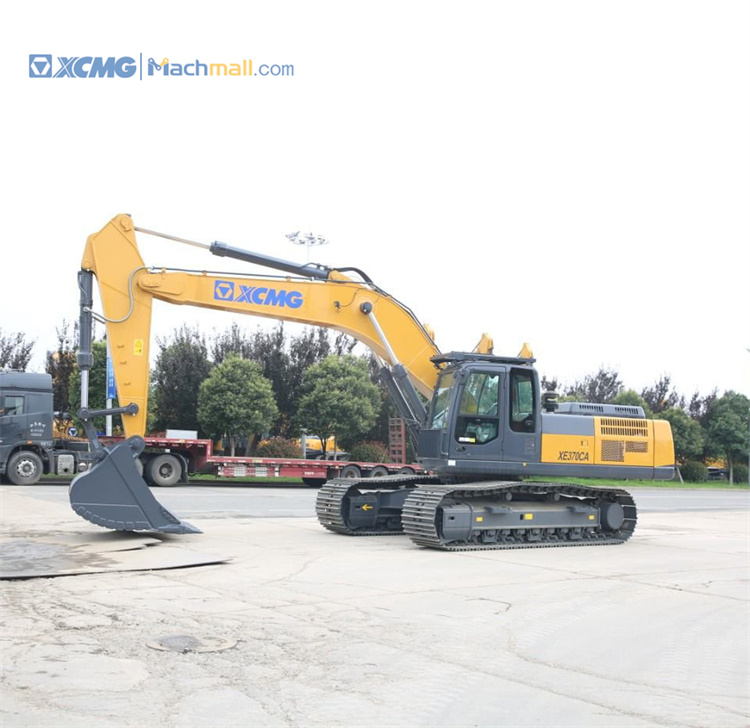

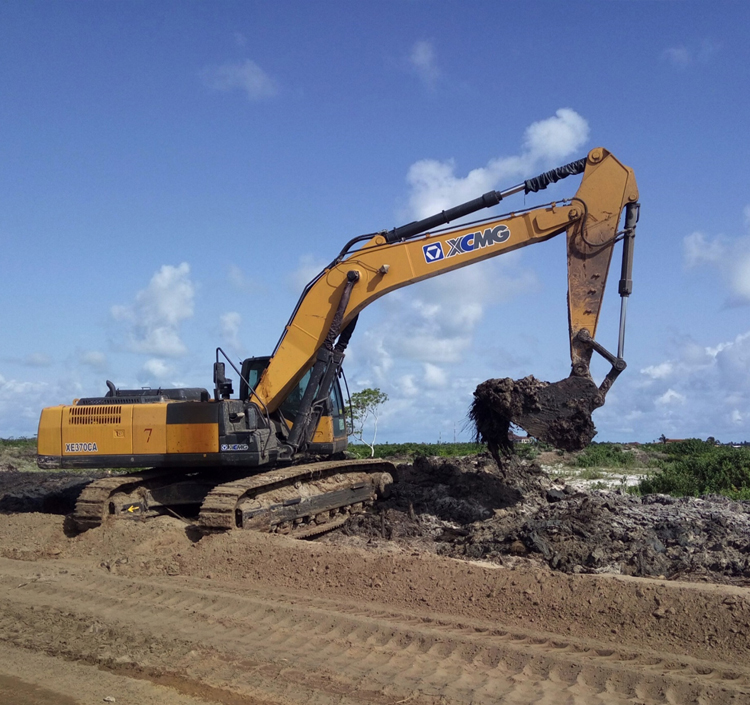

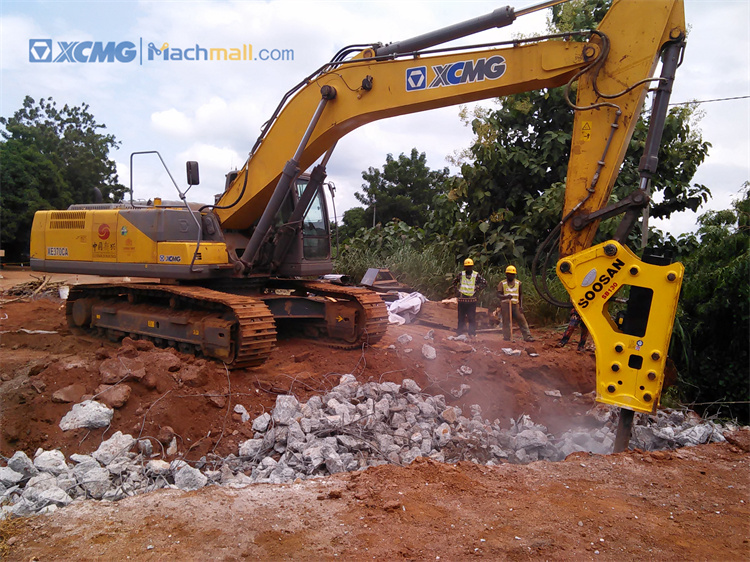

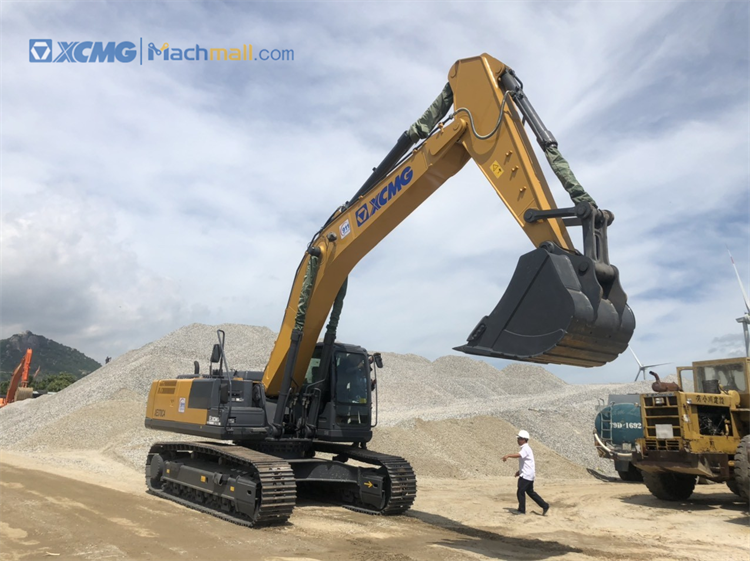

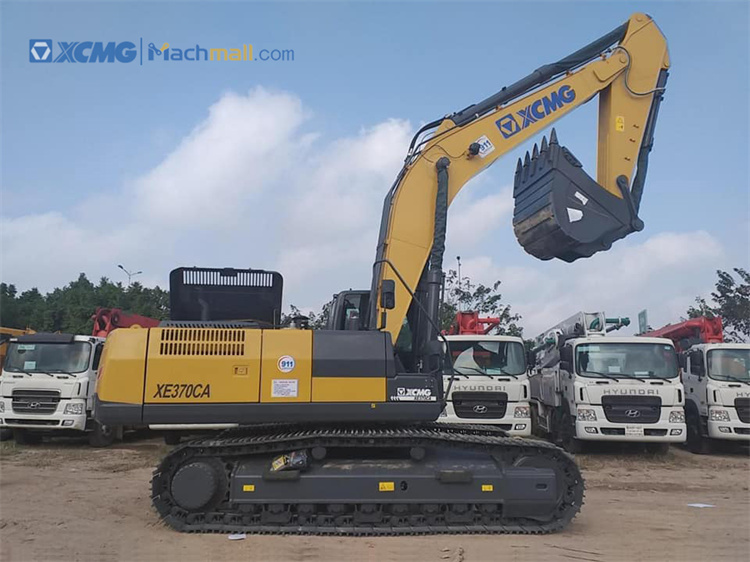

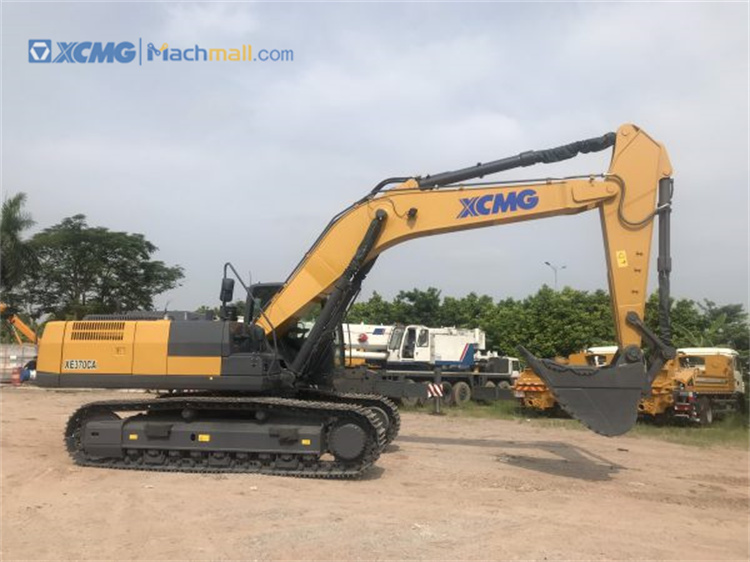

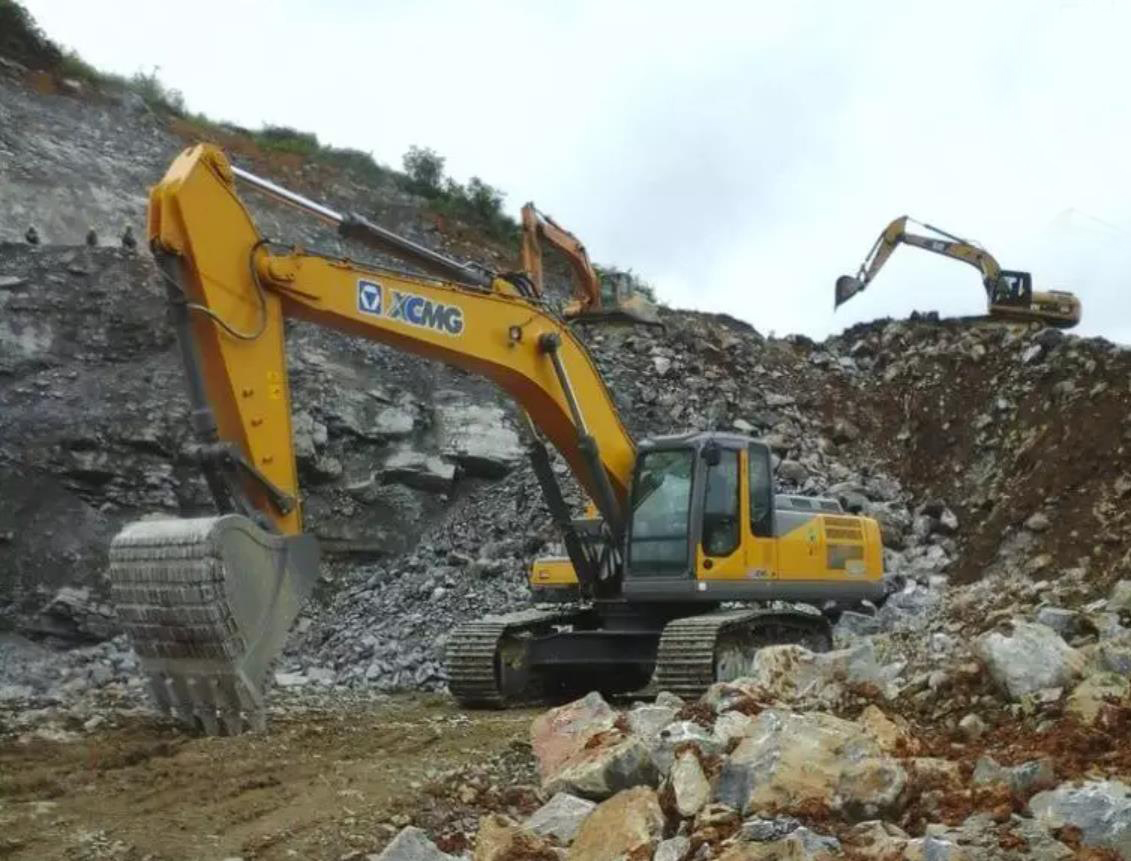

XCMG Manufacturer 40 tons Excavator Machine XE370CA.
XCMG XE370CA is the most popular model of China 40 ton excavator machine. As a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, tunnels and other harsh construction environment.
XE370CA Characteristics:

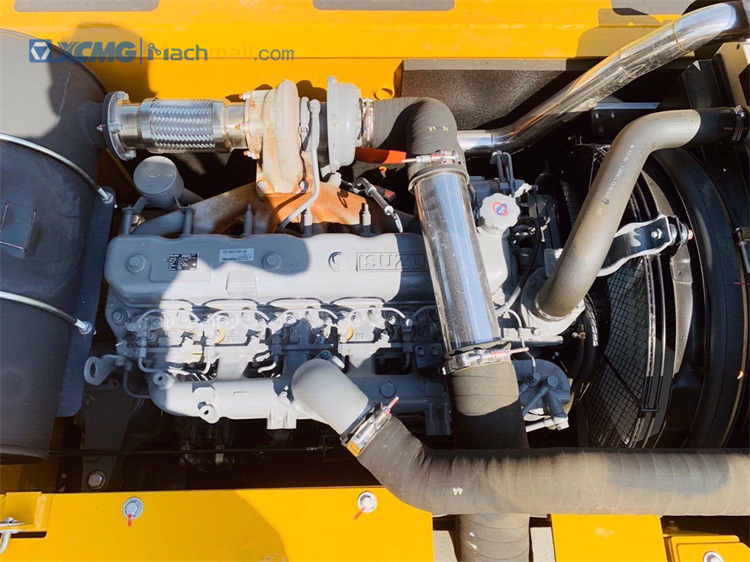

1. Engine:
The imported lsuzu engine with original packing has strong power and can meet the requirements of high-efficient work. Also, its low oil consumption, low noise and low emission can fully meet the international environmental emissions and noise standard.
2. Hydraulic system:
International advanced and reliable negative flow control system, through the double pump confluence to increase the flow distribution from multi-way valve for each action cylinder, provide a powerful digging capacity for excavator and improve work efficiency at the maximum limit.
3. Intelligent electronic control system:
A new generation of intelligent electronic control system, with features of intelligence, environmental protection, safety, realizes the balance between power and hydraulic load; Intelligent electric control realizes remote control, new memory function records working process at any time, power conversion unit optimizes the power use.
|
Description |
|
Unit |
Parameter value |
|
Operating weight |
|
kg |
36600 |
|
Bucket capacity |
|
m³ |
1.4～1.8 |
|
Engine |
Model |
Engine |
AA-6HK1XQP |
|
|
Direct injection |
--- |
√ |
|
|
Four strokes |
--- |
√ |
|
|
Water cooling |
--- |
√ |
|
|
Turbo-charging |
--- |
√ |
|
|
Air to air intercooler |
--- |
√ |
|
|
No. of cylinders |
--- |
6 |
|
|
Output power |
kW/ r/min |
190.5/2000 |
|
|
torque/speed |
N.m |
872.8/1700 |
|
|
Displacement |
L |
7.79 |
|
|
Travel speed（H/L) |
km/h |
5.4/3.2 |
|
Main performance |
Gradeability |
% |
70 |
|
|
Rotary speed |
r/min |
9.6 |
|
|
Ground pressure |
kPa |
66.6 |
|
|
Bucket digging force |
kN |
263 |
|
|
Arm digging force |
kN |
225 |
|
Hydraulic system |
Main pump |
-- |
K5V160DTH |
|
|
Rated flow of main pump |
L/min |
2×320 |
|
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Pressure of pilot system |
MPa |
3.9 |
|
Oil Capacity |
Fuel tank capacity |
L |
630 |
|
|
Hydraulic tank capacity |
L |
320 |
|
|
Engine oil capacity |
L |
28 |
|
Appearance size |
Overall length |
mm |
11386/6.4m boom、11186/6.2m boom |
|
|
Overall width |
mm |
3190 |
|
|
Overall height |
mm |
3530/6.4m boom、3676/ 6.2m boom |
|
|
Width of platform |
mm |
2950 |
|
|
Length of crawler |
mm |
5035 |
|
|
Overall width of chassis |
mm |
3190/600 Crawer、3290/700 Crawer、 |
|
|
Width of crawler |
mm |
600 |
|
|
Wheel base of crawler |
mm |
4040 |
|
|
Crawler gauge |
mm |
2590 |
|
|
Clearance under counterweight |
mm |
1197 |
|
|
Min. ground clearance |
mm |
500 |
|
|
Min. rear-end swing radius |
mm |
3570 |
|
|
Max. digging height |
mm |
10123 |
|
Working scope (2.71m arm) |
Max. dumping height |
mm |
6947 |
|
|
Max. digging depth |
mm |
6927 |
|
|
Max. digging depth at the range of level 8 feet |
mm |
6709 |
|
|
Max. vertical wall digging depth |
mm |
5312 |
|
|
Max. digging reach |
mm |
10470 |
|
|
Min. swing radius |
mm |
4424 |
|
Working scope (2.5m arm) |
Max. digging height |
mm |
9891 |
|
|
Max. dumping height |
mm |
6820 |
|
|
Max. digging depth |
mm |
6786 |
|
|
Max. digging depth at the range of level 8 feet |
mm |
6666 |
|
|
Max. vertical wall digging depth |
mm |
4914 |
|
|
Max. digging reach |
mm |
10414 |
|
|
Min. swing radius |
mm |
4416 |
|
Worker Standard |
Length of boom |
mm |
6400 |
|
|
Length of arm |
mm |
2670 |
|
|
Bucket capacity |
m³ |
1.6 |
|
Worker Optional |
Length of arm |
mm |
2900/3200/4000 |
|
|
Bucket capacity |
m³ |
1.4/1.5/1.8 |
