40 Ton Hydraulic Material Handler WZY40-8C
Summary
Specifications
- Weight:11111.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
● Engine emmissions conform to the latest environmental regulations.
● It is equipped with the world famous brand hydraulic components.
● Wide operating range, powerful grabbing force and high working efficiency.

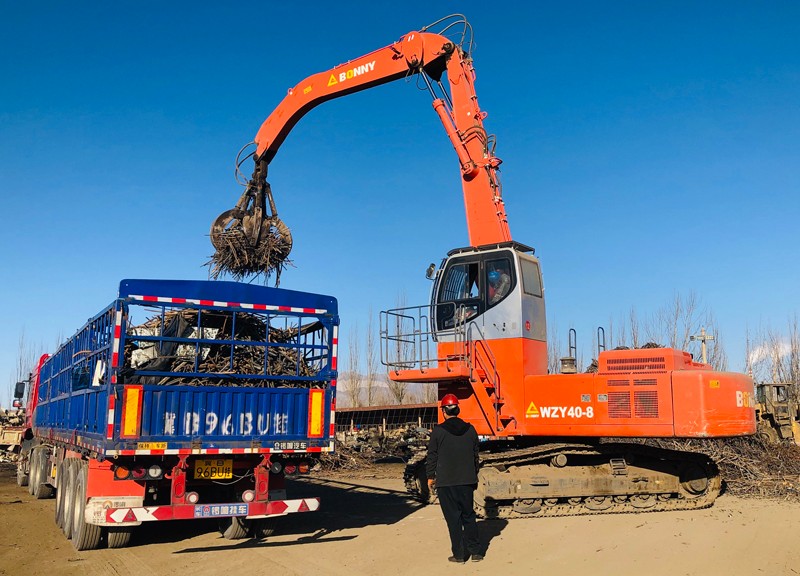

● Applicable for loading, unloading, stacking, transferring and packing in scrap steel yards, wharf yards, railway yards, as well as light material industry.
● The following advanced systems can be selected individually or in combination as required: Monitoring system with displayer, electronic weighing system, radiation detection system, automatic central lubricating system, rubber track, tools applicable (Multi-tine Grab, Clamshell grab, Timber grab, Hydraulic shears, Hydraulic pliers etc.).
|
Item |
Unit |
Data |
|
Machine weight |
t |
40 |
|
Diesel engine power |
kW |
169 |
|
Rated speed |
rpm |
1900 |
|
Max. flow |
L/min |
2×266 |
|
Max. operation pressure |
MPa |
30 |
|
Swing speed |
rpm |
8.1 |
|
Travel speed |
km/h |
2.8/4.7 |
|
Cycling time of operation |
s |
16-22 |
|
Working attachment |
Data |
|
|
Boom length |
mm |
7700 |
|
Stick length |
mm |
6000 |
|
Capacity with multi-tine grab |
m3 |
1.0 (semi-closure)/1.2 (open type) |
|
Max. grabbing reach |
mm |
14806 |
|
Max. grabbing height |
mm |
12199 |
|
Max. grabbing depth |
mm |
7158 |
※ The product may be improved and upgraded. Data are subject to change without notice.
