China HANVAN 6*4 32 ton Dump Truck NXG3250D3WC price
Specifications
- Weight:15600.000kg
- Condition:New
- Moving Type:Wheel
- Kerb Mass:15600kg
- Grade Ability:≥31%
- Left/Right Driving:RHD
- Person Allowed in:2
- Emission Standard:EUR II
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

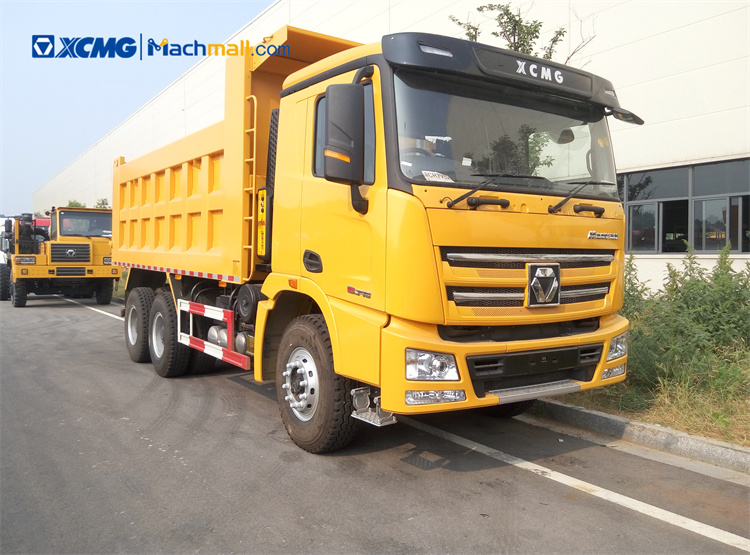

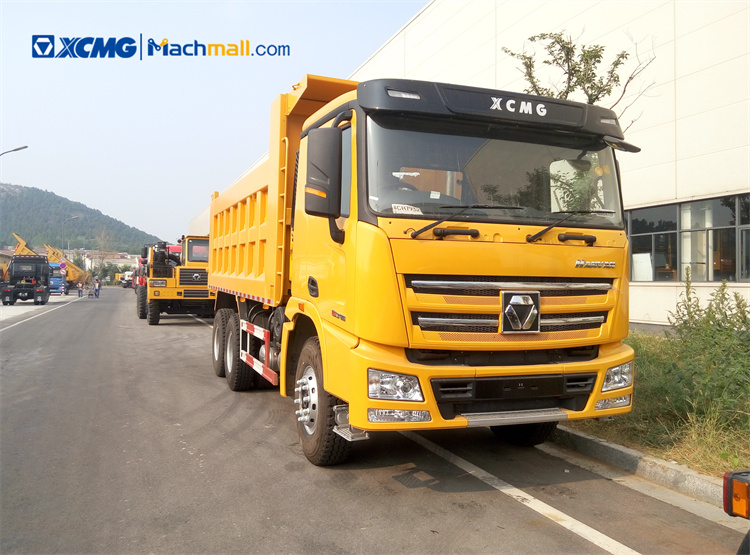

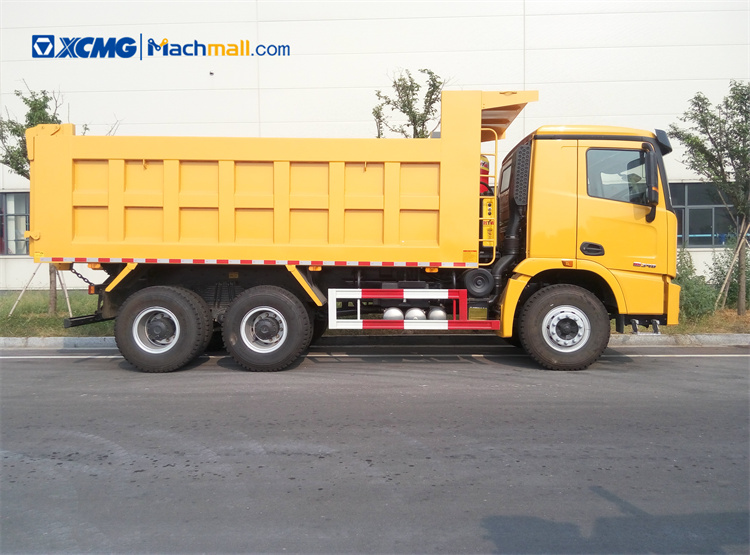

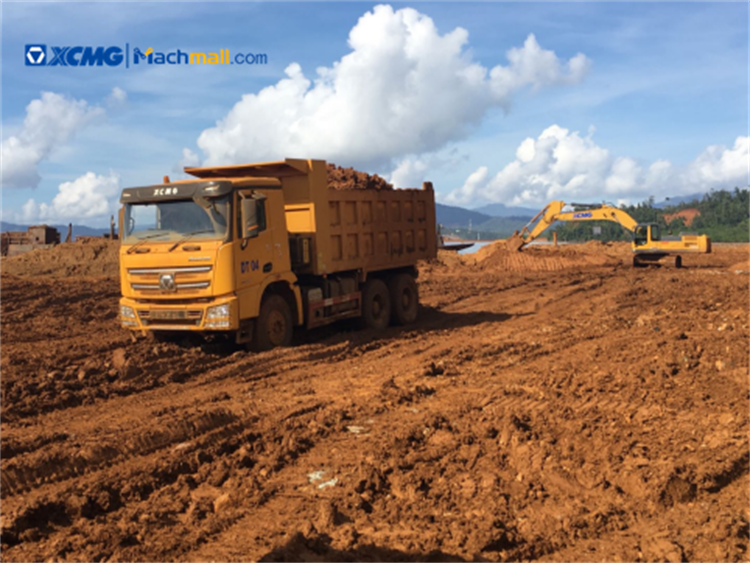

China HANVAN 6*4 32 ton Dump Truck NXG3250D3WC.
XCMG HANVAN 6*4 32 ton dump truck are equipped withWeichaiand Sinotruk engine, Fast transmission, Hande axle, which are the most successful brand in each field.
The horsepower is from 336HP to 430HP to meet multiple demands.
Key assembly components are optimized by CAE analysis and verifications, suchas parts bench test, vehicle benchreliability test andenhanced pavement test, which have dramatically improved the service lifetime and reliability, and the trucks can be applied to various working conditions.
XCMG Automotive covers almost all product lines in the heavy truck industry, including tractors, dump trucks, trucks, mixer trucks, special vehicles, off-highway wide-body dump trucks,etc.

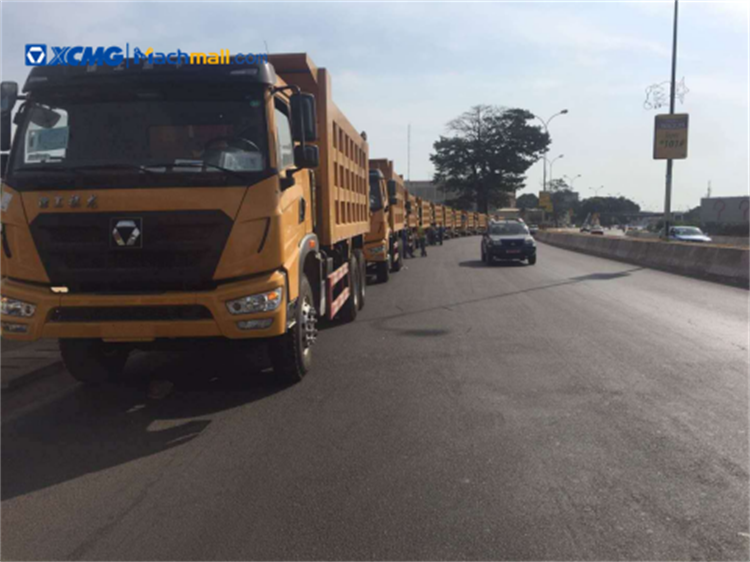

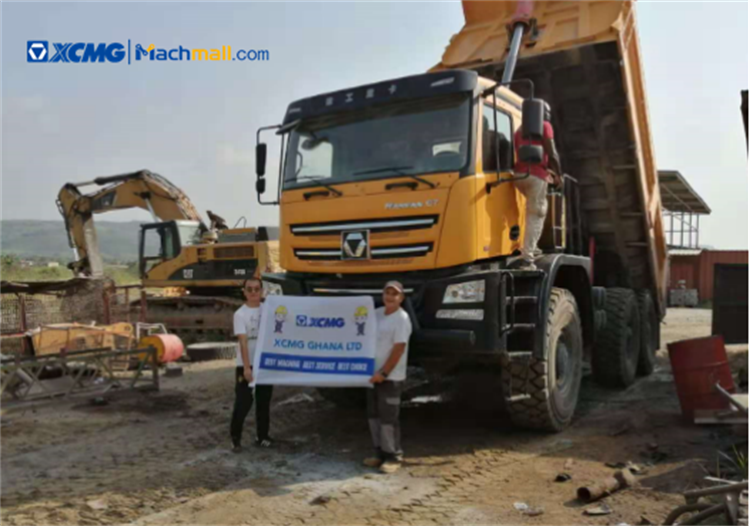

Among them, dump trucks and off-highway wide-body vehicles are mainly exported to Australia, Philippines, Malaysia, Solomon, Thailand, Indonesia, Myanmar, Laos East Timor North Korea, Mongolia, Tajikistan, Uzbekistan, the Democratic Republid of Congo, Guinea, Ethiopia, Senegal, Suriname, Cameroon, Gabon, Ghana, Nigeria and other countries.
|
Appearance size |
||
|
Front overhang |
1500mm |
|
|
First and second wheel base |
4150mm |
|
|
Second and third wheel base |
1400mm |
|
|
Rear overhang |
1900mm |
|
|
Container length |
5800mm |
|
|
Max length |
8950mm |
|
|
Cab height |
3080mm |
|
|
Height of container above ground |
2920mm |
|
|
Container height |
1500mm |
|
|
Max height |
3535mm |
|
|
Wheel tread |
2047mm |
|
|
Overall width |
2550mm |
|
|
Max width |
2970mm |
|
|
PERFORMANCE PARAMETERS |
||
|
Drive Type |
6×4 |
|
|
Kerb Mass |
15600kg |
|
|
GVW |
48100kg |
|
|
Max. Speed |
85km/h |
|
|
Min. Turning Diameter |
20m |
|
|
Grade Ability |
≥31% |
|
|
Fuel Tank |
300L |
|
|
DIMENSIONS |
||
|
Dimension (mm) |
8950×2550×3535 |
|
|
Wheelbase (mm) |
4150+1400 |
|
|
Min. Clearance |
281mm |
|
|
Approach Angle |
25° |
|
|
Departure Angle |
26° |
|
|
Front Overhang |
1500mm |
|
|
Rear Overhang |
1900mm |
|
|
Cargo size (mm) |
5800×2300×1500 |
|
|
CABIN |
||
|
Model |
G7LMR |
|
|
Left/Right Driving |
RHD |
|
|
AC |
Optional |
|
|
Person Allowed in |
2 |
|
|
ENGINE |
||
|
Model |
WP10.336 |
WP10.375 |
|
Emission Standard |
EUR II |
|
|
Displacement |
9.726L |
|
|
Output Power |
247KW |
276KW |
|
Max Torque Speed |
1250N·m |
1460N·m |
|
CLUTCH |
||
|
Model |
Φ430 Pull type diaphragm spring clutch |
|
|
Manipulating |
Hydraulic manual |
|
|
TRANSMISSION |
||
|
Model |
9JSD150T-B |
16S2030TO |
|
PTO |
- |
|
|
Forward Ratio |
12.65~1.00 |
13.8-0.84 |
|
Reverse Ratio |
13.22/12.92 |
10.8 |
|
AXLE |
||
|
Front Axle Model |
9.5T |
|
|
Rear Axle Model |
16T |
|
|
Main Reducer Ratio |
4.769/5.262 |
|
